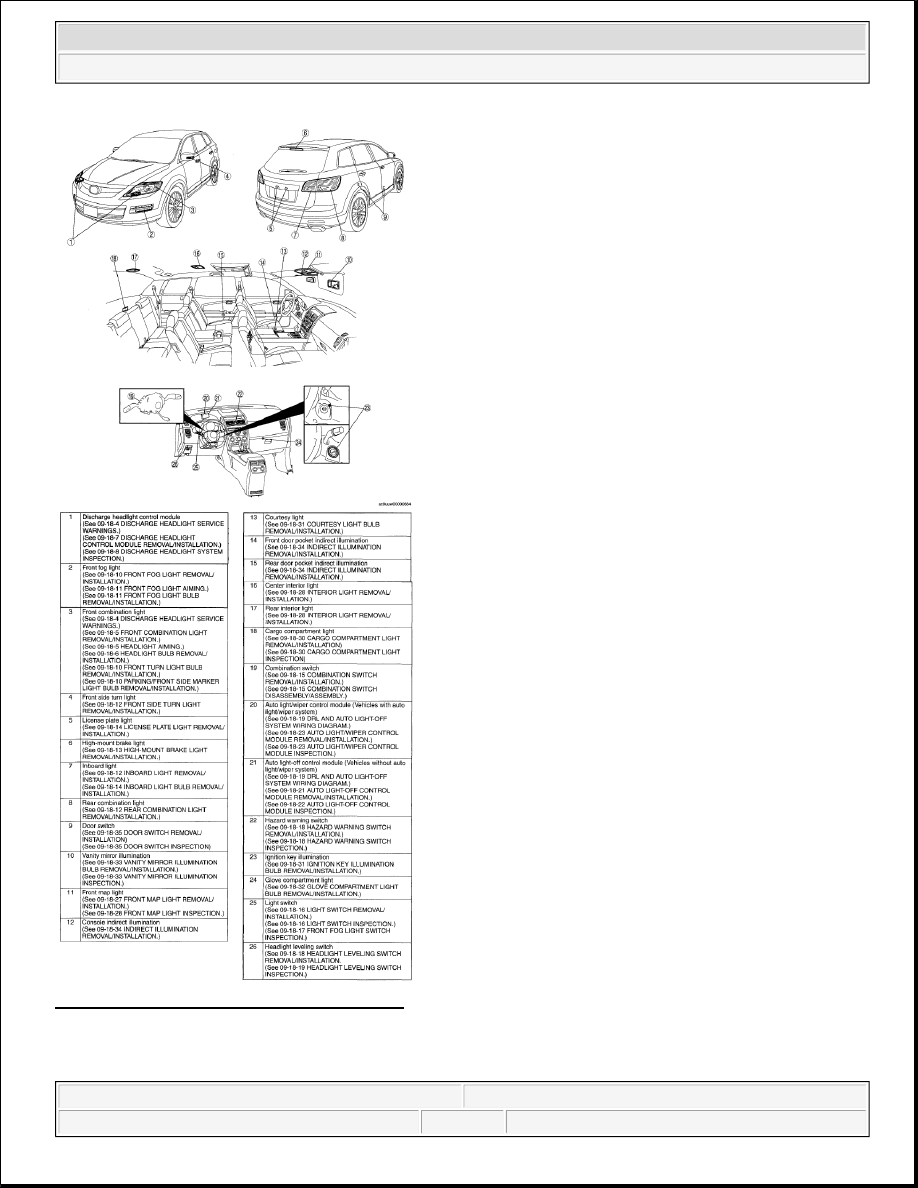

Fig. 1: Identifying Lighting Systems Location
Courtesy of MAZDA MOTORS CORP.

DISCHARGE HEADLIGHT SERVICE WARNINGS



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:05 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

DISCHARGE HEADLIGHT BULB SERVICE WARNINGS



To prevent electrical shock when replacing the discharge headlight bulb, dry hands thoroughly,
and perform the work in an area out of rain.



When the light switch is on, approx. 25,000 V of high voltage passes through the discharge
headlight bulb socket. Because of the danger of electrical shock, do not insert fingers or a tester.



When the headlights are on, high voltage flows around the socket and bulb. When turning on the
discharge headlights while working, always leave the headlights in the vehicle-installed condition to
prevent electrical shock.

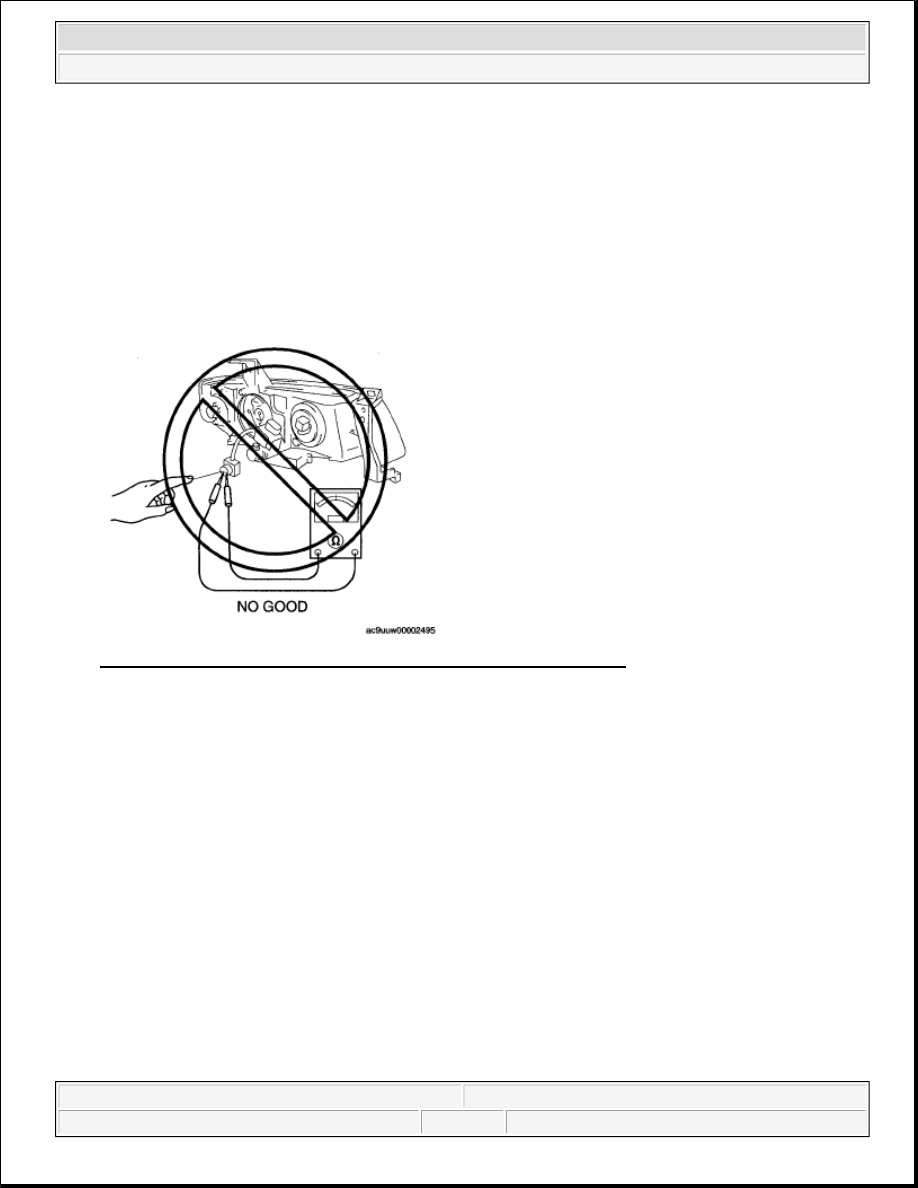

Fig. 2: Precaution For - Discharge Headlight Bulb Service Warnings
Courtesy of MAZDA MOTORS CORP.

DISCHARGE HEADLIGHT CONTROL MODULE SERVICE WARNINGS



Because of the danger of electrical shock, when inspecting with a tester, do not inspect the
discharge headlight control module as a single unit or disassemble it.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:05 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

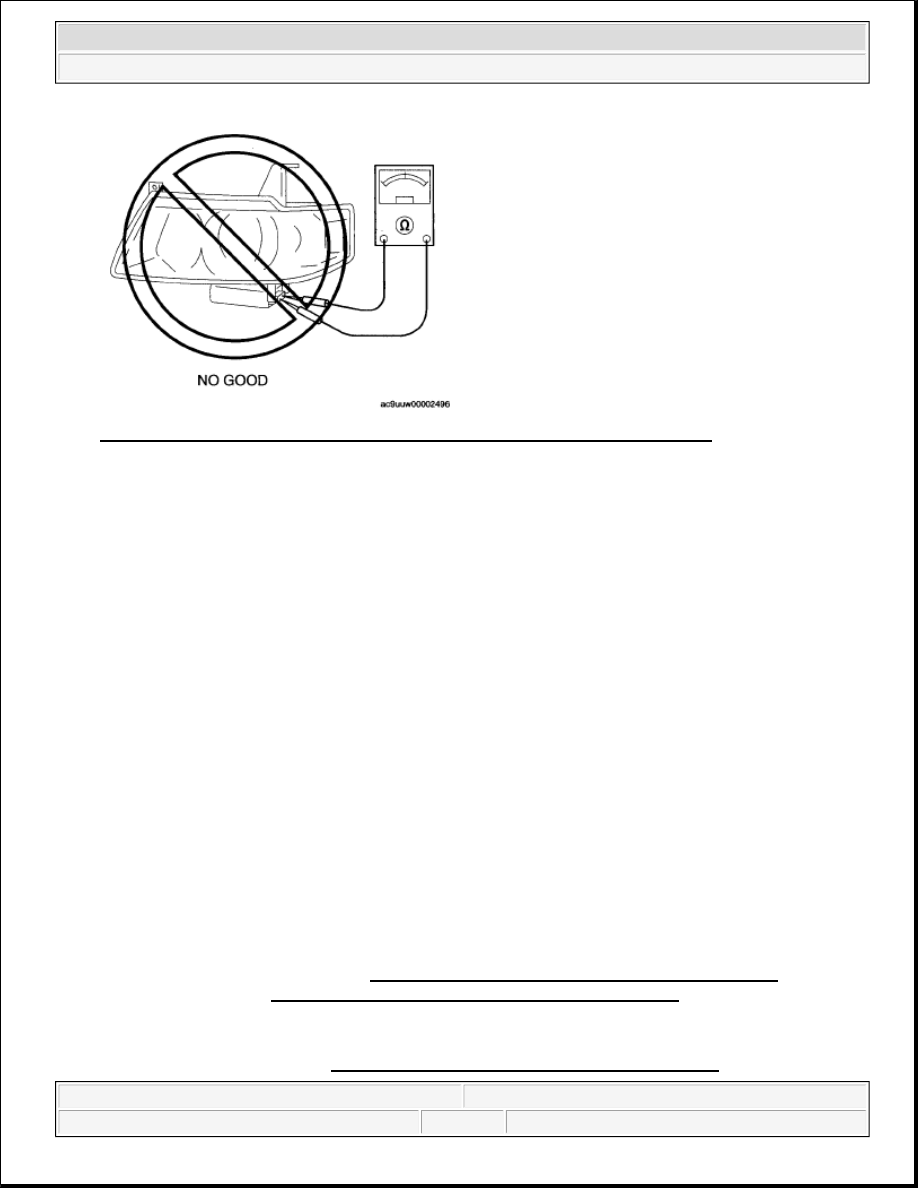

Fig. 3: Precaution For - Discharge Headlight Control Module Service Warnings
Courtesy of MAZDA MOTORS CORP.

DISCHARGE HEADLIGHT CONTROL MODULE REUSE



If the discharge headlight control module is dented or damaged in any way, replace the module
with a new one to prevent electrical shock and improper operation.



Although the control module may temporarily operate normally even though it has received an
impact, it is possible that the interior may have been damaged. When reusing the control module,
inspect the following items regarding discharge headlight illumination to verify that there are no
malfunctions.



Verify that the discharge headlights illuminate normally by testing them several times under
cold illumination (headlights off for approx. 10 min or more and then turned on) and hot
illumination (headlights on for approx. 15 min or more, turned off for approx. 1 min, and
then turned on again) conditions.



Inspect the headlight illumination in the period from directly after cold illumination until
they are uniformly illuminated (approx. 5 min) and verify that there is no flickering or
inconsistent brightness.



Turn on the headlights for approx. 30 min with normal condition bulbs and verify that there
is no brightness difference between the right and left, and that illumination is consistent.

FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

WARNING:



Incorrect servicing of the discharge headlights could result in
electrical shock. Before servicing the discharge headlights, always
refer to the DISCHARGE HEADLIGHT SERVICE WARNINGS. (See
DISCHARGE HEADLIGHT SERVICE WARNINGS.)
