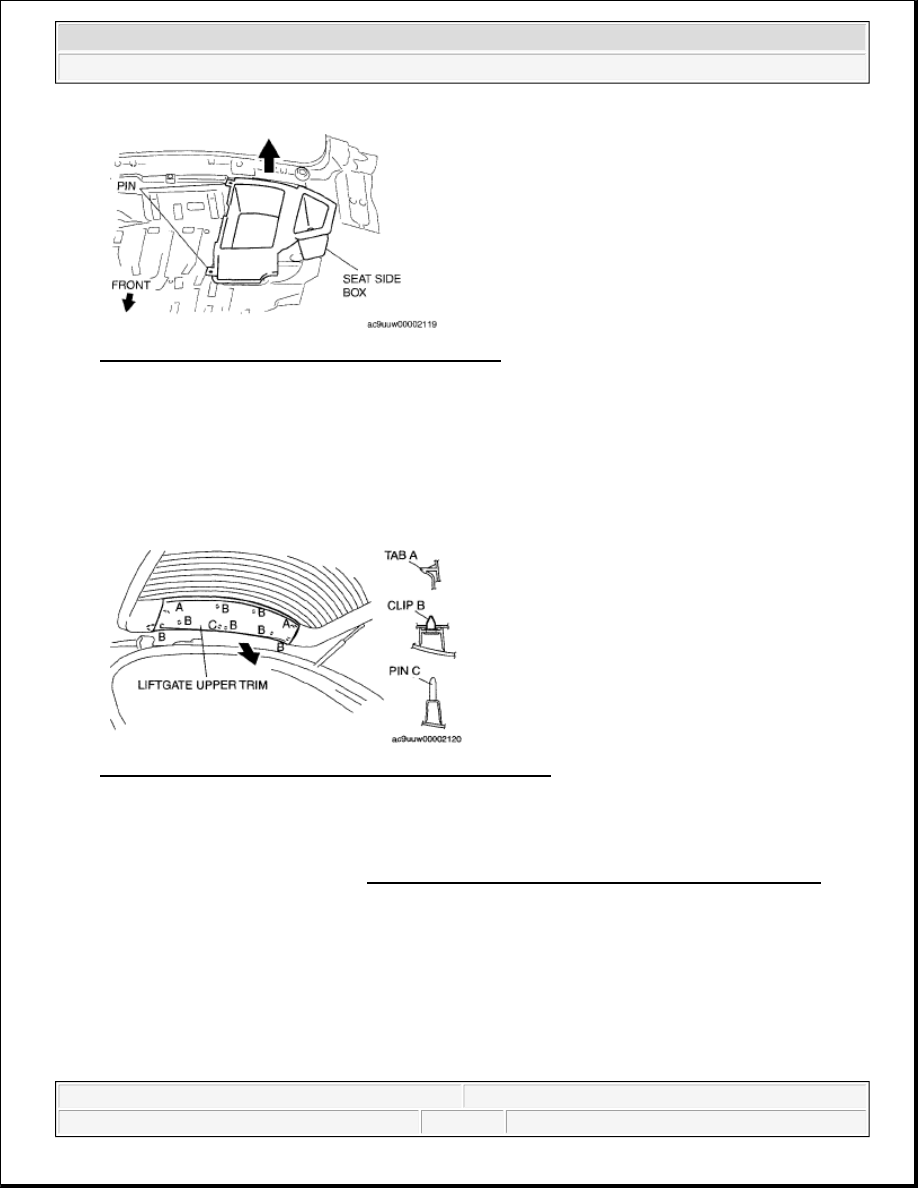

Fig. 72: Identifying Seat Side Box With Clips & Tab
Courtesy of MAZDA MOTORS CORP.

LIFTGATE UPPER TRIM REMOVAL/INSTALLATION

1. Detach tabs A, clips B, and pin C by pulling them in the direction of the arrow.

2. Remove the liftgate upper trim.

3. Install in the reverse order of removal.

Fig. 73: Identifying Liftgate Upper Trim, Clips, Pin & Tab
Courtesy of MAZDA MOTORS CORP.

LIFTGATE SIDE TRIM REMOVAL/INSTALLATION

1. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

2. Remove the PLG arm band. (Vehicles with PLG)

3. Remove the fastener.

4. Detach clips A and tab C by pulling them in the direction of the arrow.

5. Remove the liftgate side trim.

6. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 45

© 2005 Mitchell Repair Information Company, LLC.

Fig. 74: Identifying Liftgate Side Trim With Clips & Tab
Courtesy of MAZDA MOTORS CORP.

LIFTGATE LOWER TRIM REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3. Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

4. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, and pull the screwdriver

in the direction of the arrow to detach clips A.

5. Detach tabs B and remove the liftgate recess.

6. Disconnect the PLG sub switch connector. (Vehicles with PLG)

Fig. 75: Removing Liftgate Recess
Courtesy of MAZDA MOTORS CORP.

7. Remove the fasteners.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 46

© 2005 Mitchell Repair Information Company, LLC.

8. Detach clips A, tabs B, and pins C by pulling them in the direction of the arrow.

9. Disconnect the cargo compartment light connector.

10. Remove the liftgate lower trim.

11. Install in the reverse order of removal.

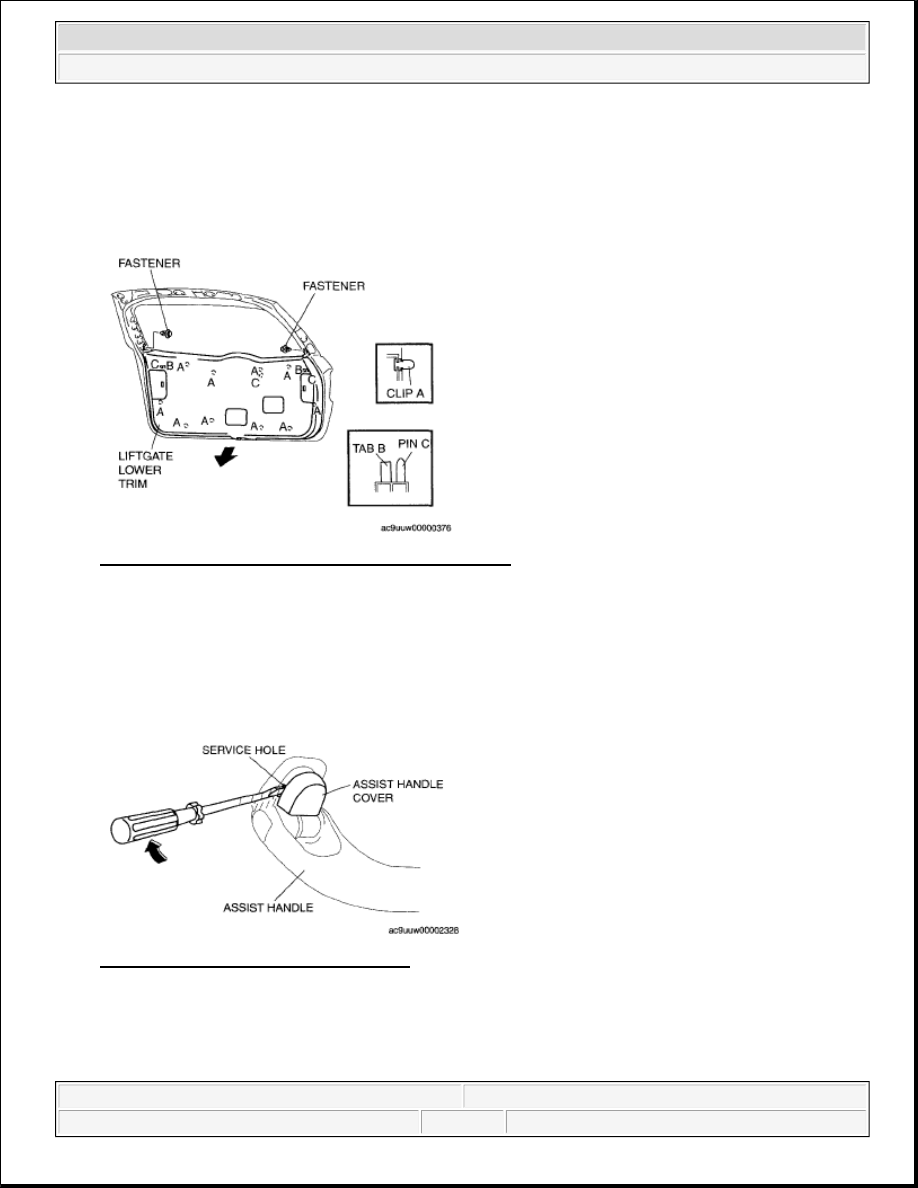

Fig. 76: Identifying Liftgate Lower Trim & Fasteners
Courtesy of MAZDA MOTORS CORP.

ASSIST HANDLE REMOVAL/INSTALLATION

ASSIST HANDLE REMOVAL

1. Insert a flathead screwdriver into the service hole and remove the assist handle covers.

Fig. 77: Removing Assist Handle Covers
Courtesy of MAZDA MOTORS CORP.

2. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, press the flathead

screwdriver in the direction of the arrow and press the clip away from the assist handle bracket.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 47

© 2005 Mitchell Repair Information Company, LLC.

3. Remove the assist handle by shaking it up and down.

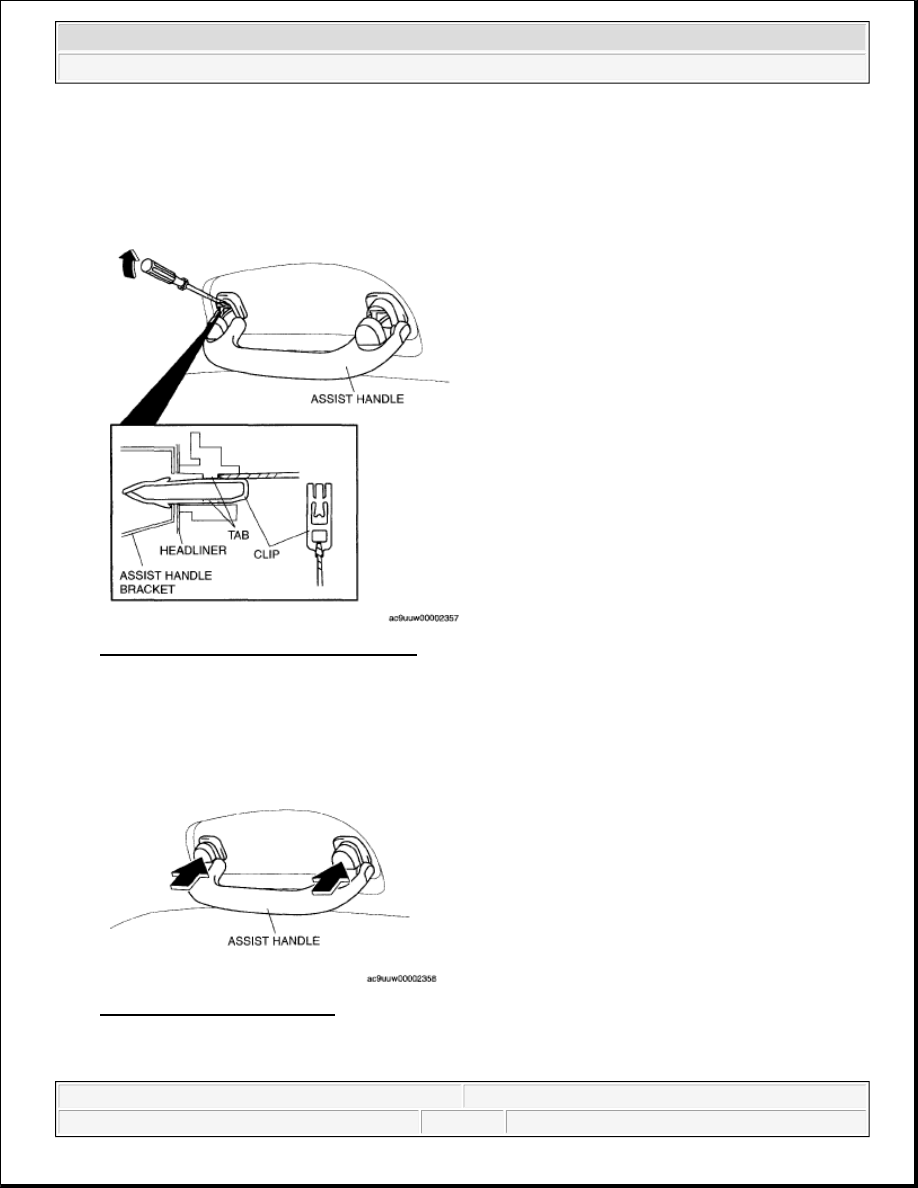

Fig. 78: Removing Assist Handle Bracket
Courtesy of MAZDA MOTORS CORP.

ASSIST HANDLE INSTALLATION

1. Push the assist handle in the direction of the arrow with the assist handle cover assembled to install the

assist handle.

Fig. 79: Pushing Assist Handle
Courtesy of MAZDA MOTORS CORP.

SUNVISOR REMOVAL/INSTALLATION

CAUTION:



When inserting a flathead screwdriver, be careful not to damage
the assist handle tabs shown in the figure.
