Mazda CX-9 Grand Touring. Manual - part 462

REMOVAL/INSTALLATION .)

4. Remove in the order indicated in the table.

Fig. 20: View Of Blind Spot Monitoring OFF Switch
Courtesy of MAZDA MOTORS CORP.

5. Install in the reverse order of removal.

BSM OFF SWITCH REMOVAL NOTE

1. Access the BSM OFF switch from behind of the dashboard, and squeeze the tabs of the switch.

2. Remove the BSM OFF switch from the dashboard.

BLIND SPOT MONITORING (BSM) OFF SWITCH INSPECTION

1. Remove the BSM OFF switch. (See BLIND SPOT MONITORING (BSM) OFF SWITCH

REMOVAL/INSTALLATION.)

2. Verify that the continuity is as indicated in the table.



If not as indicated in the table, replace the BSM OFF switch.

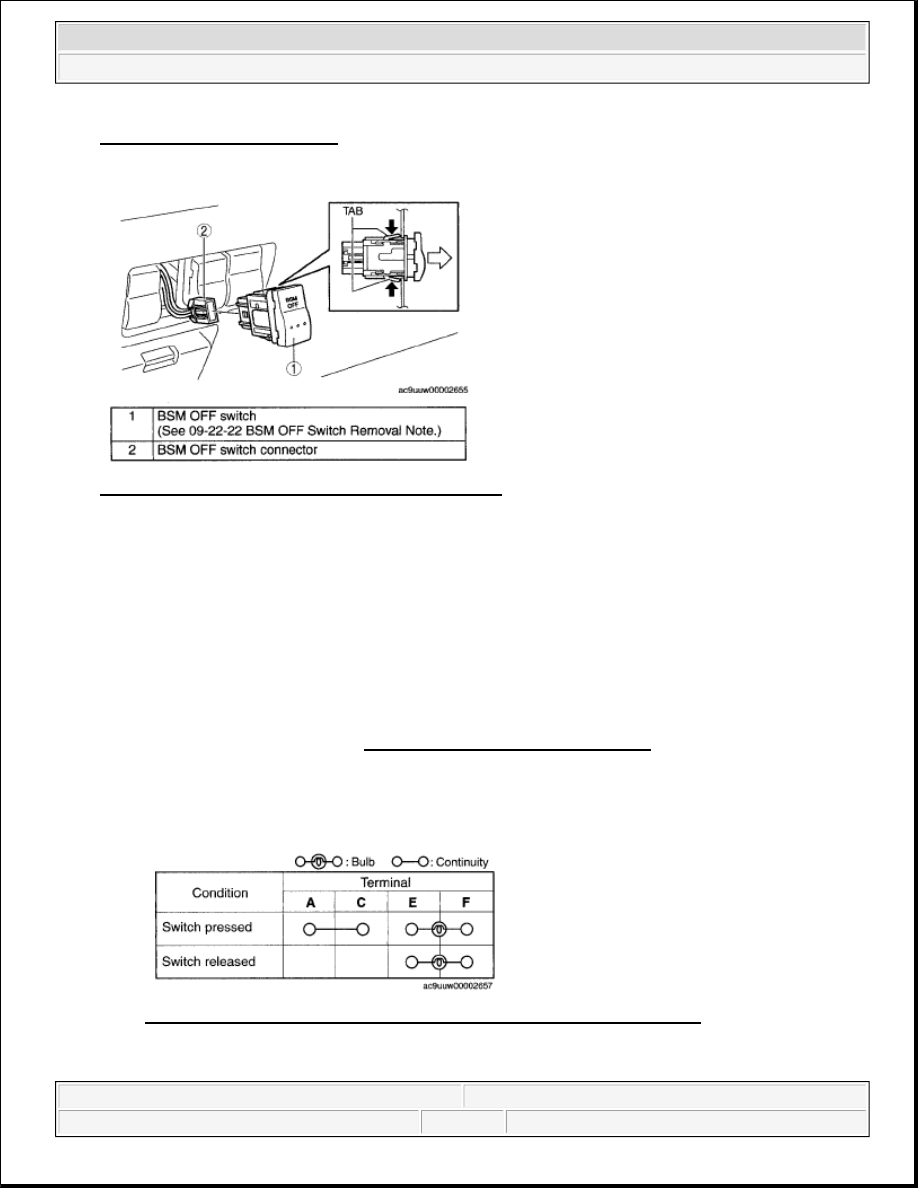

Fig. 21: Blind Spot Monitoring OFF Switch Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Instrumentation/Driver Info - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:42:27 AM

Page 35

Fig. 22: Identifying Blind Spot Monitoring OFF Switch Terminals
Courtesy of MAZDA MOTORS CORP.

BLIND SPOT MONITORING (BSM) BRACKET REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the rear combination light. (See REAR COMBINATION LIGHT

REMOVAL/INSTALLATION .)

3. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION .)

4. Remove the BSM control module. (See BLIND SPOT MONITORING (BSM) CONTROL MODULE

REMOVAL/INSTALLATION.)

5. Remove the nuts.

6. Remove the BSM bracket.

7. Install in the reverse order of removal.

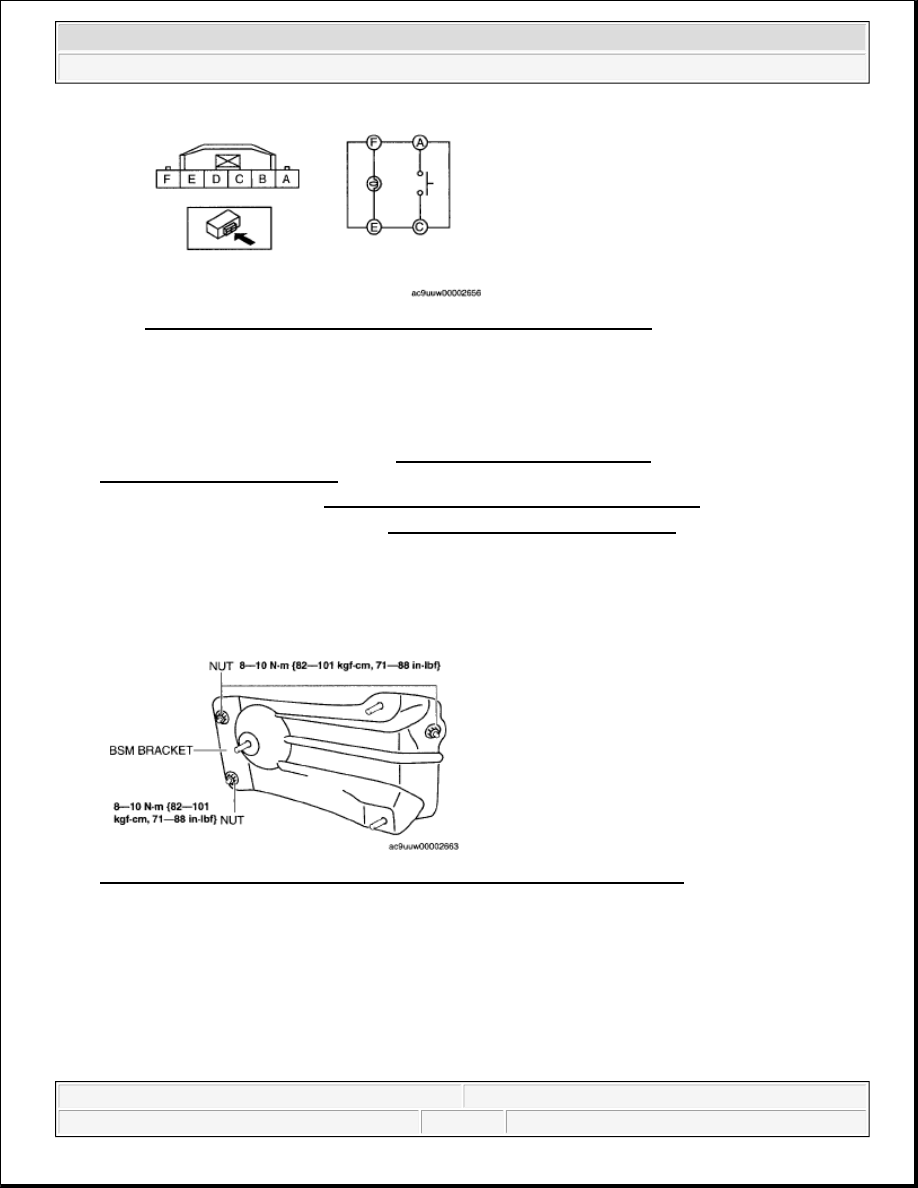

Fig. 23: Identifying Blind Spot Monitoring Bracket & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

CUSTOMIZED FUNCTION SETTING PROCEDURE

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, the following can be selected from the IDS initialization screen.

NOTE:



The BSM can be customized using the IDS only.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Instrumentation/Driver Info - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:42:27 AM

Page 36

1. Select "Module Programming".

3. Then, select items from the screen menu in the following order.

1. Select "Programmable Parameters".

2. Select "Personality".

4. Select the item name, and than select either "Enabled/Disabled".

Items



BSM buzzer

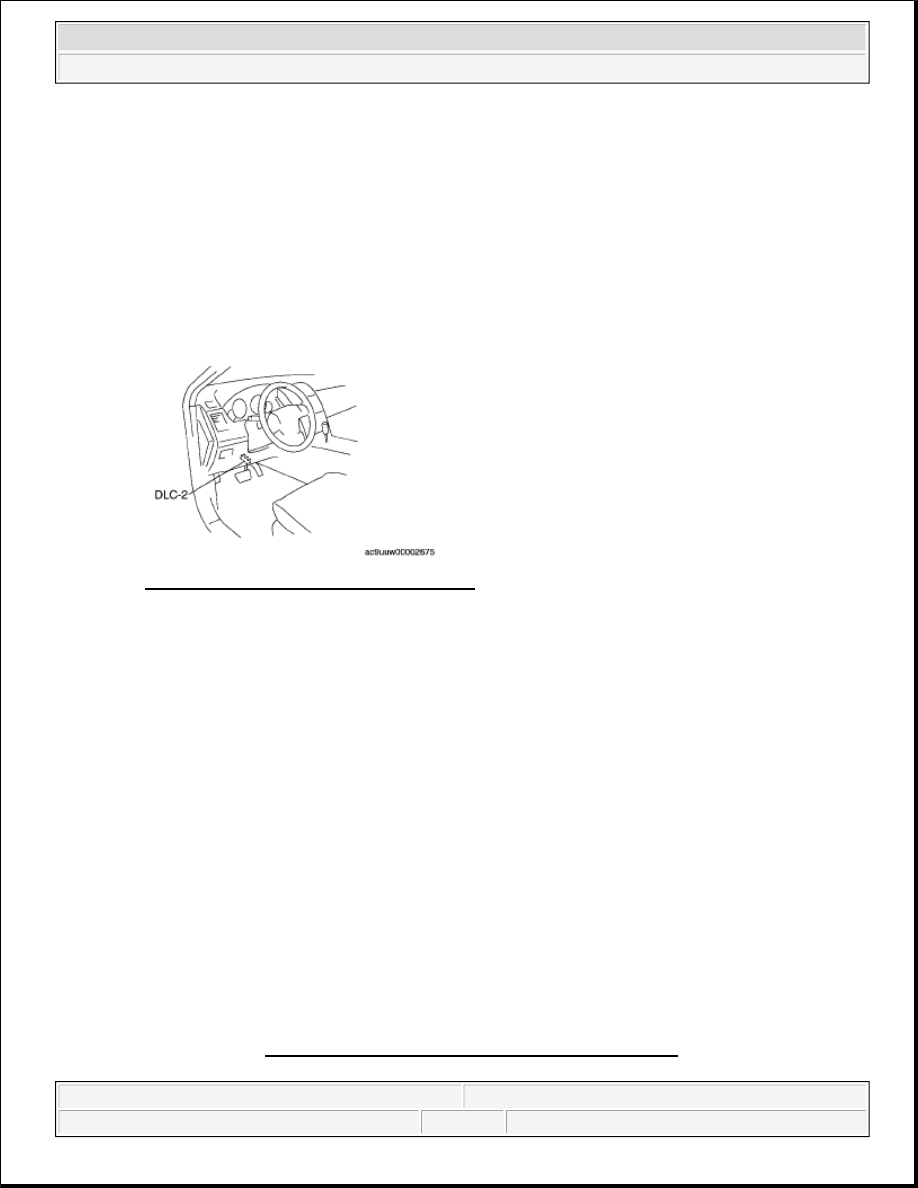

Fig. 24: Identifying Data Link Connector 2
Courtesy of MAZDA MOTORS CORP.

BLIND SPOT MONITORING (BSM) RADAR TEST

INTRODUCTION



The BSM radar test examines the reflectivity from the SST (reflector) by forcibly emitting radar to the
SST.



One BSM control module is installed on the left and right sides. Perform the radar test for each of them.



Perform the radar test on level ground. The correct test results cannot be obtained if the vehicle and
reflector are set at different heights or different angles.



A radar test cannot be performed correctly if obstructions which interfere with radar emitting adhere to
the BSM control module or the rear bumper. Perform the following procedure before performing the
radar test.



Verify that there is no water or dirt adhering to the radar emitting surface of the BSM control
module and the rear bumper.



Verify that there is no problem with the radar emitting surface of the BSM control module and the
rear bumper such as dirt, application of metallic stickers, or repairs using putty application.



Perform the DTC inspection for the BSM using the M-MDS and verify that no DTCs are displayed.



If any DTCs are displayed, perform troubleshooting according to the corresponding DTC
inspection. (See DTC TABLE [BLIND SPOT MONITORING (BSM)] .)

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Instrumentation/Driver Info - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:42:27 AM

Page 37

RADAR TEST PROCEDURE

1. Remove any occupants and unload cargo from the cabin and trunk compartment so that the vehicle is in

an unloaded condition.

2. Adjust the air pressure of each tire to the specified value.

3. Park the vehicle on a flat, level surface.

4. Verify that there is no obstruction within a 3,500 mm {137.8 in} radius from the BSM control module as

shown in the figure.

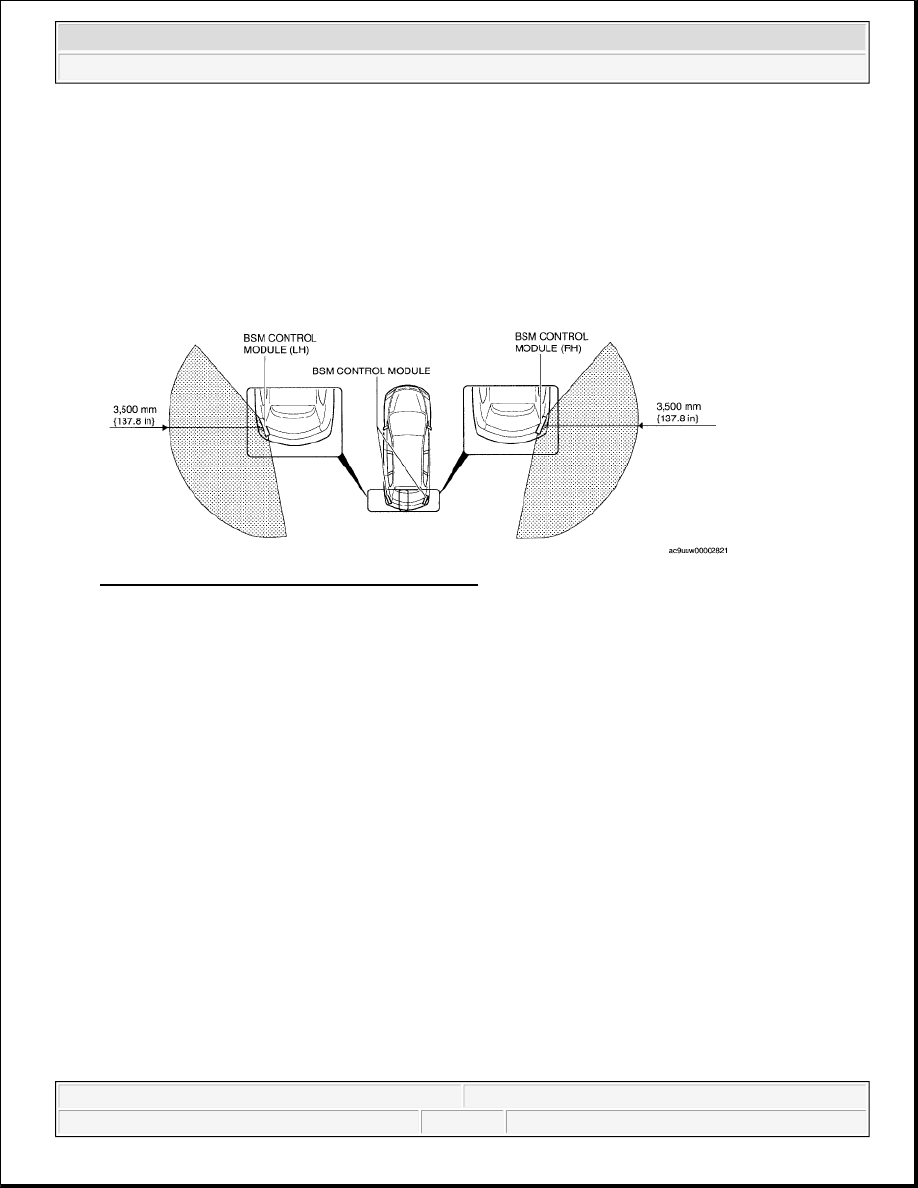

Fig. 25: Identifying BSM Control Module Radius
Courtesy of MAZDA MOTORS CORP.

5. Adjust the SST (plum-bob) so that it is aligned with the center of the brand emblem, determine the center

position at the front of the vehicle, and mark the center position on the floor surface.

CAUTION:



If an obstruction such as a drain lid or a person is within a 3,500
mm {137.8 in} radius from the BSM control module, it will
interfere with radar emitting and skew the radar test results.
Remove any obstruction which is within a 3,500 mm {137.8 in}
radius from the BSM control module.

NOTE:



The center of the brand emblem indicates the center position at the
front of the vehicle.



A commercially-available plum-bob (weight: 150 g {5.29 oz}) can be
substituted for the SST.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Instrumentation/Driver Info - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:42:27 AM

Page 38
