Mazda CX-9 Grand Touring. Manual - part 460





Check code 06

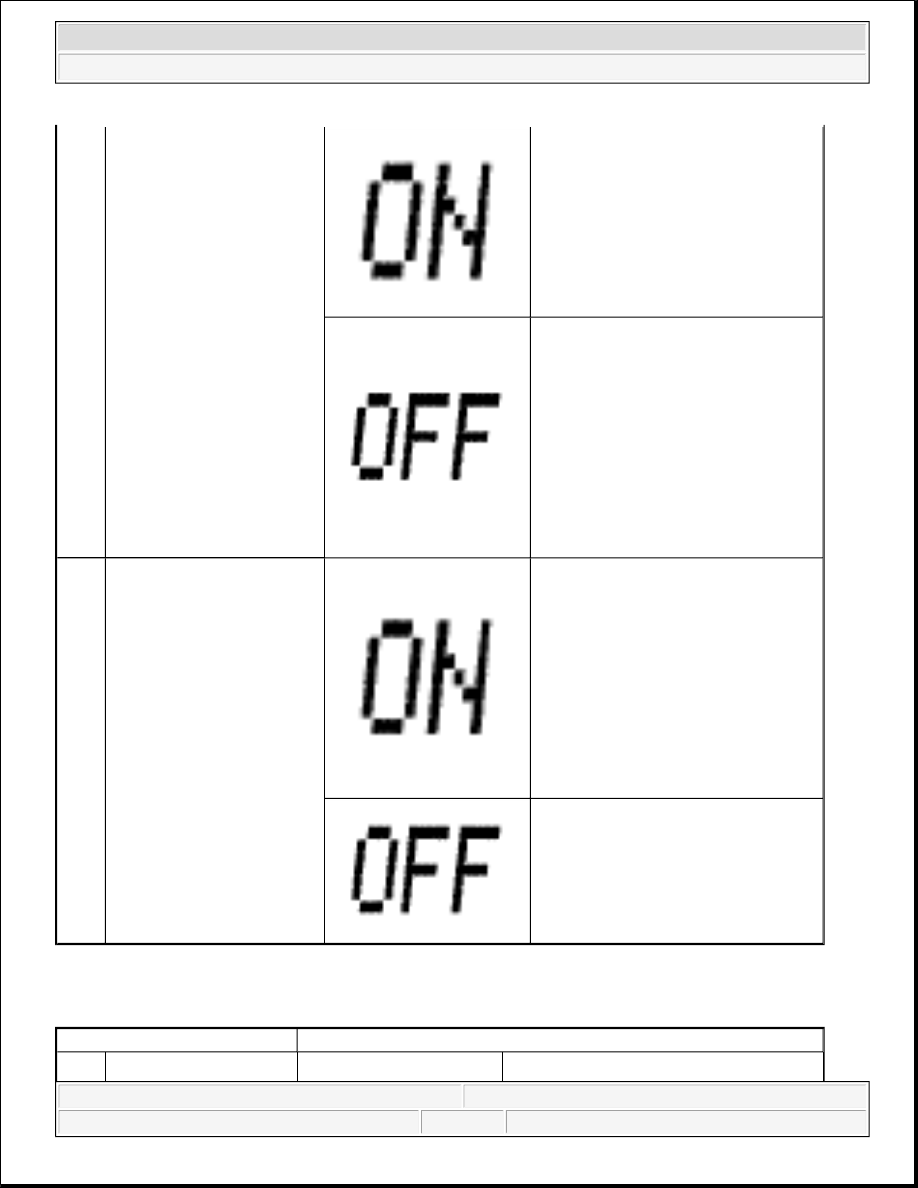

CHECK CODE INSPECTION CHART (CHECK CODE 06)

1

Turn the headlight switch to
the TNS position. (TNS relay
ON)

Go to the next step.

Verify that the voltage of information

display terminal C is B+.

If the voltage is as specified,

replace the information display.

If the voltage is not as specified,

inspect the following parts:

TNS relay

Wiring harness (Battery-

TNS relay-information

display)

2

Turn the headlight switch off.
(TNS relay OFF)

Verify that the voltage of the
information display terminal C is 1.0 V
or less.


If the voltage is as specified,
replace the information display.

If the voltage is not as specified,
inspect the following parts:

TNS relay

Wiring harness (TNS
relay-information display)

Input signal to the information display

is normal.

Check code 06

Ignition switch ON/OFF signal

INSPECTION



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Instrumentation/Driver Info - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:42:27 AM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

Check code 07

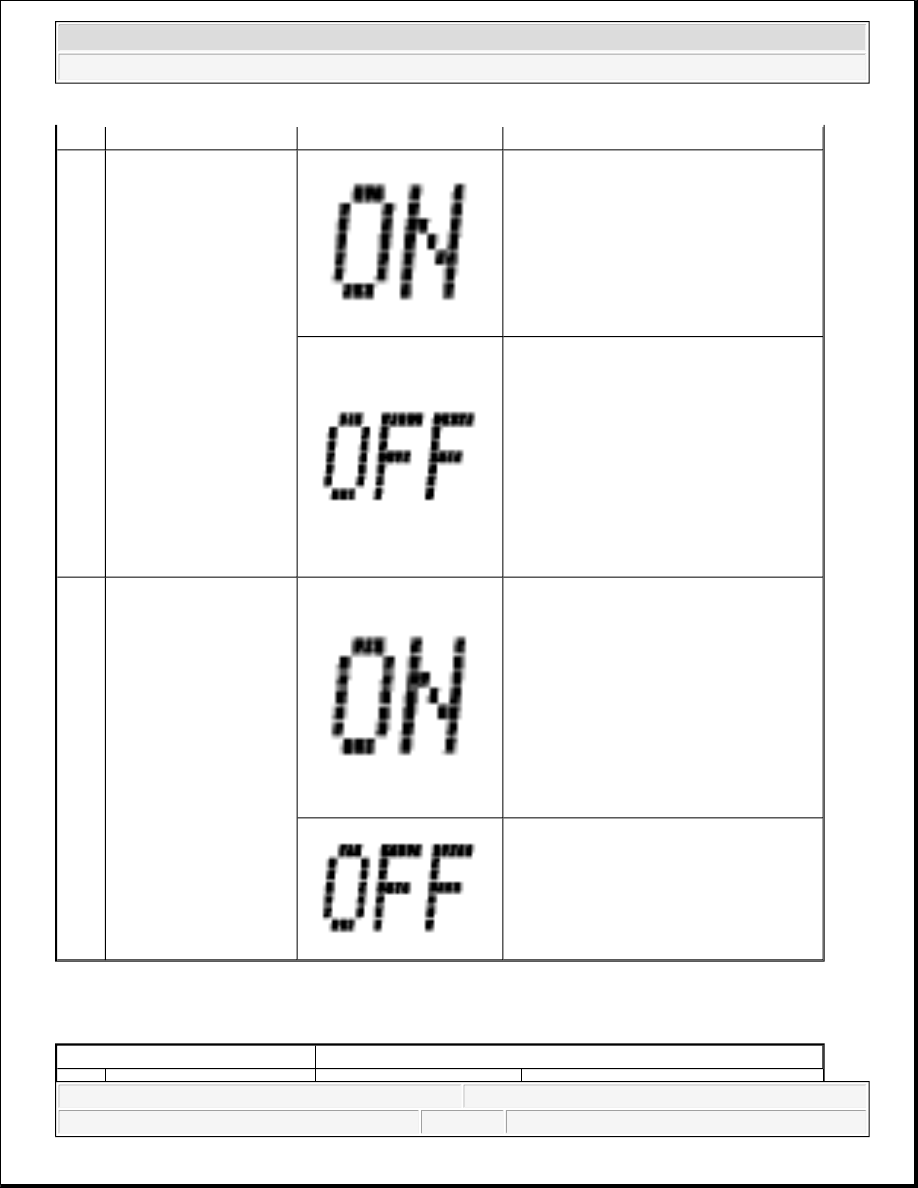

CHECK CODE INSPECTION CHART (CHECK CODE 07)

STEP

CONDITION

DISPLAY

ACTION

1

Turn the ignition switch
to the ON position.

Go to the next step.

Verify that the voltage of information

display terminal E is B+.

If the voltage is as specified, replace

the information display.

If the voltage is not as specified,

inspect the following parts:

Ignition switch

Wiring harness (Battery-

ignition switch-information

display)

2

Turn the ignition switch
off.

Verify that the voltage of the information
display terminal E is 1.0 V or less.

If the voltage is as specified, replace
the information display.

If the voltage is not as specified,
inspect the following parts:

Ignition switch

Wiring harness (Battery-
ignition switch-information
display)

Input signal to the information display is

normal.

Check code 07

Dimmer cancel switch ON/OFF signal



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Instrumentation/Driver Info - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:42:27 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

LCD

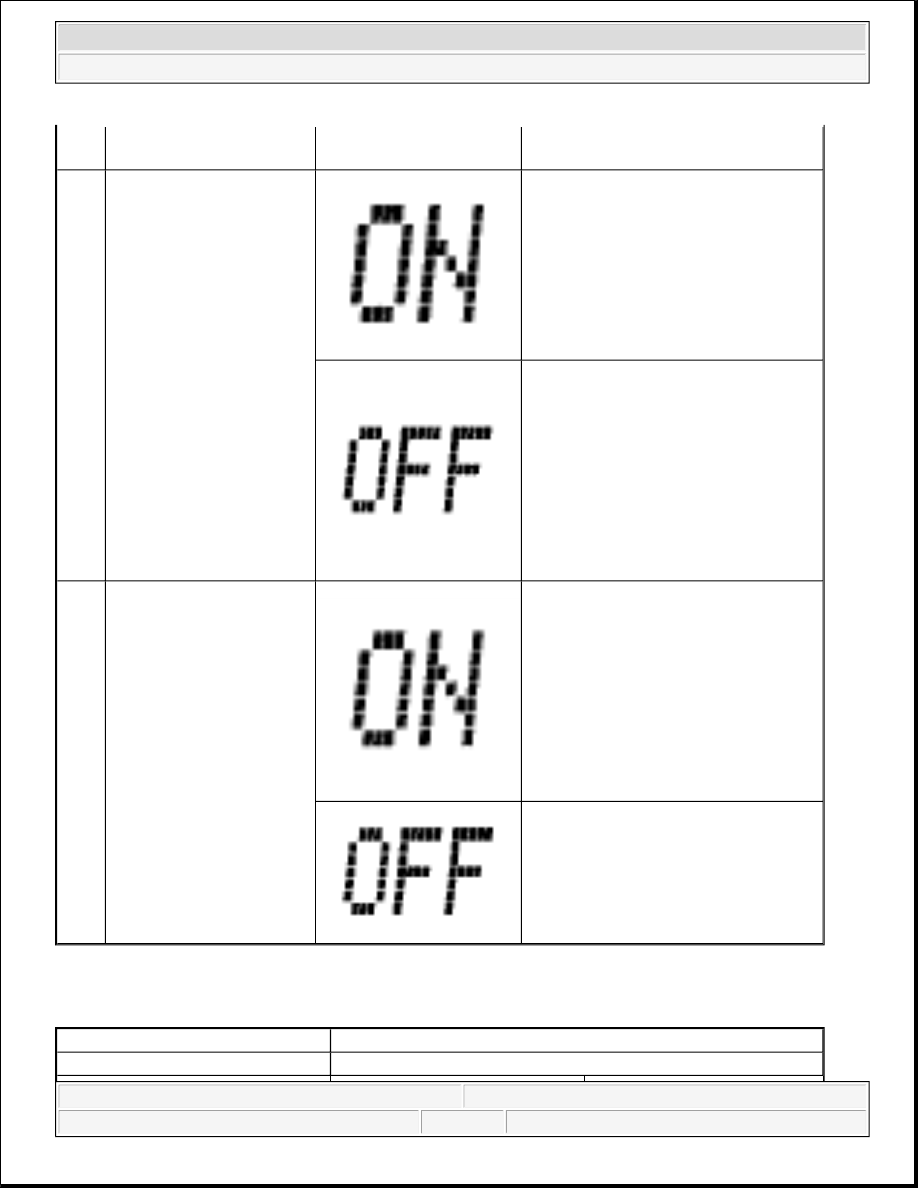

CHECK CODE INSPECTION CHART (LCD)

STEP

INSPECTION

CONDITION

DISPLAY

ACTION

1

Turn the dimmer cancel
switch to the ON position.

Go to the next step.

Verify that the voltage of information

display terminal F is 0 V.

If the voltage is as specified,

replace the information display.

If the voltage is not as specified,

inspect the following parts:

Instrument cluster

Wiring harness (Information

display-instrument cluster)

2

Turn the dimmer cancel
switch off.

Verify that the voltage of the information
display terminal F is B+.

If the voltage is as specified,
replace the information display.

If the voltage is not as specified,
inspect the following parts:

Instrument cluster

Wiring harness (Information
display-instrument cluster)

Input signal to the information display is

normal.

Check code -

LCD

DISPLAY

ACTION



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Instrumentation/Driver Info - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:42:27 AM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

BLIND SPOT MONITORING (BSM) CONTROL MODULE
REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the rear combination light. (See REAR COMBINATION LIGHT

REMOVAL/INSTALLATION .)

3. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION .)

4. Pull the connector in the direction shown by the arrow (2) in the+ figure and remove it while pressing the

tab in the direction shown by arrow (1).

5. Remove the nuts.

6. Remove the BSM control module.

7. Install in the reverse order of removal.

8. Perform the blind spot monitoring radar test. (See BLIND SPOT MONITORING (BSM) RADAR

TEST.)

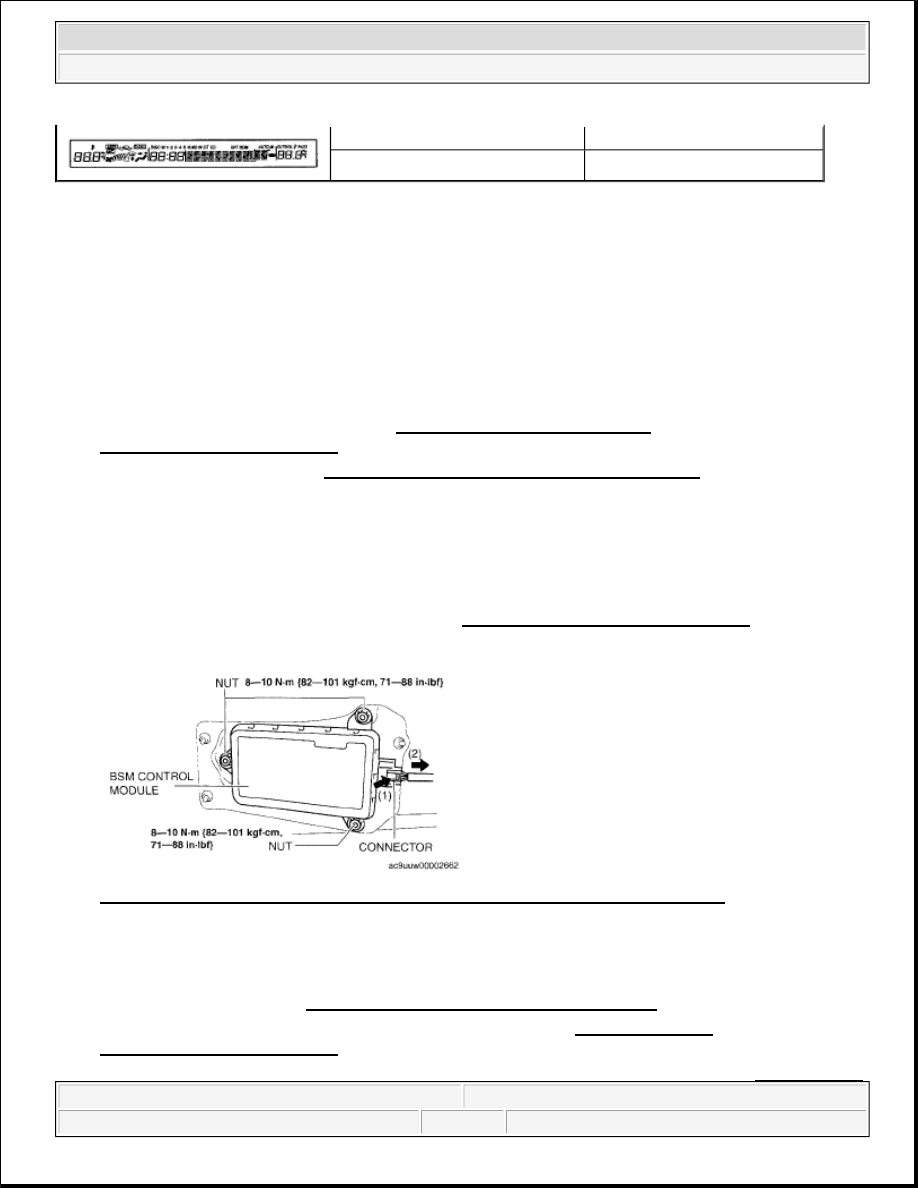

Fig. 16: View Of Blind Spot Monitoring Control Module & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

BLIND SPOT MONITORING (BSM) CONTROL MODULE INSPECTION

1. Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION .)

2. Remove the seat side box. (BSM control module (LH) only) (See SEAT SIDE BOX

REMOVAL/INSTALLATION .)

3. Remove the trunk end trim. (BSM control module (LH) only) (Vehicles with Bose®) (See TRUNK END

All segments and dots illuminated. LCD is normal.

Except above

Replace the information display.

CAUTION:

If the BSM control modules are installed with the left and right
modules reversed, a DTC will be displayed and system will enter the
fail-safe function. Therefore, confirm that the left/right BSM control
modules are installed correctly.
