4. Affix double-sided adhesive tape A to the rear sash molding as shown in the figure.

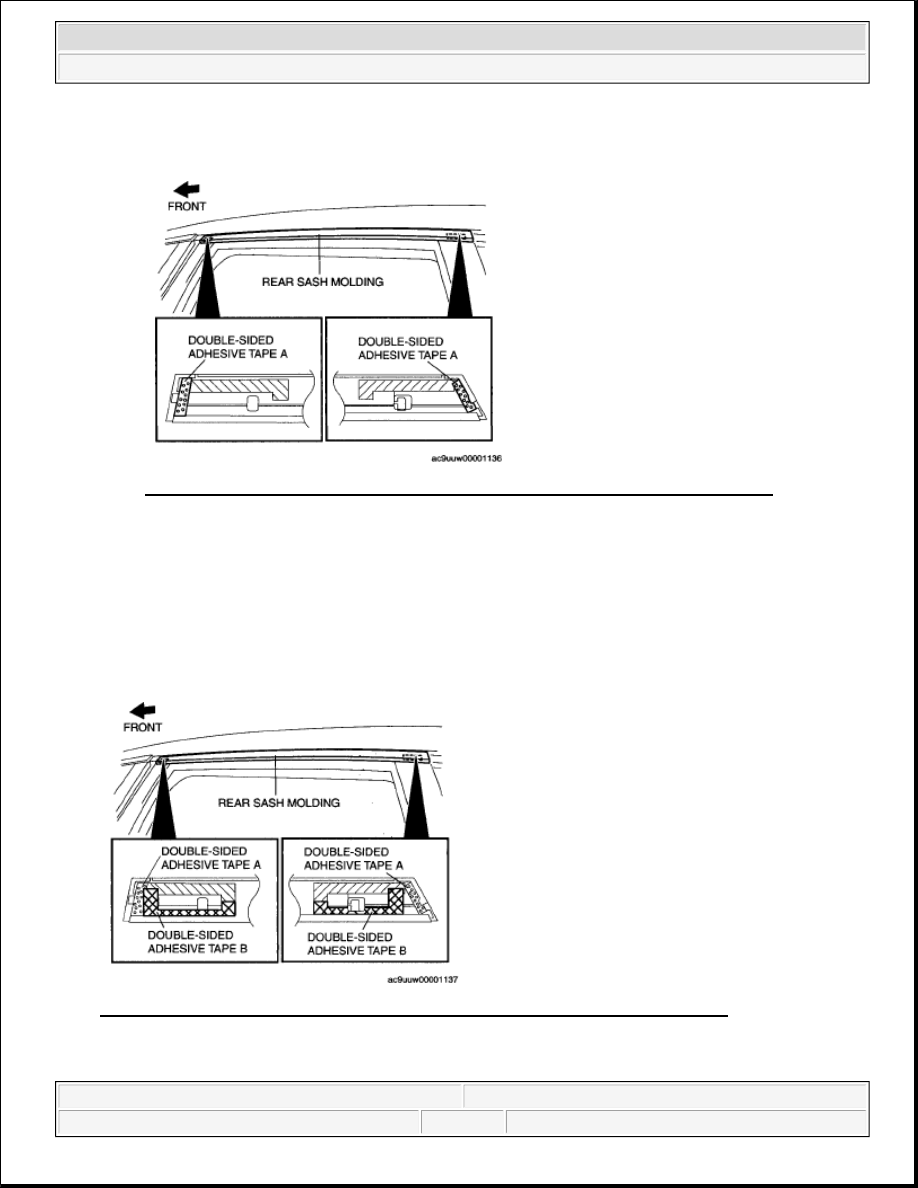

Fig. 14: Identifying Double-Sided Adhesive Tape Applying To Rear Sash Molding
Courtesy of MAZDA MOTORS CORP.

5. Affix double-sided adhesive tape B to the rear sash molding as shown in the figure.

3. Peel off the backing of the double-sided

Fig. 15: Identifying Double-Sided Adhesive Tape Applying To Rear Sash Molding
Courtesy of MAZDA MOTORS CORP.

4. Hook tab B to the body in the position where tabs A and D align with the sash holes.

NOTE:



As for the double-sided adhesive tape, use beta tape B 5078 (1
mm {0.04 in} thickness) or equivalent.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Exterior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:03 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

5. Press the rear sash molding in the direction of the arrow and install tabs A and D to the body.

6. Press the rear sash molding from the vehicle front in the direction of the arrow and install tab C.

REAR SPOILER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)

3. Disconnect the high-mount brake light connector.

4. Remove the nuts.

5. Detach the clips and remove the rear spoiler.

6. Install in the reverse order of removal.

CAUTION:



Do not press the rear sash molding in any place other than the
rubber areas.

NOTE:



After installing the front sash molding, verify that tabs B and C are
connected properly to the body.

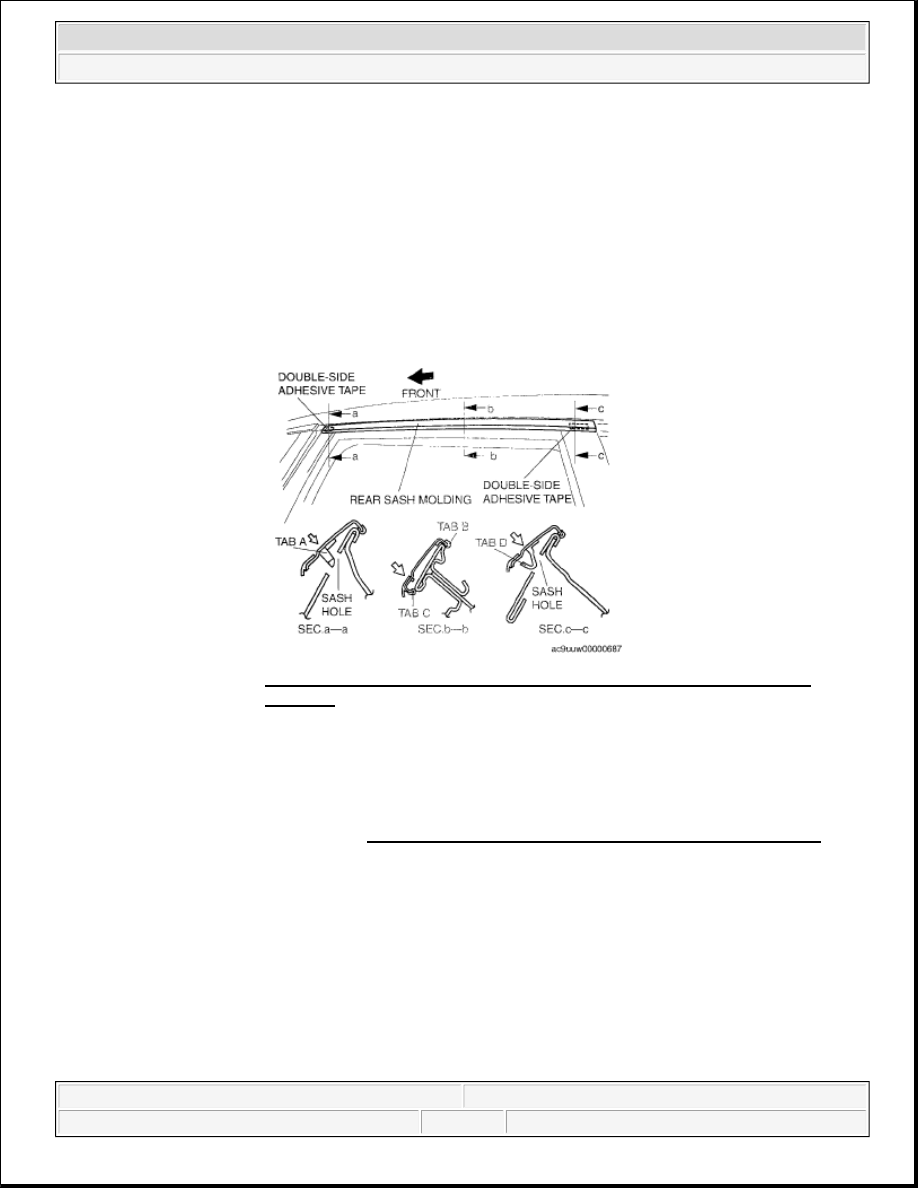

Fig. 16: Identifying Double-Sided Adhesive Tape And Rear Sash
Molding
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Exterior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:03 AM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

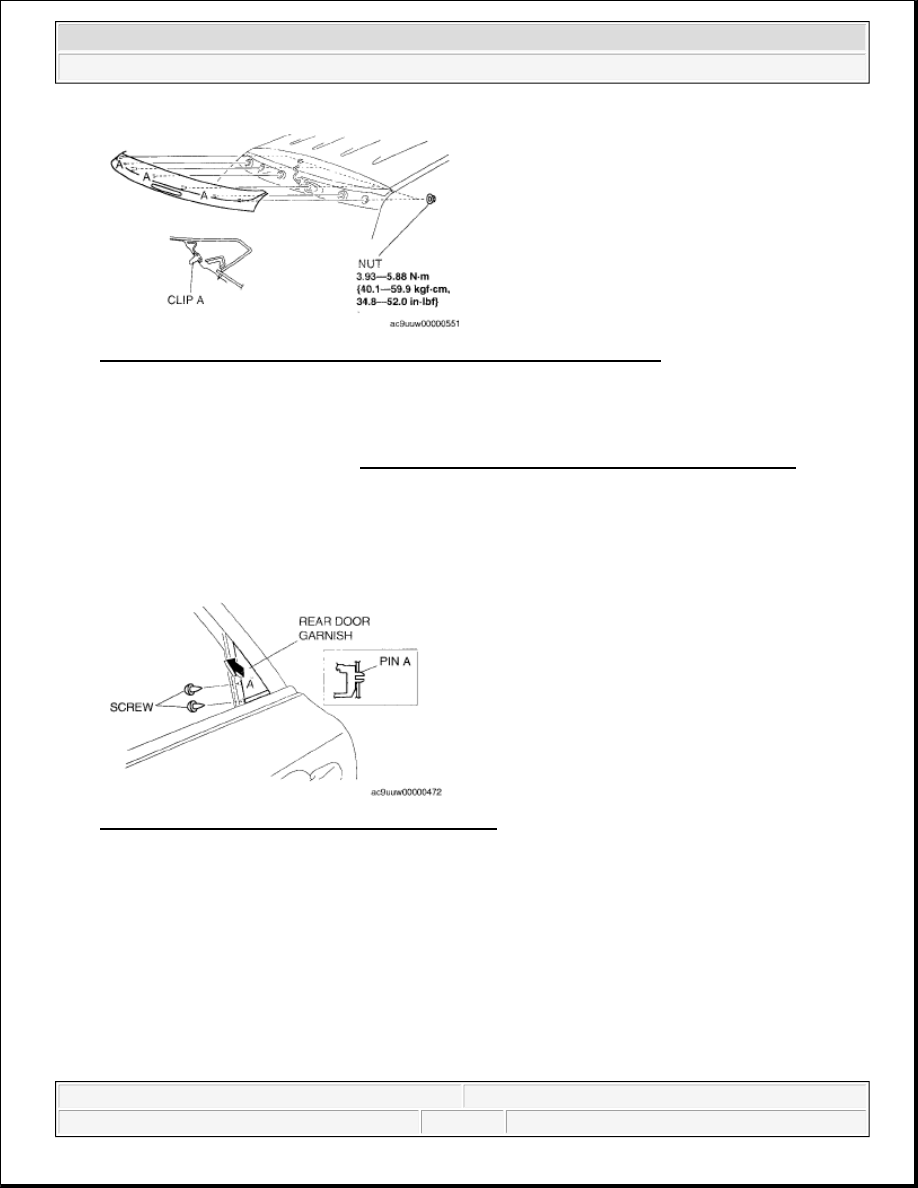

Fig. 17: Identifying Rear Spoiler With Nut, Clip & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

REAR DOOR GARNISH REMOVAL/INSTALLATION

1. Remove the inner sail garnish. (See INNER SAIL GARNISH REMOVAL/INSTALLATION .)

2. Remove the screws.

3. Remove the pin A.

4. Slide the rear door garnish in the direction shown by the arrow and remove it.

5. Install in the reverse order of removal.

Fig. 18: Identifying Rear Door Garnish With Screw
Courtesy of MAZDA MOTORS CORP.

OVER FENDER REMOVAL/INSTALLATION

FRONT

1. Remove the fasteners.

2. Remove the clips A.

3. Remove the clip B.

4. Remove the clip C.

5. Remove the front over fender.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Exterior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:03 AM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

6. Install in the reverse order of removal.

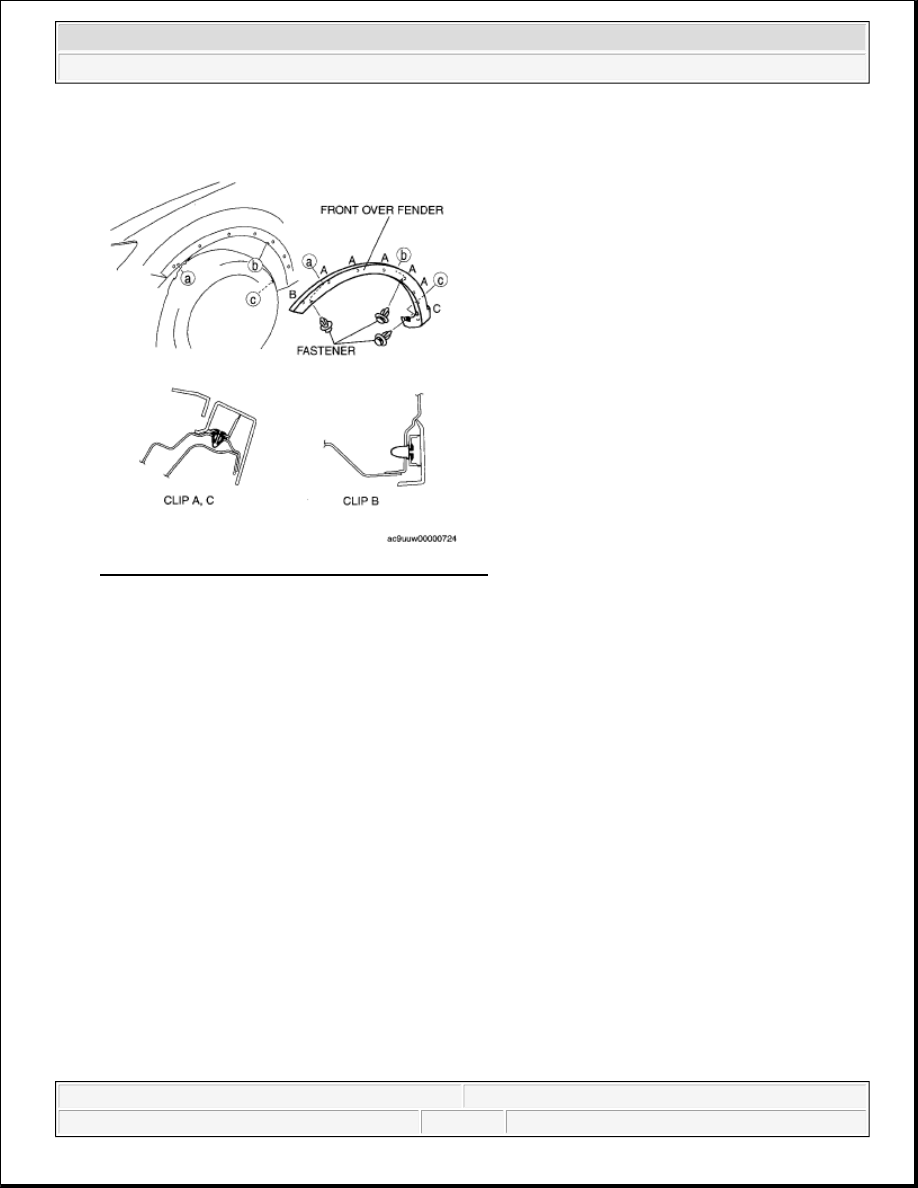

Fig. 19: Identifying Front Over Fender With Clips
Courtesy of MAZDA MOTORS CORP.

REAR

1. Remove the fastener.

2. Remove the clips A.

3. Remove the clips B.

4. Remove the clip C.

5. Remove the rear over fender.

6. Install in the reverse order of removal.
