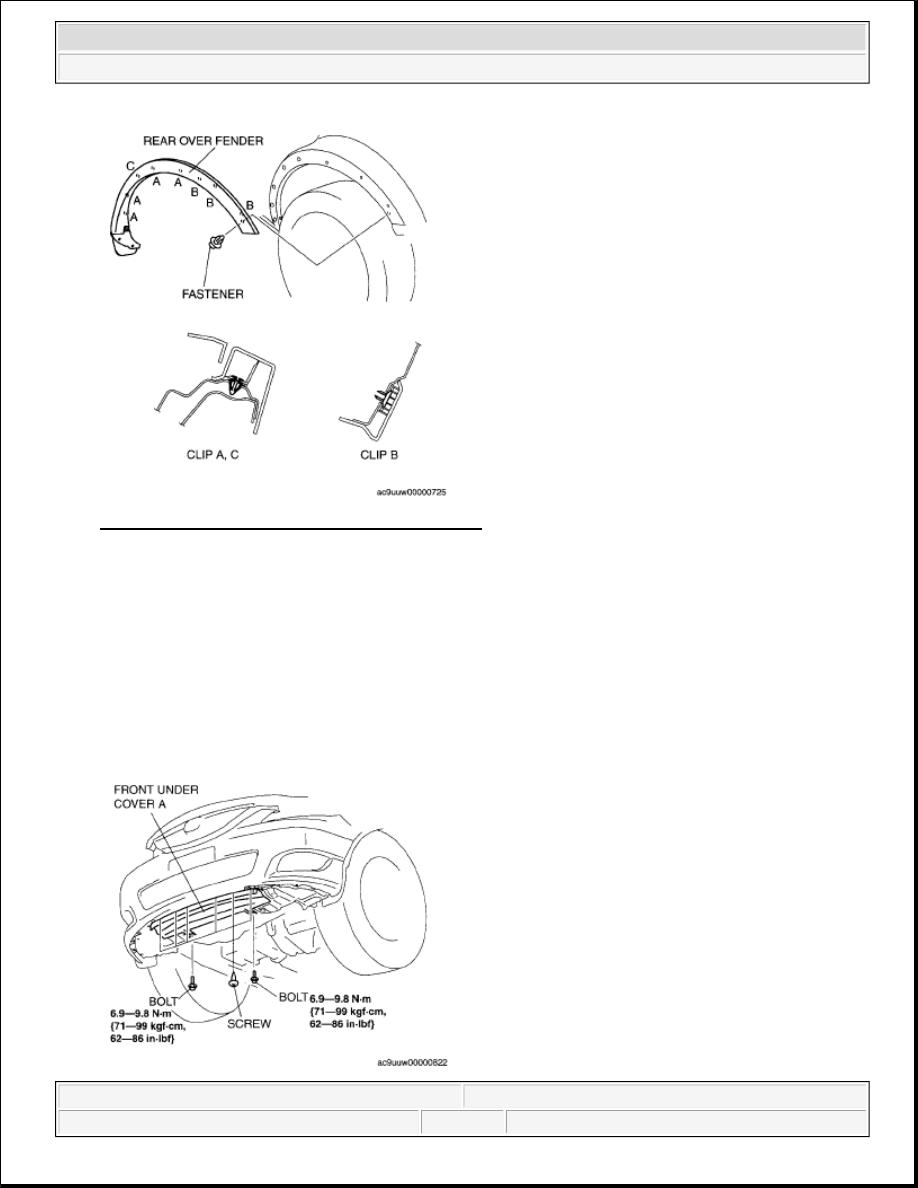

Fig. 20: Identifying Rear Over Fender With Clips
Courtesy of MAZDA MOTORS CORP.

FRONT UNDER COVER REMOVAL/INSTALLATION

FRONT UNDER COVER A

1. Remove the bolts.

2. Remove the screws.

3. Remove the front under cover A.

4. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Exterior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:03 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

Fig. 21: Identifying Front Under Cover A With Screws, Bolts & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

FRONT UNDER COVER B

1. Remove the screws.

2. Remove the fasteners.

3. Remove the front under cover B.

4. Install in the reverse order of removal.

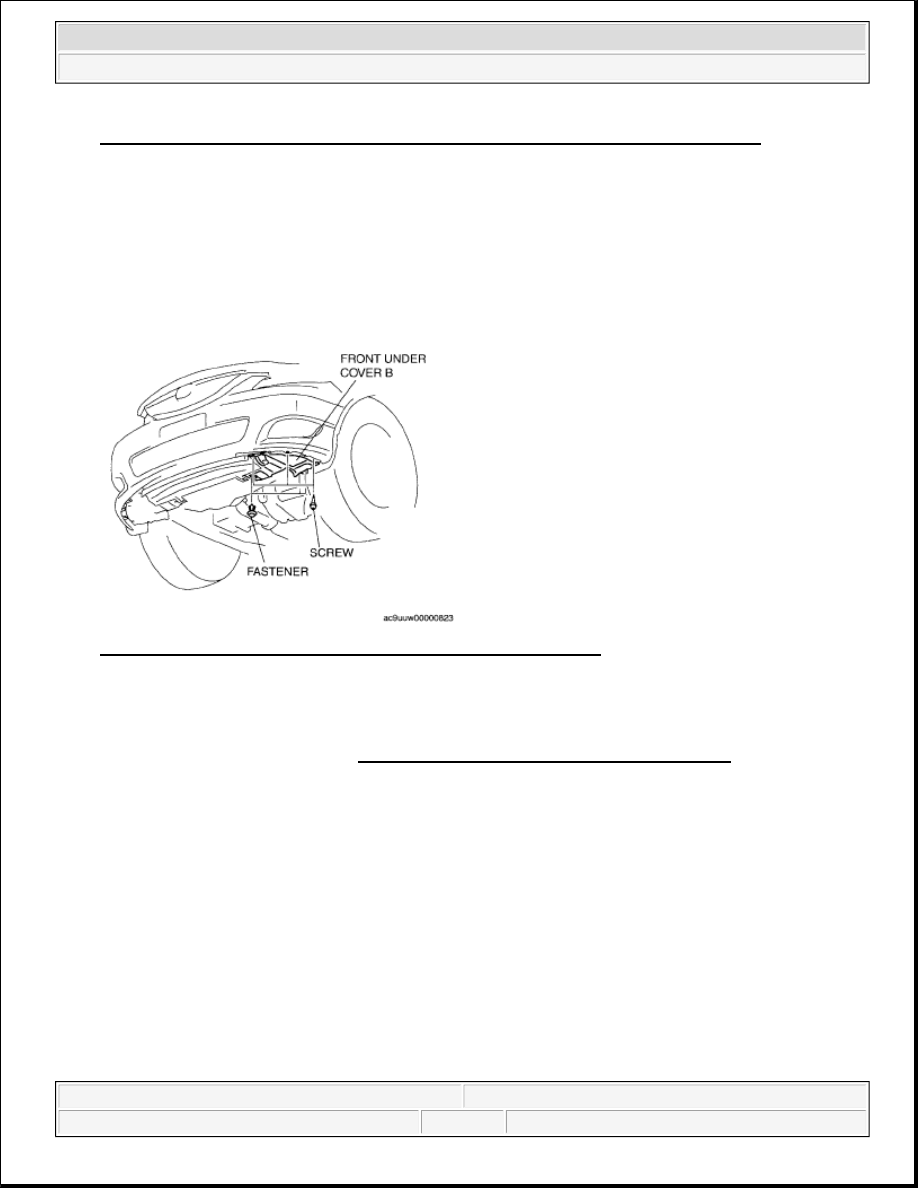

Fig. 22: Identifying Front Under Cover B With Screws And Bolts
Courtesy of MAZDA MOTORS CORP.

SPLASH SHIELD REMOVAL/INSTALLATION

1. Remove the front over fender. (See OVER FENDER REMOVAL/INSTALLATION.)

2. Remove the bolts.

3. Remove the fasteners A.

4. Remove the splash shield.

5. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Exterior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:03 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

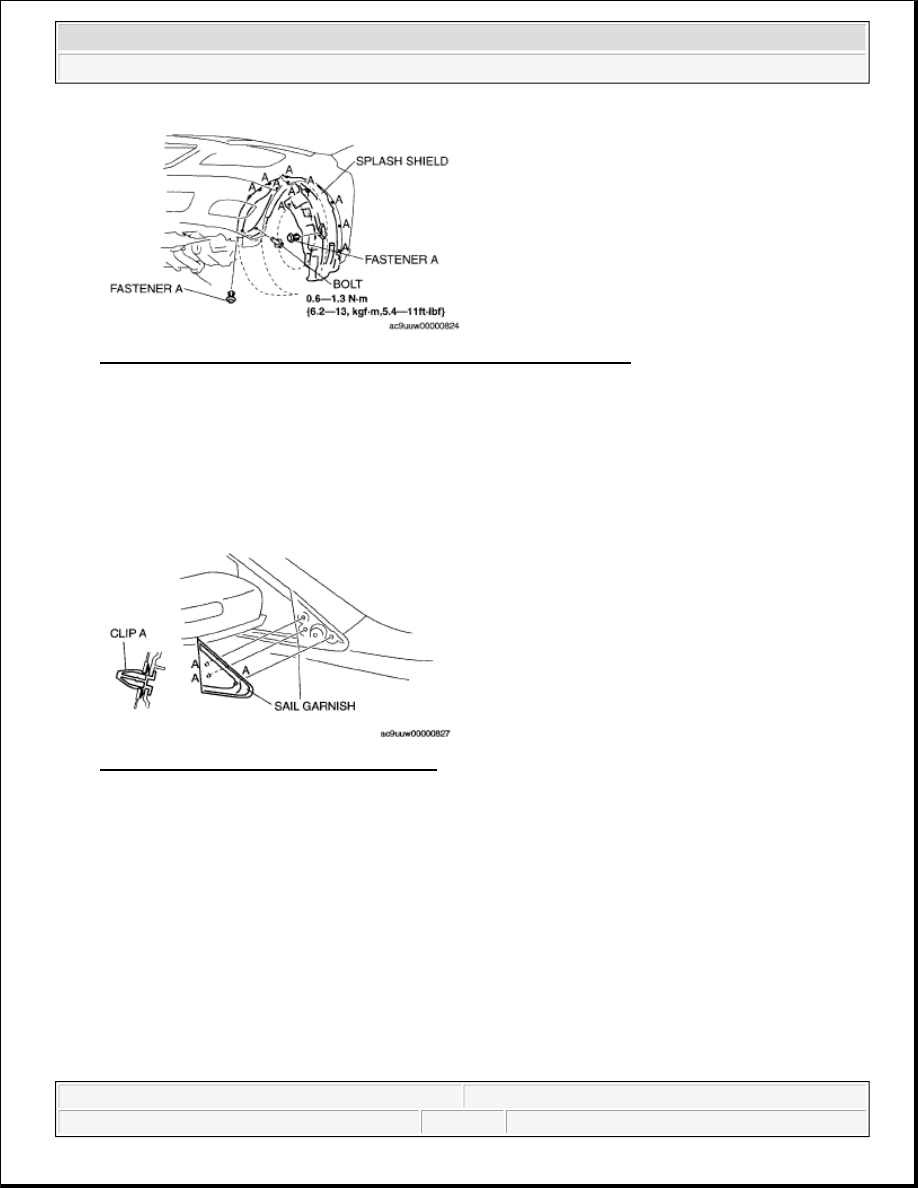

Fig. 23: Identifying Splash Shield, Fasteners & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

SAIL GARNISH REMOVAL/INSTALLATION

1. Pull the sail garnish outward and detach clips A from the body.

2. Remove the sail garnish.

3. Install in the reverse order of removal.

Fig. 24: Identifying Sail Garnish With Clips
Courtesy of MAZDA MOTORS CORP.

SIDE GARNISH REMOVAL

FRONT

1. Pull the side garnish and remove clip A from the vehicle body.

2. Slide the side garnish to the vehicle rear and remove clips B and C from the side garnish.

3. Remove the side garnish.

4. Remove clips B and C from the body, then install it to the side garnish.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Exterior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:03 AM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

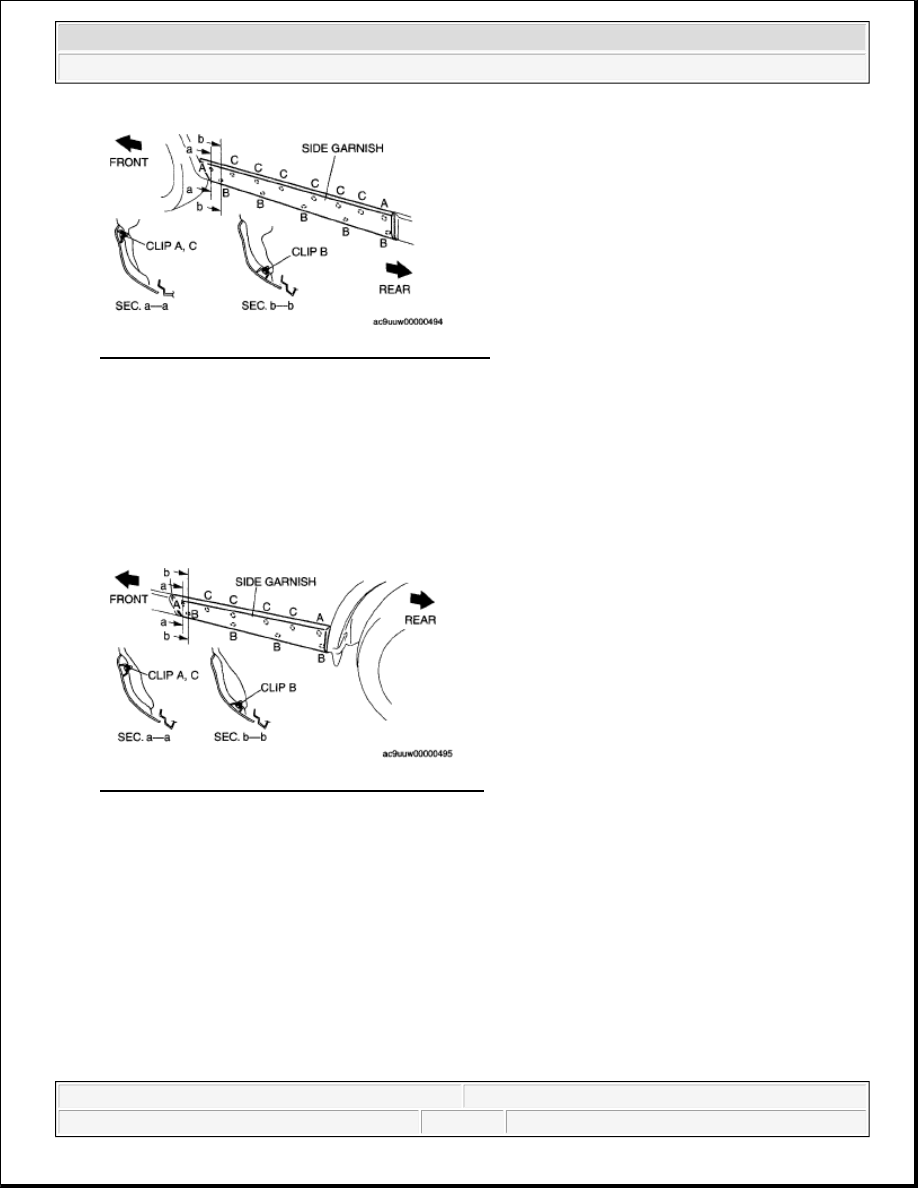

Fig. 25: Identifying Front Side Garnish With Clips
Courtesy of MAZDA MOTORS CORP.

REAR

1. Pull the side garnish and remove clip A from the vehicle body.

2. Slide the side garnish to the vehicle rear and remove clips B and C from the side garnish.

3. Remove the side garnish.

4. Remove clips B and C from the body, then install it to the side garnish.

Fig. 26: Identifying Rear Side Garnish With Clips
Courtesy of MAZDA MOTORS CORP.

SIDE GARNISH INSTALLATION

FRONT

1. Install clips A and then B to the vehicle from the front side.
