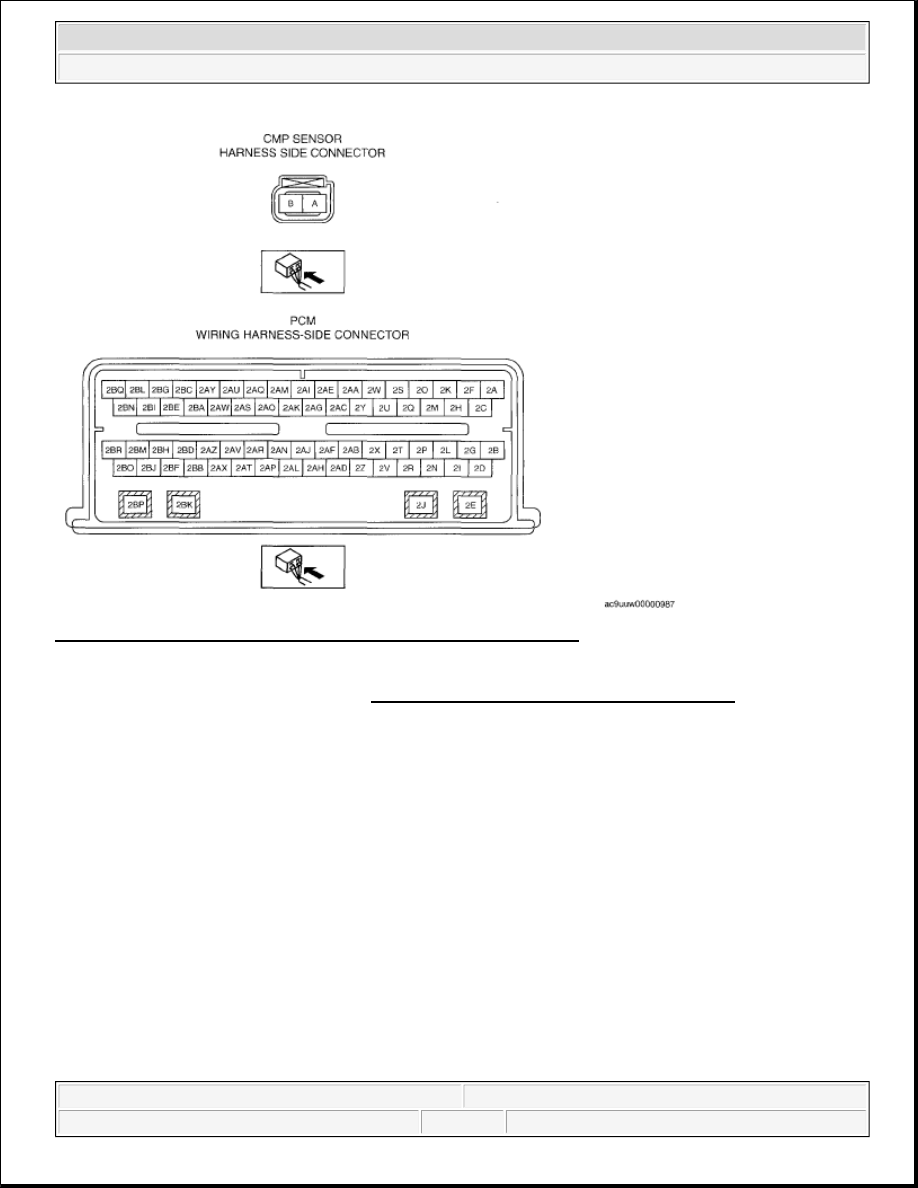

Fig. 24: Identifying CMP And PCM Sensor Harness Side Connector
Courtesy of MAZDA MOTORS CORP.

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [MZI-3.7].)

2. Inspect the following harness for open or short circuit. (Continuity check)

Open circuit



CMP sensor (RH) terminal A and PCM terminal 2X



CMP sensor (RH) terminal B and PCM terminal 2C



CMP sensor (LH) terminal A and PCM terminal 2AB



CMP sensor (LH) terminal B and PCM terminal 2C

Short circuit



CMP sensor (RH) terminal A and power supply



CMP sensor (RH) terminal A and body ground



CMP sensor (RH) terminal B and power supply



CMP sensor (LH) terminal A and power supply



CMP sensor (LH) terminal A and body ground



2008 Mazda CX-9 Grand Touring

2008 ENGINE Control System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:07:19 AM

Page 27

© 2005 Mitchell Repair Information Company, LLC.



CMP sensor (LH) terminal B and power supply

FRONT HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION
[MZI-3.7]

HO2S (LH) REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZI-3.7] .)

3. Disconnect the HO2S (LH) connector.

4. Remove the HO2S (LH) using the SST.

5. Install in the reverse order of removal.

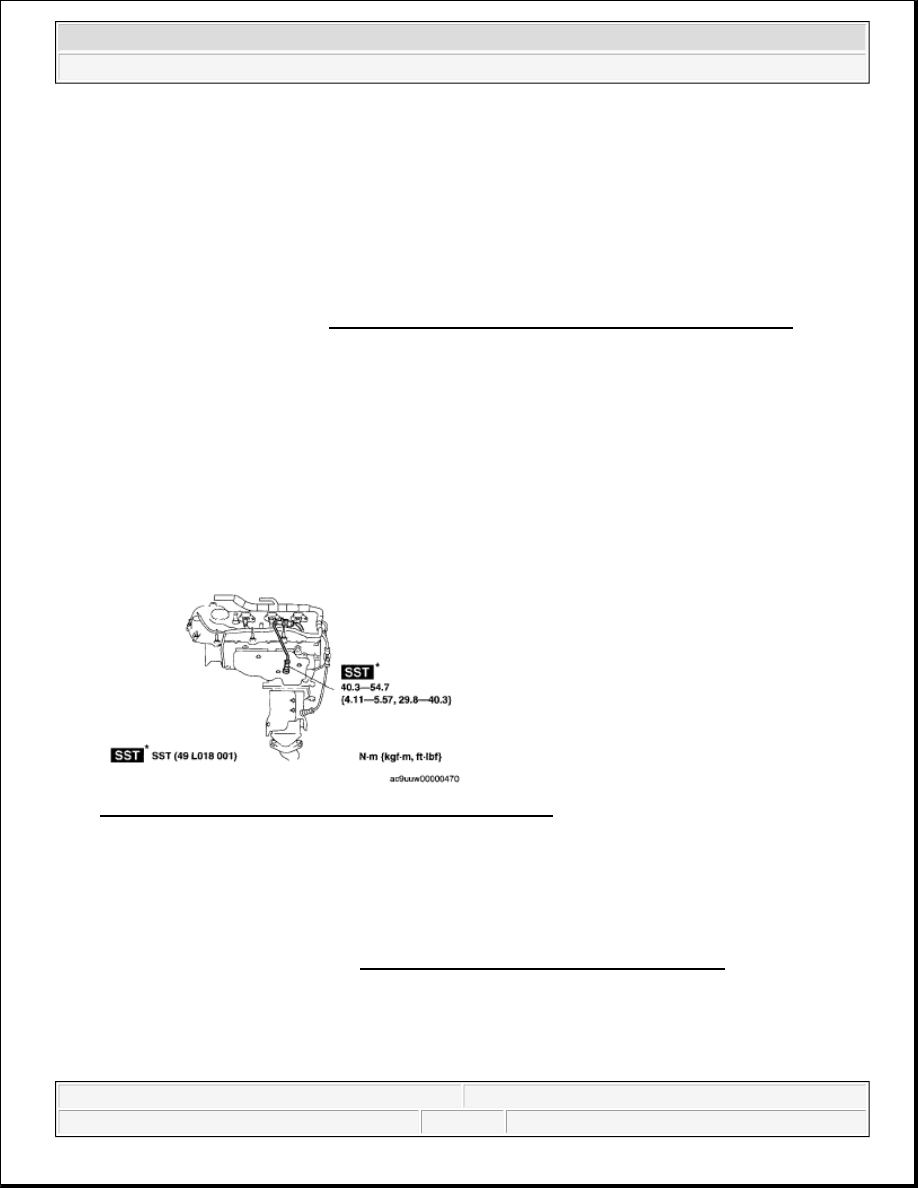

Fig. 25: View Of HO2S (LH), SST & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

HO2S (RH) REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following part for easier access.

1. Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION .)

3. Disconnect the HO2S (RH) connector.

NOTE:



If necessary, lubricate the HO2S with Penetrating and Lock Lubricant
loosen to aid in removal.

NOTE:



Apply a light coat of anti-seize lubricant to the threads of the HO2S.

NOTE:



If necessary, lubricate the HO2S with Penetrating and Lock Lubricant
loosen to aid in removal.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Control System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:07:19 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

4. Remove the HO2S (RH) using the SST.

5. Install in the reverse order of removal.

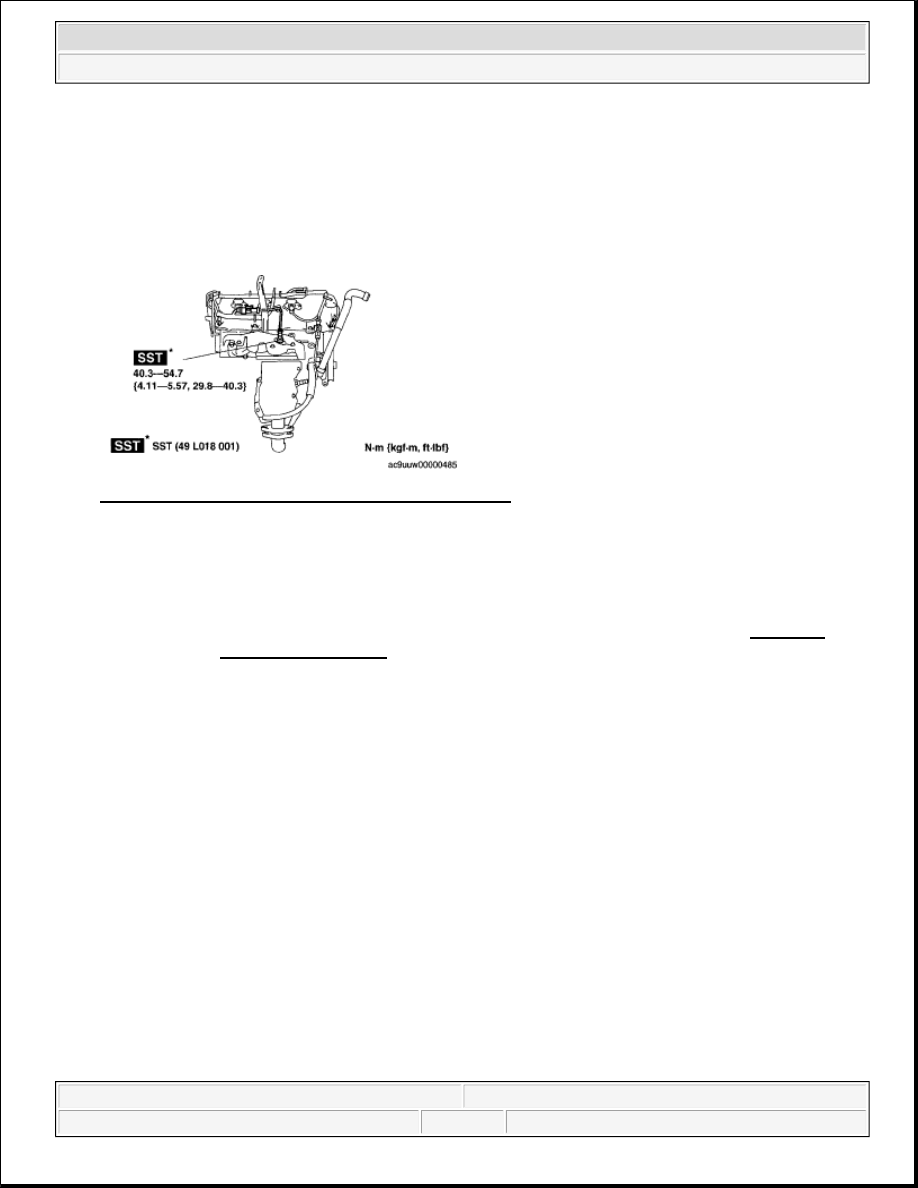

Fig. 26: View Of HO2S, SST & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

FRONT HEATED OXYGEN SENSOR (HO2S) INSPECTION [MZI-3.7]

FRONT HEATED OXYGEN SENSOR (HO2S) VOLTAGE INSPECTION

1. Warm up the engine to normal operating temperature.

2. Using the M-MDS, monitor the following:



Vehicle speed (PID: VSS)



Engine speed (PID: RPM)



Front HO2S voltage (PID: O2S11, O2S21)

3. Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine

speed is 3,000 rpm or more.

4. Verify that the front H02S outputs a voltage of 0.6 V or more , one time or more, then verify that the

front HO2S voltage (PID: O2S11, O2S21) is 0.3 V is or less while decelerating as shown in the figure.

NOTE:



Apply a light coat of anti-seize lubricant to the threads of the HO2S.

NOTE:



Before performing the following inspection, make sure to follow the
procedure as indicated in the troubleshooting flowchart. (See HOW TO
USE THIS MANUAL .)



2008 Mazda CX-9 Grand Touring

2008 ENGINE Control System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:07:19 AM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

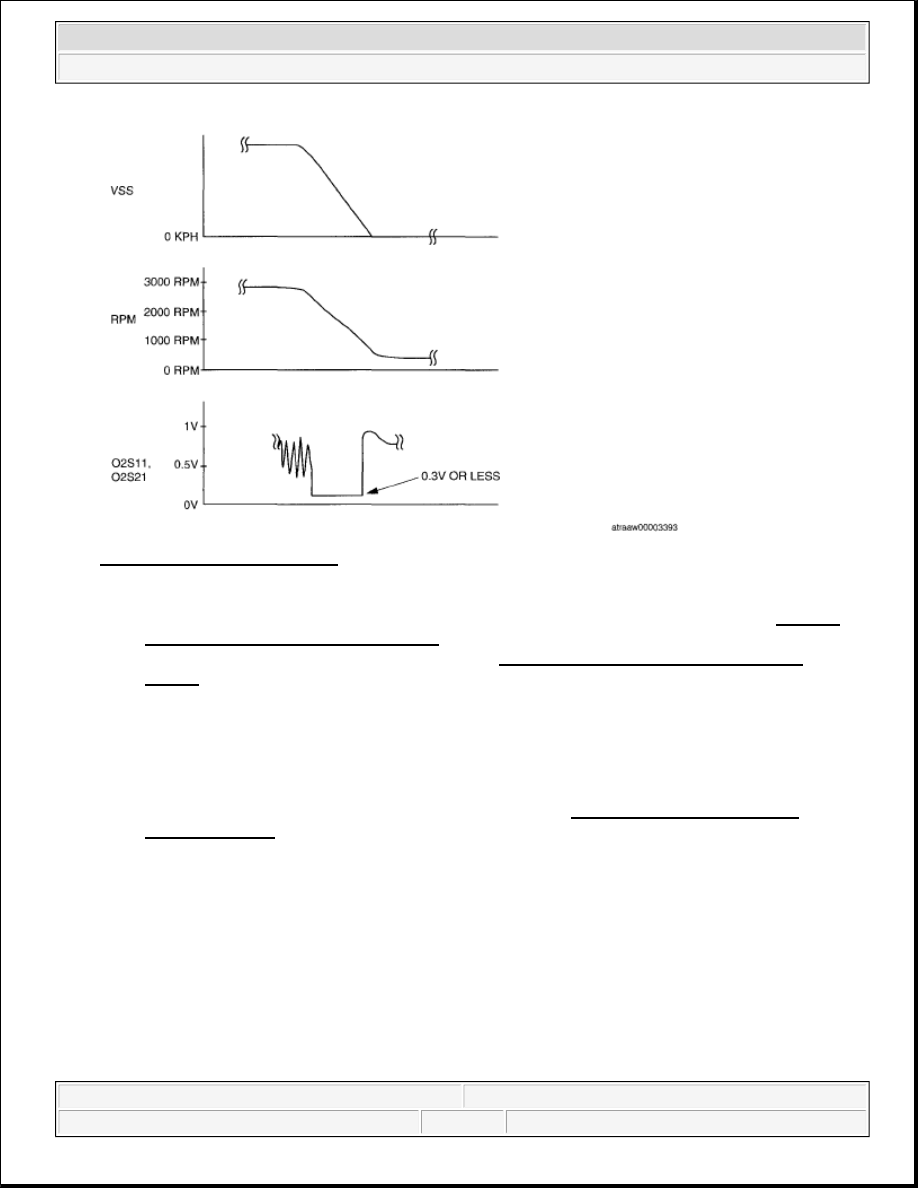

Fig. 27: Output Voltage Graph
Courtesy of MAZDA MOTORS CORP.



If not within the specification, inspect the front HO2S for an open or short circuit. (See FRONT
HEATED OXYGEN SENSOR (HO2S) Voltage Inspection.) Then if there is no malfunction in
the wiring harness, replace the front HO2S. (See FRONT HEATED OXYGEN SENSOR
(HO2S) REMOVAL/INSTALLATION [MZI-3.7].)

HO2S HEATER RESISTANCE INSPECTION

1. Disconnect the HO2S connector.

2. Measure the resistance between HO2S terminals C and A.



If it is not within the specification, replace the HO2S. (See FRONT HEATED OXYGEN
SENSOR (HO2S) REMOVAL/INSTALLATION [MZI-3.7].)



If the monitor item status/specification (reference) is not within the specification, even though the
resistance is within the specification, perform the "Circuit Open/Short Inspection".

HO2S heater resistance

3-30 ohms
