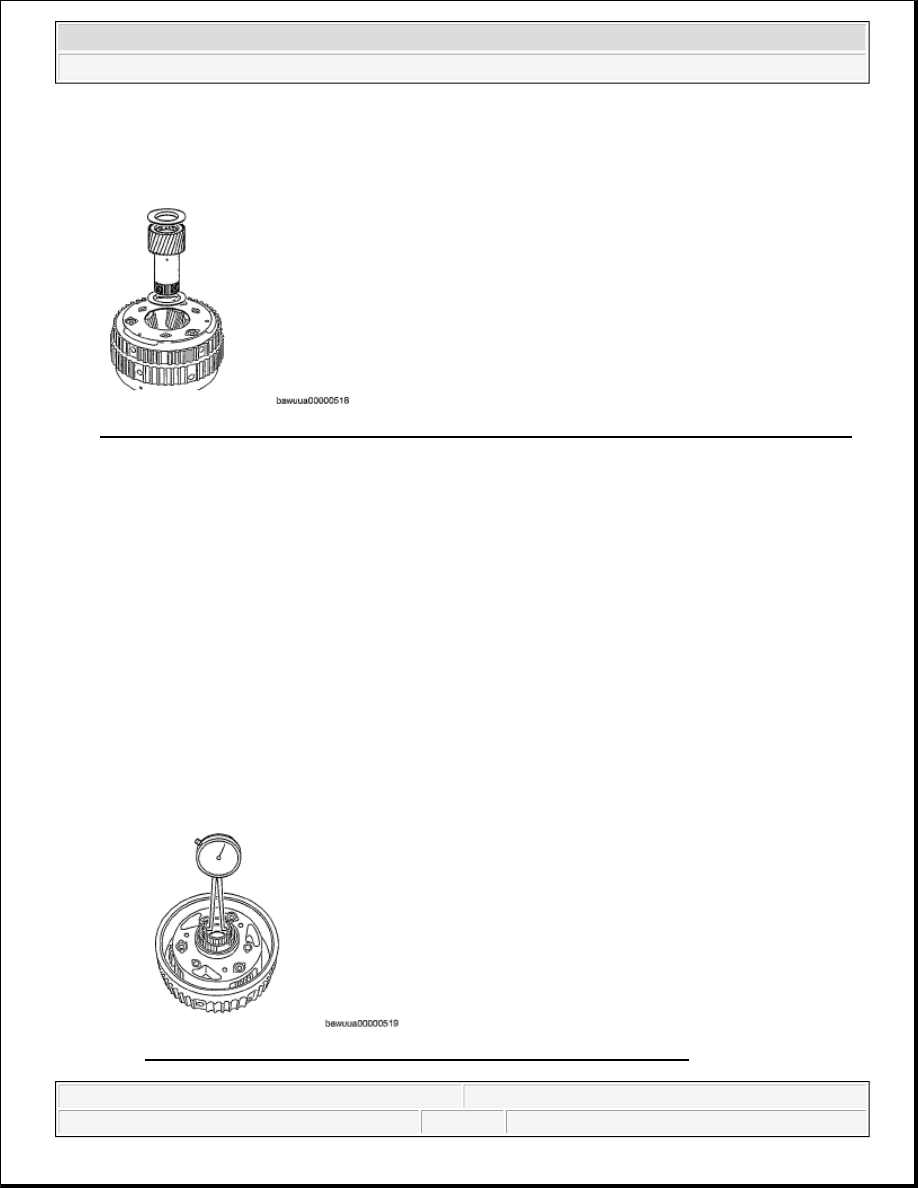

Fig. 166: Identifying Planetary Sun Gear And Bearing Races Of Rear Planetary Gear Component
Courtesy of MAZDA MOTORS CORP.

REAR PLANETARY GEAR INSPECTION

1. Using a dial indicator, measure the inner diameter of the rear planetary gear bushings.

Rear planetary gear bushing inner diameter

Front side: 33.26 - 33.286 mm {1.3095 - 1.3104 in}

Rear side: 33.26 - 33.286 mm {1.3095 - 1.3104 in}



If it exceeds the specification, replace the rear planetary gear component with a new one.



When the rear planetary gear component is replaced, inspect the contact surface opposed to the
planetary sun gear.

Fig. 167: Measuring Inner Diameter Of Rear Planetary Gear Bushings
Courtesy of MAZDA MOTORS CORP.

NOTE:



If it is difficult to remove the bearing race, remove it gently using a
flathead screwdriver.

NOTE:



Measure at different places and take an average.

2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6

Microsoft

Sunday, November 15, 2009 10:28:16 AM

Page 86



If the surface of it is scratched or has changed color, replace the planetary sun gear with a new one.

2. Using a dial indicator, measure the inner diameter of the planetary sun gear bushings.

Rear planetary sun gear bushing inner diameter

Front side: 24.2 - 24.226 mm {0.9528 - 0.9537 in}

Rear side: 24.2 - 24.226 mm {0.9528 - 0.9537 in}



If it exceeds the specification, replace the planetary sun gear component with a new one.

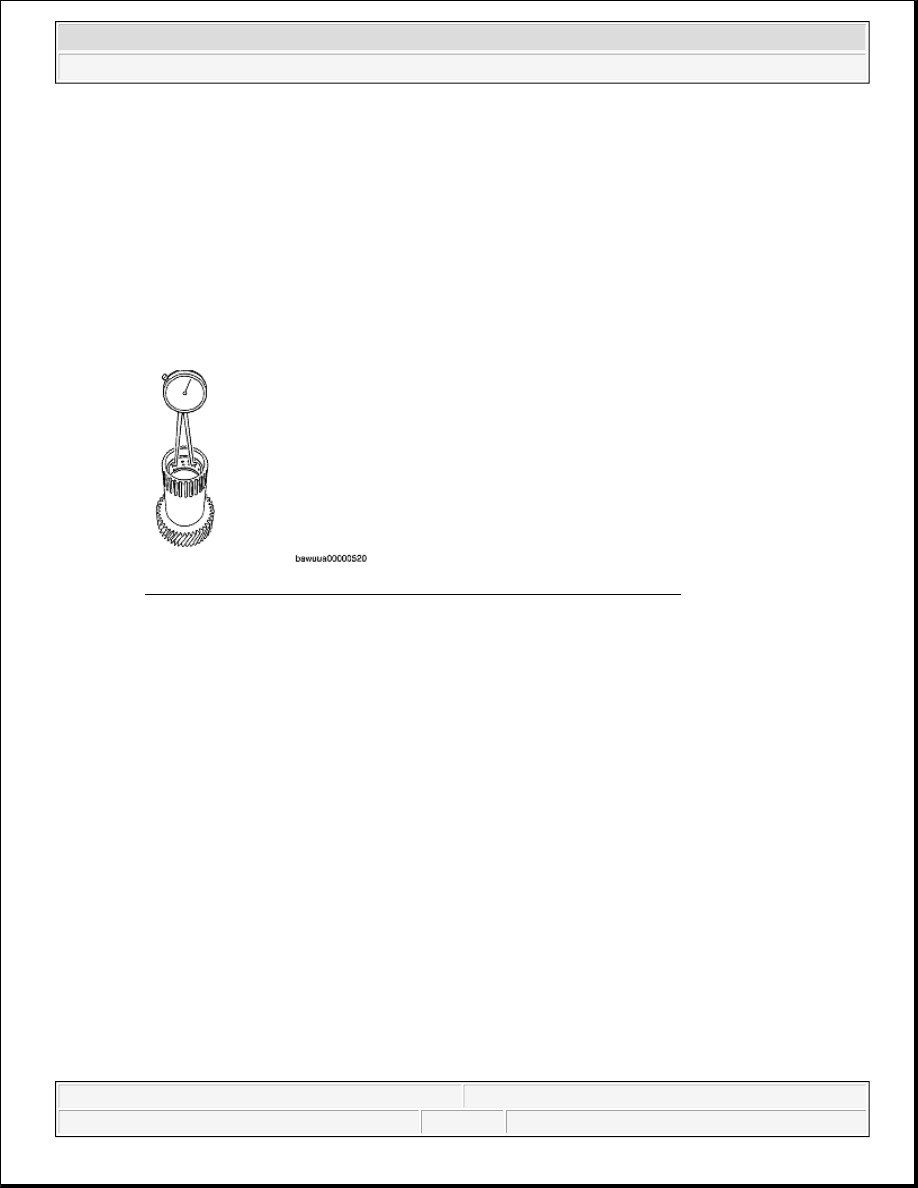

Fig. 168: Measuring Inner Diameter Of Planetary Sun Gear Bushings
Courtesy of MAZDA MOTORS CORP.



When the planetary sun gear component is replaced, inspect the contact surface opposed to the
intermediate shaft.



If the surface of it is scratched or has changed color, replace the intermediate shaft with a new one.

REAR PLANETARY GEAR COMPONENT AND ONE-WAY CLUTCH COMPONENT ASSEMBLY

Components

2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6

Microsoft

Sunday, November 15, 2009 10:28:16 AM

Page 87

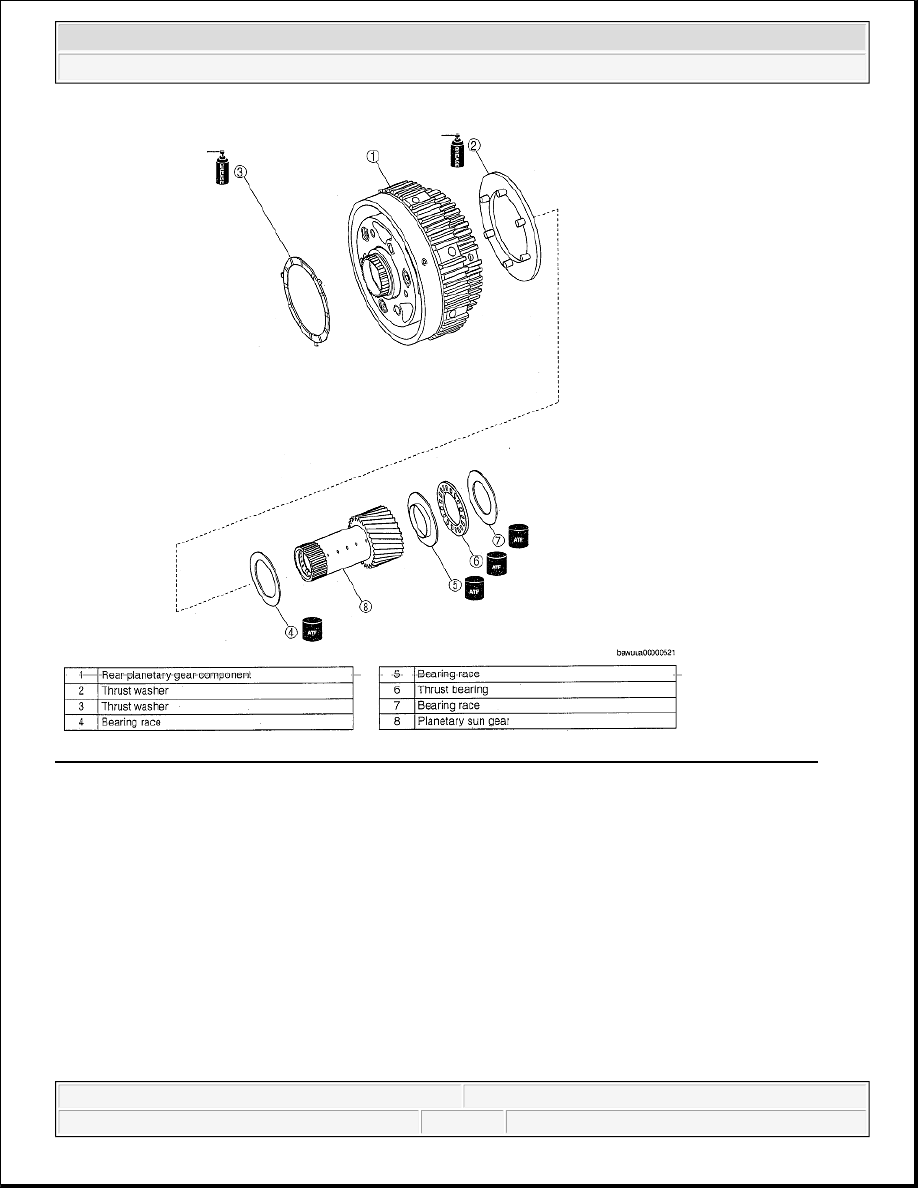

Fig. 169: Identifying Rear Planetary Gear Component And One-Way Clutch Component Assembly
Courtesy of MAZDA MOTORS CORP.

Assembly Procedure

1. Apply grease to the thrust washer.

2. Install the thrust washer to the rear planetary gear component.

CAUTION:



Apply grease to the mounting surface of the thrust washer so that it
will not drop when the rear planetary gear component is installed.



Do not apply grease to the oil holes of the thrust washer.

CAUTION:



Apply grease to the mounting surface of the thrust washer so
that it will not drop when the rear planetary gear component is
installed.

2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6

Microsoft

Sunday, November 15, 2009 10:28:16 AM

Page 88

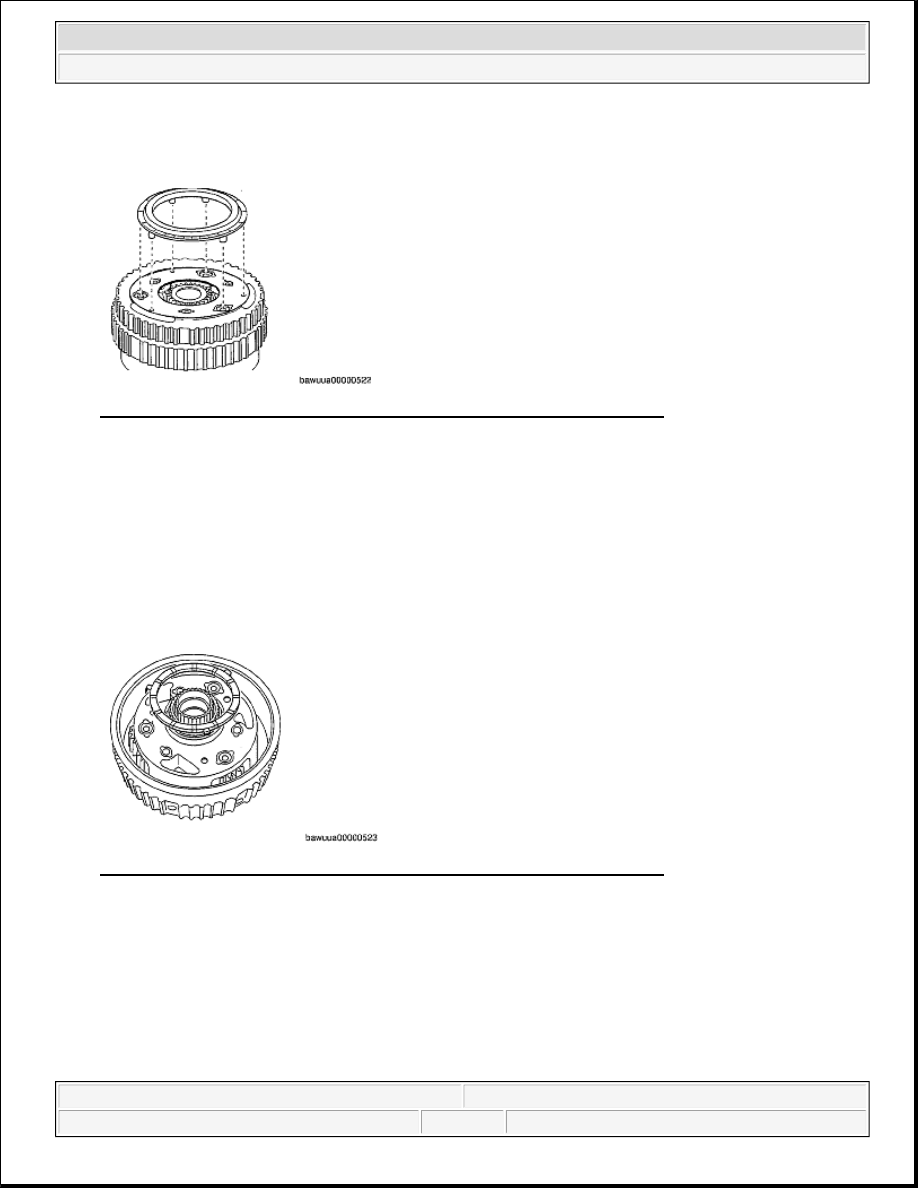

Fig. 170: Identifying Thrust Washer Of Rear Planetary Gear Component
Courtesy of MAZDA MOTORS CORP.

3. Apply grease to the thrust washer.

4. Install the thrust washer to the rear planetary gear component.

Fig. 171: Identifying Thrust Washer Of Rear Planetary Gear Component
Courtesy of MAZDA MOTORS CORP.

5. Apply ATF to the bearing races and the thrust bearing.

6. Install the bearing races to the planetary sun gear as shown in the figure.

7. Install the planetary sun gear to the rear planetary gear component.



Do not apply grease to the oil holes of the thrust washer.

CAUTION:



Apply grease to the mounting surface of the thrust washer so
that it will not drop when the rear planetary gear component is
installed.



Do not apply grease to the oil holes of the thrust washer.

2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6

Microsoft

Sunday, November 15, 2009 10:28:16 AM

Page 89
