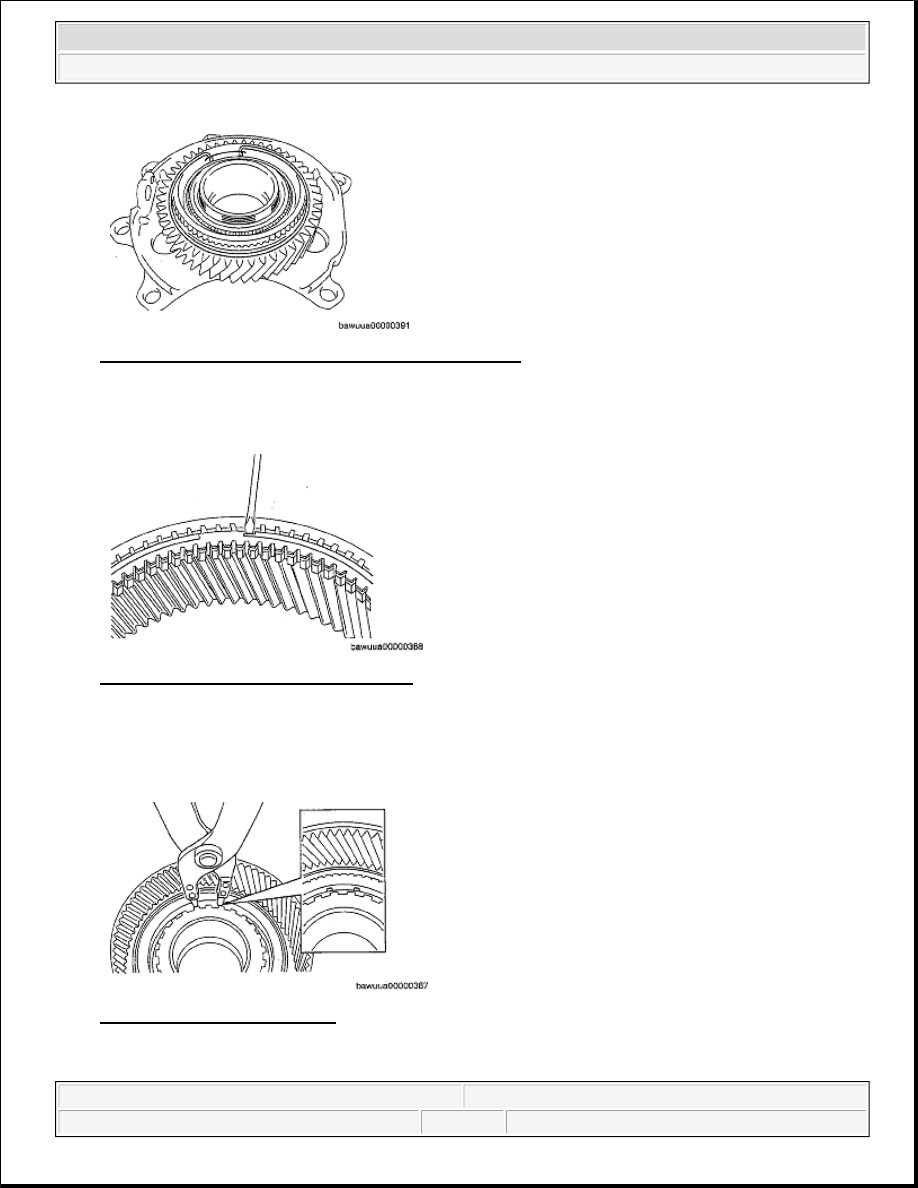

Fig. 158: Identifying Rear Planetary Ring Gear Flange
Courtesy of MAZDA MOTORS CORP.

12. Using a flathead screwdriver, install the snap ring in the groove.

Fig. 159: Installing Snap Ring In Groove
Courtesy of MAZDA MOTORS CORP.

13. Install the rear planetary ring gear to the counter drive gear.

14. Using the snap ring pliers, while loosening the snap ring, install the rear planetary ring gear.

Fig. 160: Loosening Snap Ring
Courtesy of MAZDA MOTORS CORP.

ONE-WAY CLUTCH COMPONENT INSPECTION



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 82

© 2005 Mitchell Repair Information Company, LLC.

1. Hold the one-way clutch component in place. Verify that the rear planetary gear rotates when turned

clockwise and does not rotate when turned counterclockwise.

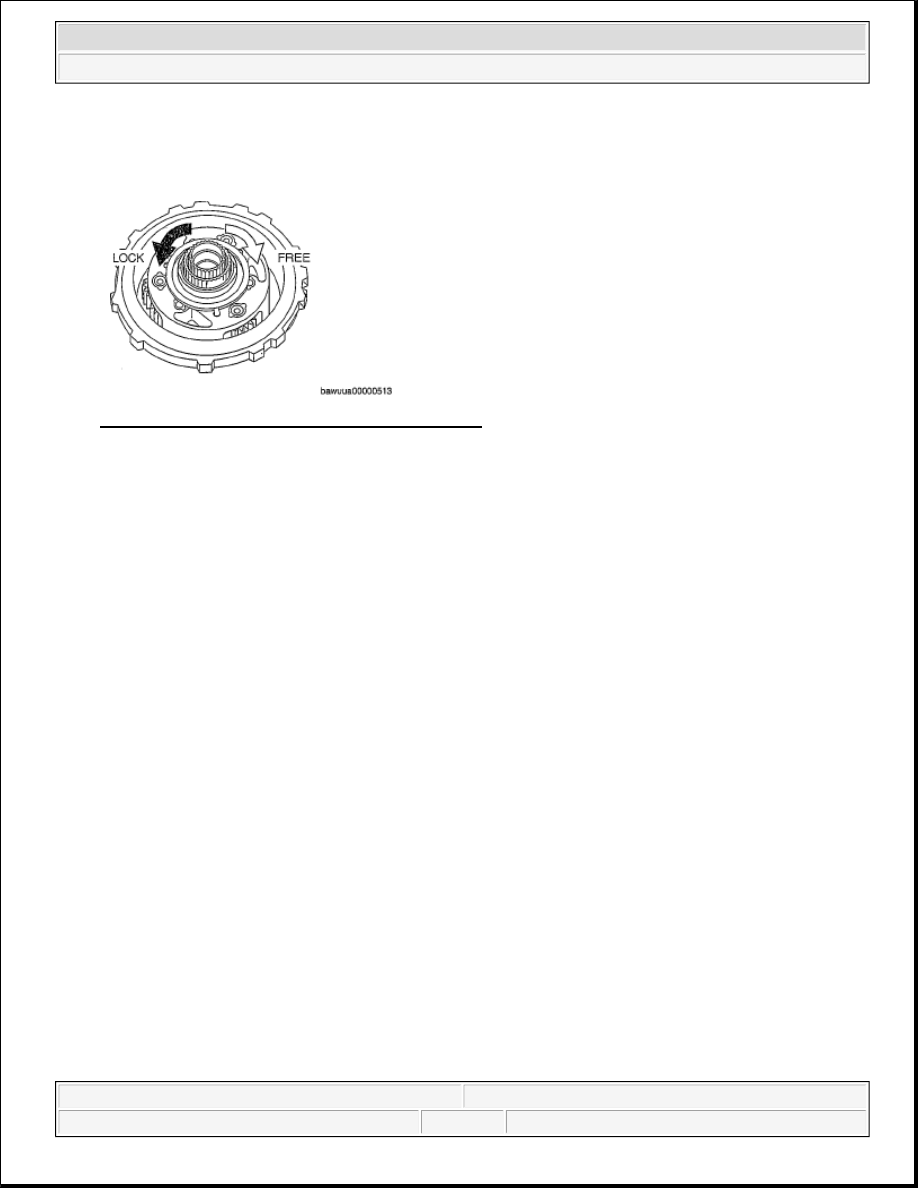

Fig. 161: Inspecting One-Way Clutch Component
Courtesy of MAZDA MOTORS CORP.

REAR PLANETARY GEAR COMPONENT AND ONE-WAY CLUTCH COMPONENT
DISASSEMBLY

Components



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 83

© 2005 Mitchell Repair Information Company, LLC.

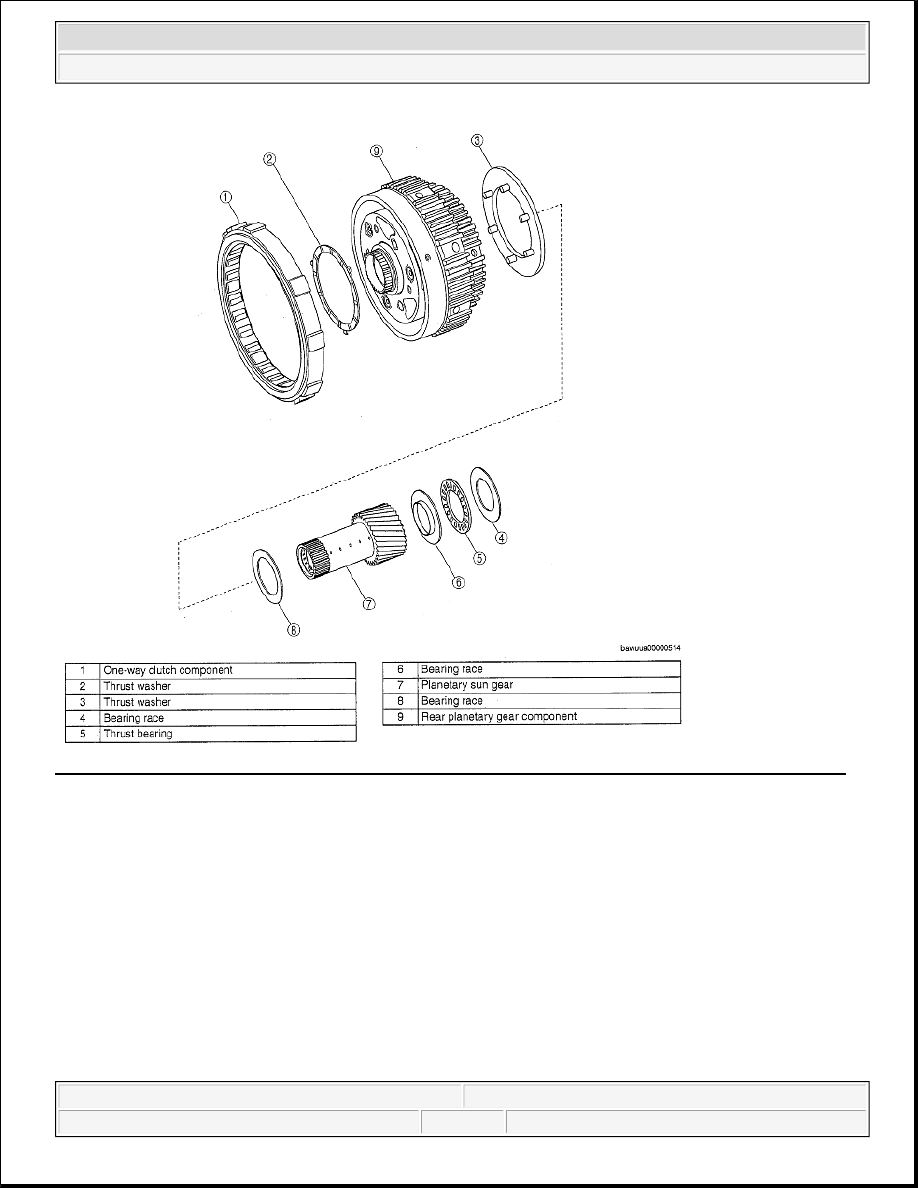

Fig. 162: Identifying Rear Planetary Gear Component And One-Way Clutch Disassembly Components
Courtesy of MAZDA MOTORS CORP.

Disassembly Procedure

1. Remove the one-way clutch component from the rear planetary gear component.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 84

© 2005 Mitchell Repair Information Company, LLC.

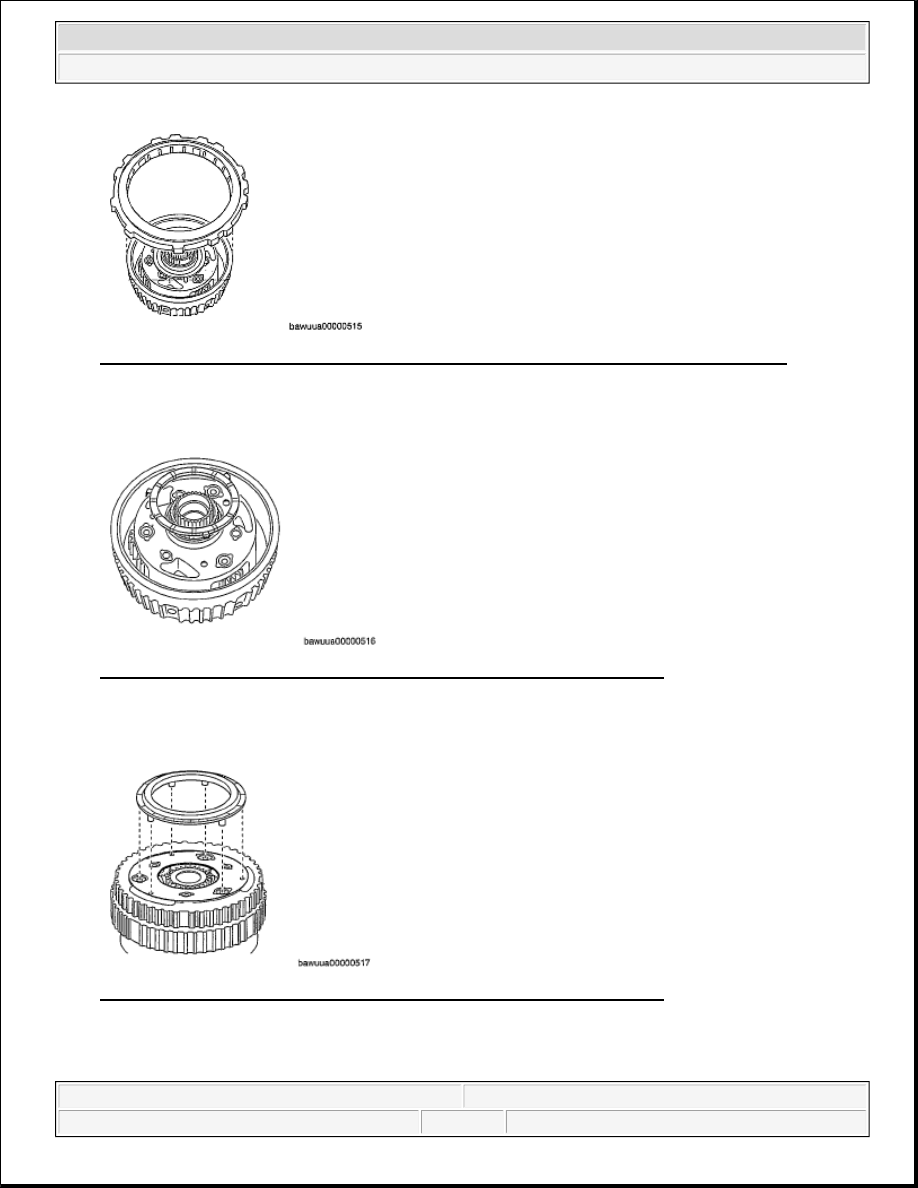

Fig. 163: Removing One-Way Clutch Component From Rear Planetary Gear Component
Courtesy of MAZDA MOTORS CORP.

2. Remove the thrust washer from the rear planetary gear component.

Fig. 164: Identifying Thrust Washer Of Rear Planetary Gear Component
Courtesy of MAZDA MOTORS CORP.

3. Remove the thrust washer from the rear planetary gear component.

Fig. 165: Identifying Thrust Washer Of Rear Planetary Gear Component
Courtesy of MAZDA MOTORS CORP.

4. Remove the planetary sun gear and bearing races from the rear planetary gear component.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 85

© 2005 Mitchell Repair Information Company, LLC.
