TECHNICAL SERVICE BULLETIN

FUSIBLE LINK REFERENCE CHART

Model:    All Mazda
Date:     November 1, 1990 (Revised - April 27, 1992)
No:       T-2-3
Group:    Parts Bulletin

SERVICE INFORMATION

For easy reference, the following list of Fusible Links have been
compiled.

FUSIBLE LINK REFERENCE CHART

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Year        Model         Location              P/N

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

1979-82     626           Engine Compartment   8174-66-760B
1983-85     626 Gas       Engine Compartment   3775-67-099
1983-85     626 Diesel    Engine Compartment   H047-67-099
1983-85     626           Alternator           HA67-67-099
1979        RX-7          Under Dash           1175-66-710A
1980        RX-7          Under Dash           8130-66-710
1980        RX-7          Engine Compartment   8341-18-055
1981        RX-7          Under Dash           FA02-67-099
1981-85     RX-7          Engine Compartment   3777-67-099
1981-85     RX-7          Transmission         8341-18-055
1981-85     RX-7          Engine Compartment   8871-67-099
1984-85     RX-7          Engine Compartment   3775-67-099

1981-85     GLC           Engine Compartment   B003-67-099
1981-85     GLC           Engine Compartment   B005-67-099
1981-85     GLC           Engine Compartment   B006-67-099
1977-82     B2000         Engine Compartment   B094-67-099
1983-84     B2000/B2200   Engine Compartment   UA47-66-099

1988-93     MX-6          Engine Compartment   FB01-67-099
            M/T,
            Non-Turbo A/T

1988-93     626 Sedan     Engine Compartment   FB01-67-099
1988-93     626 Hatchback Engine Compartment   FB01-67-099
            M/T,
            Non-Turbo A/T

1990-92     929, 929S     Engine Compartment   FB01-67-099
1986-92     323           Engine Compartment   FB01-67-099
1987-89     323 Wagon     Engine Compartment   FB01-67-099
1986-91, 93 RX-7          Engine Compartment   FB01-67-099

FUSIBLE LINK REFERENCE CHART NO. T-2-3

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, August 27, 2001  06:31AM

1992        MX-3          Engine Compartment   FB01-67-099
1984-86     GLC Wagon     Engine Compartment   8573-66-760

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

END OF ARTICLE

 HIGH PITCH BUZZING NOISE AT DASH: REMOVE OSCILLATOR

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 08, 2001  10:01AM

ARTICLE BEGINNING

TECHNICAL INFORMATION TIP

BUZZING ROTARY

YEAR(S):       1979-85
MANUFACTURER:  Mazda
MODEL(S):      RX-7

ISSUE: HIGH PITCH BUZZING NOISE AT DASH - REMOVE OSCILLATOR

     If you hear a high pitched buzzing noise coming from the center
of the dash with the key off on a 1979-85 Mazda RX-7, the cause may be
a defective oscillator. The oscillator is located under the hood, in
the area near the left headlight.
     To stop the noise, unplug the oscillator. The oscillator is used
as a dash instrument circuit backup. Removing the oscillator has no
other effect except to stop the constant buzzing noise.

      Courtesy of Import Service Magazine
      with thanks to

                           James Halderman
                           Sinclair College
                           Dayton, Ohio

REFERENCE NUMBER: MAZ0170AP

NOTE:  This information has been obtained from sources generally
       believed to be reliable. Use your own judgment before relying
       on this data. Neither the suppliers of these Technical
       Information Tips, nor Mitchell International, guarantees or
       assumes responsibility for data accuracy or completeness, nor
       is liability assumed by the suppliers of these Technical
       Information Tips or Mitchell International for any claims or
       damages resulting from the use of this information.

END OF ARTICLE

KEYLESS SWITCH SPEED NUT INFORMATION CAT. 15, NO. 010/85

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, August 27, 2001  06:32AM

ARTICLE BEGINNING

TECHNICAL SERVICE BULLETIN

SPEED NUT FOR IGNITION KEY SWITCH

Models          GLC, 626, RX-7 & B2000
Bulletin No.    010/85
Category        15
Date            6/25/85

DESCRIPTION

   The speed nut for fixing the key-less switch to the ignition key
cylinder housing has been established as a service part. If the
replacement of the ignition key switch is necessary, please use the
new speed nut to secure the key-less switch. See Fig. 1.

PARTS INFORMATION

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

NEW PART NO.   OLD PART NO.      DESCRIPTION

BC46 66 158

ÄÄ

            Speed Nut

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

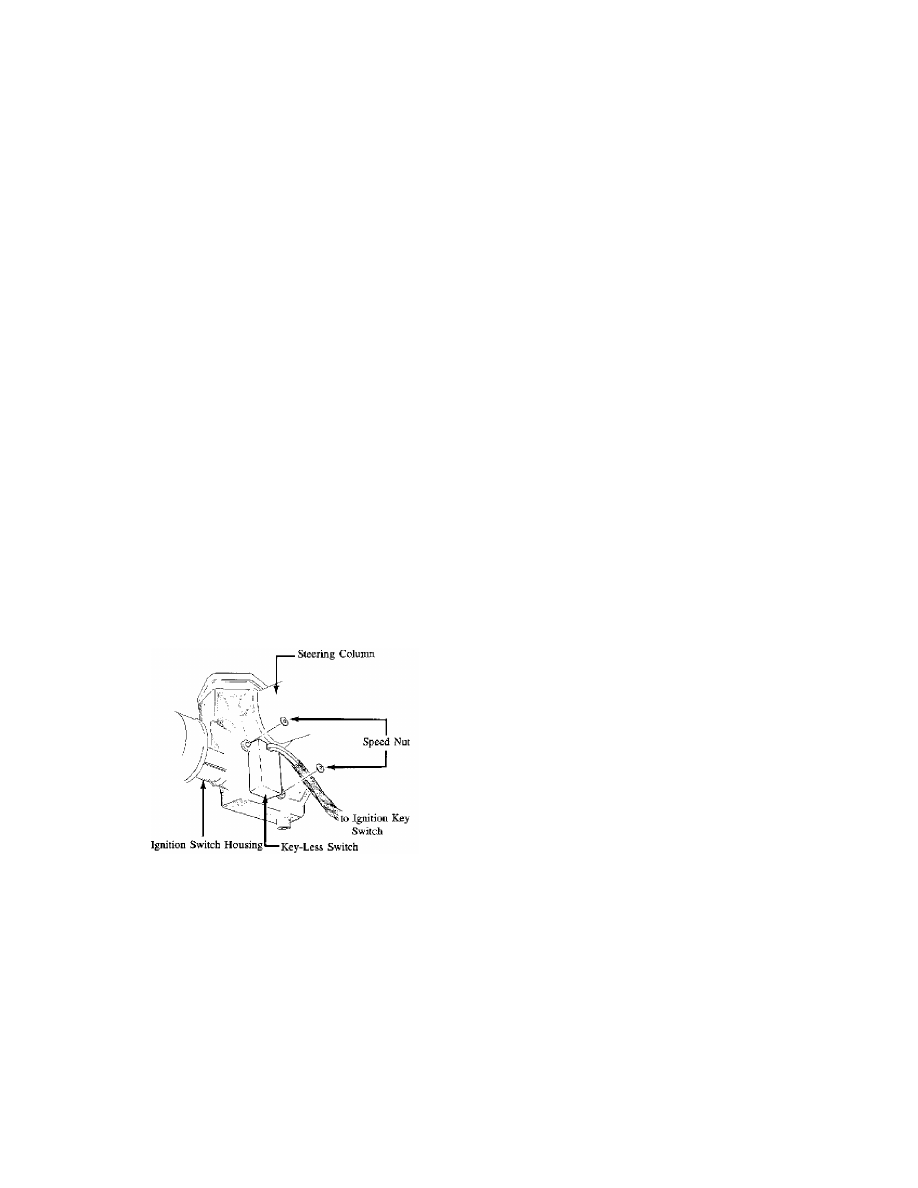

Fig. 1:  Securing Key-Less Switch with Speed Nut
