Mazda RX7. Manual - part 69

ALTERNATOR/REGULATOR TEST PROCESS/REPLACEMENT INFO CAT. 5, NO. 058/83

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Monday, August 27, 2001 06:30AM

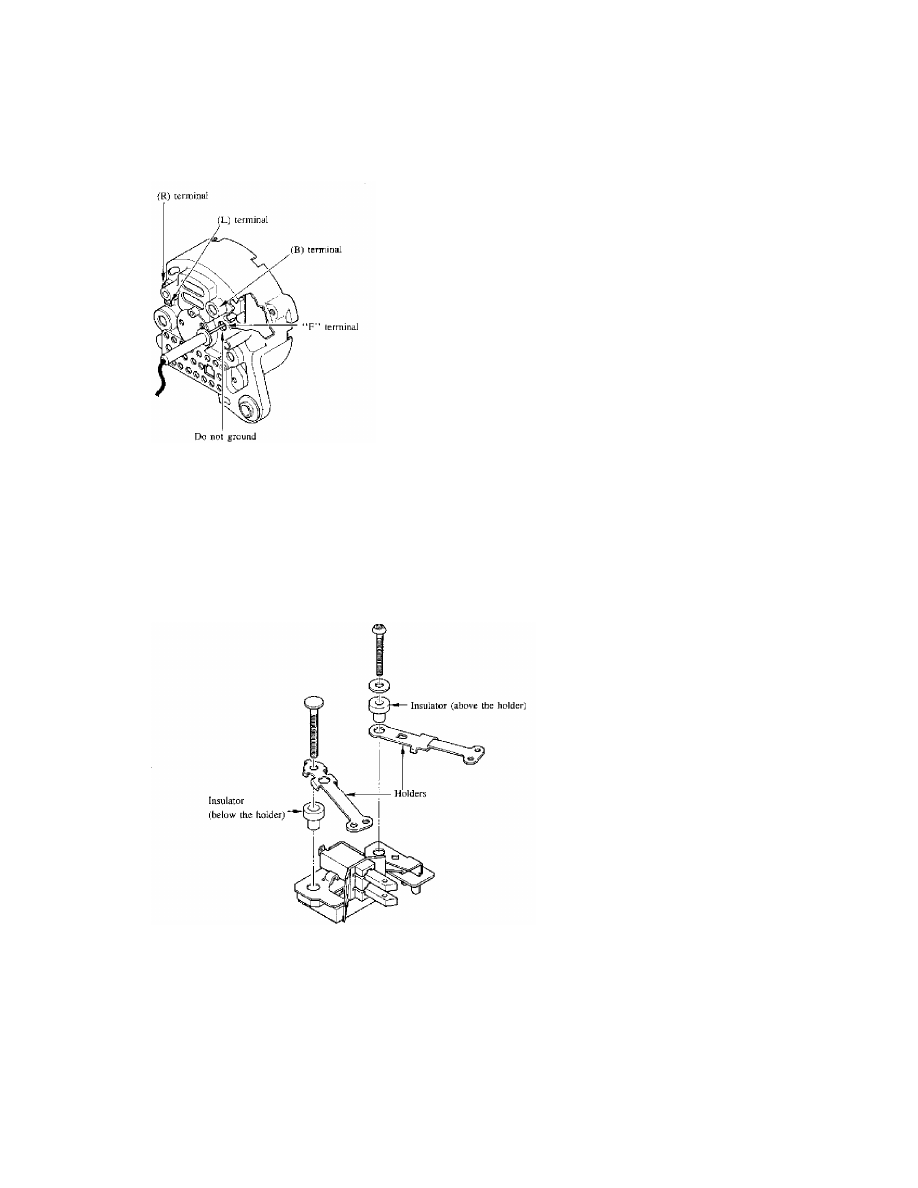

Fig. 2: Location of "F" Terminal

REPAIR PROCEDURE

Please refer to the Service Information for IC regulator replacing
procedure.

NOTE: Be sure the insulators are in the proper position as shown in
Fig. 3.

Fig. 3: Proper Location of Insulators

END OF ARTICLE

AUDIO SYSTEM TROUBLESHOOTING PROCEDURES CAT. 15, NO. 078/89

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Monday, August 27, 2001 06:30AM

ARTICLE BEGINNING

TECHNICAL SERVICE BULLETIN

AUDIO SYSTEM TROUBLESHOOTING

Model All Mazda Models
Category 15, Body Electrical System
Bulletin No. 078/89
Date May 5, 1989

DESCRIPTION

To simplify audio system troubleshooting, a flow chart (see Fig. 1)
has been prepared. It contains essentials of audio system trouble-
shooting procedures, focusing on the following:

* Obtain accurate information of customer's complaint.
* Carry out appropriate diagnosis or troubleshooting to find the
faulty part.
* Avoid replacing unnecessary parts.
* Verify whether the customer's complaint results from specific
characteristics of FM radio waves. If so, the complaint cannot be
corrected by audio component replacement.

Use the following materials with the attached flow chart when
carrying out inspection and repair of the audio system.

* Audio System Troubleshooting Procedures (plastic sheet)
* Service Bulletin, Category 15, 050/87 (FM Reception)
* Audio Customer Questionnaire
* Workshop Manual

NOTE: If it becomes necessary to disconnect power to the audio
system, be sure to copy down the customer's preset stations.
Re-set these stations after repairs are complete.

AUDIO SYSTEM TROUBLESHOOTING PROCEDURES CAT. 15, NO. 078/89

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Monday, August 27, 2001 06:30AM

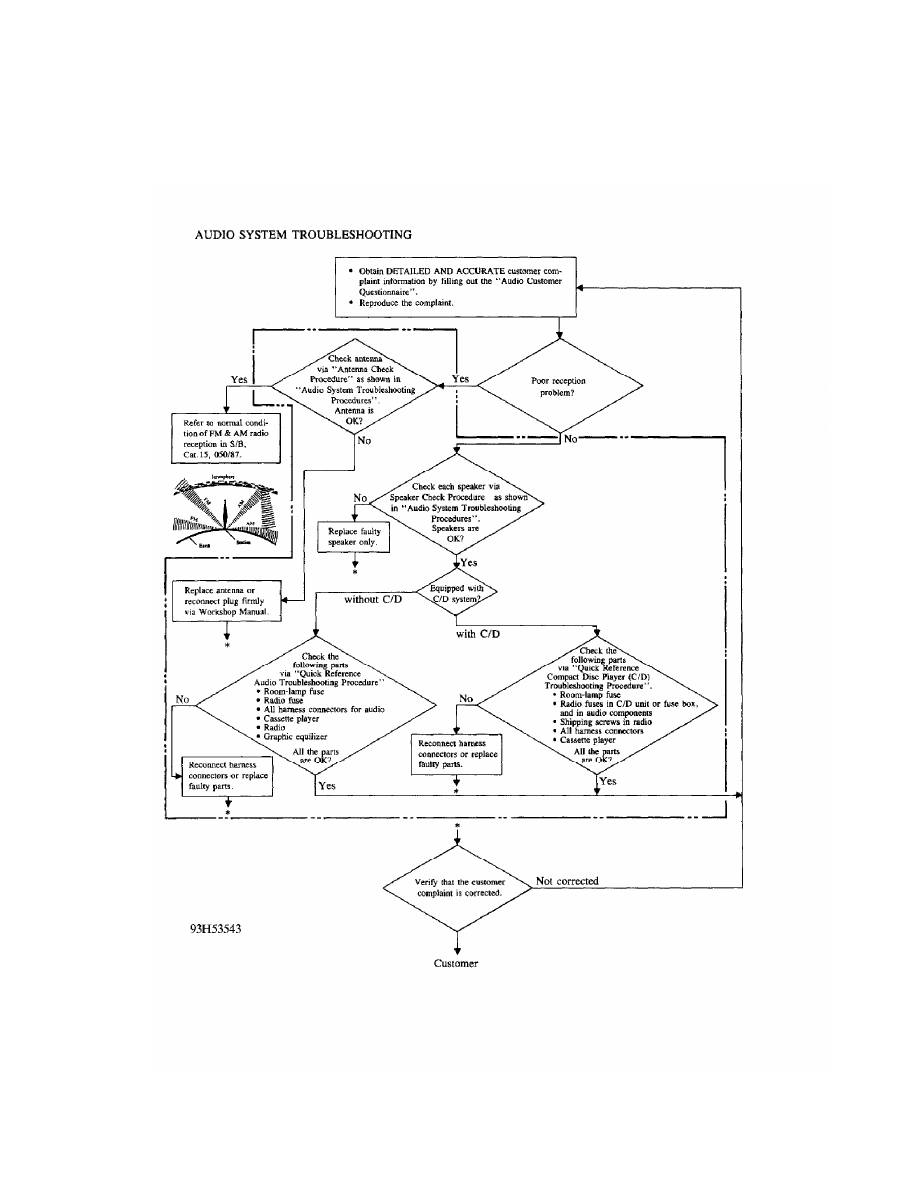

Fig. 1: Audio System Troubleshooting

END OF ARTICLE

BATTERY REMOVAL/INSTALL WIRE CLIP WARNING CAT. 14, NO. 009/85

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Monday, August 27, 2001 06:31AM

ARTICLE BEGINNING

TECHNICAL SERVICE BULLETIN

BATTERY CLAMP BOLT & NUT

Models RX-7
Bulletin No. 009/85
Category 14
Date 1/22/85

DESCRIPTION

During installation of the battery clamp rod and nut, it is possible
for wire clip to become pinched in the threads on the clamp bolt,
resulting in the nut binding on the clamp rod. See Fig. 1.
If you encounter this problem, please follow the repair procedure
below.

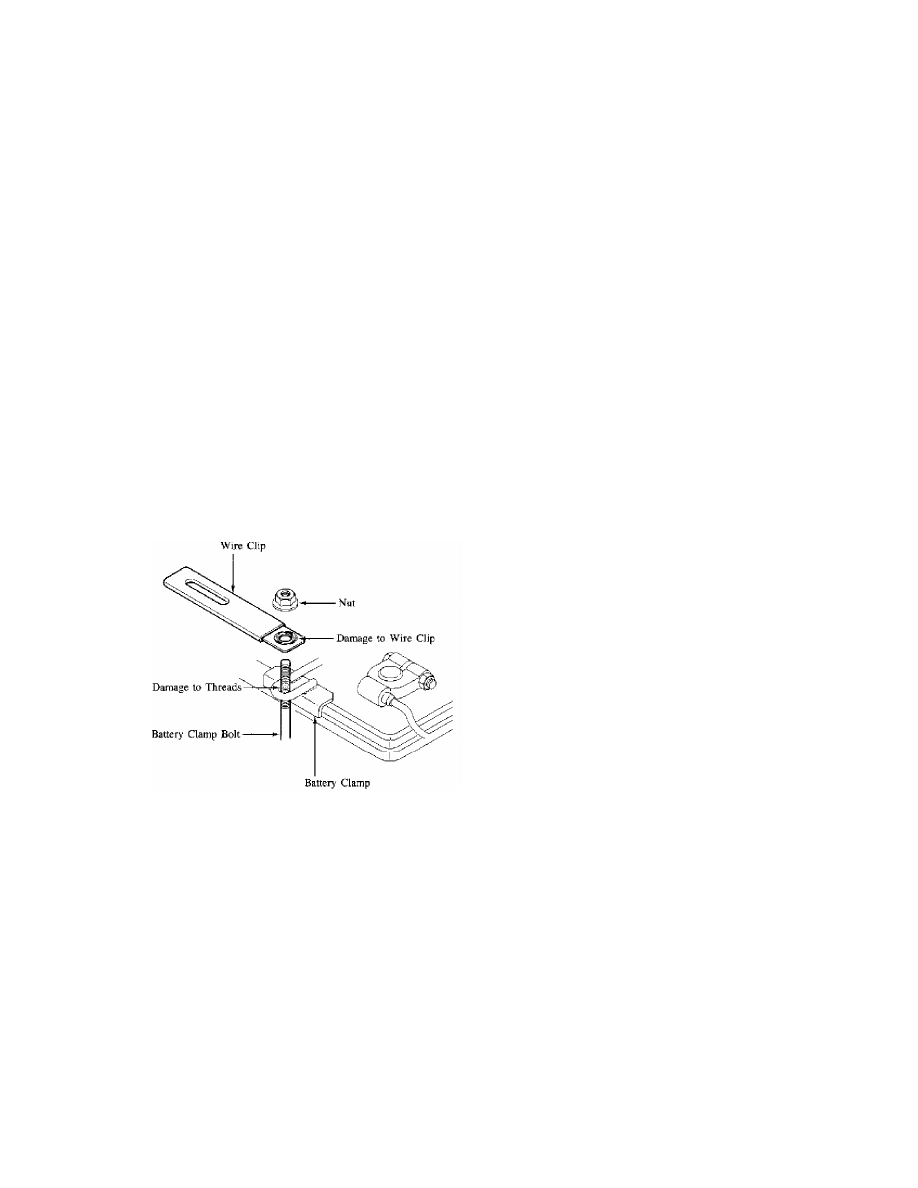

Fig. 1: Battery Clamp Bolt & Nut

PARTS INFORMATION

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

PART NUMBER DESCRIPTION

0613 65 857A Clamp Bolt
9994 00 602 Nut

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

REPAIR PROCEDURE

1. Carefully remove the nut from the battery clamp bolt.
2. Use a die to repair the threads on the clamp bolt.
3. Install a small washer on top of the wire clip to prevent damage
to the threads on the clamp bolt during reinstallation.

END OF ARTICLE
