Mazda 6. Manual - part 242

P–26

CONVENTIONAL BRAKE SYSTEM

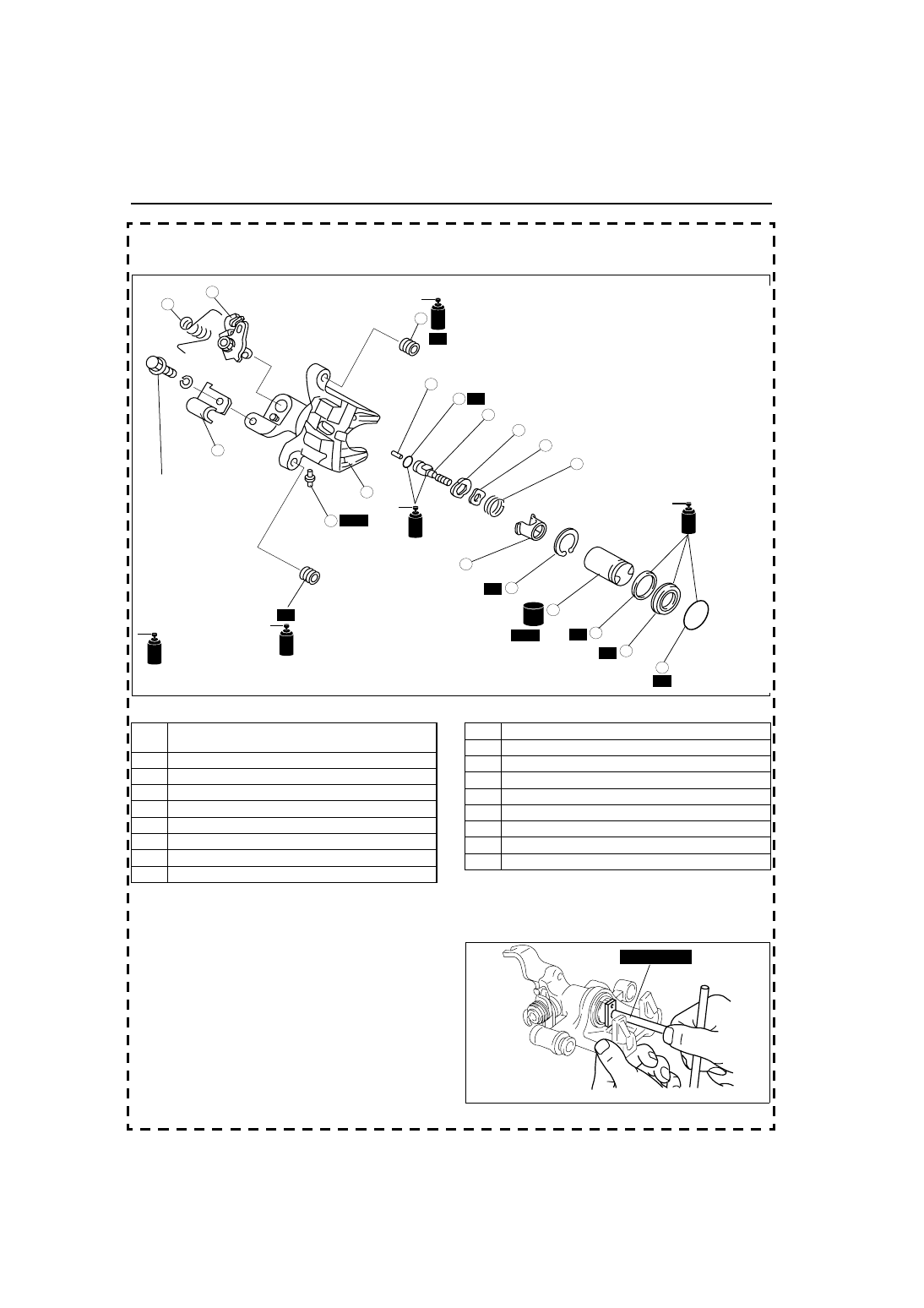

CALIPER (REAR) DISASSEMBLY/ASSEMBLY

A6A691226990W01

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Piston Disassembly/Assembly Note

• Remove/install the piston using the SST.

End Of Sie

A6A6912W303

5.9—8.8
{61—89, 53—77}

37.3—49.0 N·m
{3.81—4.99 kgf·m,
27.6—36.1 ft·lbf}

N·m {kgf·cm, in·lbf}

BRAKE

FLUID

SST

GREASE

RUBBER GREASE

*49 0259 770B

SST

Piston
(See

P–26 Piston Disassembly/Assembly Note

)

O-ring

Piston boot

Piston seal

Snap ring

Cover

Spring

Washer

Stopper

Adjuster

O-ring

Connecting link

Bracket

Spring

Operating lever

Breeder screw

Boot

Caliper body

A6E6912W039

49 FA18 602

PARKING BRAKE SYSTEM

P–26–1

P–26BRAKING SYSTEM

PARKING BRAKE (LEVER TYPE) INSPECTION

A6E691444000W01

1. Pull the parking brake lever a few times.
2. Depress the brake pedal a few times.
3. Inspect the parking brake stroke by pulling the parking brake lever with a force of 98 N {10 kgf, 22 lbf}.

Stroke

3—6 notches

End Of Sie

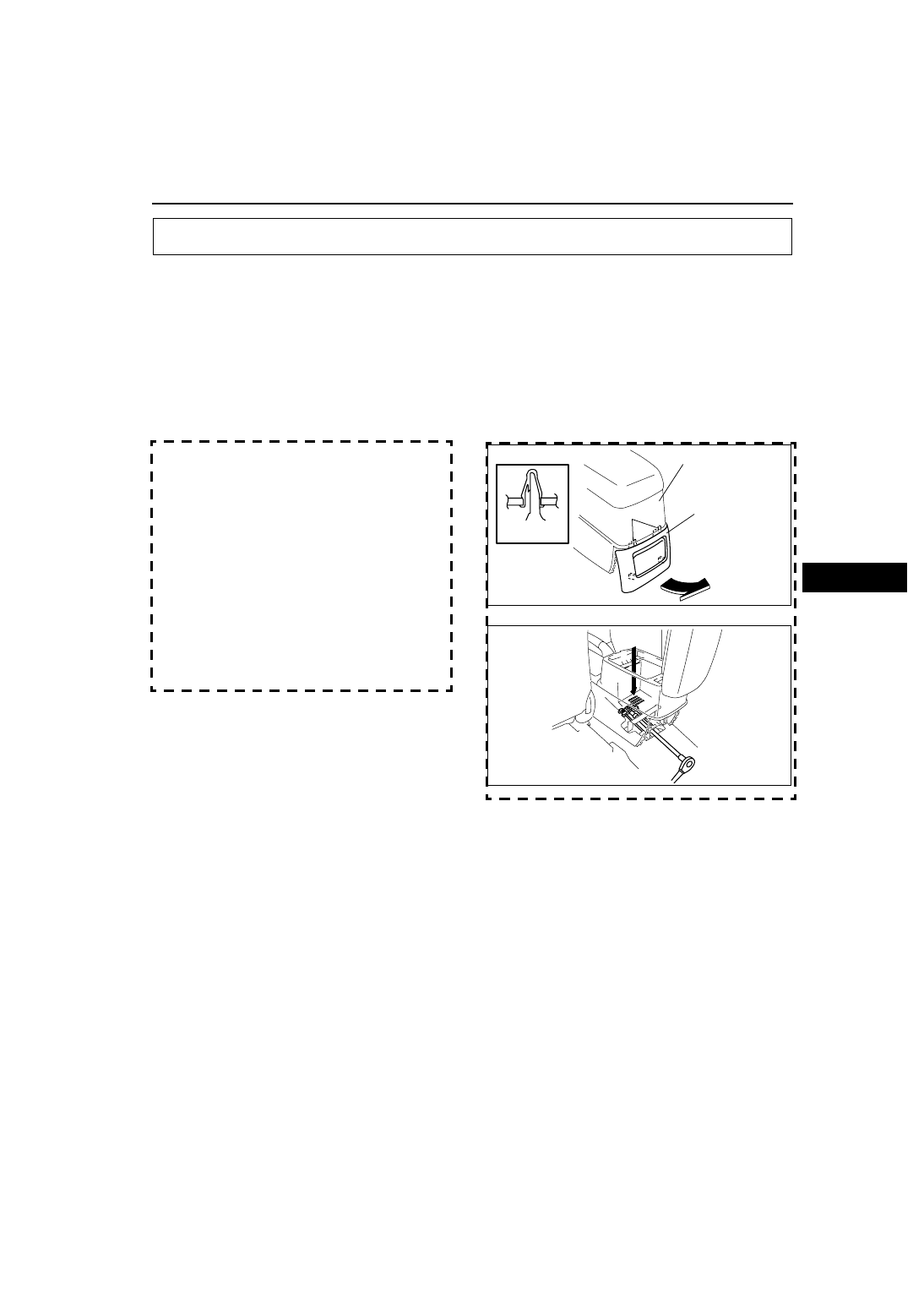

PARKING BRAKE (LEVER TYPE) ADJUSTMENT

A6E691444000W02

1. Start the engine and depress the brake pedal several times.
2. Stop the engine.
3. Pull the underside of the rear ashtray case in the

direction shown by the arrow and remove clips A
from the console.

4. Disengage the hooks from the console and

remove the rear ashtray case.

5. Verify the position of the adjusting nut while

looking in from above the console (A) as shown,
and set the socket on the nut.

6. Turn the adjusting nut to adjust the parking brake

lever.

7. After adjustment, inspect the following points:

(1) Turn the ignition switch to ON, pull the parking

brake lever one notch, and verify that the
parking brake warning light illuminates.

(2) Verify that the rear brakes do not drag.

End Of Sie

PARKING BRAKE SYSTEM

A6E6914W011

CLIP A

TAB

CONSOLE

REAR ASHTRAY CASE

A6E6914W012

P–26–2

PARKING BRAKE SYSTEM

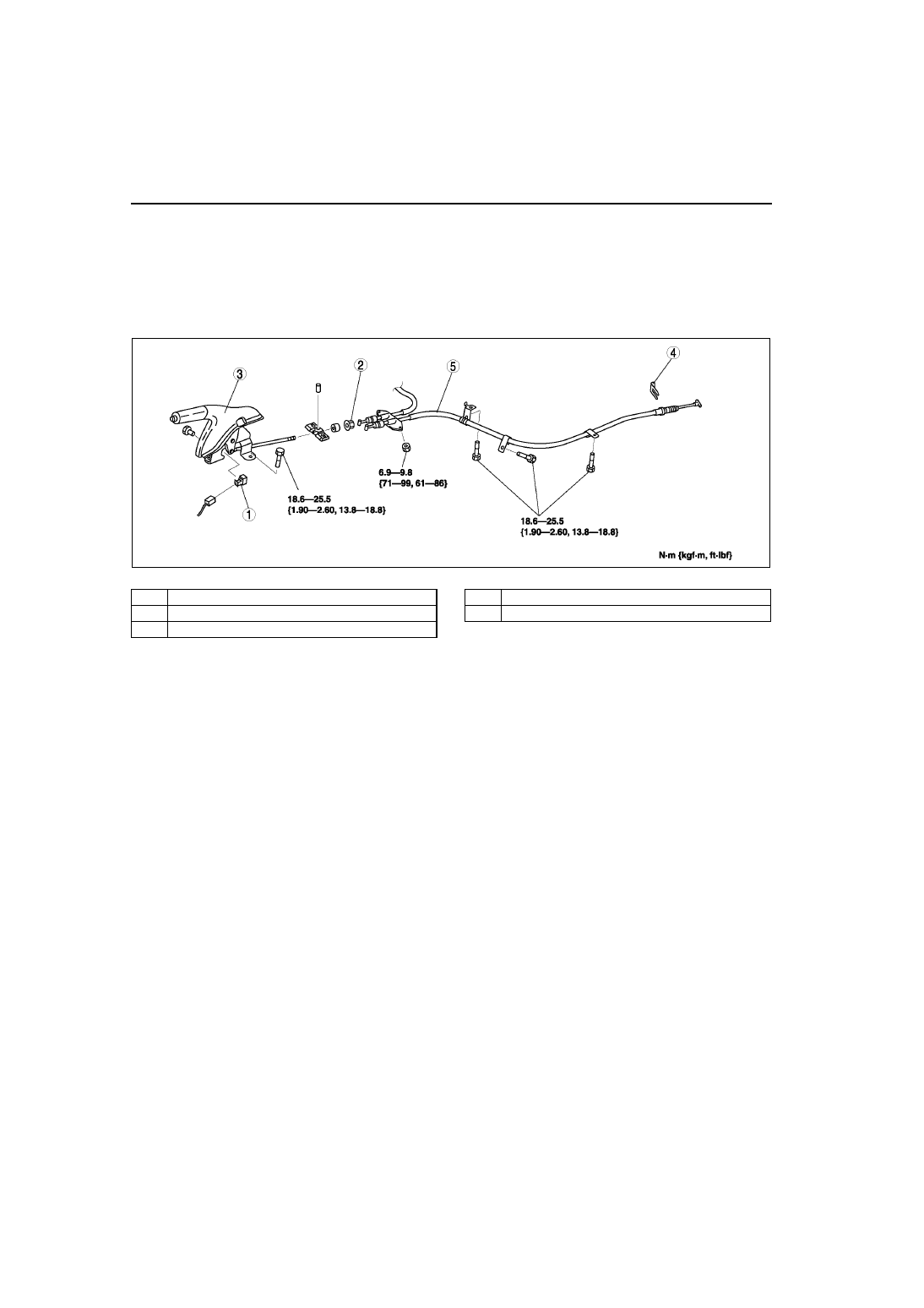

PARKING BRAKE (LEVER TYPE) REMOVAL/INSTALLATION

A6E691444000W03

1. Remove the center console. (See

S–86

2. Remove the rear seat cushion (4SD) or rear seat (5HB) . (See

S–110 REAR SEAT REMOVAL/

INSTALLATION

3. Remove the exhaust pipe bracket.
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Adjust the parking brake stroke. (See

P–26–1 PARKING BRAKE (LEVER TYPE) ADJUSTMENT

End Of Sie

A6E6914W001

Parking brake switch

Adjusting nut

Parking brake lever

Clip

Parking brake cable

ABS/TCS

P–27

PBRAKING SYSTEM

ABS (ABS/TCS) HU/CM SYSTEM INSPECTION

A6E692143780W01

System Inspection
Preparation

1. Verify that the battery is fully charged. With the ignition switch on, verify that the ABS and BRAKE system

warning lights goes out after 2.4 seconds.

2. If the lights stays on after 2.4 seconds, the ABS (ABS/TCS) HU/CM detects a failure. Follow the

troubleshooting procedures.

3. Turn the ignition switch off.
4. On level ground, jack up the vehicle and support it evenly on safety stands. Shift the transaxle to N position.
5. Release the parking brake.
6. Rotate the wheels by hand, and inspect for brake drag.

Operation of ABS inspection

1. Perform the “Preparation.”
2. Connect the SSTs (WDS or equivalent) to the

data link connector-2 (DLC-2).

3. Set up an active command mode inspection

according to the combination of commands
below.

The chart above shows an example of a right wheel inspection.

Note

• When working with two people, one should press on the brake pedal, the other should attempt to rotate

the wheel being inspected.

4. Send the command while pressing on the brake pedal and attempting to rotate the wheel being inspected.
5. When pressure is being maintained, and click sound indicating the solenoid is operating comes from the ABS

(ABS/TCS) HU/CM, confirm that the wheel does not rotate. When pressure is being reduced, and click sound
indicating the solenoid is operating comes from the ABS (ABS/TCS) HU/CM, confirm that the wheel rotates,
even though the brake pedal is being depressed.

Note

• To protect the ABS (ABS/TCS) HU/CM, the solenoid valve used for simulations and the ABS motor stay

on for 10 seconds each time they are switched on.

• Performing the inspections above determines the following.

— The ABS (ABS/TCS) HU/CM brake lines are normal.
— The ABS (ABS/TCS) HU/CM hydraulic system is not significantly abnormal.
— The ABS (ABS/TCS) HU/CM wiring is normal.

• However, the following items cannot be checked.

— ABS (ABS/TCS) HU/CM input system harness and parts
— Extremely small leaks in the ABS (ABS/TCS) HU/CM internal hydraulic system
— Unusual intermittent occurrences in the above items

End Of Sie

ABS/TCS

A6E6921W007

OPERATION

COMMAND NAME

COMMAND TYPE

PMP_MOTOR

RF_OUTLET

RF_INLET

ABS_POWER

Pressure retention

OFF

Manual

Pressure reduction
