BODY PANELS

09–10–4

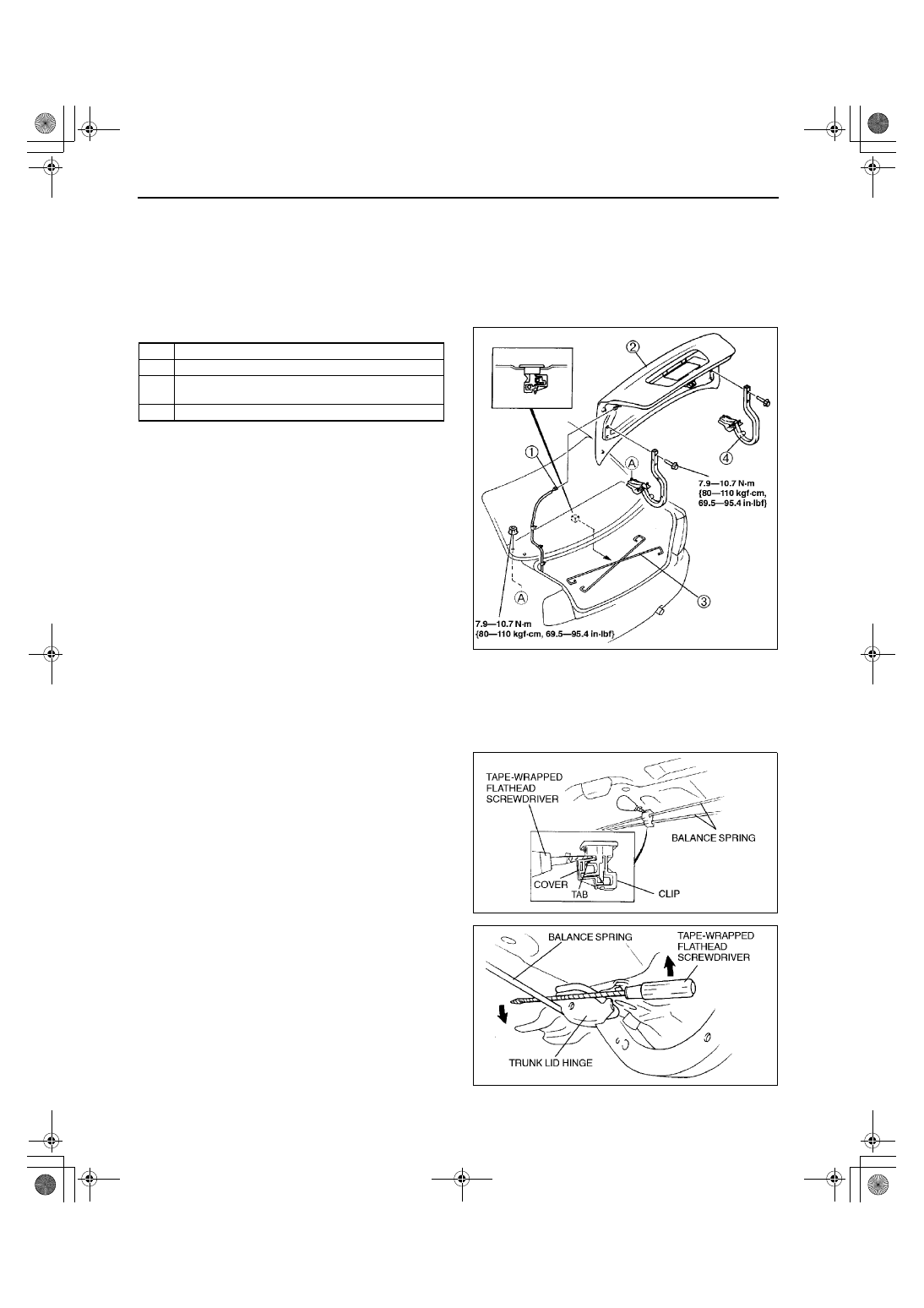

TRUNK LID REMOVAL/INSTALLATION

A3U091052610W02

Warning

••••

Removing the trunk lid without supporting it can be dangerous. The trunk lid may fall and injure
you. Always perform these procedures together with at least another person.

1. Disconnect the negative battery cable.
2. To remove the trunk lid hinge, remove the rear package trim. (See 09–17–12 REAR PACKAGE TRIM

REMOVAL/INSTALLATION.)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
5. Adjust the trunk lid. (See 09–10–3 TRUNK LID

ADJUSTMENT.)

Balance Spring Removal Note

Note

The balance springs are under high tension.

1. Push the tab of the clip to open the cover using a tape-wrapped flathead screwdriver.
2. Remove the balance springs from the clip.

3. Remove the balance spring from the trunk lid

hinge using a tape-wrapped flathead screwdriver.

End Of Sie

1

Connector

2

Trunk lid

3

Balance spring
(See 09–10–4 Balance Spring Removal Note)

4

Trunk lid hinge

X3U910WA7

Y3U910WA3

X3U910WA9

1712-1U-01G(09-10).fm  4 ページ  2001年6月29日 金曜日 午前10時29分

BODY PANELS

09–10–5

09–10

FRONT BUMPER REMOVAL/INSTALLATION

A3U091050031W01

1. Disconnect the negative battery cable.
2. Disconnect the front fog light connector.
3. To remove the bumper reinforcement, remove the front bumper and washer tank, then remove the bumper

reinforcement installation nuts.

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
6. Adjust the front fog light aiming. (See 09–18–9

FRONT FOG LIGHT ADJUSTMENT.)

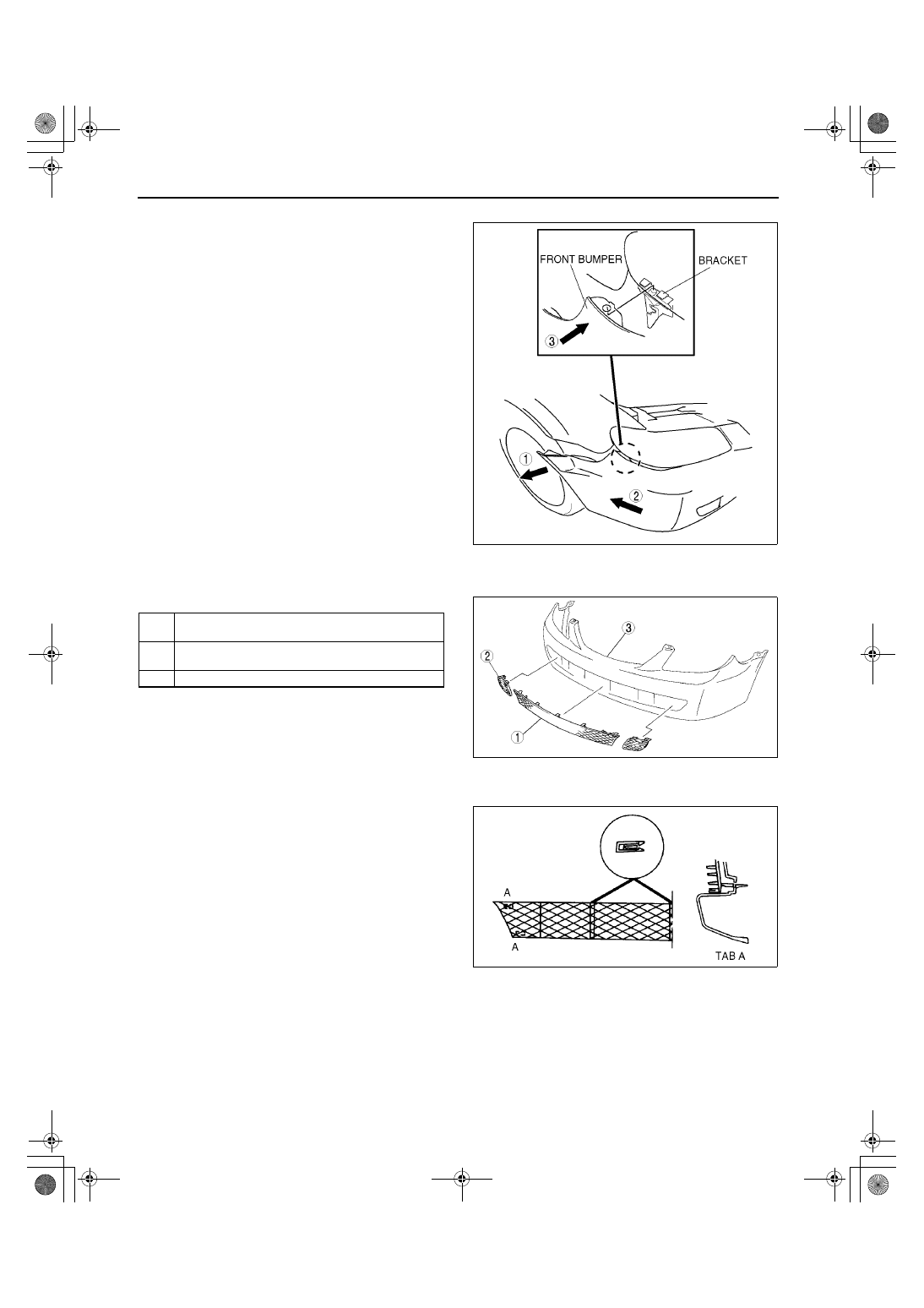

Front Bumper Removal Note

1. While supporting the connection between the

front bumper and bracket, pull the front bumper
forward to disengage the connection.

Note

The connection between the front bumper
and bracket does not disengage until the
front bumper is pulled forward. Be sure to
pull the front bumper forward to disengage it
from the bracket.

2. Remove the front bumper.

1

Screw A

2

Fastener

3

Screw B

4

Bolt

5

Front bumper
(See 09–10–5 Front Bumper Removal Note.)
(See 09–10–6 Front Bumper Installation Note.)

6

Front bumper reinforcement

Z3U0910W004

Y3E7726W004

1712-1U-01G(09-10).fm  5 ページ  2001年6月29日 金曜日 午前10時29分

BODY PANELS

09–10–6

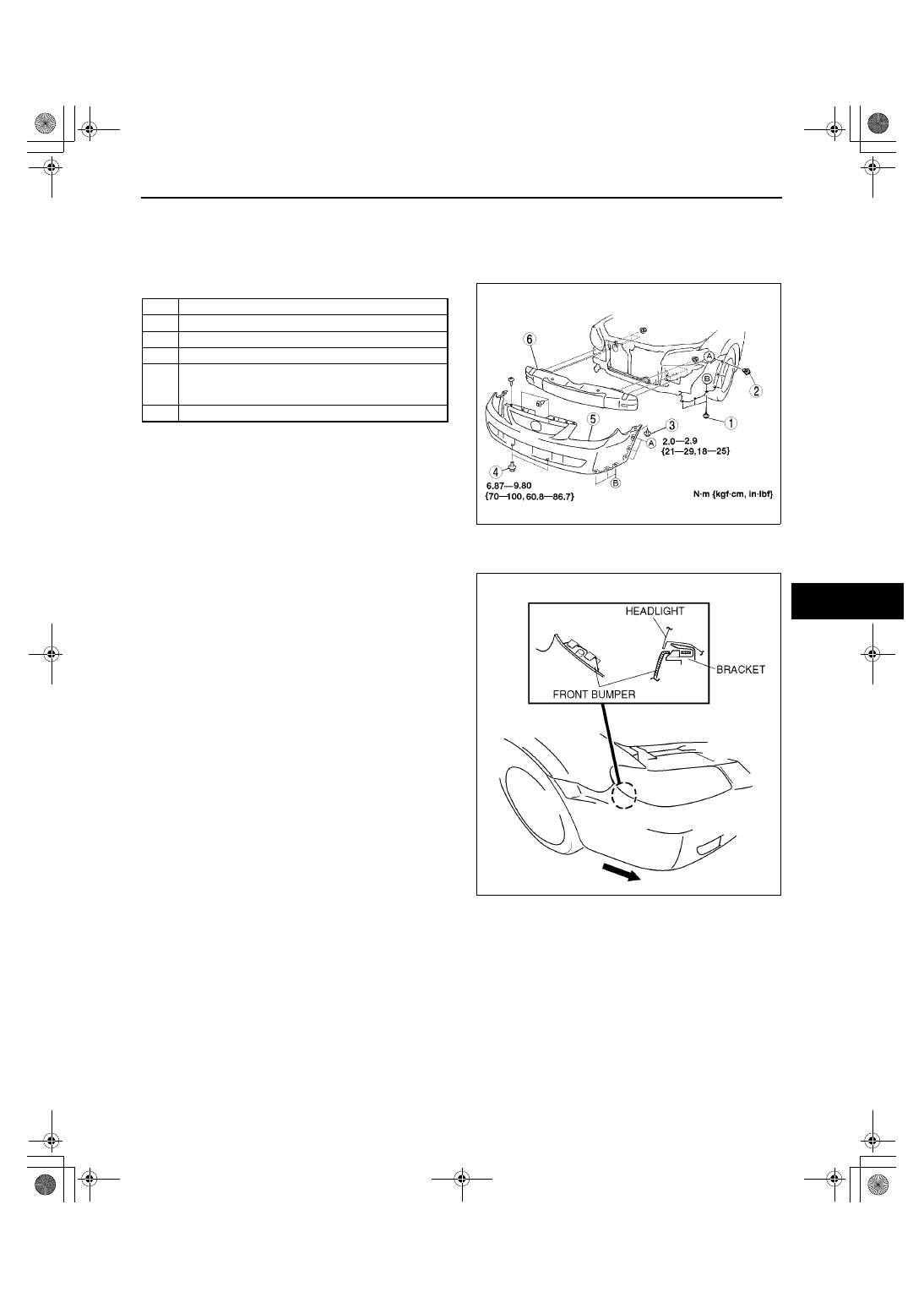

Front Bumper Installation Note

1. Spread the front bumper ends (wheel arches)

apart.

2. Attach the front bumper to the body.
3. Press the front bumper connection portion into

the body to engage with the bracket.

End Of Sie

FRONT BUMPER DISASSEMBLY/ASSEMBLY

A3U091050031W02

1. Remove the radiator grille.
2. Disassemble in the order indicated in the table.

3. Assemble in the reverse order of disassembly.

Front Bumper Mesh Removal Note

1. Push the tabs of front bumper mesh forward from

the back of the front bumper fascia to unhook the
front bumper mesh.

Y3E7726W005

1

Front bumper mesh
(See 09–10–6 Front Bumper Mesh Removal Note.)

2

Hole cover
(See 09–10–7 Hole Cover Removal Note.)

3

Front bumper fascia

Z3U0910W001

Z3U0910W002

1712-1U-01G(09-10).fm  6 ページ  2001年6月29日 金曜日 午前10時29分

BODY PANELS

09–10–7

09–10

Hole Cover Removal Note

1. Push the tabs on the hole cover forward from the

back of the front bumper fascia to unhook the
front bumper mesh.

End Of Sie

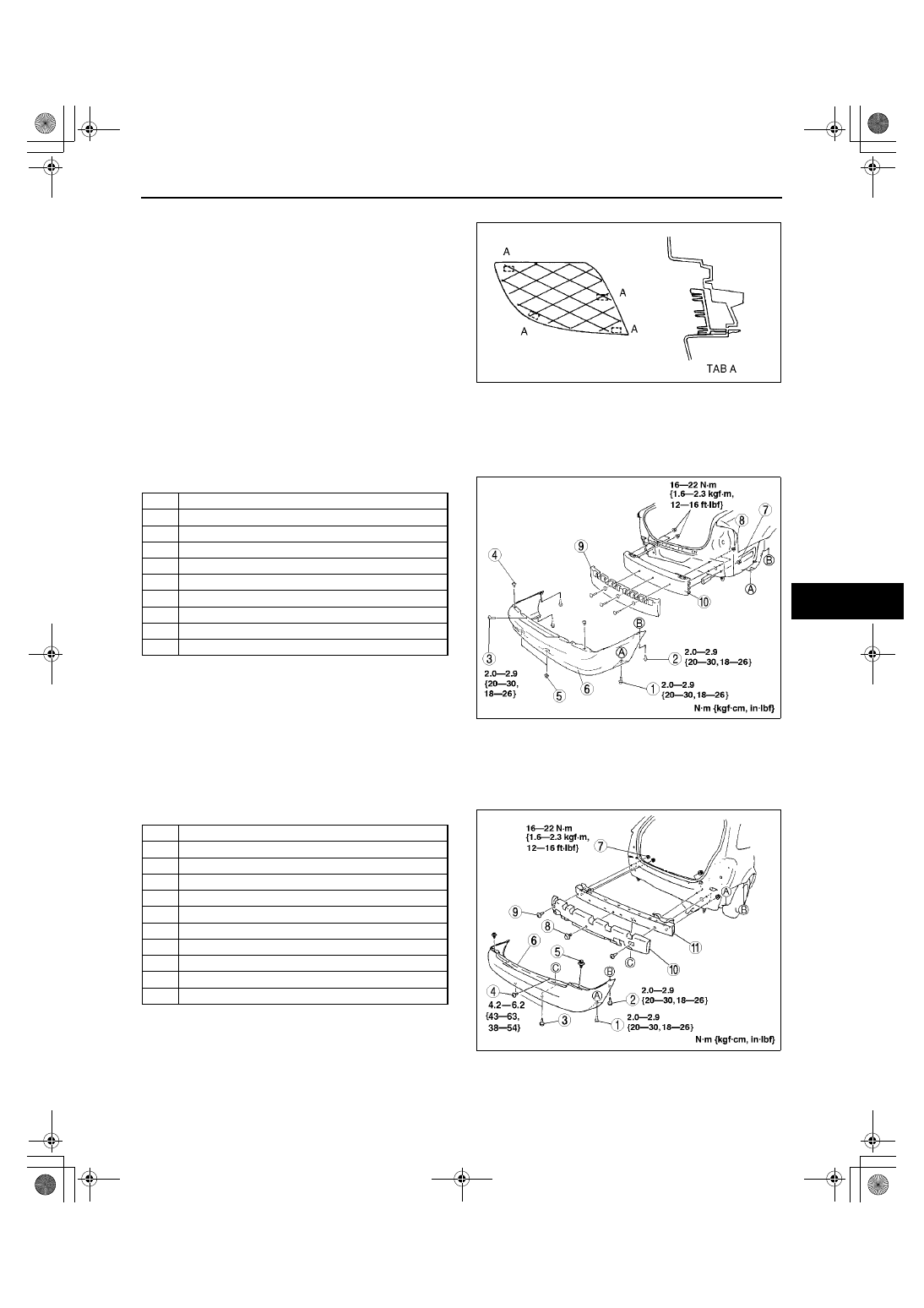

REAR BUMPER REMOVAL/INSTALLATION

A3U091050221W01

4SD

1. Disconnect the negative battery cable.
2. Remove the rear combination lights. (See 09–18–10 REAR COMBINATION LIGHT REMOVAL/

INSTALLATION.)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

5HB

1. Disconnect the negative battery cable.
2. Remove the rear combination lights. (See 09–18–10 REAR COMBINATION LIGHT REMOVAL/

INSTALLATION.)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

Z3U0910W003

1

Bolt  A

2

Screw

3

Bolt  B

4

Fastener A

5

Fastener B

6

Rear bumper fascia

7

Nut  A

8

Nut  B

9

Energy absorption foam

10

Rear bumper reinforcement

A3U0910W001

1

Bolt  A

2

Screw

3

Fastener A

4

Bolt  B

5

Fastener B

6

Rear bumper fascia

7

Nut

8

Fastener C

9

Fastener D

10

Energy absorption foam

11

Rear bumper reinforcement

A3U0910W002

1712-1U-01G(09-10).fm  7 ページ  2001年6月29日 金曜日 午前10時29分
