Mazda Protege 5. Manual - part 161





CRUISE CONTROL SYSTEM

01–20–5

01–20

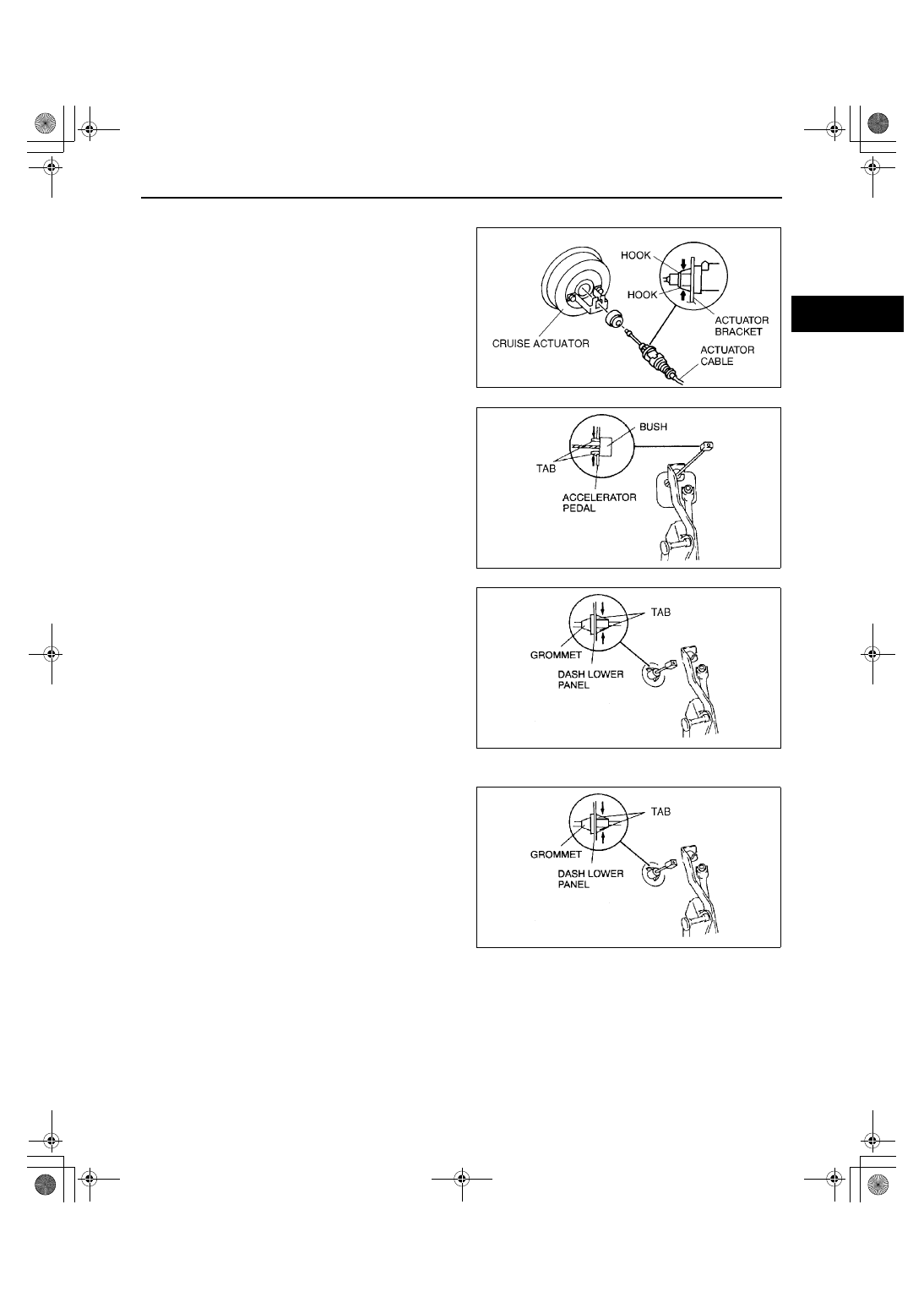

ACTUATOR CABLE REMOVAL

A3U012066311W01

1. Loosen the nut, and remove the actuator cable.

2. Press the tabs of the bush, and remove it from the

accelerator pedal.

3. Press the tabs of the grommet, and remove it

from the dash lower panel.

4. Push the actuator cable through the dash lower

panel to remove it.

End Of Sie

ACTUATOR CABLE INSTALLATION

A3U012066311W02

1. Install the grommet to the dash lower panel.

Z3U0120W004

Y3U120WA5

Y3U120WA6

Y3U120WA6

1712-1U-01G(01-20).fm  5 ページ  ２００１年６月２９日 金曜日 午前９時４９分

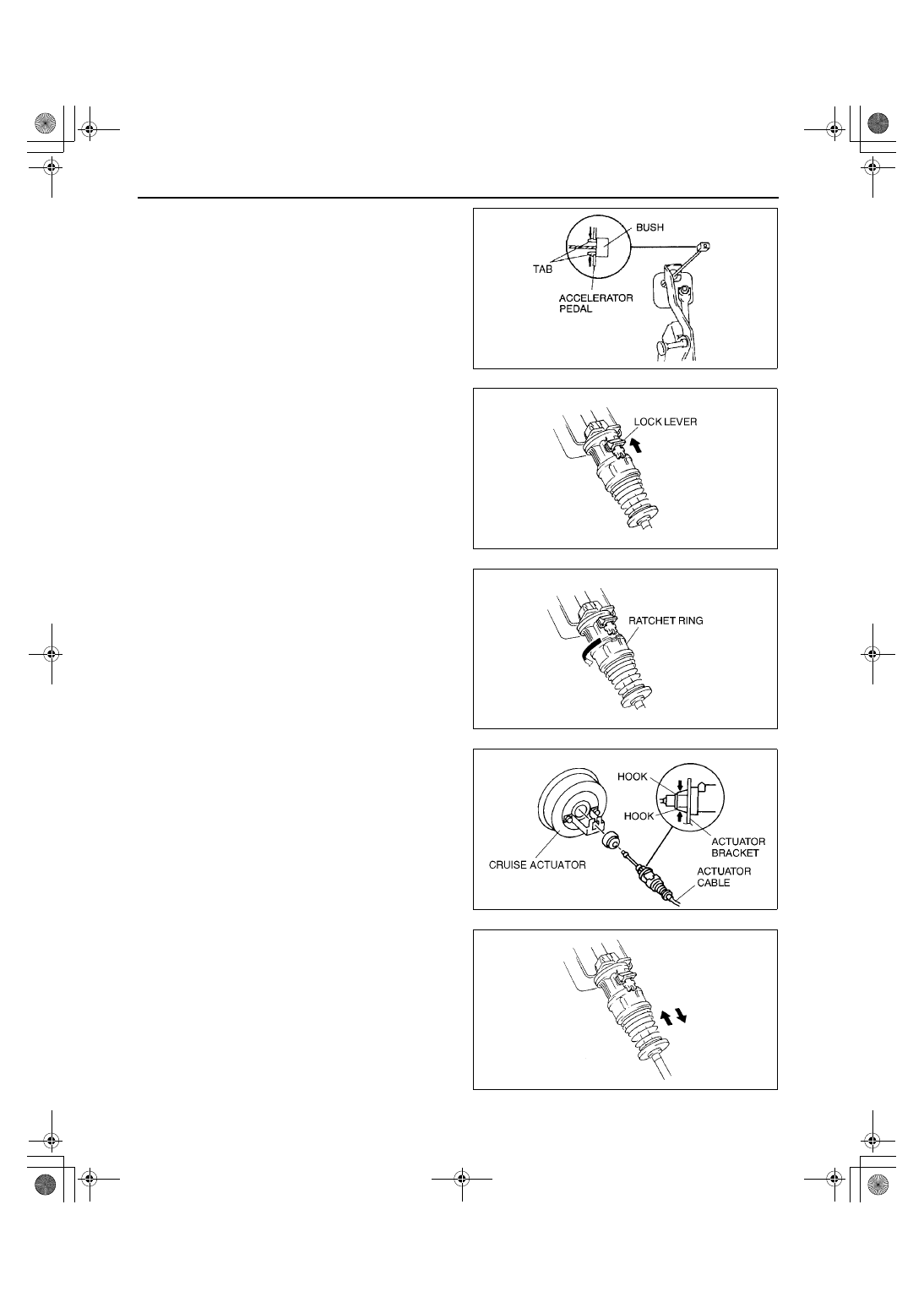

CRUISE CONTROL SYSTEM

01–20–6

2. Install the actuator cable to the accelerator pedal.

3. Slide the lock lever in the direction shown by the

arrow to unlock the adjuster.

4. Turn the ratchet ring to release lock in the

direction shown by the arrow.

5. Insert the grommet into the actuator bracket.

6. To adjust the free play, push or pull the actuator

cable directly behind the spring two times.

Y3U120WA5

YMU120WAA

YMU120WAB

Z3U0120W004

YMU120WAJ

1712-1U-01G(01-20).fm  6 ページ  ２００１年６月２９日 金曜日 午前９時４９分

CRUISE CONTROL SYSTEM

01–20–7

01–20

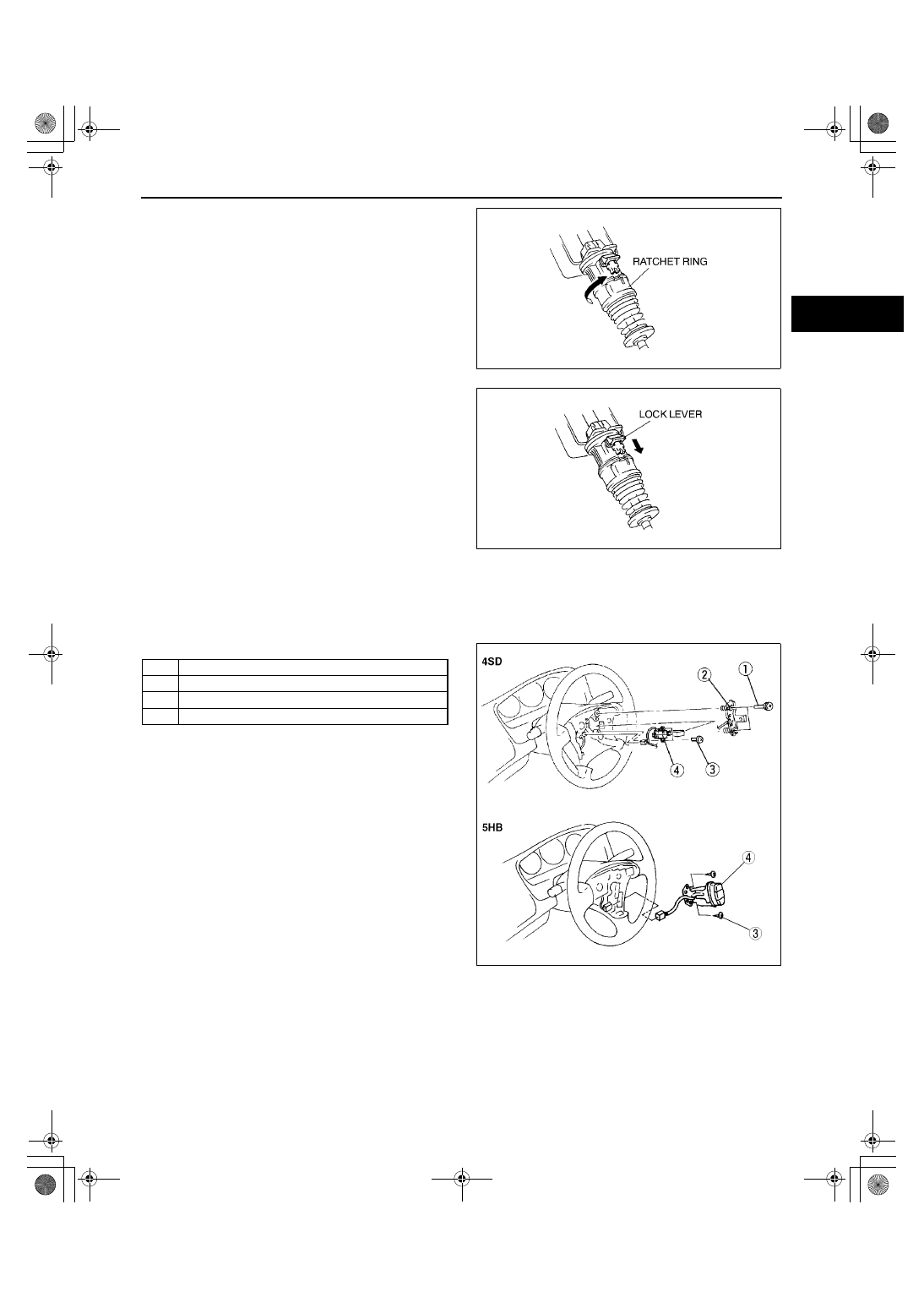

7. Turn the ratchet ring in the direction shown by the

arrow to lock it.

8. Slide the lock lever in the direction shown by the

arrow to lock the adjuster.

End Of Sie

CRUISE CONTROL SWITCH REMOVAL/INSTALLATION

A3U012066341W01

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. (See 08–10–5 DRIVER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION.)

3. Disconnect the cruise control switch connector.
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

End Of Sie

YMU120WAC

YMU120WAD

1

Screw (4SD)

2

Horn button contact (4SD)

3

Screw

4

Cruise control switch

A3U0120W102

1712-1U-01G(01-20).fm  7 ページ  ２００１年６月２９日 金曜日 午前９時４９分

CRUISE CONTROL SYSTEM

01–20–8

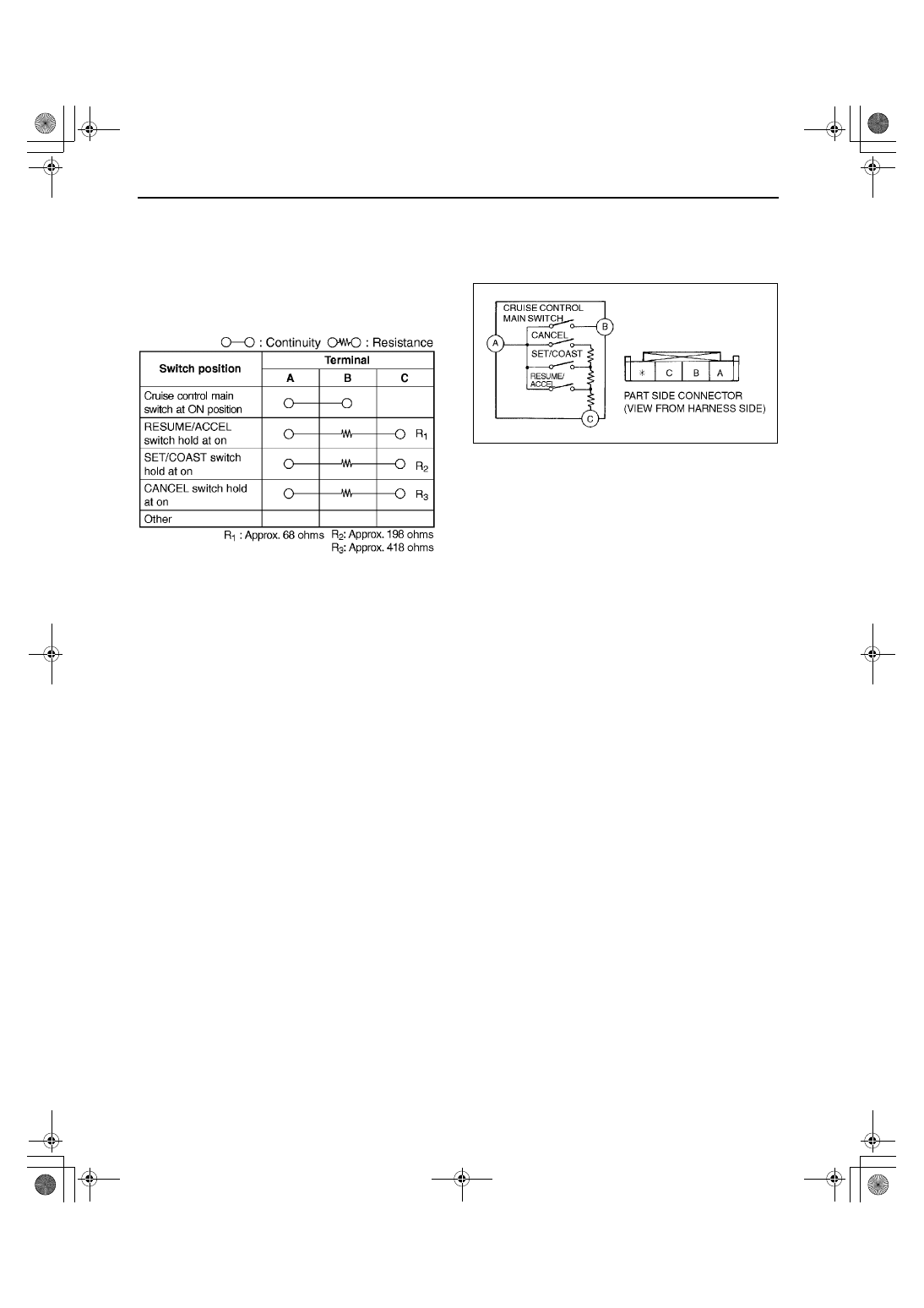

CRUISE CONTROL SWITCH INSPECTION

A3U012066341W02

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. (See 08–10–5 DRIVER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION.)

3. Disconnect the cruise control switch connector.
4. Measure the resistance and inspect for continuity

between the cruise control switch terminals using
an ohmmeter.

End Of Sie

Y3U120WA4

Z3U0120W005

1712-1U-01G(01-20).fm  8 ページ  ２００１年６月２９日 金曜日 午前９時４９分
