IGNITION SYSTEM

01–18–2

IGNITION COIL INSPECTION

A3U011818100W02

Igniter

•

Carry out spark test. (See 01–03A–60 Spark Test.) (See 01–03B–59 Spark Test.)

Ignition Coil Operation Inspection

1. Remove ignition coils, high-tension leads, and spark plugs.

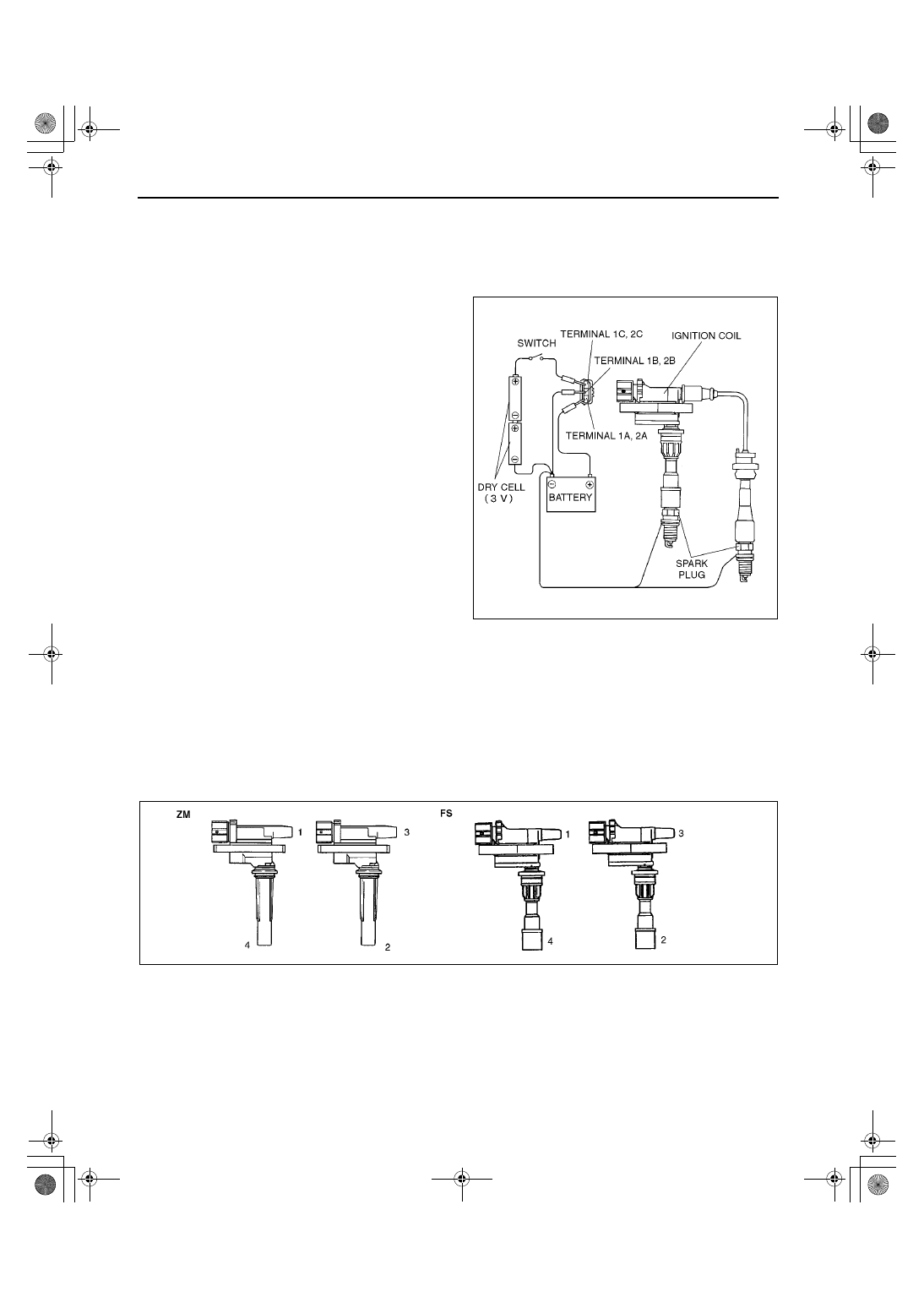

2. Connect the ignition coil, high-tension lead, spark

plug, and the battery as shown in the figure.

Caution

••••

When connecting the ignition coil, be
sure to attach as a female terminal to
each terminal. Otherwise, coil terminals
may come into contact and the ignition
coil could be damaged.

Note

•

Use the high-tension lead and spark plug
that function properly.

3. Verify that the spark plug produces a strong, pale

spark when change the switch off to on.

Warning

••••

Do not hold the spark plug, high-tension
lead, or ignition coil while inspecting the
ignition coil. You may be subjected to a
strong shock.

Note

•

No.1 and No.4 cylinders and No.2 and No.3
cylinder are ignited simultaneously.

Secondary Coil Winding

1. Remove the ignition coil.
2. Measure the resistance from lead hole 1 to 4, and lead hole 2 to 3 using an ohmmeter.

•

If not as specified, replace the ignition coil.

Specification

ZM 8.0—12.0 kilohms
FS 7.2—10.8 kilohms

Insulation Resistance of Case

1. Disconnect the high-tension lead. (See 01–18–3 HIGH-TENSION LEAD REMOVAL/INSTALLATION.)
2. Disconnect the ignition coil connector.

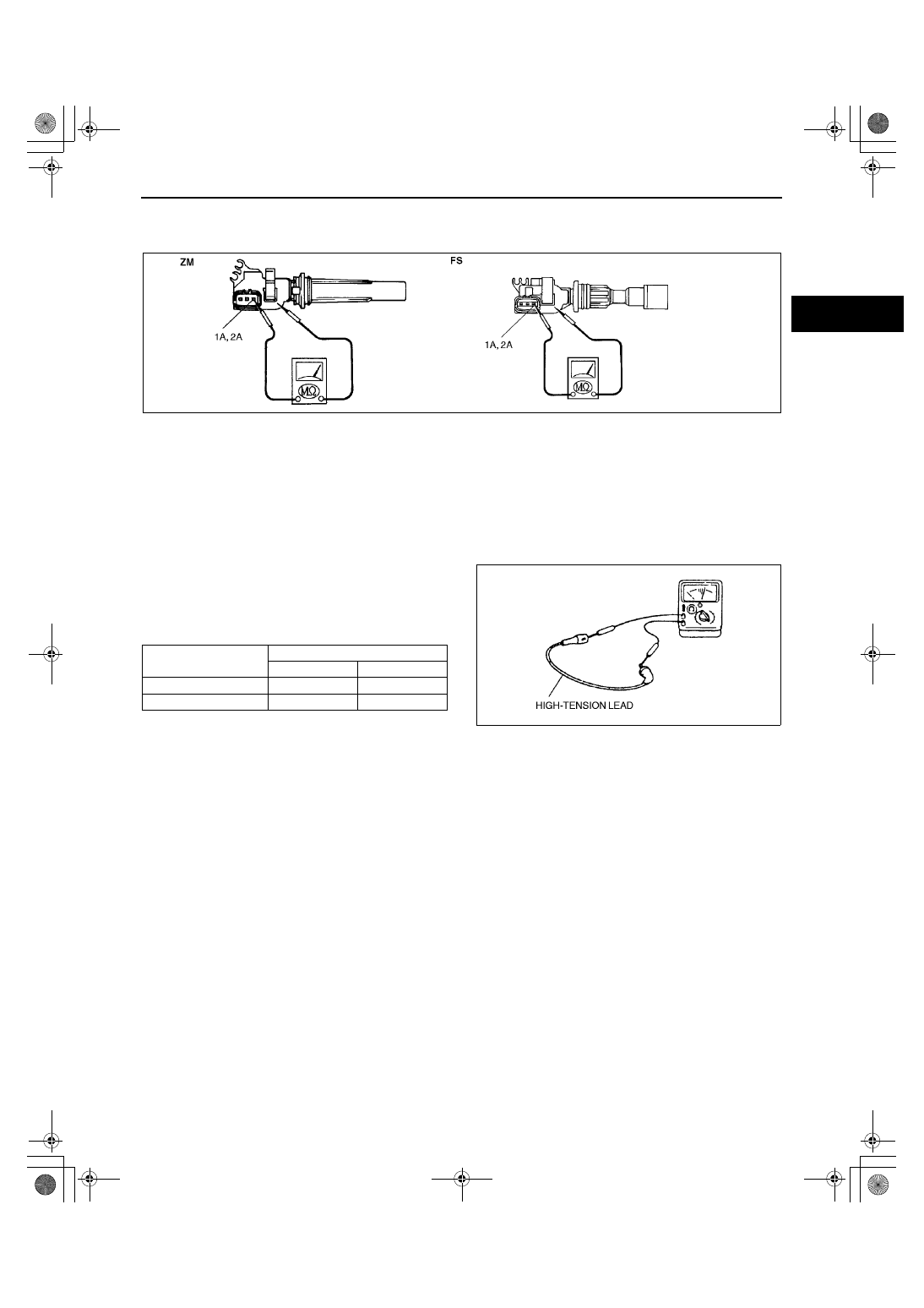

3. Measure the insulation resistance from terminal 1A to ignition coil case, and terminal 2A to ignition coil case

using an ohmmeter.

•

If not as specified, replace the ignition coil.

Z3U0118W003

Z3U0118W004

1712-1U-01G(01-18).fm  2 ページ  ２００１年６月２９日 金曜日 午前９時４７分

IGNITION SYSTEM

01–18–3

01–18

Specification

Above 10 megohms

End Of Sie

HIGH-TENSION LEAD REMOVAL/INSTALLATION

A3U011818140W01

Caution

••••

The high-tension leads must be reinstalled to their original positions. Incorrect installation can
damage the leads and cause power loss, and negatively affect the electronic components.

End Of Sie

HIGH-TENSION LEAD INSPECTION

A3U011818140W02

1. Measure the resistance of the high-tension leads

using an ohmmeter.

•

If not as specified, replace the high-tension
leads.

Specification

(kilohm)

End Of Sie

Z3U0118W006

High-tension lead

Engine type

ZM

FS

No.1 lead

3.3—7.8

5.6—12.1

No.3 lead

2.9—6.9

1.9—4.0

X3U118WA8

1712-1U-01G(01-18).fm  3 ページ  ２００１年６月２９日 金曜日 午前９時４７分

STARTING SYSTEM

01–19–1

01–19

01–19

STARTING SYSTEM

STARTER REMOVAL/INSTALLATION .  01–19–1
STARTER INSPECTION . . . . . . . . . . . . .  01–19–2

On-Vehicle Inspection  . . . . . . . . . . . . .  01–19–2
No Load Test . . . . . . . . . . . . . . . . . . . .  01–19–2

STARTER INTERLOCK SWITCH INSPECTION

(MTX)  . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–19–2

On-vehicle Inspection . . . . . . . . . . . . . . 01–19–2
Continuity Inspection. . . . . . . . . . . . . . . 01–19–2

End of Toc

STARTER REMOVAL/INSTALLATION

A3U011918400W01

Warning

••••

When the battery cables are connected, touching the vehicle body with starter terminal B will
generate sparks. This can cause personal injury, fire, and damage to the electrical components.
Always disconnect the battery before performing the following operation.

1. Disconnect the negative battery cable.
2. Remove the battery.
3. Remove the intake manifold bracket.
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.

.

End Of Sie

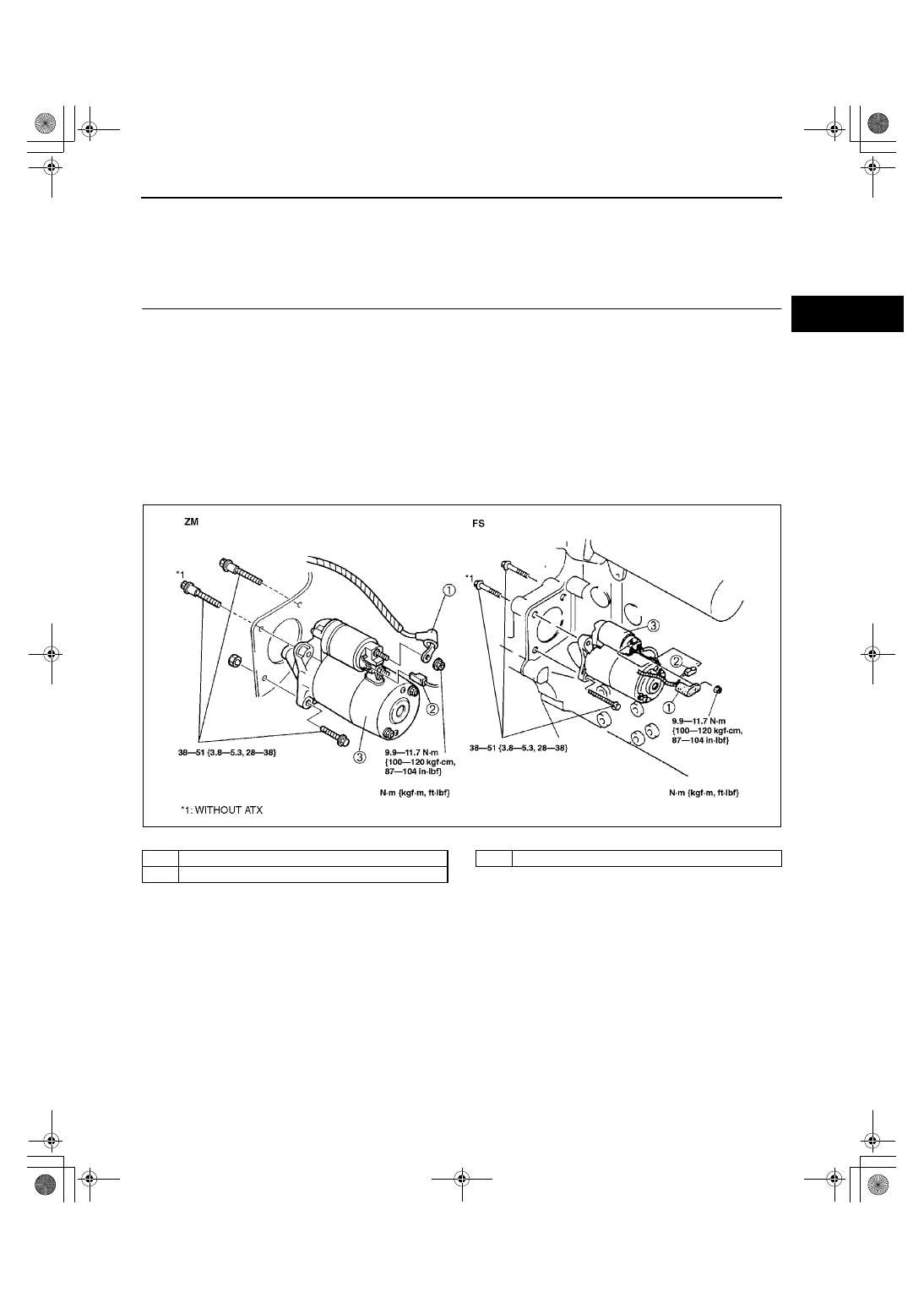

Z3U0119W001

1

Terminal B wire

2

Terminal S wire

3

Starter

1712-1U-01G(01-19).fm  1 ページ  ２００１年６月２９日 金曜日 午前９時４８分

STARTING SYSTEM

01–19–2

STARTER INSPECTION

A3U011918400W02

On-Vehicle Inspection

1. Verify that the battery is fully charged.
2. Crank the engine and verify that the starter rotates smoothly without any noise.
3. Measure the voltage at terminals S and B when the ignition switch is at START position.

•

If the voltage is within the specification, remove the starter and inspect the magnetic switch and the starter.

•

If the voltage is not as specified, inspect the wiring harness, ignition switch, starter interlock switch (MTX),
and transaxle range switch (ATX).

Specification

Above 8 V

No Load Test

1. Verify that the battery is fully charged.

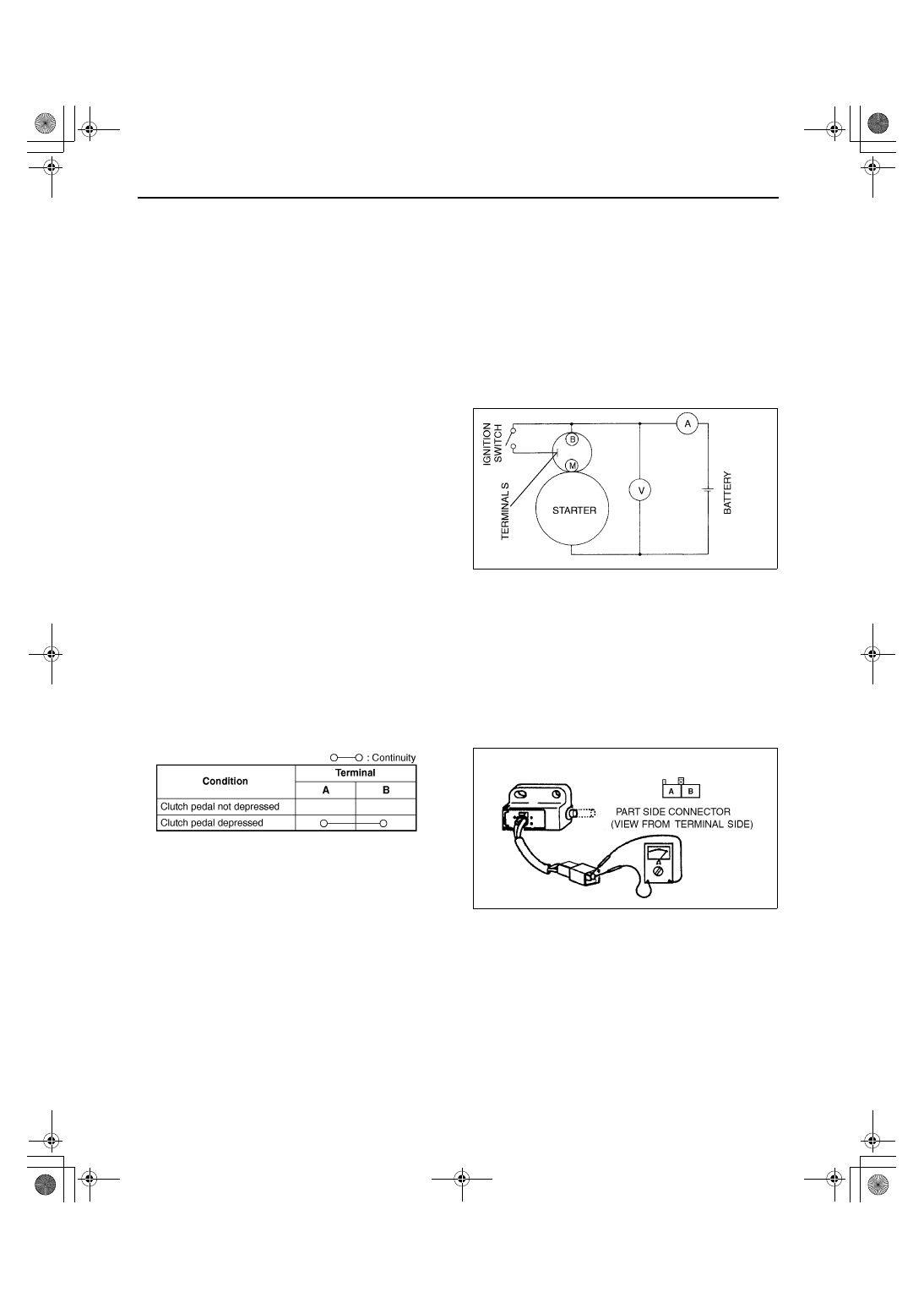

2. Connect the starter, battery, voltmeter and
