GENERAL INFORMATION
00–00–5
00–00
Troubleshooting Procedure

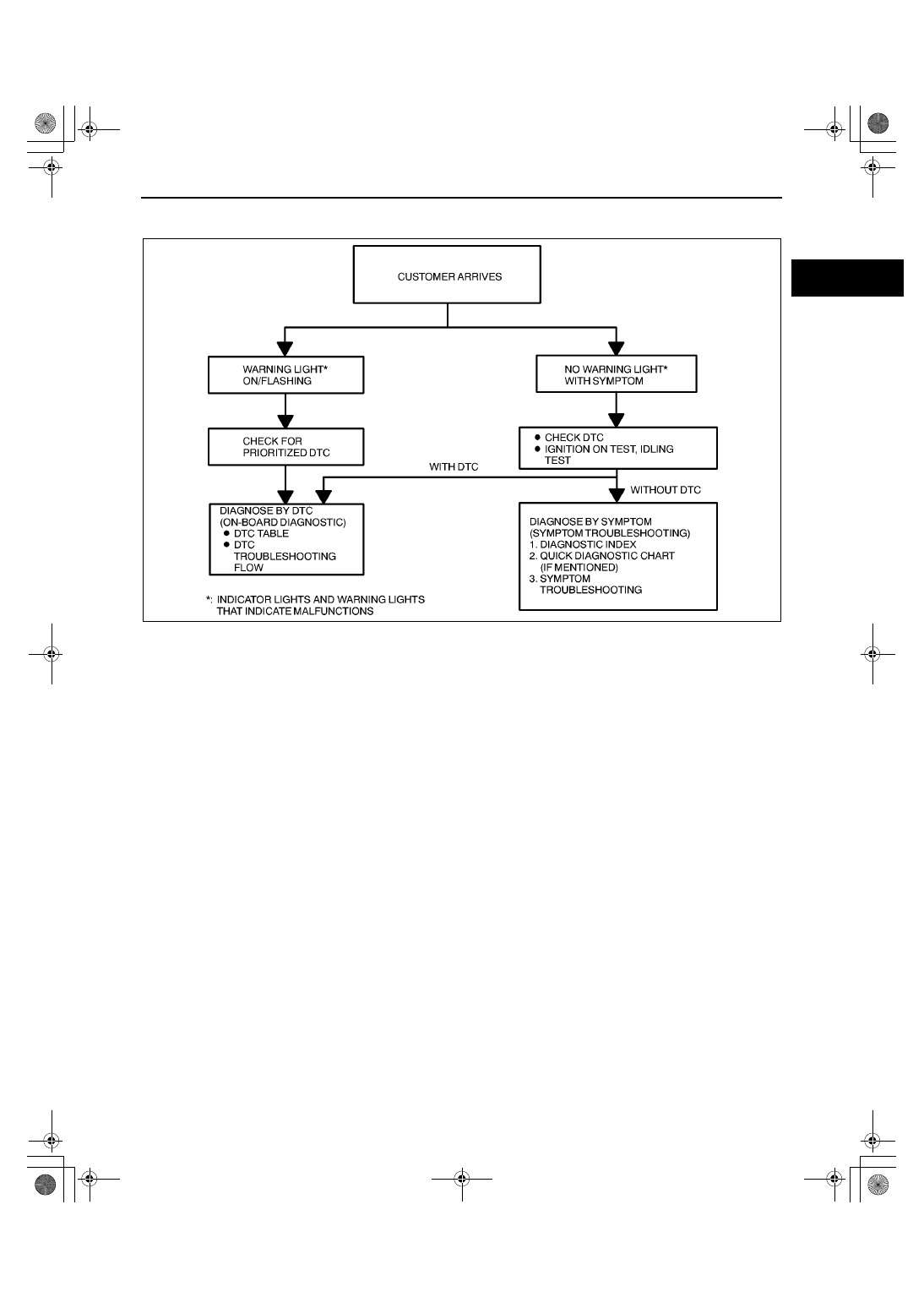

Basic flow of troubleshooting

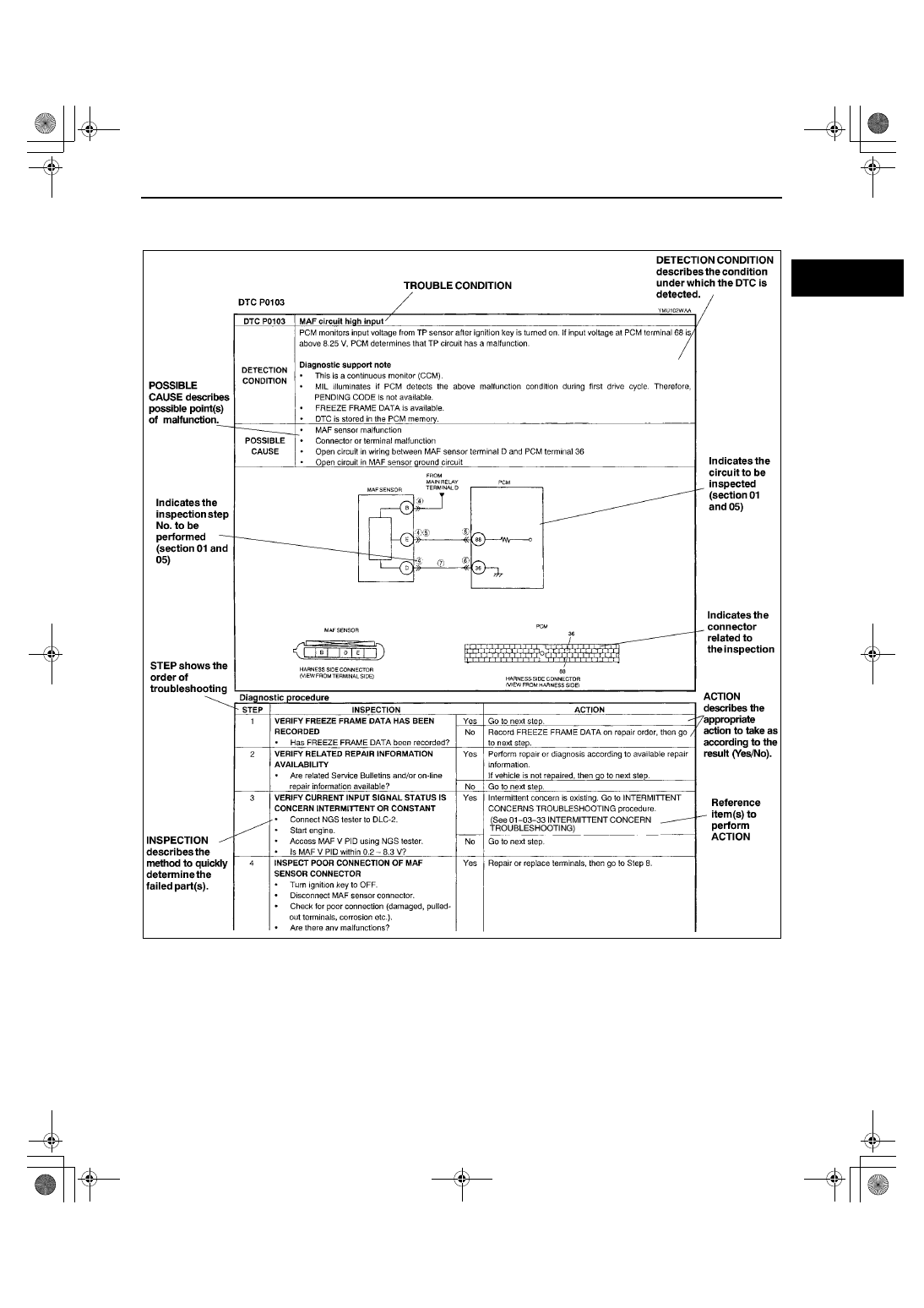

DTC troubleshooting flow (on-board diagnostic)
•
Diagnostic trouble codes (DTCs) are important hints for repairing malfunctions that are difficult to simulate.
Perform the specific DTC diagnostic inspection to quickly and accurately diagnose the malfunction.
•
The on-board diagnostic function is used during inspection. When a DTC is shown specifying the cause of a
malfunction, continue the diagnostic inspection according to the items indicated by the on-board diagnostic
function.

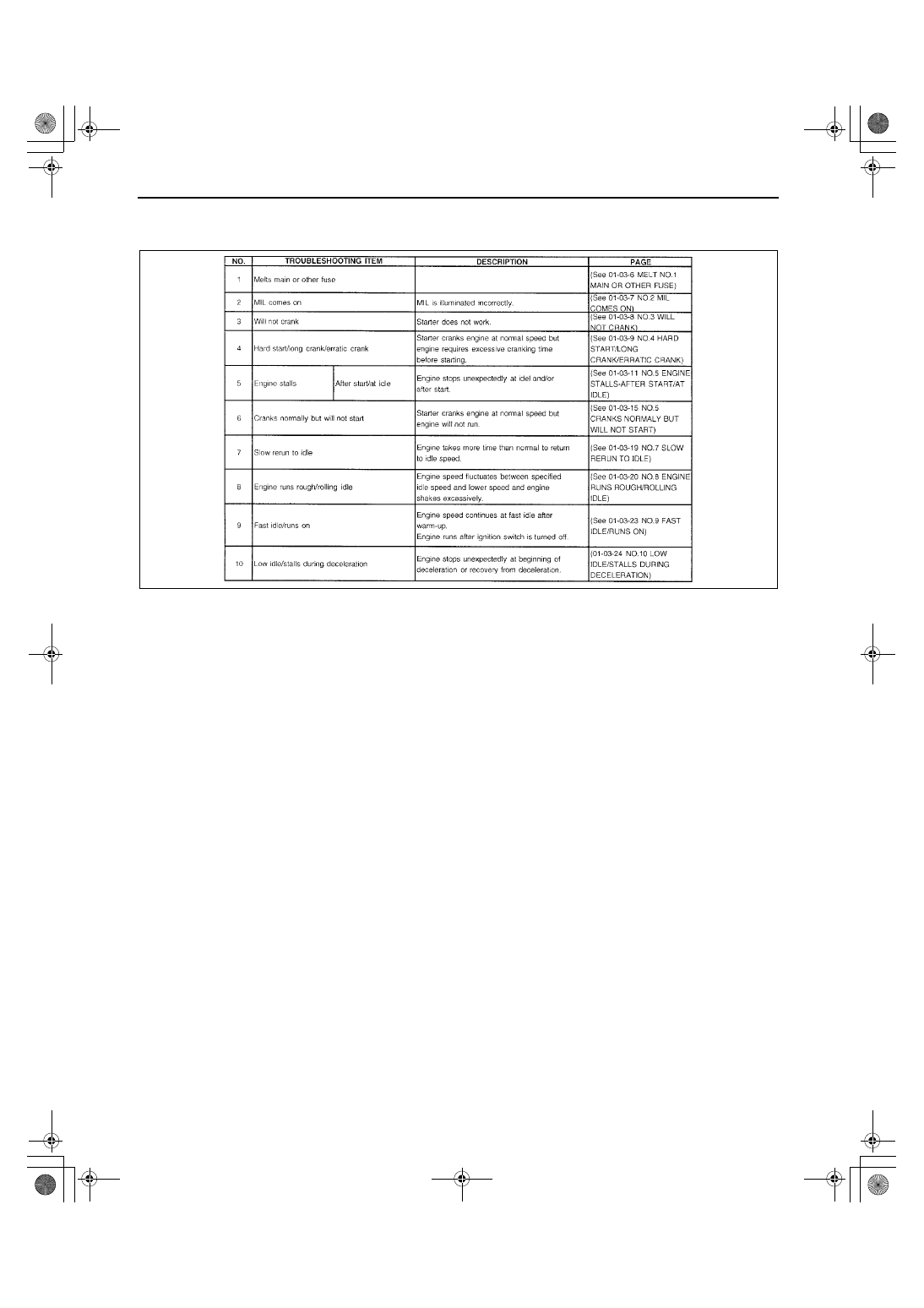

Diagnostic index
•
The diagnostic index lists the symptoms of specific malfunctions. Select the symptoms related or most closely
relating to the malfunction.

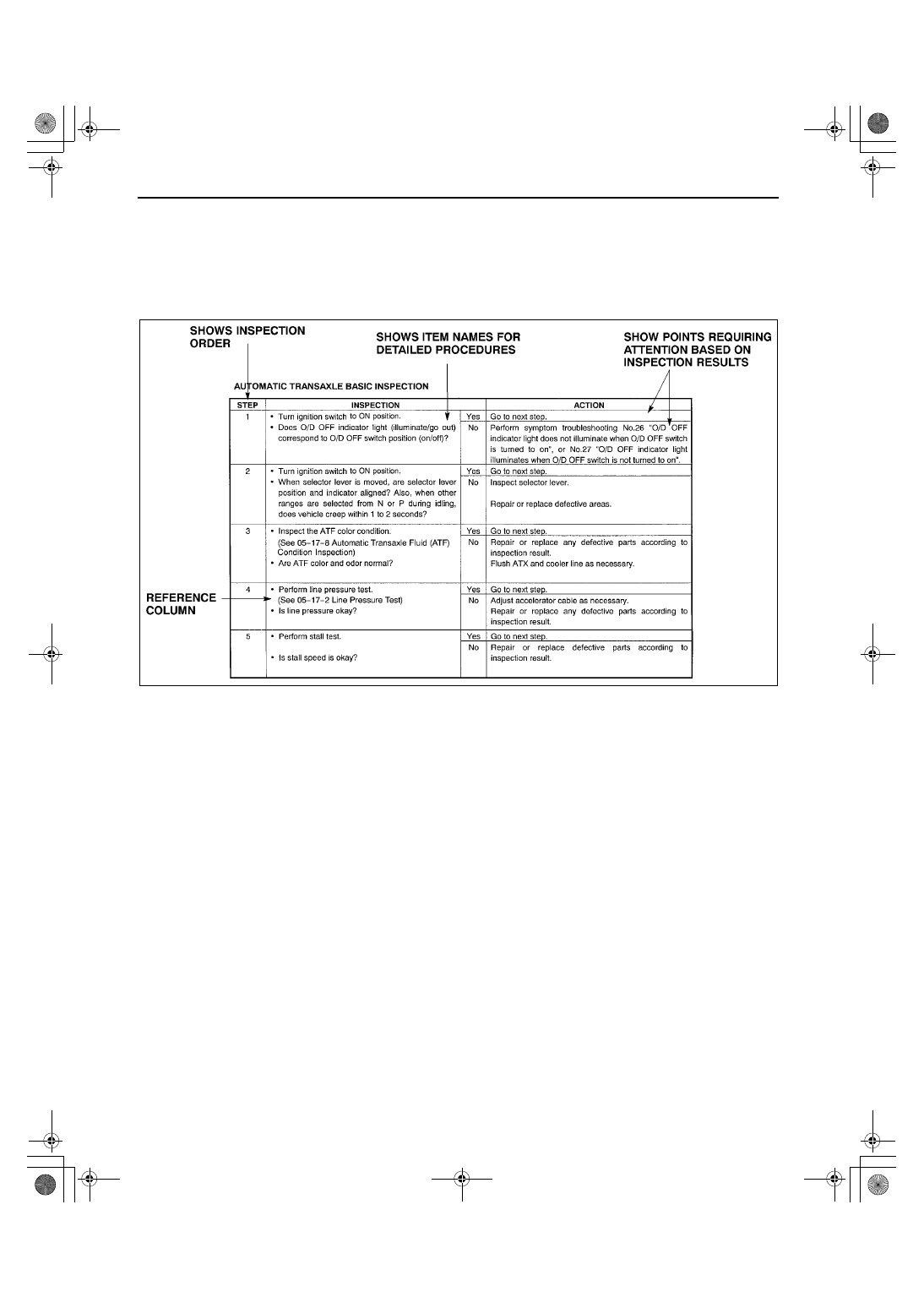

Quick diagnosis chart (If mentioned)
•
The quick diagnosis chart lists diagnosis and inspection procedures to be performed specifically relating to the
cause of the malfunction.
Symptom troubleshooting
•
Symptom troubleshooting quickly determines the location of the malfunction according to symptom type.
