ON-VEHICLE TESTING

* PLEASE READ FIRST *

CIRCUIT TEST

If starter does not operate, check voltage at starter "S" terminal with ignition switch in START position. See
Fig. 2 . If voltage is greater than 8 volts and vehicle does not crank, repair or replace starter as required. If
voltage is 8 volts or less, check ignition switch, park/neutral switch (A/T) and wiring.

NOTE:

See TROUBLE SHOOTING - BASIC PROCEDURES article.

NOTE:

On models with anti-theft system, obtain code number and deactivate audio
anti-theft system before disconnecting battery.

NOTE:

Before testing, ensure battery is fully charged, battery cables and terminals are
clean and tight, and engine grounds are good.



1997 Mazda MX-5 Miata

STARTER - REDUCTION GEAR 1997 STARTING & CHARGING SYSTEMS Mazda - Starters - Reduction Gear

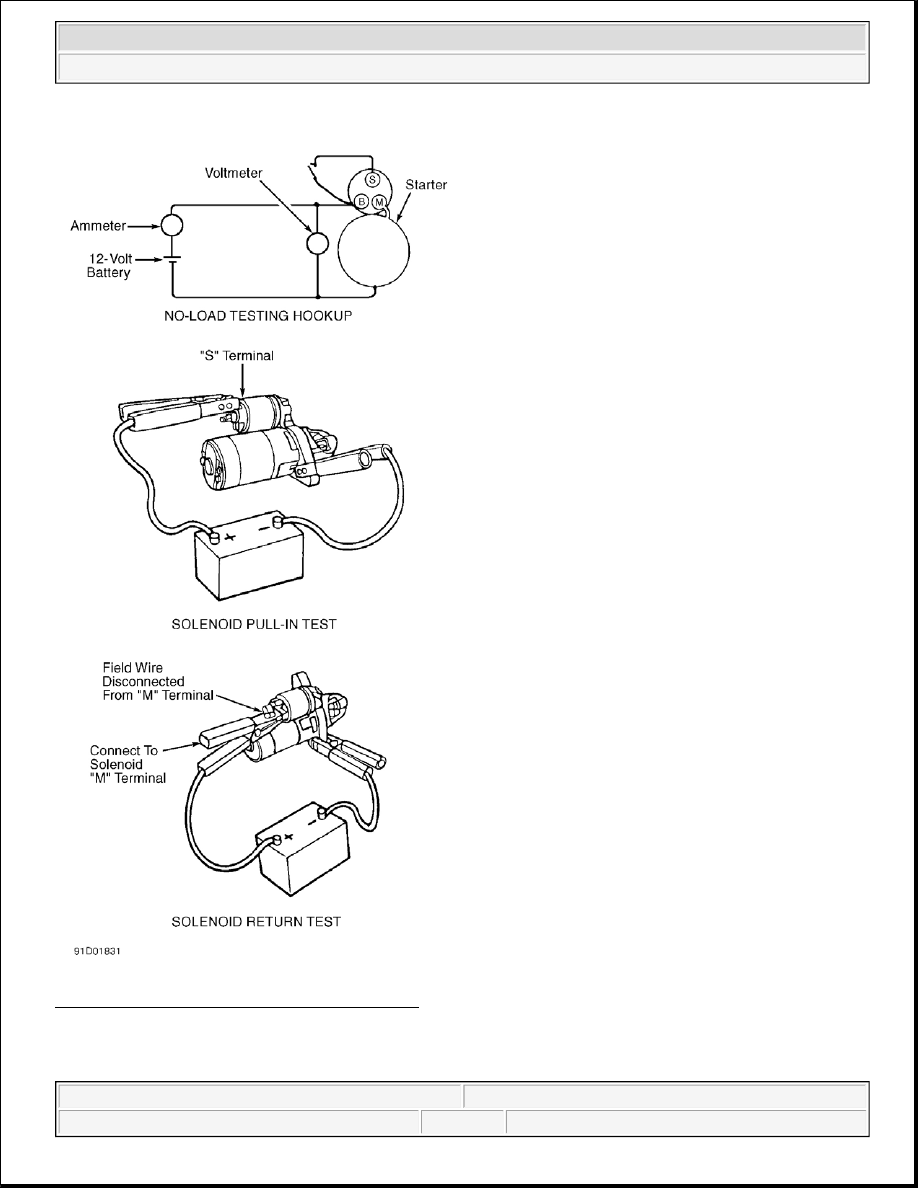

Fig. 2: Testing Reduction Gear Starter Circuits
Courtesy of MAZDA MOTORS CORP.

BENCH TESTING



1997 Mazda MX-5 Miata

STARTER - REDUCTION GEAR 1997 STARTING & CHARGING SYSTEMS Mazda - Starters - Reduction Gear



NO-LOAD TEST

Connect fully-charged 12-volt battery, voltmeter and ammeter to starter. See Fig. 2 . Using remote starter wires
or jumper, engage solenoid. Starter should spin smoothly. Compare readings with specifications. See NO-
LOAD TEST SPECIFICATIONS table. If voltage is less than specified, amperage is more than specified or
shaft speed is less than specified, disassemble and inspect starter components.

NO-LOAD TEST SPECIFICATIONS

SOLENOID TESTS

Solenoid Pull-In Test

Connect positive battery lead to solenoid "S" terminal and negative battery lead to starter body. See Fig. 2 .
Starter pinion drive gear should extend outward and stop. If starter pinion drive gear does not extend, replace
solenoid.

Solenoid Hold-In Test

After performing solenoid pull-in test, with positive battery lead connected to solenoid "S" terminal and
negative battery lead connected to starter body, disconnect field lead ("M" terminal wire) at solenoid. Starter
pinion drive gear should remain extended. If starter pinion drive gear returns, replace solenoid.

Solenoid Return Test

Disconnect field lead ("M" terminal wire) at solenoid. Connect positive battery lead to solenoid "M" terminal
and negative battery lead to starter body. See Fig. 2 . Using screwdriver, pry overrunning clutch pinion drive
outward. Release screwdriver and ensure overrunning clutch pinion drive returns to original position.

Solenoid

1. Disconnect all wires from solenoid, including "M" terminal wire between solenoid and starter. Using

ohmmeter, ensure continuity exists between "S" and "M" terminals, and between "S" terminal and
solenoid body. See Fig. 1 and Fig. 2 . If continuity does not exist between specified terminals, replace
solenoid.

2. Using ohmmeter, ensure continuity does not exist between "M" and "B" terminals. If continuity exists,

replace solenoid.

Application

Specification

Voltage (Minimum)

11

Amperage (Maximum)

90

Shaft Speed (Minimum RPM)

3000

CAUTION: Perform solenoid tests with starter and solenoid assembled. DO NOT

engage starter solenoid for more than 10 seconds during testing or
damage to coil winding may result.



1997 Mazda MX-5 Miata

STARTER - REDUCTION GEAR 1997 STARTING & CHARGING SYSTEMS Mazda - Starters - Reduction Gear



PINION GAP ADJUSTMENT

1. Disconnect field lead ("M" terminal wire) at solenoid. See Fig. 2 . Connect positive battery lead to

solenoid "S" terminal and negative battery lead to starter body. Starter pinion drive gear should extend
outward and stop.

2. Quickly measure pinion gap between end of pinion drive and circlip retainer. See Fig. 3 . DO NOT

operate starter solenoid for more than 10 seconds. Pinion gap should be as specified. See PINION GAP
SPECIFICATIONS table.

3. If pinion gap is not within specification, adjust by increasing or decreasing thickness of solenoid shims

located between solenoid and drive housing.

PINION GAP SPECIFICATIONS

Application

In. (mm)

Miata A/T

.02-.08 (0.5-2.0)
