STARTER - DIRECT DRIVE 1997 STARTING & CHARGING SYSTEMS Mazda - Starters - Direct Drive

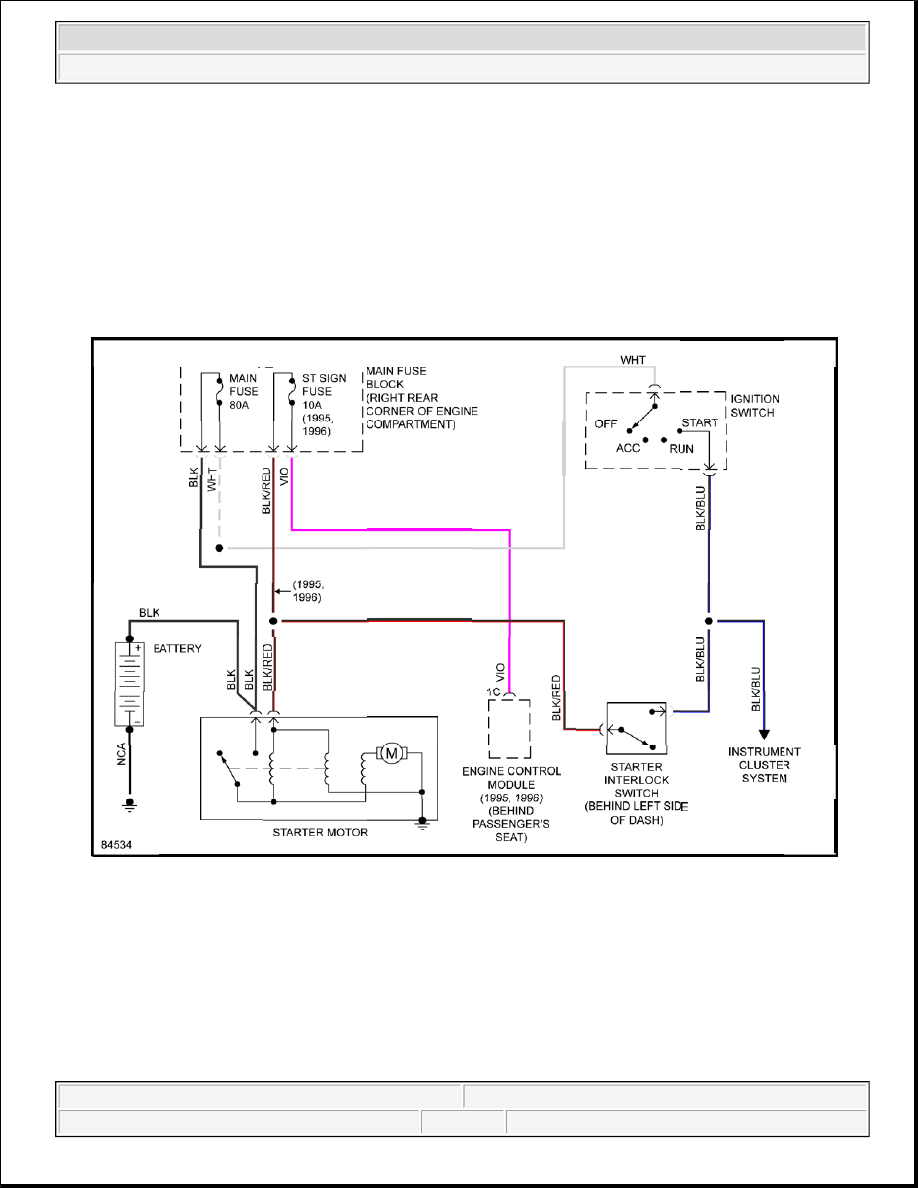

Fig. 5: Starting System Wiring Diagram



1997 Mazda MX-5 Miata

STARTER - DIRECT DRIVE 1997 STARTING & CHARGING SYSTEMS Mazda - Starters - Direct Drive



STARTER - REDUCTION GEAR

1997 STARTING & CHARGING SYSTEMS Mazda - Starters - Reduction Gear

DESCRIPTION & OPERATION

Reduction gear starter is a conventional 12-volt, 4-pole, brush-type starter. The integral solenoid is attached to
the drive housing.

Gear reduction is performed by coaxial planetary gear set. See Fig. 1 .



1997 Mazda MX-5 Miata

STARTER - REDUCTION GEAR 1997 STARTING & CHARGING SYSTEMS Mazda - Starters - Reduction Gear





1997 Mazda MX-5 Miata

STARTER - REDUCTION GEAR 1997 STARTING & CHARGING SYSTEMS Mazda - Starters - Reduction Gear

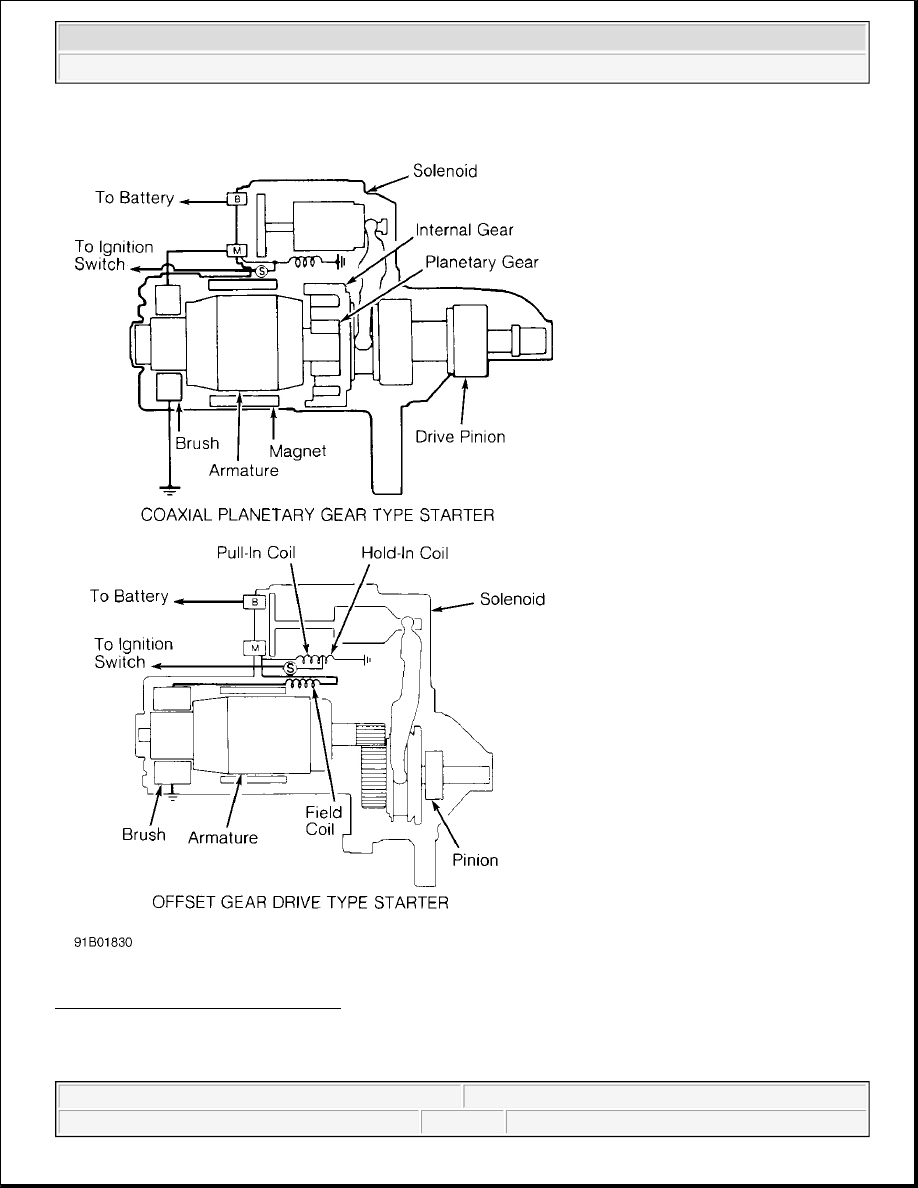

Fig. 1: Reduction Gear Type Starters
Courtesy of MAZDA MOTORS CORP.

TROUBLE SHOOTING
