IGNITION SYSTEM

01–18–3

01–18

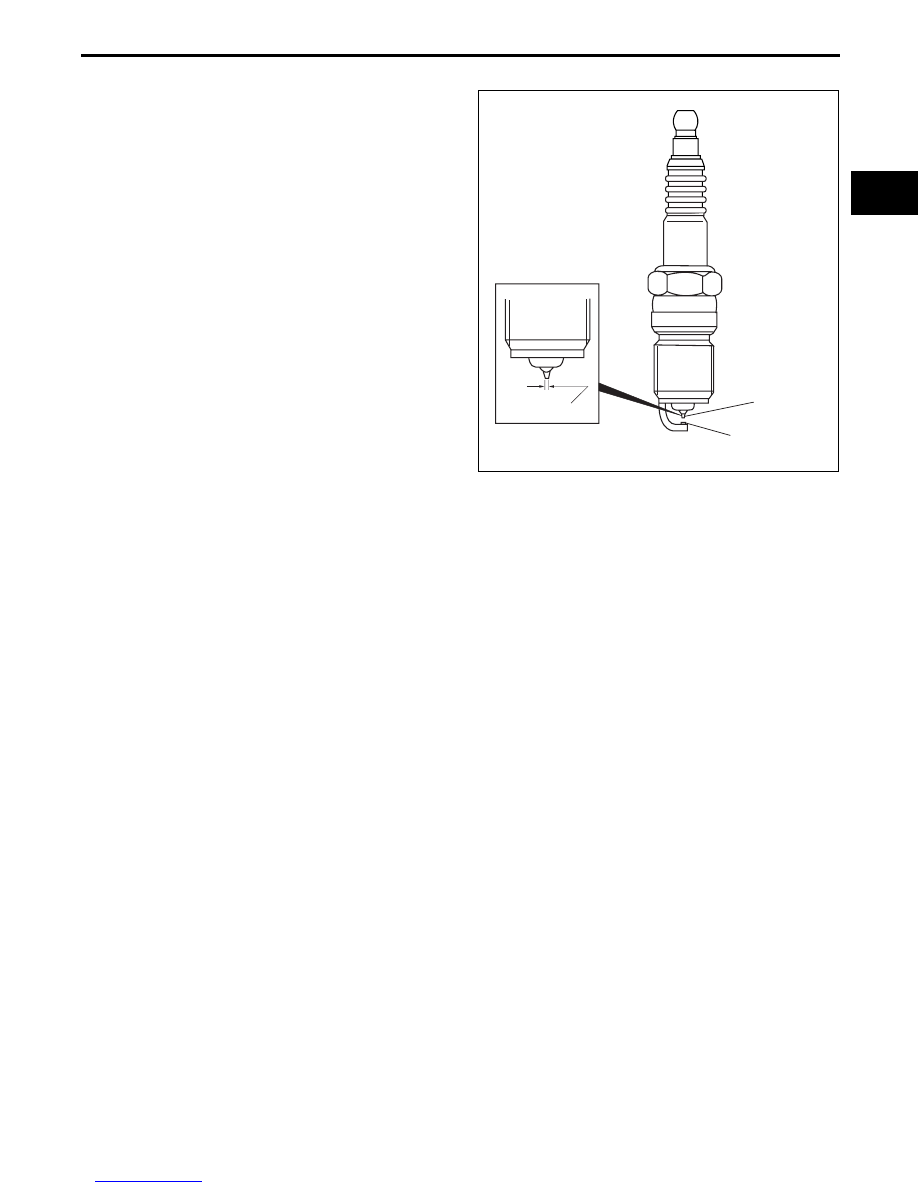

SPARK PLUG CONSTRUCTION [LF]

E5U011818110N01

• An iridium spark plug with excellent durability and

firing performance has been adopted.

• The extremely thin, center electrode has a

diameter of 0.6 mm {0.024 in} and is made of
iridium alloy.

• Durability has been improved by the use of a

platinum-tipped grounding electrode.

• Based on the thinner electrode (center electrode),

electric discharge has been reduced and ignition
has been improved, resulting in stable ignition
performance under all driving conditions.

End Of Sie

IRIDIUM ALLOY

PLATINUM-TIPPED

CENTER
ELECTRODE

C3U0118S010

STARTING SYSTEM

01–19–1

01–19

01–19

STARTING SYSTEM

STARTING SYSTEM OUTLINE [LF]. . . .  01–19–1

Features . . . . . . . . . . . . . . . . . . . . . . . .  01–19–1

STARTING SYSTEM

STRUCTURAL VIEW [LF]. . . . . . . . . . .  01–19–1

STARTER CONSTRUCTION [LF] . . . . . .  01–19–1

STARTER INTERLOCK SWITCH

CONSTRUCTION/OPERATION
[MT]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–19–2

Construction  . . . . . . . . . . . . . . . . . . . . . 01–19–2
Operation  . . . . . . . . . . . . . . . . . . . . . . . 01–19–2

End of Toc

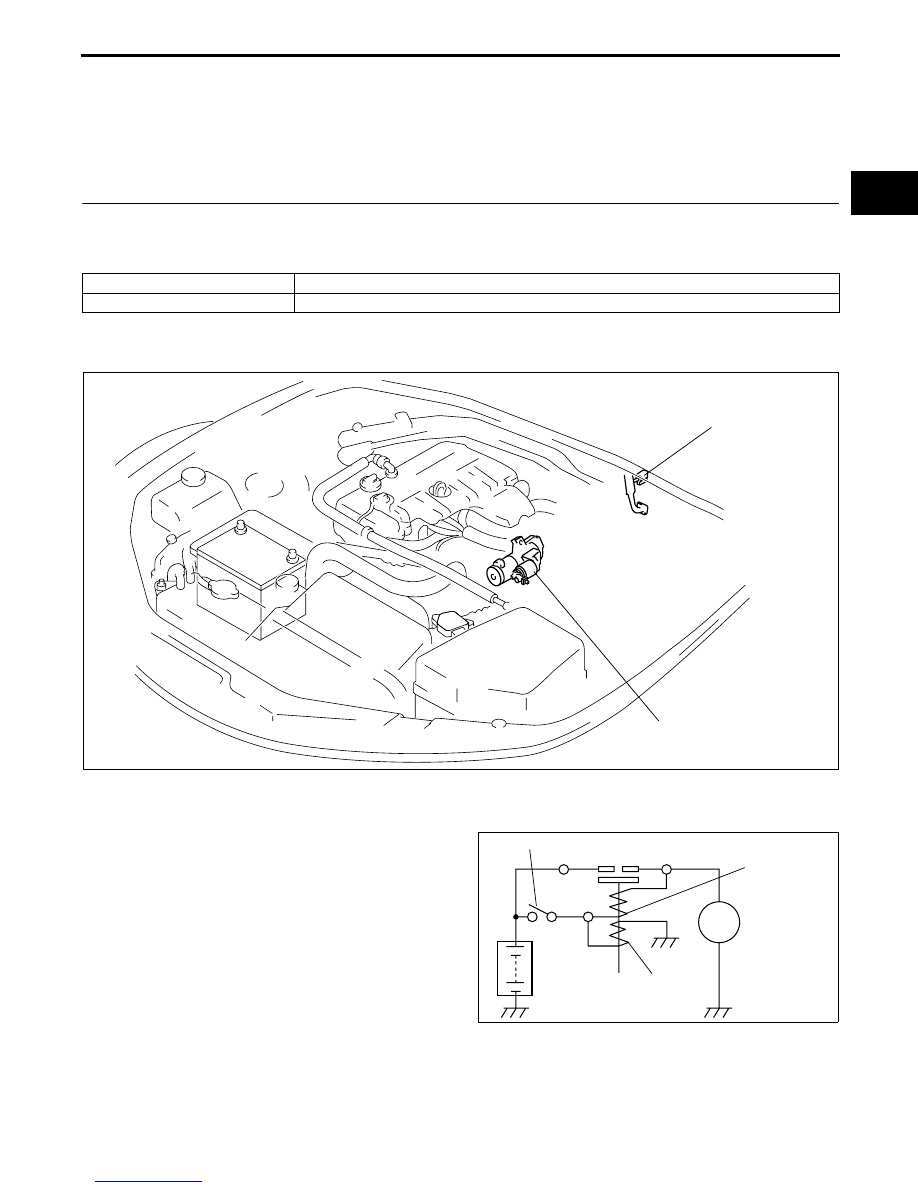

STARTING SYSTEM OUTLINE [LF]

E5U011900000N01

Features

End Of Sie

STARTING SYSTEM STRUCTURAL VIEW [LF]

E5U011900000N02

End Of Sie

STARTER CONSTRUCTION [LF]

E5U011918400N01

• A high torque coaxial reduction type starter has

been adopted.

End Of Sie

Improved startability

• Reduction type starter adopted

Improved safety

• Starter interlock switch adopted (MT)

STARTER INTERLOCK
SWITCH (MT)

STARTER

E5U119ZS5001

B

S

M

IGNITION SWITCH

BATTERY

HOLDING COIL

MOTOR

PULL-IN COIL

C3U0119S005

STARTING SYSTEM

01–19–2

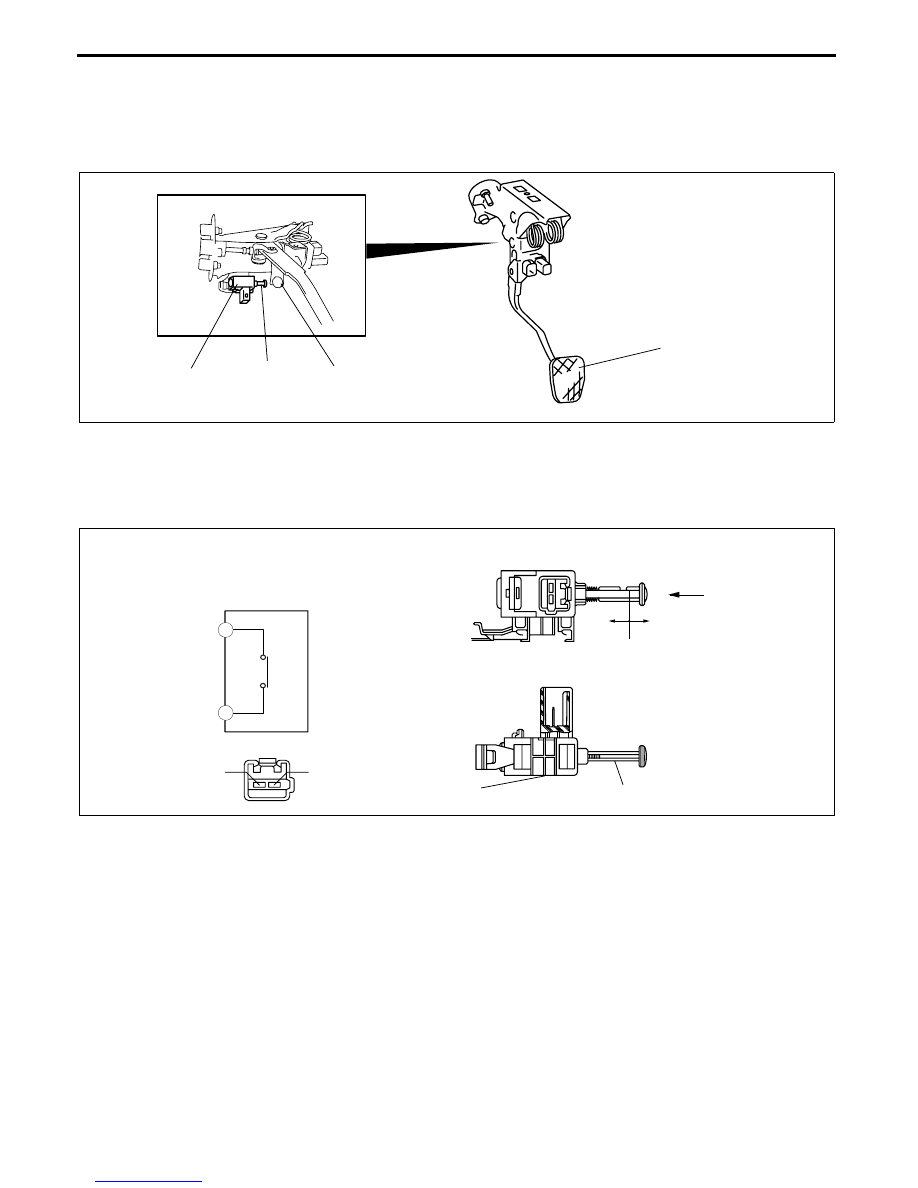

STARTER INTERLOCK SWITCH CONSTRUCTION/OPERATION [MT]

E5U011943440N01

Construction

• The starter interlock switch mechanism prevents vehicle surge when the engine is started, enhancing the

safety. The engine cannot be started unless the clutch is depressed.

• The mechanism is provided with a starter interlock switch on the circuit between the ignition switch and the

starter.

Operation

• Depressing the clutch pedal presses the starter interlock switch rod. At this time, the starter interlock switch is

on, and the power circuit to starter closes. Accordingly, the starter operates only when the clutch is depressed
whereby the engine can be started.

End Of Sie

STARTER
INTERLOCK
SWITCH

CLUTCH PEDAL

CLUTCH
PEDAL

ROD

E5U119ZS5002

STARTER
INTERLOCK
SWITCH

ROD

b

b

a

a

TOP VIEW

ON

OFF

OPERATING
DIRECTION

SIDE VIEW

STARTER INTERLOCK SWITCH
INTERNAL CIRCUIT

CLUTCH PEDAL DEPRESSED: ON

E5U119ZS5003
