If the air suspension control module loses communications with the ABS module or the ABS module reports
a fault, the air suspension control module immediately returns to the 'default' height, which is below the on-
road ride height. Once at the default height, the control module will continue to level the vehicle at this
height. It is unlikely that the fault will be in the air suspension control module. When the fault is repaired, the
air suspension control module will resume full functionality but the error will remain in the control module
memory.

For major faults the control module will not level the vehicle at the 'current' ride height. The control module freezes height
changes until it receives a manual or automatic request for height change. The control module will return to standard height
if possible and freezes once standard height is achieved.

If the suspension is above the on-road height and the air suspension control module cannot lower the suspension, all height
changes will be frozen. The control module will issue a message on the high speed CAN bus which is received by the
instrument cluster which displays a maximum advisable speed in the message center. An immediate 'freeze' of the vehicle
height is caused by the following:

Failure of more than one height sensor - vehicle on bump stops
Implausible articulation symptoms detected - vehicle on bump stops
Valve or solenoid failure - corner valve stuck open below on-road mode height or exhaust valve stuck shut above
on-road mode height
Stuck corner or whole vehicle (diagnosed using plausibility of the sensor inputs).

If height change is not possible, e.g. exhaust valve failed closed at off-road height or compressor failed at access height, the
control module will not level or change height.

If the air suspension control module has a hardware fault, the control module will disable all air suspension functions.
Detectable hardware errors include memory error, control module failure and calibration errors.

Fault Messages

The air suspension has two methods which it can use to inform the driver of a fault in the air suspension system; the air
suspension switch LED's and the instrument cluster message center.

When minor faults occur and the air suspension control module is able to level the vehicle to the 'current' ride height, the air
suspension switch LED's will display the current ride height.

If the air suspension control module suffers a major failure and there is no air suspension control, all the control switch
LED's will remain off.

If a fault occurs and the air suspension control module can determine the ride height and the vehicle is not above on-road
mode height, the driver will be notified via a 'air suspension fault max speed 18.6 mph (30 km/h)' message in the message
center.

If the control module cannot determine the height of the vehicle, or the vehicle is above on-road mode height, cannot be
lowered and the vehicle speed is too high, an air suspension fault message is displayed.

If the vehicle is restricted to on-road mode height an air suspension fault normal height only message is displayed.

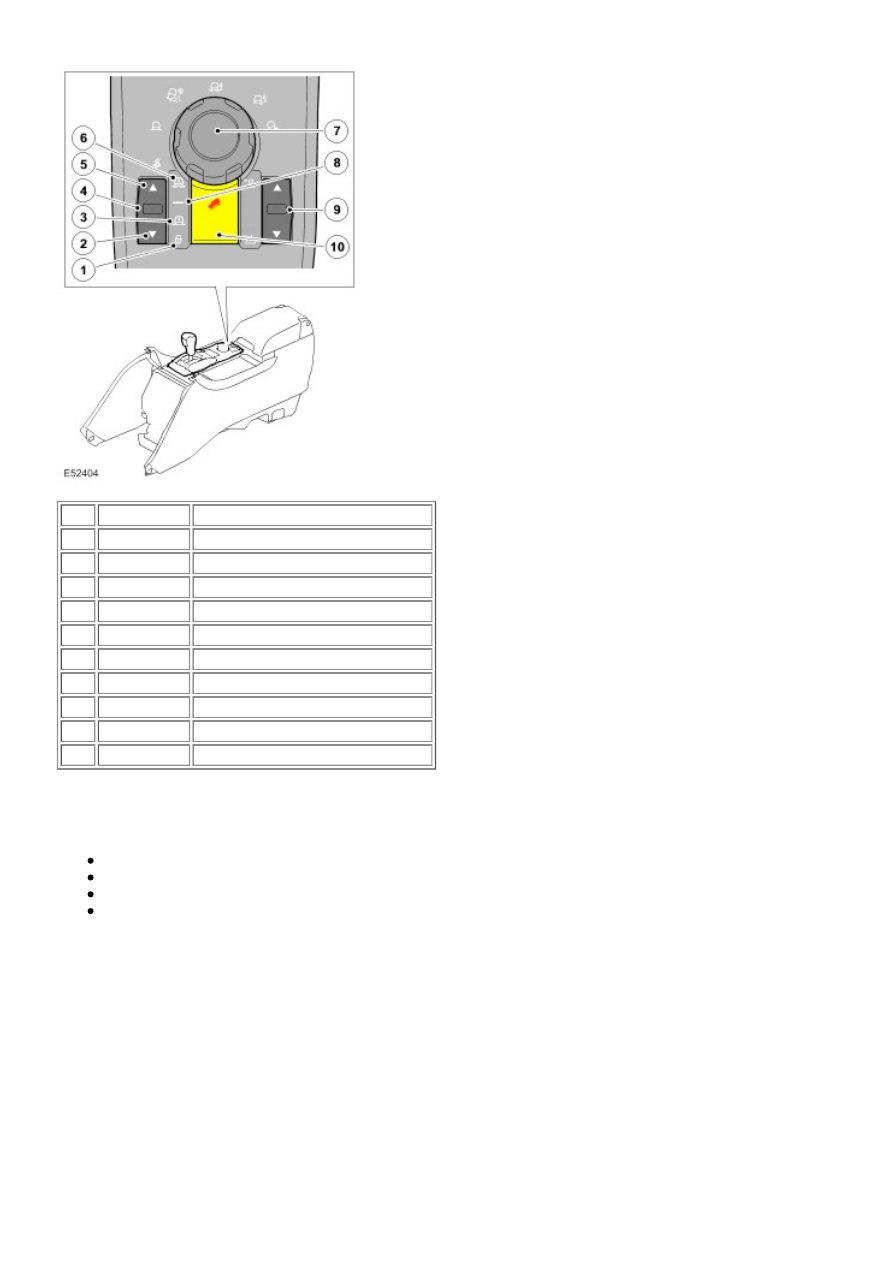

AIR SUSPENSION SWITCH

Description

1



Crawl (locked at access) mode lamp

2



Lowering lamp

3



Access mode lamp

4



Air suspension switch

5



Raising lamp

6



Off-road mode lamp

7



Terrain Response™ rotary control

8



On-road (normal height) lamp

9



Transfer box range selection switch

10



Hill Descent Control (HDC) switch

The air suspension control switch is located in the center console, behind the automatic transmission selector lever. The
switch is a three position, non-latching switch which allows selection of the following driver selectable modes:

Off-road mode
On-road mode
Access mode
Crawl (locked at access) mode.

The air suspension switch can be moved forwards or backwards from its central position. The switch is non-latching and
returns to the central position when released. The switch completes a ground path to the air suspension control module
when operated. This ground path is completed on separate wires for the raise and lower switch positions, allowing the
control module to determine which selection the driver has made.

The switch has six symbols which illuminate to show the current selected height and the direction of movement. The raise
and lower symbols will flash and a warning tone will be emitted from the instrument cluster sounder when a requested
height change is not allowed, i.e. vehicle speed too fast.

A flashing symbol indicates that the air suspension system is in a waiting state or that the system will override the driver's
selection because the speed threshold is too high.

The driver can also ignore the system's warning signals and allow the height to change automatically. For example,

FRONT AND REAR AXLE VALVE BLOCKS

Item Part Number

Description

1

 -

Isolation rubber mounts (3 off)

2

 -

Location slots

3

 -

Front valve block, valves and solenoid assembly

4

 -

Front bumper armature

5

 -

Electrical connector

6

 -

LH air spring damper module air harness connection

7

 -

Air inlet/outlet connection

8

 -

RH air spring damper module air harness connection

9

 -

Rear valve block, valves and solenoid assembly

10

 -

RH air spring damper module air harness connection

11

 -

Air inlet/outlet connection

12

 -

LH air spring damper module air harness connection

13

 -

Rear suspension turret

The front and rear axle valve blocks are similar in their design and construction and control the air supply and distribution to
the front or rear pairs of air spring damper modules respectively. The difference between the two valves is the connections
from the valve block to the left and right hand air spring damper modules and the valve size. It is important that the correct
valve block is fitted to the correct axle. Fitting the incorrect valve block will not stop the air suspension system from
functioning but will result in slow raise and lower times and uneven raising and lowering between the front and rear axles.

The front valve block is attached to the right hand end of the front bumper armature assembly. The valve block has three
attachment lugs which are fitted with isolation rubber mounts. The rubber mounts locate in slots in the armature. The valve
lugs locate in the holes above the slots and are pulled downwards into positive location in the slots.

The rear valve block is located on the forward face of the left hand rear suspension turret. The valve block has three
attachment lugs which are fitted with isolation rubber mounts which locate in a bracket with three slotted holes. The bracket
is attached to the left hand side of the chassis. The isolation rubber mounts locate in the 'V' shaped slots and are pulled
downwards into positive location in the slots.

The front and rear valve blocks each have three air pipe connections which use 'Voss' type air fittings. One connection is an
air pressure inlet/outlet from the reservoir valve block. The remaining two connections provide the pressure connections to
the left and right hand air springs.

Corner Valves

The corner valves control the flow of air into and out of the individual air springs. When the solenoid is de-energised, the
corner valves are held in a closed position by internal springs. When the solenoid is energised, the valve armature moves
and allows air to flow into or out of the air spring.

Cross Link Valves

The cross-link valve provides a connection between the two air springs on the same axle. When de-energised, the cross-
link valve prevents air passing from one air spring to another. When the solenoid is energised, the valve spool moves and
allows air to pass from one air spring to the other. This increases wheel articulation and improves ride comfort at low
vehicle speeds.

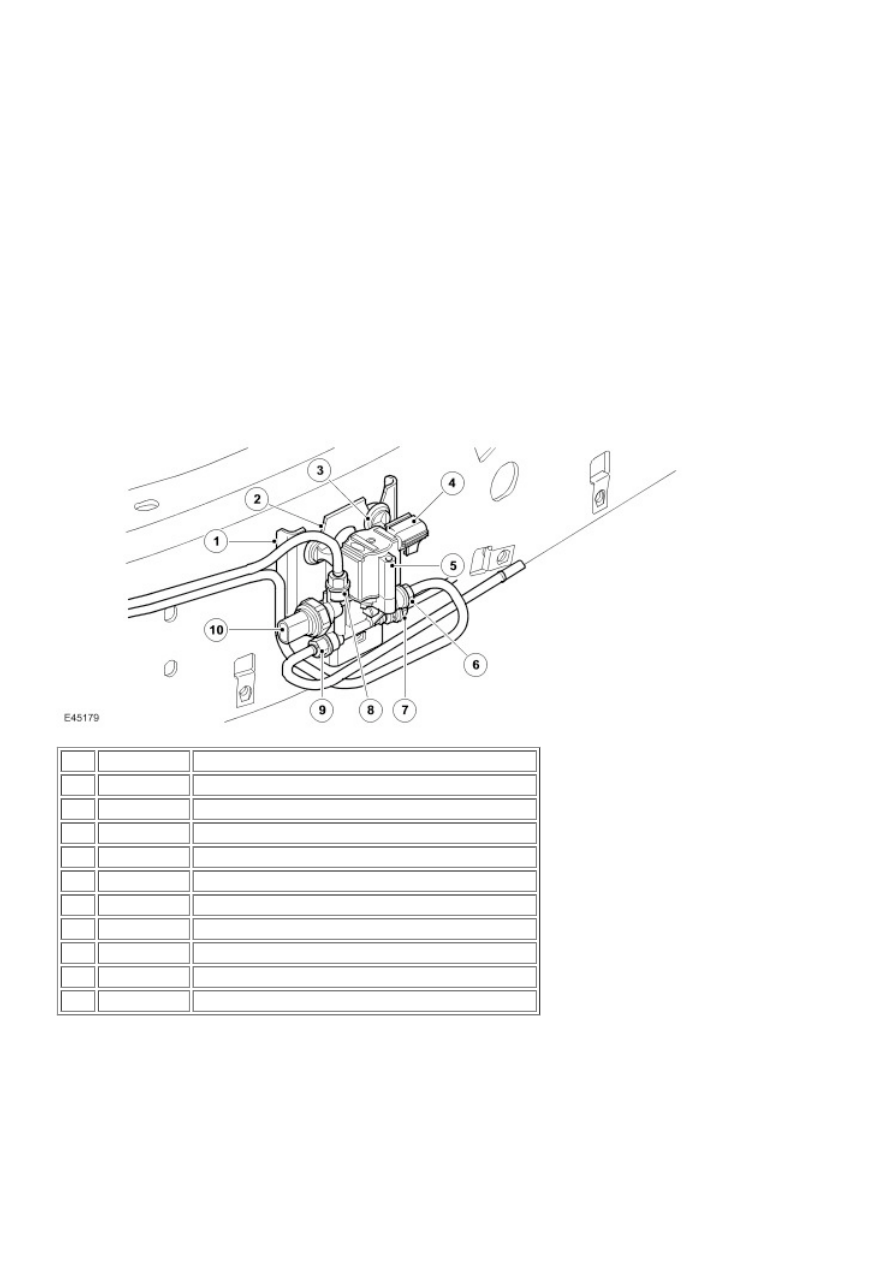

RESERVOIR VALVE BLOCK

Item Part Number

Description

1

 -

Chassis mounting bracket

2

 -

Location slot

3

 -

Isolation rubber mounts (3 off)

4

 -

Electrical connector

5

 -

Reservoir valve block, valves and solenoid assembly

6

 -

Reservoir connection

7

 -

Rear valve block connection

8

 -

Front valve block connection

9

 -

Air supply unit connection

10

 -

Pressure sensor

The reservoir valve block controls the storage and distribution of air from the reservoir. The reservoir valve block also
contains the system pressure sensor.

The reservoir valve block is attached to a bracket on the outside of the left hand chassis rail, between the reservoir and the
air supply unit. The valve block is located within the air supply unit acoustic box to protect it from dirt ingress and damage
from stones. The valve block has three attachment lugs which are fitted with isolation rubber mounts. The rubber mounts
locate in the chassis bracket which has three corresponding 'V' shaped slots. the rubber mounts are pulled downwards into
