SIDE LAMPS

H4

5

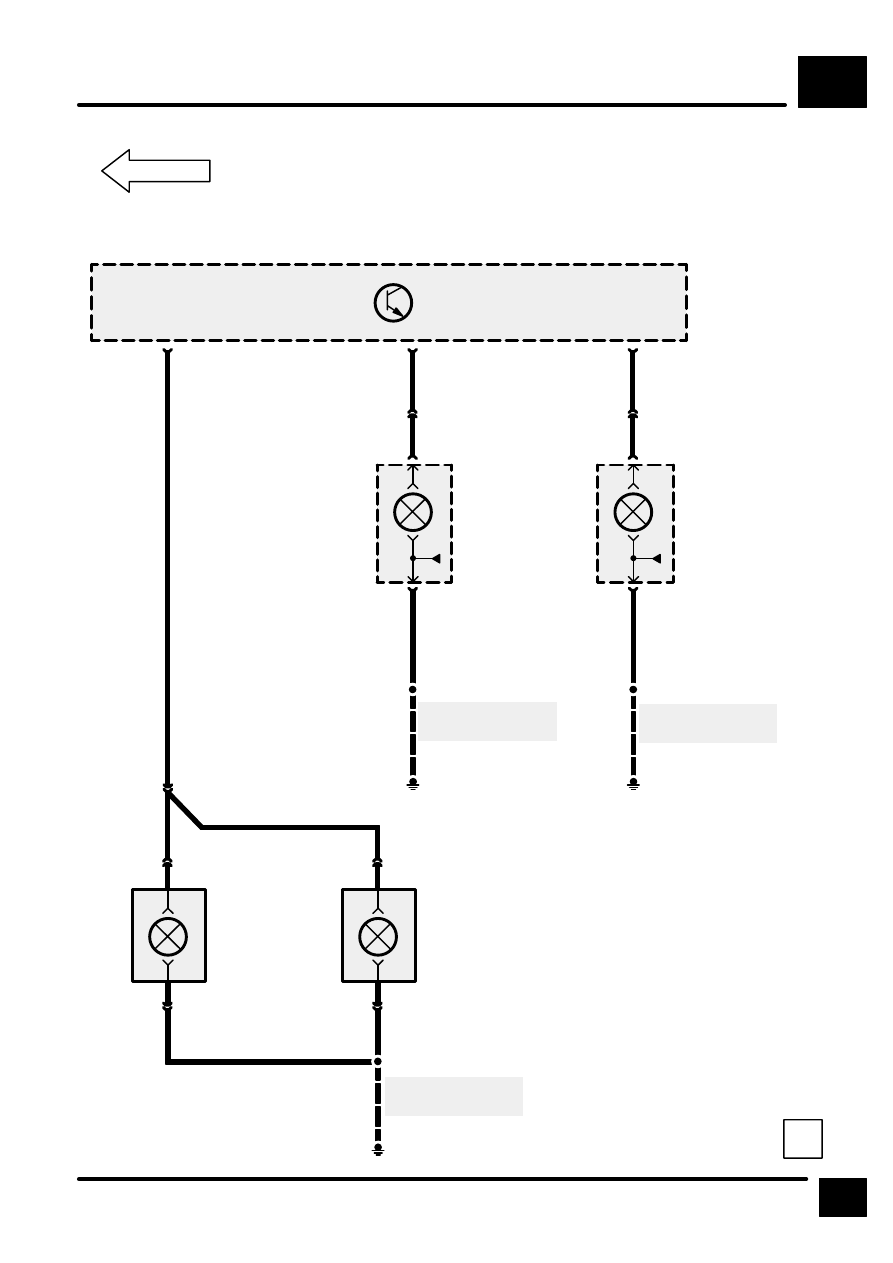

CIRCUIT DIAGRAM

Z238
Body Electrical
Control Module
(BECM)

E322

S852

B134
Right Number
Plate Lamp

B

E328

S701R

C323

X189
Right Rear Win-
dow Door
Switch

3

C706R

1

C706R

B

2

C304
C704R

11

RN

E367

S701L

C361

X188
Left Rear Win-
dow Door
Switch

3

C706L

1

C706L

B

2

C354
C704L

16

RN

C325

16

RU

1

C862

2

C862

4

C307

C859

B120
Left Number
Plate Lamp

B

1

C861

2

C861

See Ground Dis-
tribution

See Ground Dis-
tribution

See Ground Dis-
tribution

STOP LAMPS

H5

CIRCUIT OPERATION

1

CIRCUIT OPERATION

Brake lamps

The brake lamps (including the high mounted stop
lamp when fitted), are operated when the brake
switch is closed, provided the ignition is switched on.

STOP LAMPS

H5

2

CIRCUIT DIAGRAM

Z238
Body Electrical
Control Module
(BECM)

S205

4

C242

14

Z142
Instrument
Cluster
[15] Control

Unit and
Message
Centre Dis-
play

[15]

BG

8

18

BG

14

5

RG

2

12

RG

2

10

OG

3

13

OG

1

9

LG

5

15

LG

11

B

7

B

Z238
Body Electrical
Control Module
(BECM)

E254

P

P

7

C258

C242

C256

3

4

C258

17

W

9

X168
Stop Lamp
Switch
[1]

Brake
Pedal De-
pressed

S201

1

C227

0

0

[1]

[1]

2

C227

YP

GP

3

Anti–Lock Brake
System

S211

15

F 17
10 A

30

F 1
10 A

See Fuse Details

See Fuse Details

STOP LAMPS

H5

3

CIRCUIT DIAGRAM

See Ground Dis-
tribution

Z238
Body Electrical
Control Module
(BECM)

E322

B103
Centre Mounted
Stop Lamp

B

S356

C361

B175
Left Rear Lamp
Assembly
[3]

Stop

1

C366

2

C366

B

17

GP

1

C865

2

C865

GP

S301

B

12

[3]

13

C325

GU

3

C859

C307

S851

S852

1

C310

C860

B176
Right Rear Lamp
Assembly
[3]

Stop

1

C316

4

C316

GP

[3]

E367

Trailer Auxiliary
Socket

See Ground Dis-
tribution

See Ground Dis-
tribution
