To install, reverse the removal procedure.

1.

Stage 1:
Stage 2:

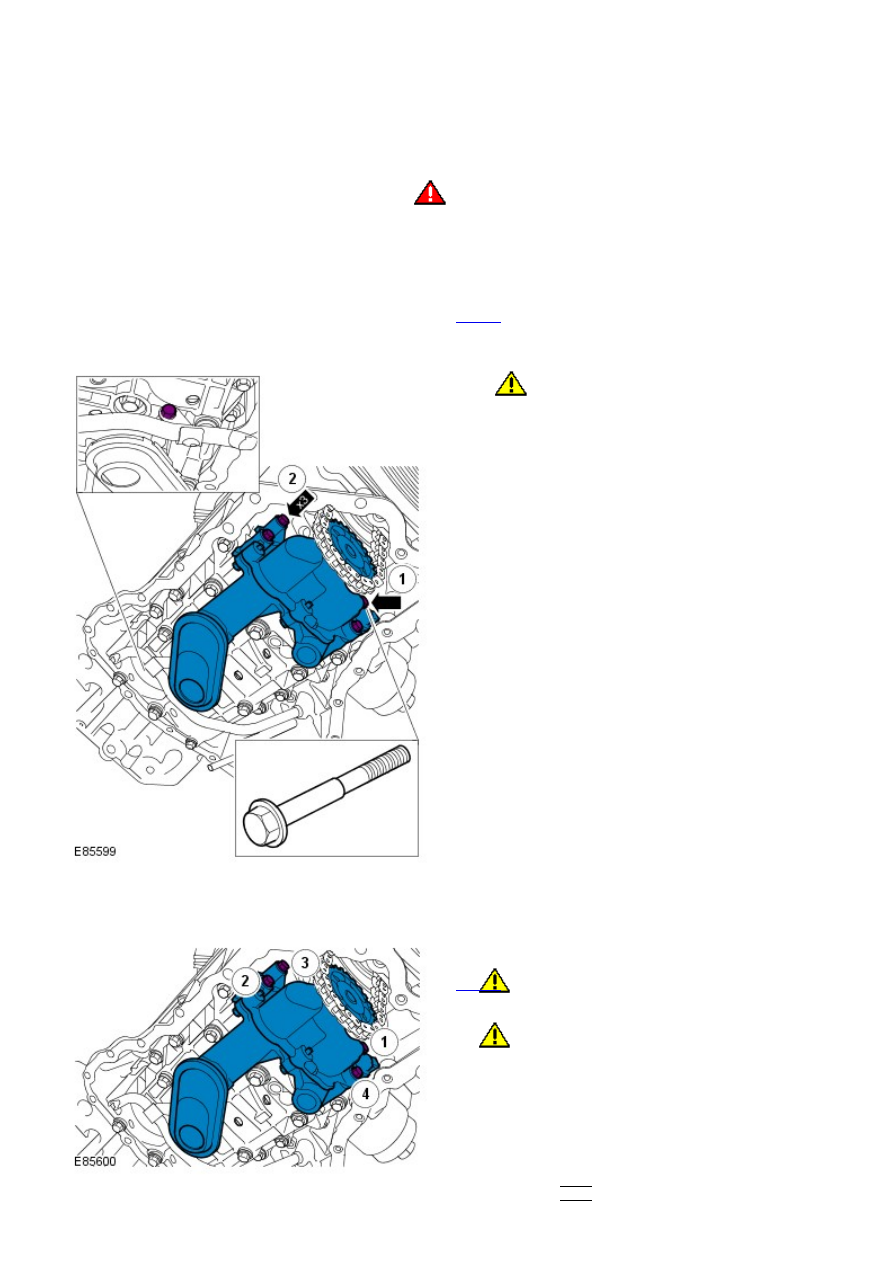

Engine - TD4 2.2L Diesel - Oil Pump

Removal and Installation

Removal

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

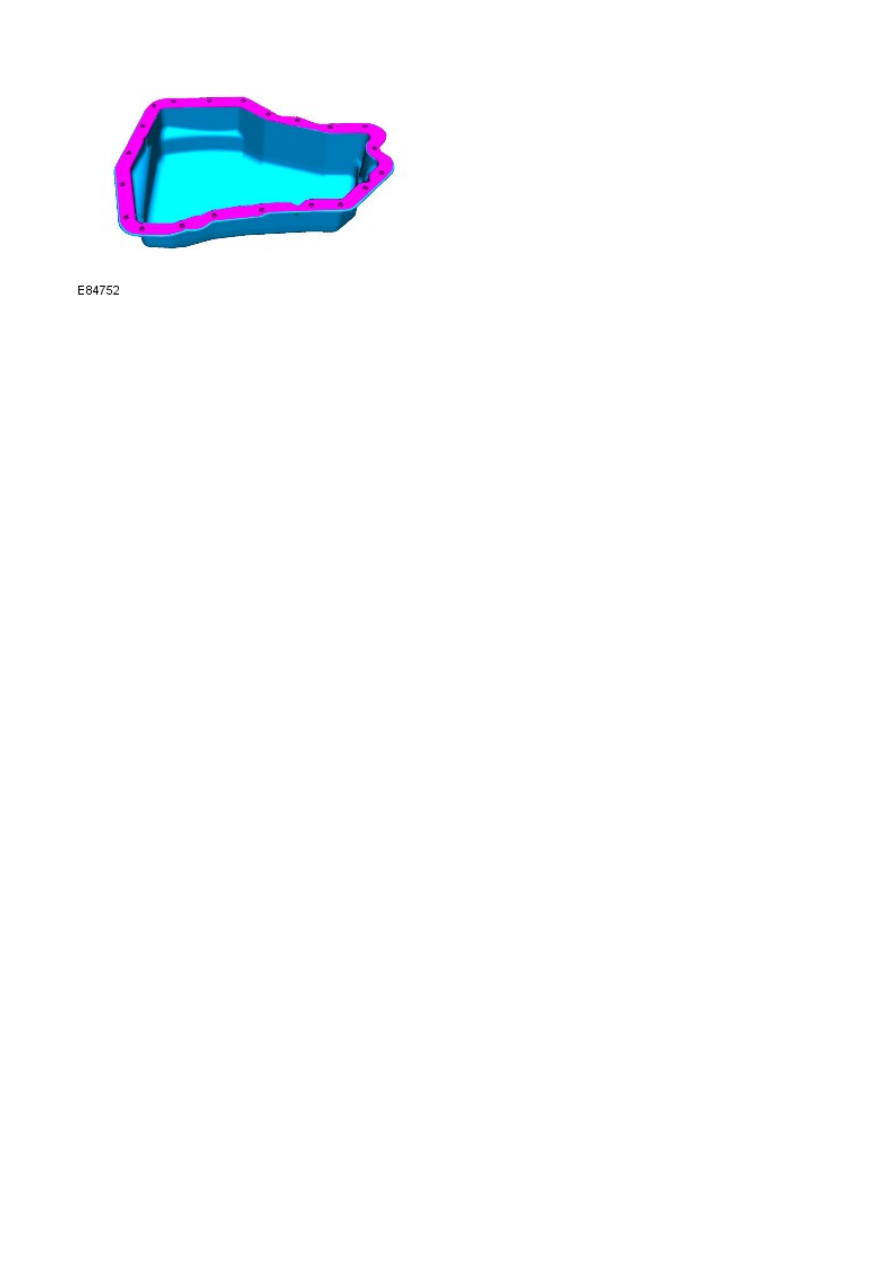

Remove the oil pan.

Refer to:

Oil Pan

 (303-01B Engine - TD4 2.2L Diesel, Removal and

Installation).

2.

3.

CAUTION: Note the fitted position of the

component prior to removal.

• NOTE: The shouldered bolt in position 1 locates the
oil pump.

3.

Installation

1. CAUTIONS:

 Make sure that the mating faces are clean and

free of foreign material.

 Make sure that these components are installed to

the noted removal position.

• NOTE: The shouldered bolt in position 1 locates the
oil pump.

Tighten the bolts evenly in 2 stages to the sequence
shown.

Torque:

7 Nm
9 Nm

1.

Install the oil pan.

Refer to:

Oil Pan

 (303-01B Engine - TD4 2.2L Diesel, Removal and

Installation).

2.

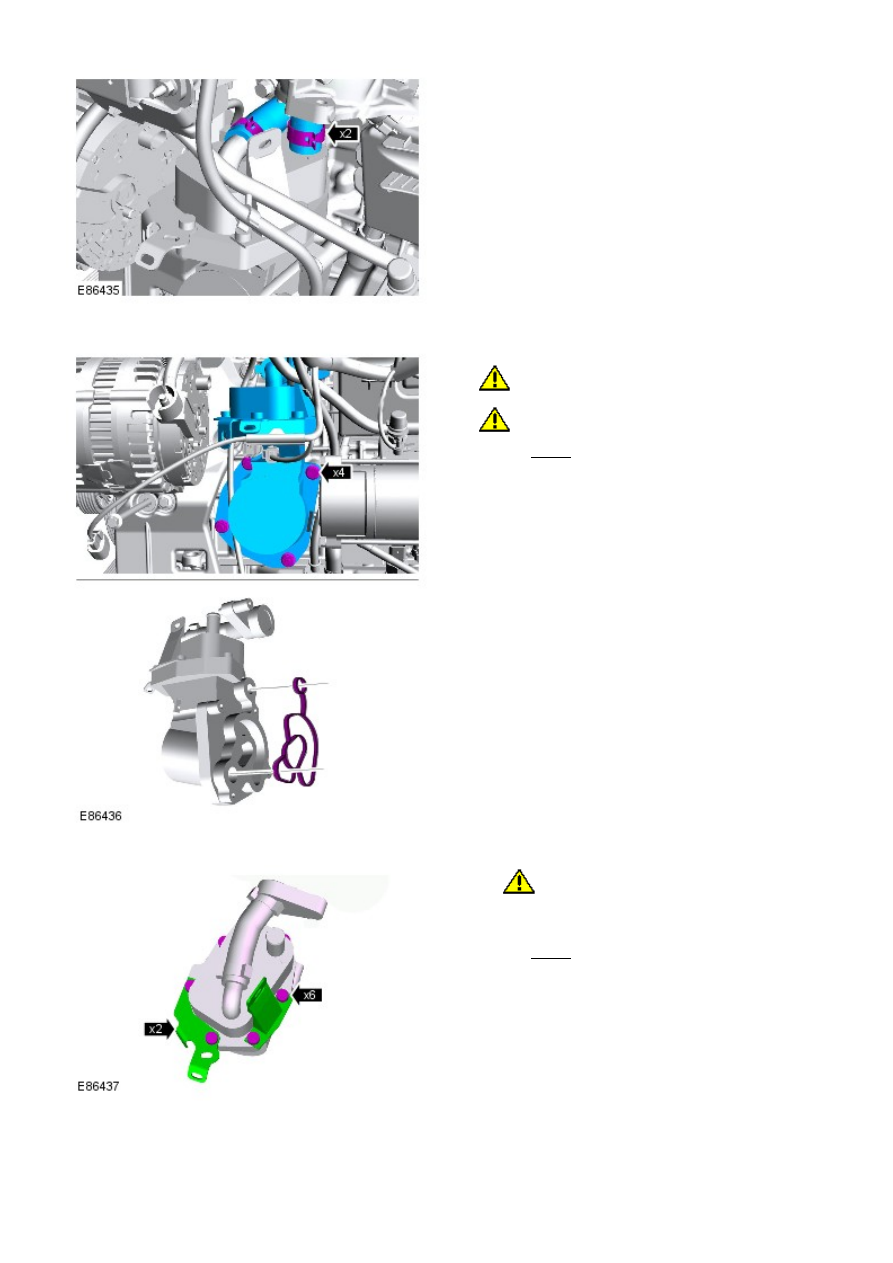

Engine - TD4 2.2L Diesel - Oil Cooler

Removal and Installation

Removal

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

2.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

2.

Drain the coolant.

Refer to:

Cooling System Draining, Filling and Bleeding

 (303-03B

Engine Cooling - TD4 2.2L Diesel, General Procedures).

3.

Remove the air conditioning (A/C) compressor.

Refer to:

Air Conditioning (A/C) Compressor - TD4 2.2L Diesel

(412-01 Climate Control, Removal and Installation).

4.

Remove the throttle body.

Refer to:

Throttle Body

 (303-04B Fuel Charging and Controls - TD4

2.2L Diesel, Removal and Installation).

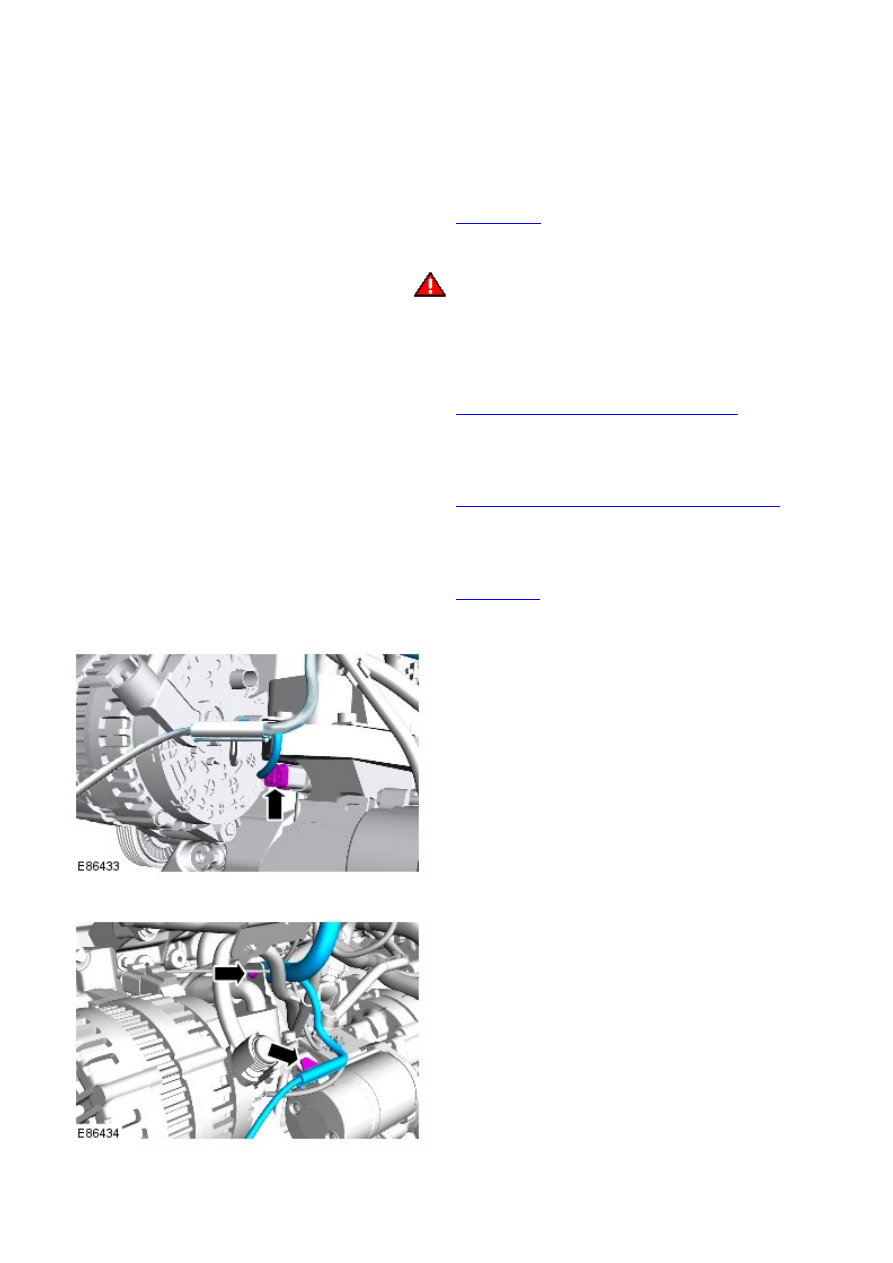

5.

Disconnect the engine oil pressure (EOP) sensor
electrical connector.

6.

7.

8.

9. CAUTIONS:

 Be prepared to collect escaping fluids.

 Discard the seal.

Torque: 20 Nm

9.

10.

CAUTION: Discard the seal.

• NOTE: Do not disassemble further if the component is
removed for access only.

Torque: 10 Nm

10.

Installation

To install, reverse the removal procedure.

1.
