Frelander 2. Manual - part 219





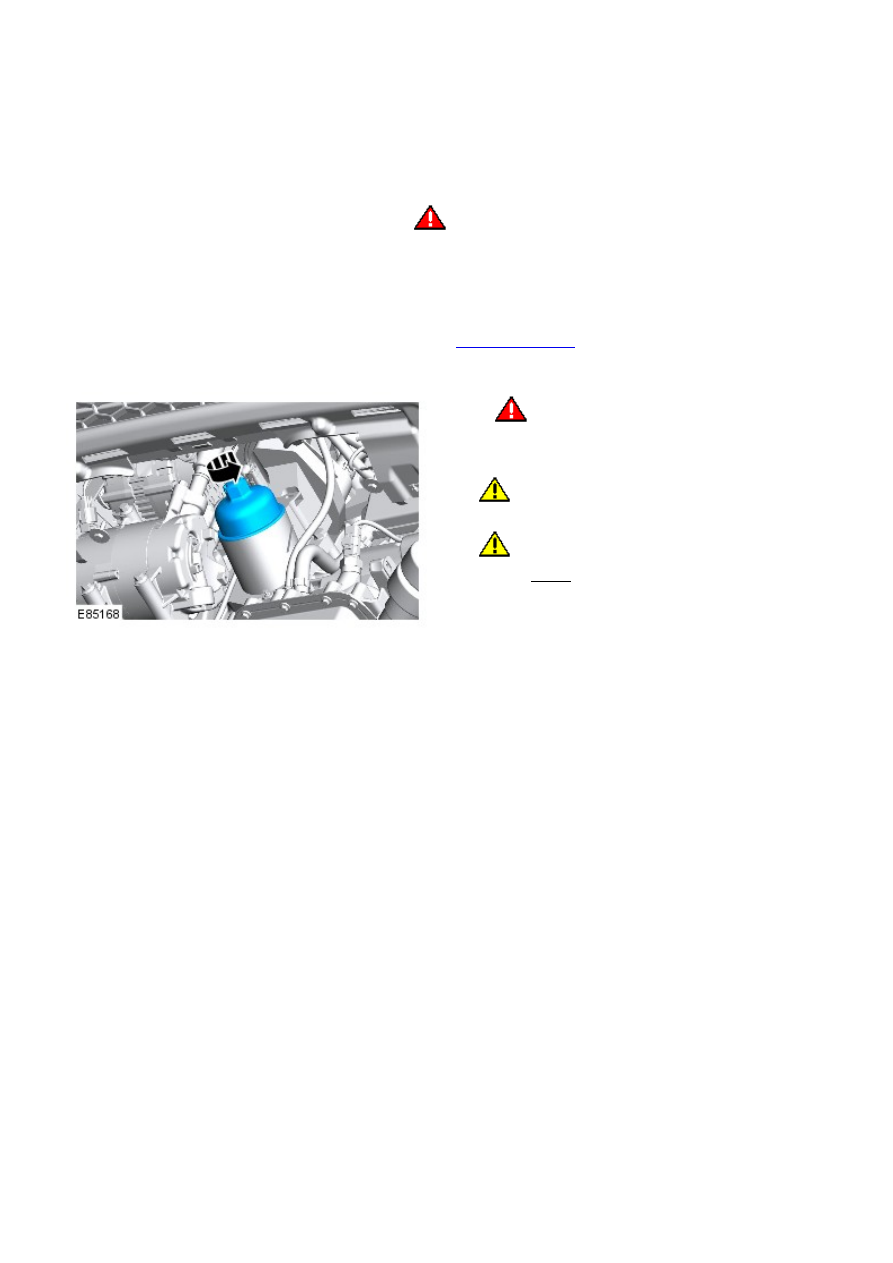

Engine - TD4 2.2L Diesel - Oil Filter Element

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the engine undershield.

Refer to:

Engine Undershield

 (501-02 Front End Body Panels,

Removal and Installation).

2.

3.

WARNING: Fluid loss is unavoidable, use

absorbent cloth or a container to collect the fluid.

• CAUTIONS:

 Make sure that the area around the component is

clean and free of foreign material.

 Discard the seal.

Torque: 25 Nm

3.

Installation

To install, reverse the removal procedure.

1.

Check and top-up the engine oil.

2.

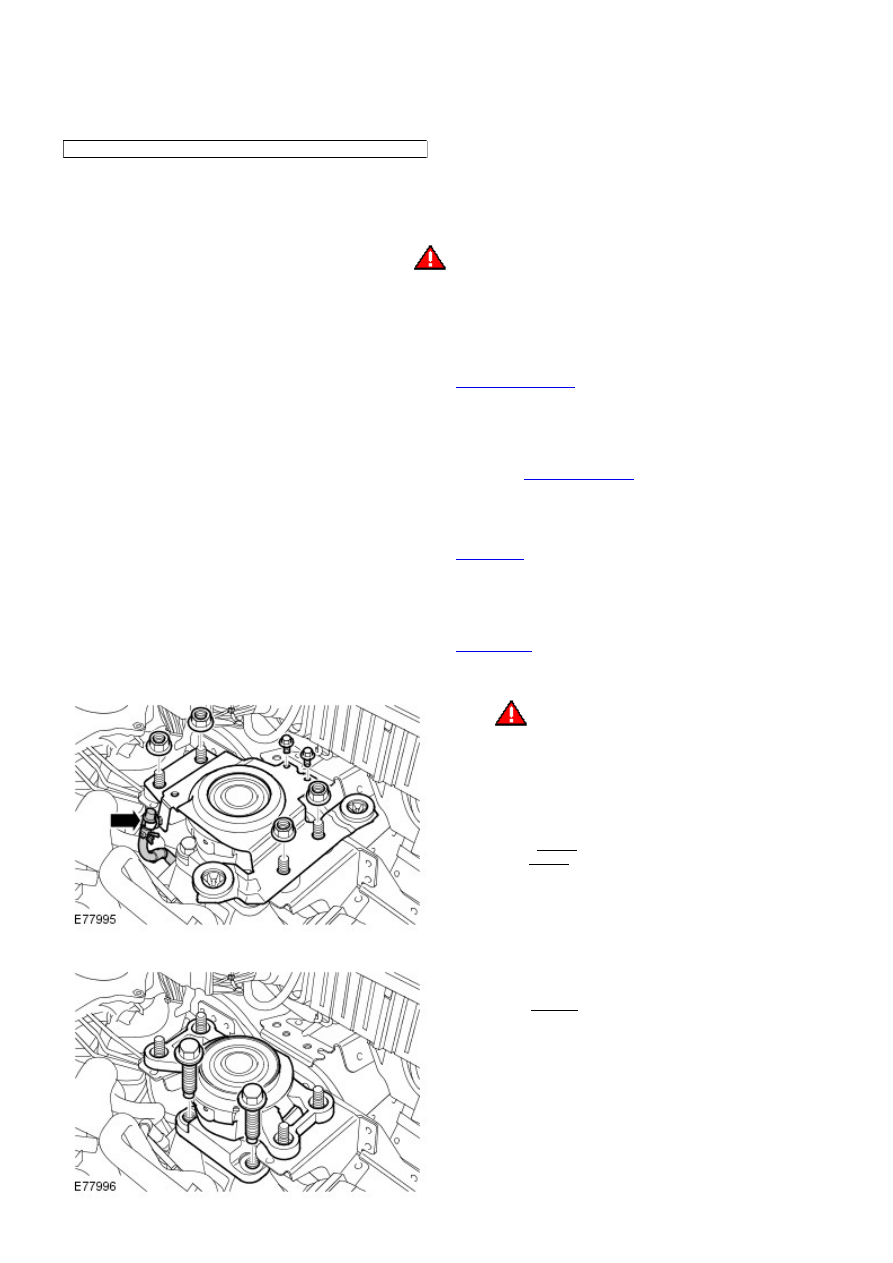

Engine - TD4 2.2L Diesel - Engine Mount LH

Removal and Installation

General Equipment

Transmission jack

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the engine undershield.

Refer to:

Engine Undershield

 (501-02 Front End Body Panels,

Removal and Installation).

2.

Support the transmission.

General Equipment:

Transmission jack

3.

Remove the air cleaner assembly.

Refer to:

Air Cleaner

 (303-12A Intake Air Distribution and Filtering -

I6 3.2L Petrol, Removal and Installation).

4.

Remove the battery tray.

Refer to:

Battery Tray

 (414-01 Battery, Mounting and Cables,

Removal and Installation).

5.

6.

WARNING: Make sure that new nuts are

installed.

• NOTE: Vehicles with automatic transmission have a
breather pipe attached to the mounting.

Remove the bracket.

Torque:

M12 80 Nm
M8 25 Nm

6.

Remove the engine mount LH.

Torque: 175 Nm

7.

Installation

To install, reverse the removal procedure.

1.

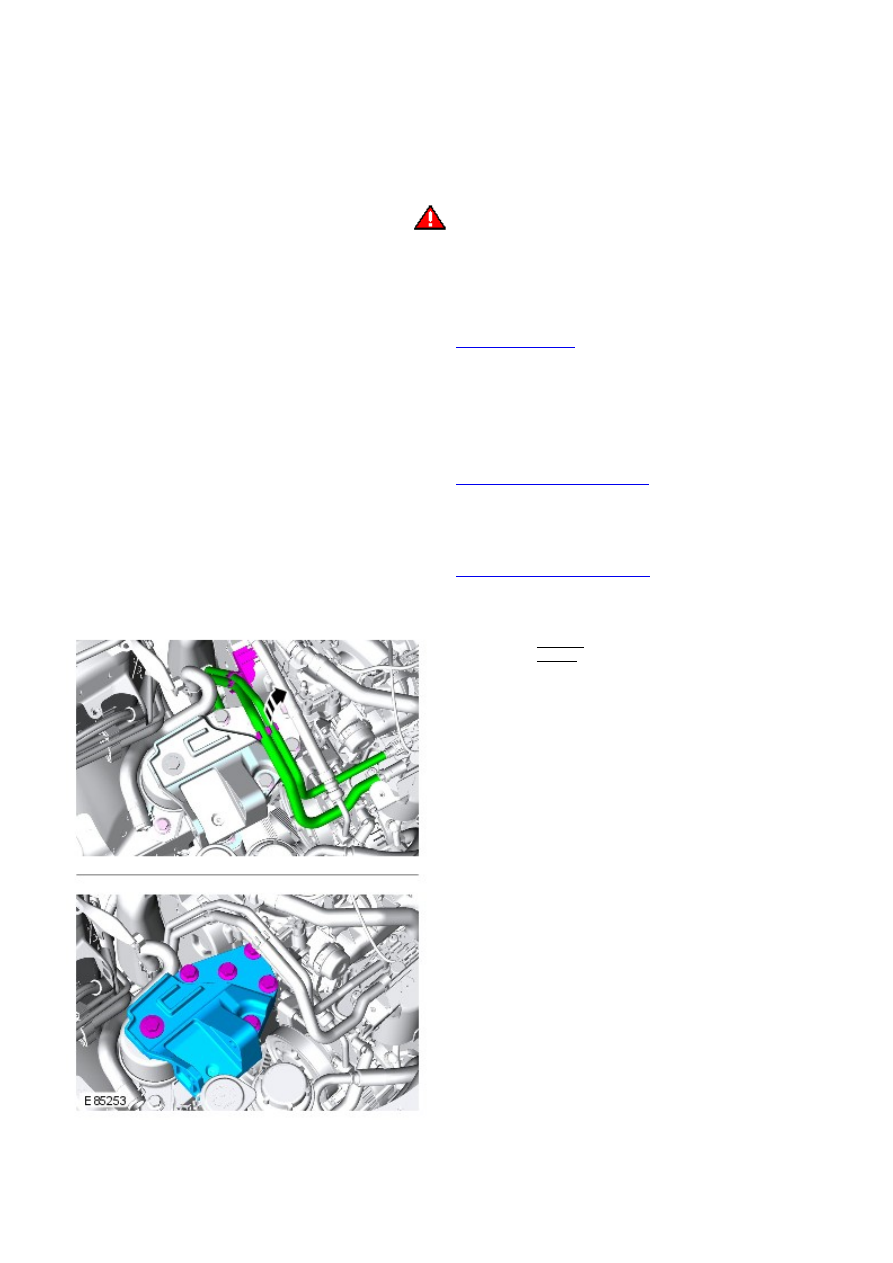

Engine - TD4 2.2L Diesel - Engine Mount RH

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the engine undershield.

Refer to:

Engine Undershield

 (501-02 Front End Body Panels,

Removal and Installation).

2.

Support the engine.

3.

Remove the engine cover.

Refer to:

Engine Cover - TD4 2.2L Diesel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

4.

Remove the engine upper support insulator.

Refer to:

Engine Upper Support Insulator

 (303-01A Engine - I6 3.2L

Petrol, Removal and Installation).

5.

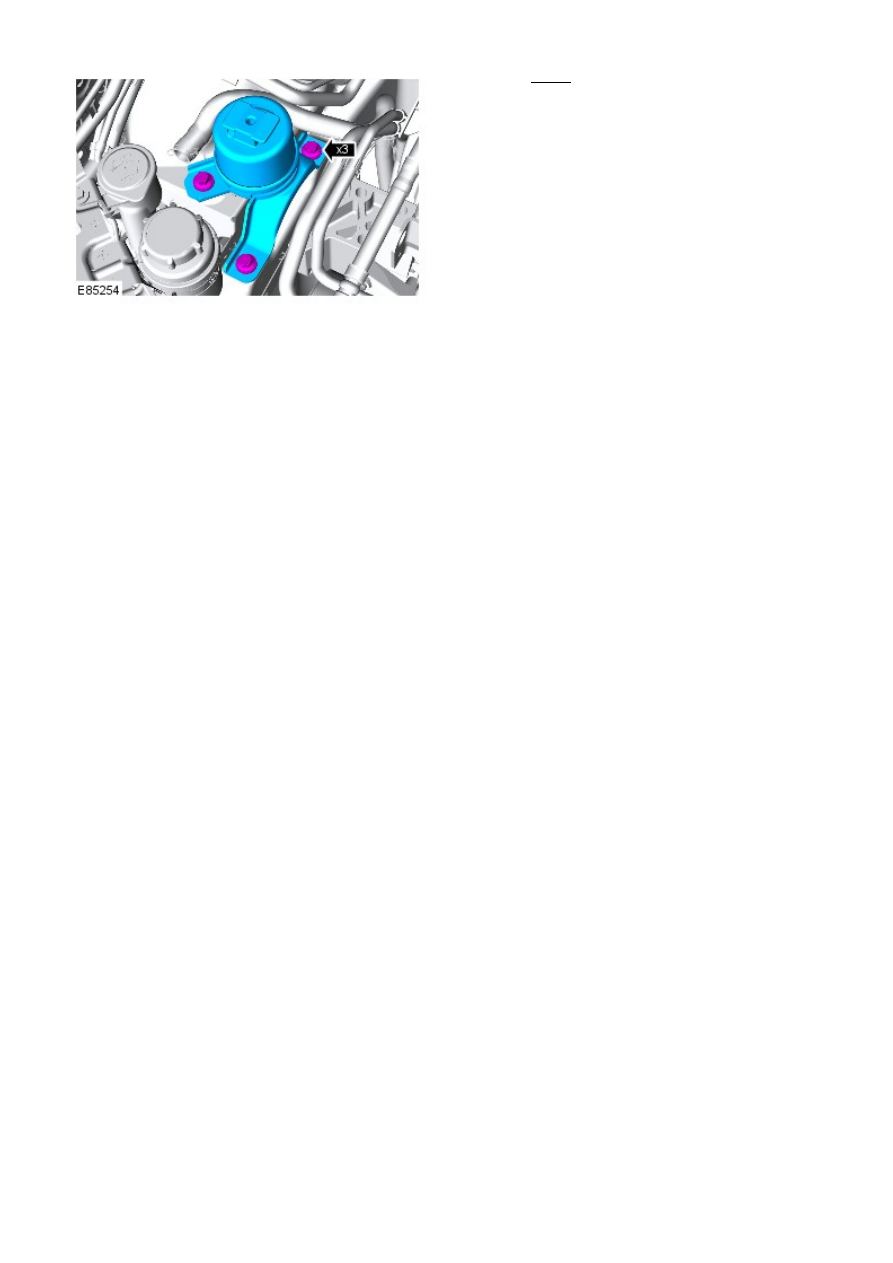

Torque:

M14 175 Nm
M12 80 Nm

6.

Torque: 80 Nm

7.

Installation

To install, reverse the removal procedure.

1.
