BODY DIMENSIONS

BODY DIMENSIONS

77-1-7

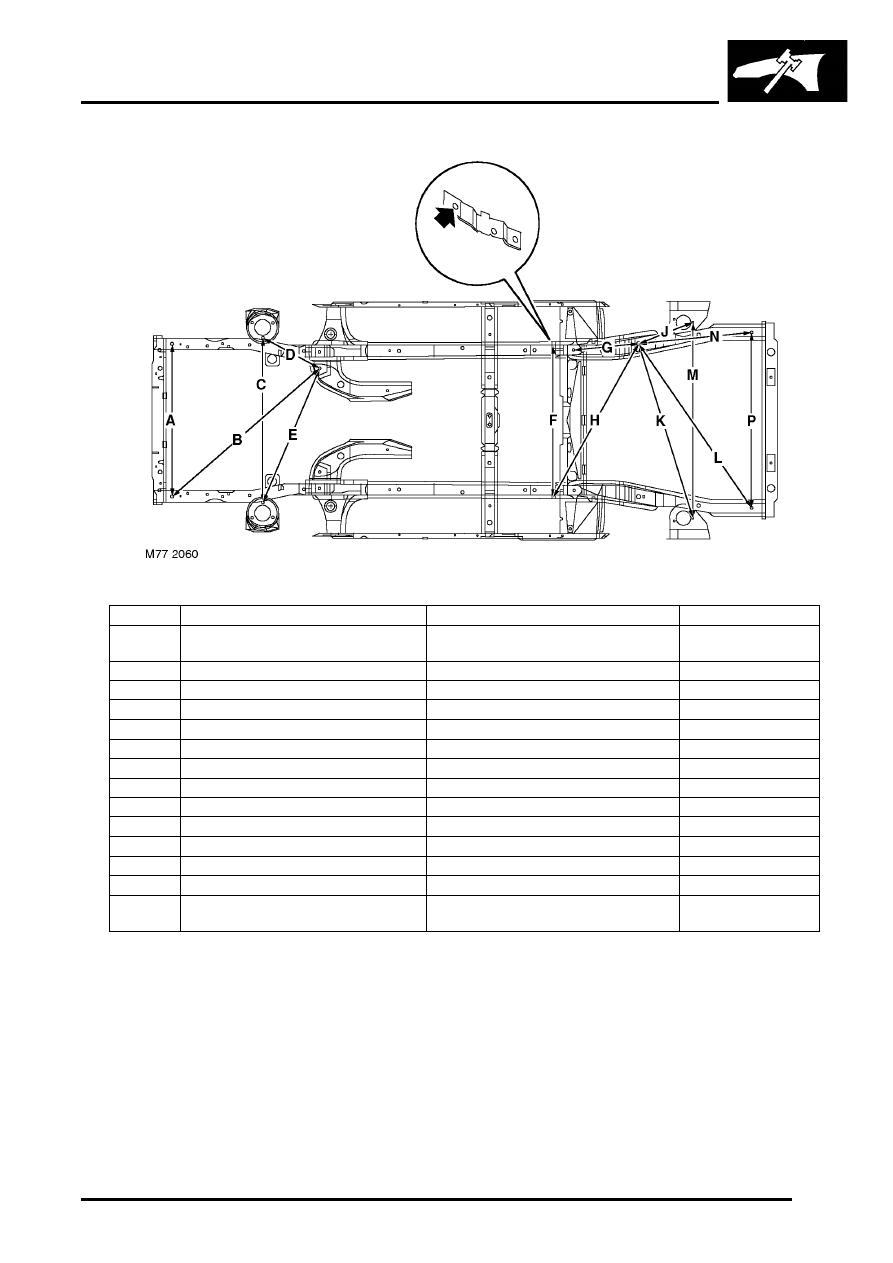

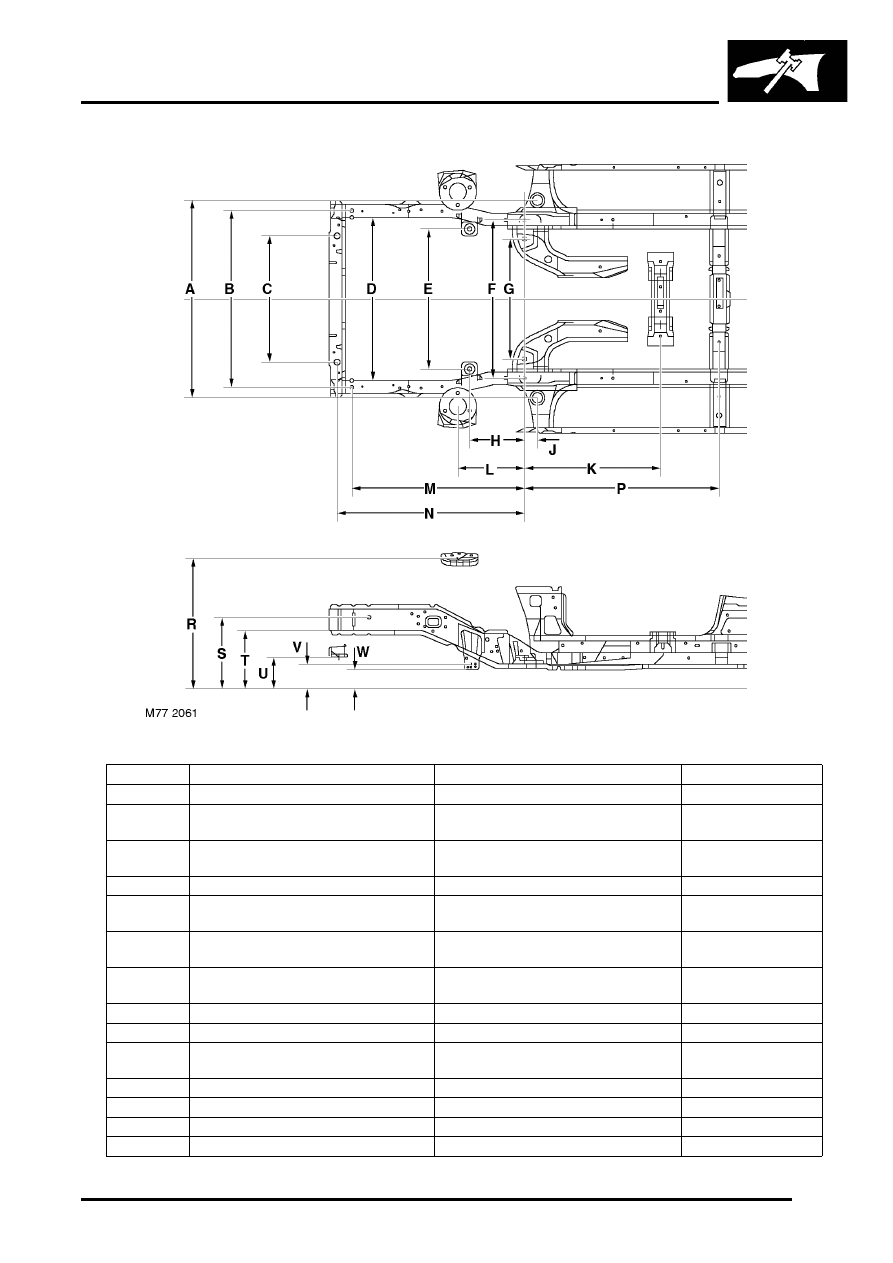

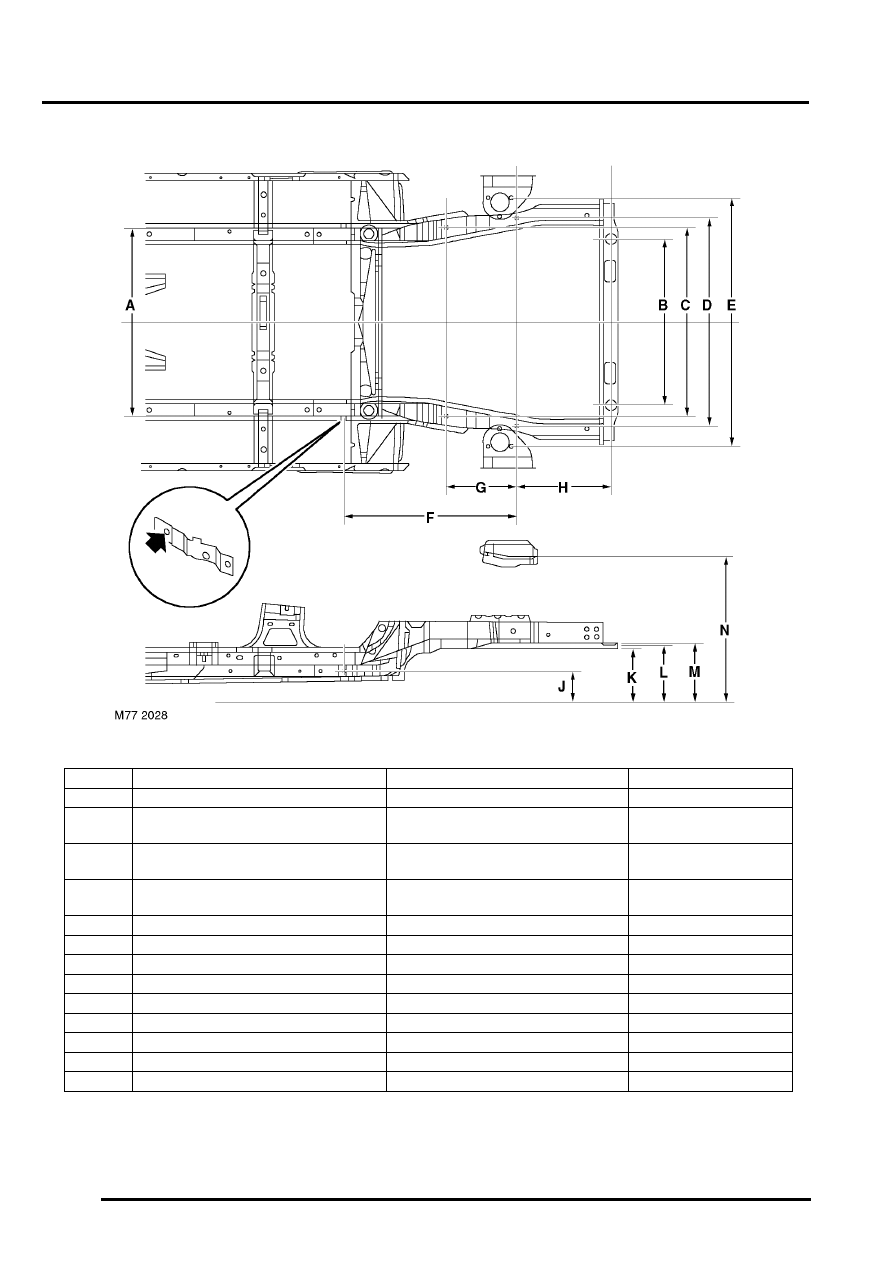

Under body information

Item

From

To

Length

A

Sidemember, forward jig location hole
`LH`

Sidemember, forward jig location hole
`RH`

962 (37.874

B

Sidemember, forward jig location hole

Front subframe, rear mounting hole

1216.0 (47.874

C

Spring location, inboard fixing hole `LH` Spring location, inboard fixing hole `RH`

1029.8 (40.543)

D

Spring location, inboard fixing hole

Front subframe, rear mounting hole

396.4 (15.606)

E

Spring location, inboard fixing hole

Front subframe, rear mounting hole

914.8 (36.015)

F

Link arm fix, `LH`

Link arm fix, `RH`

926.2 (36.464)

G

Rear longitudinal front, jig location hole

Rear subframe, front mounting hole

403 (15.866)

H

Link arm fix

Rear subframe, front mounting hole

1072.2 (42.212)

J

Rear subframe, front mounting hole

Spring location, rear hole

364.2 (14.338)

K

Rear subframe, front mounting hole

Spring location, rear fixing hole

1125.7 (44.318)

L

Rear subframe, front mounting hole

Rear longitudinal rear, jig location hole

1213.0 (47.755

M

Spring location, rear fixing hole `LH`

Spring location, rear fixing hole `RH`

1220.0 (48.031

N

Rear subframe, front mounting hole

Rear longitudinal rear, jig location hole

700.7 (27.586)

P

Rear longitudinal rear, jig location hole
`LH`

Rear longitudinal rear, jig location hole
`RH`

1054.0 (41.496)

BODY DIMENSIONS

77-1-8

BODY DIMENSIONS

Under body information

Item

From

To

Length

A

Link arm fix, `LH`

Link arm fix, `RH`

926.2 (36.464)

B

Rear crossmember, jig location hole `LH` Rear crossmember, jig location hole

`RH`

820 (32.283)

C

Rear subframe, front mounting hole `LH` Rear subframe, front mounting hole

`RH`

930 (36.614)

D

Rear subframe, rear mounting hole `LH`

Rear Subframe, rear mounting hole
`RH

1030 (40.551)

E

Spring location, rear fixing hole `LH`

Spring location, rear fixing hole `RH`

1219.9 (48.027)

F

Link arm fix

Rear subframe, rear mounting hole

906.7 (35.696)

G

Rear Subframe, front mounting hole

Rear subframe, rear mounting hole

369.7 (14.555)

H

Rear subframe, rear mounting hole

Rear crossmember, jig location hole

450.8 (17.748)

J

Zero `Z` datum

Link arm fix

160 (6.299)

K

Zero `Z` datum

Rear longitudinal rear, jig location hole

272.8(10.740)

L

Zero `Z` datum

Rear crossmember, jig location hole

299.5 (11.791)

M

Zero `Z` datum

Rear longitudinal rear, jig location hole

303.5 (11.948)

N

Zero `Z` datum

Spring location, rear fixing hole

728.5 (28.681)

BODY DIMENSIONS

BODY DIMENSIONS

77-1-9

Under body information

Item

From

To

Length

A

Outrigger panel, jig location hole 'LH'

Outrigger panel, jig location hole 'RH'

1070 (42.1250)

B

Sidemember, forward jig location hole
'LH'

Sidemember, forward jig location hole
'RH'

962 (37.874)

C

Front crossmember, jig location hole
'LH'

Front crossmember, jig location hole
'RH'

700 (27.559)

D

Sidemember, jig location hole 'LH'

Sidemember jig location hole 'RH'

892 (35.118)

E

Front subframe, front mounting hole
'LH'

Front subframe, front mounting hole
'RH'

772 (30.393)

F

Front subframe, rear outer mounting
hole 'LH'

Front subframe, rear outer mounting
hole 'RH'

859 (33.818)

G

Front subframe, rear inner mounting
hole 'LH'

Front subframe, rear inner mounting
hole 'RH'

660 (25.984)

H

Front subframe, front mounting hole

Front subframe, rear mounting hole

290 (11.417)

J

Outrigger panel, jig location hole

Front subframe, rear mounting hole

69 (2.716)

K

Front subframe, rear mounting hole

Tunnel front cross member, jig location
hole

748 (29.448)

L

Spring location, hole

Front subframe, rear mounting hole

350.6 (13.803)

M

Sidemember, forward jig location

Front subframe, rear mounting hole

906 (35.669)

N

Front crossmember, jig location hole

Front subframe, rear mounting hole

985.5 (38.799)

P

Front subframe, rear mounting hole

Tunnel rear cross member, jig location

1051 (41.377)

BODY DIMENSIONS

77-1-10 BODY DIMENSIONS

R

Zero 'Z' datum

Spring location, inboard fixing hole

693.7 (27.311)

S

Zero 'Z' datum

Sidemember, jig location hole

388 (15.275)

T

Zero 'Z' datum

Sidemember, bottom jig location hole

312 (12.283)

U

Zero 'Z' datum

Front crossmember, jig location hole

154 (6.062))

V

Zero 'Z' datum

Front subframe, front mounting hole

125 (4.921)

W

Zero 'Z' datum

Front subframe, rear mounting hole

95.8 (3.771))
