BODY DIMENSIONS

BODY DIMENSIONS 77-1-11

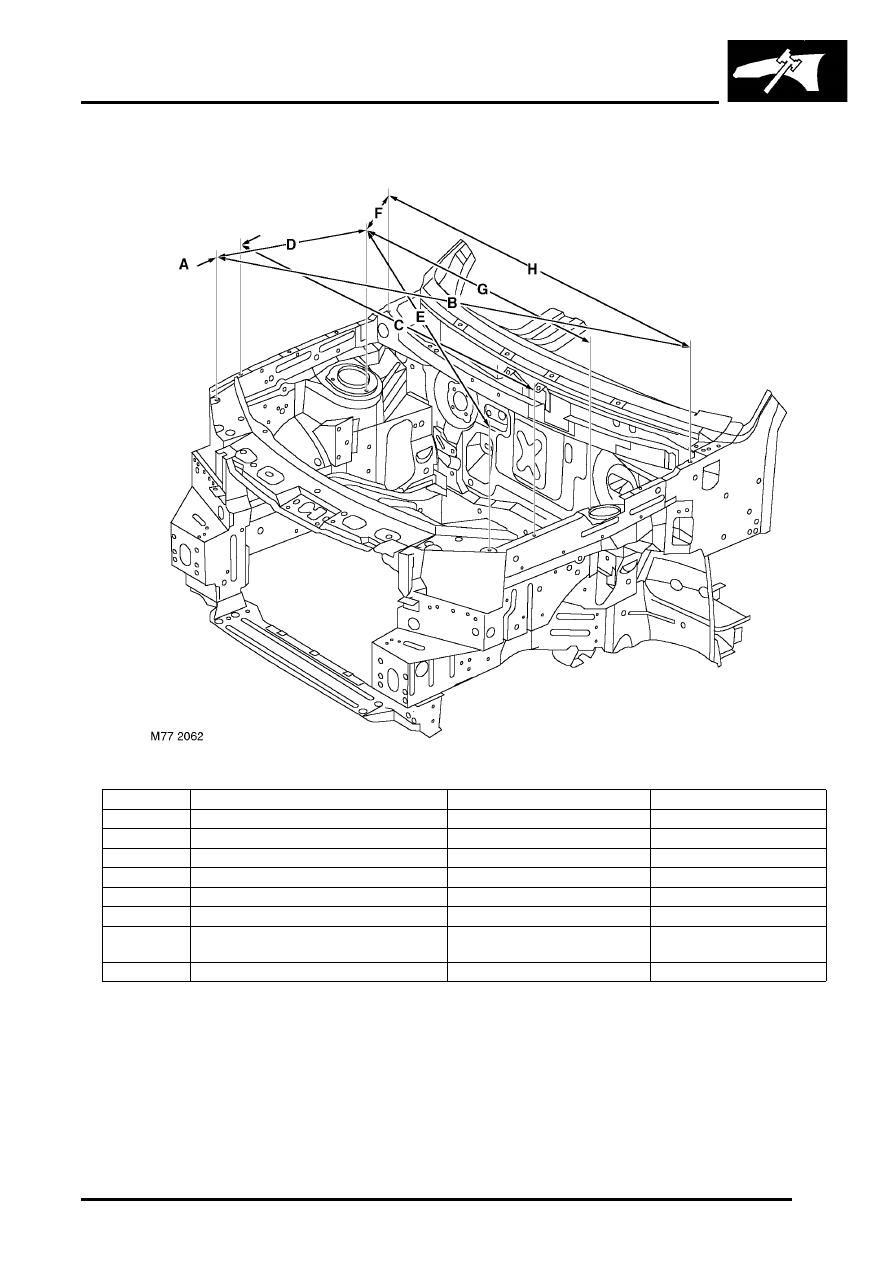

Front end point to point information

Item

From

To

Length

A

Headlamp fixing

Wing, forward fixing

150 (5.905)

B

Headlamp fixing

Wing, rear fixing

1507.7 (59.358)

C

Wing, forward fixing `LH`

Wing, forward fixing `RH`

1338 (13.307)

D

Headlamp fixing

Spring location, inboard hole

520.1 (20.476)

E

Spring location, inboard hole

Headlamp fixing

1239.9 (48.814)

F

Spring location, inboard hole

Wing, rear fixing

300.8 (11.842)

G

Spring location, inboard hole `LH`

Spring location,  inboard hole
`RH`

1029.8 (40.543)

H

Wing, rear fixing `LH`

Wing, rear fixing `RH`

1380 (54.330)

BODY DIMENSIONS

77-1-12 BODY DIMENSIONS

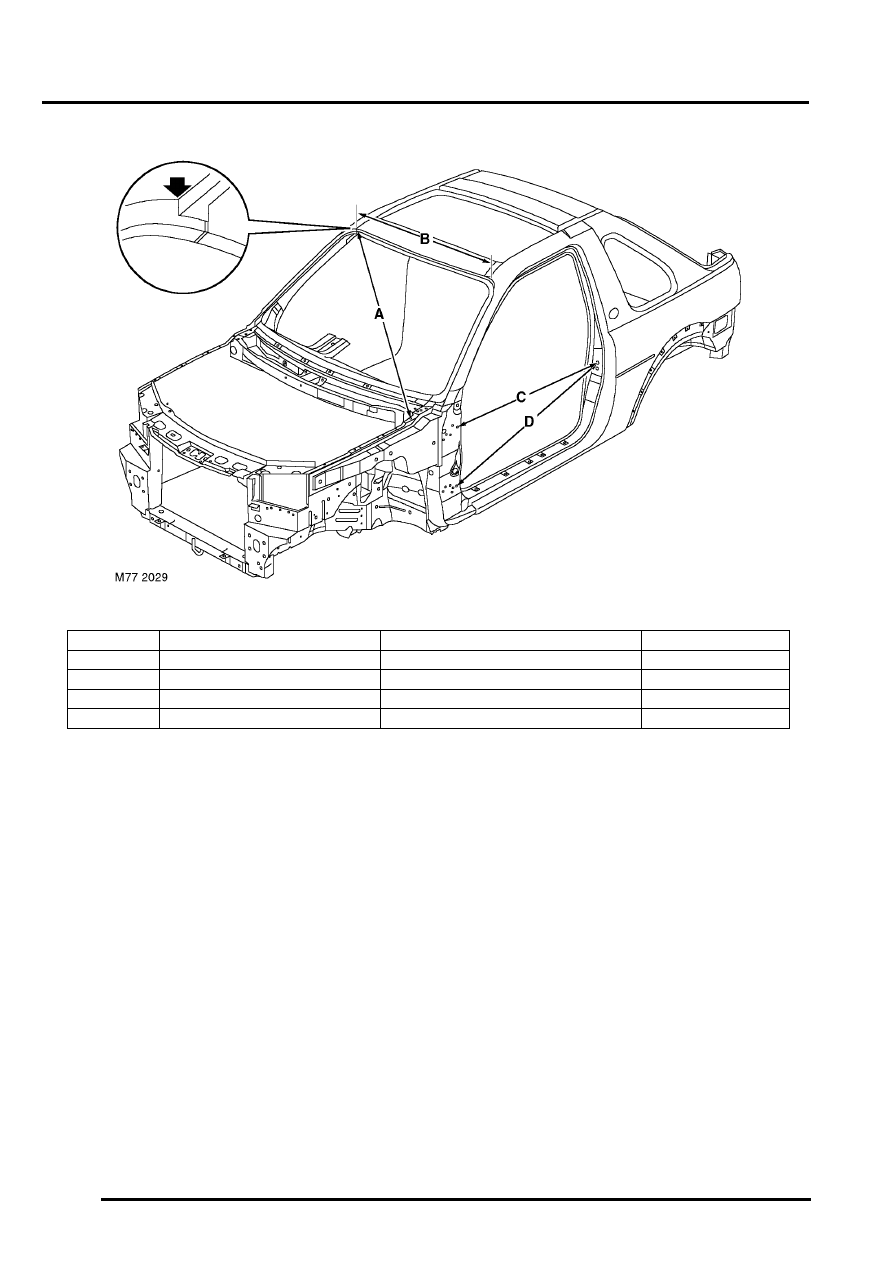

Front and side information

Item

From

To

Length

A

Wing, rear fixing

Top corner, on bodyside panel

1532.7 (60.342)

B

Top corner, on bodyside panel `LH` Top corner, on bodyside panel `RH`

1045.8 (41.173)

C

Top hinge fixing, rear hole

Door striker, top fixing

1228.2 (48.354)

D

Bottom hinge fixing, rear hole

Door striker, top fixing

1268.1 (49.925)

BODY DIMENSIONS

BODY DIMENSIONS 77-1-13

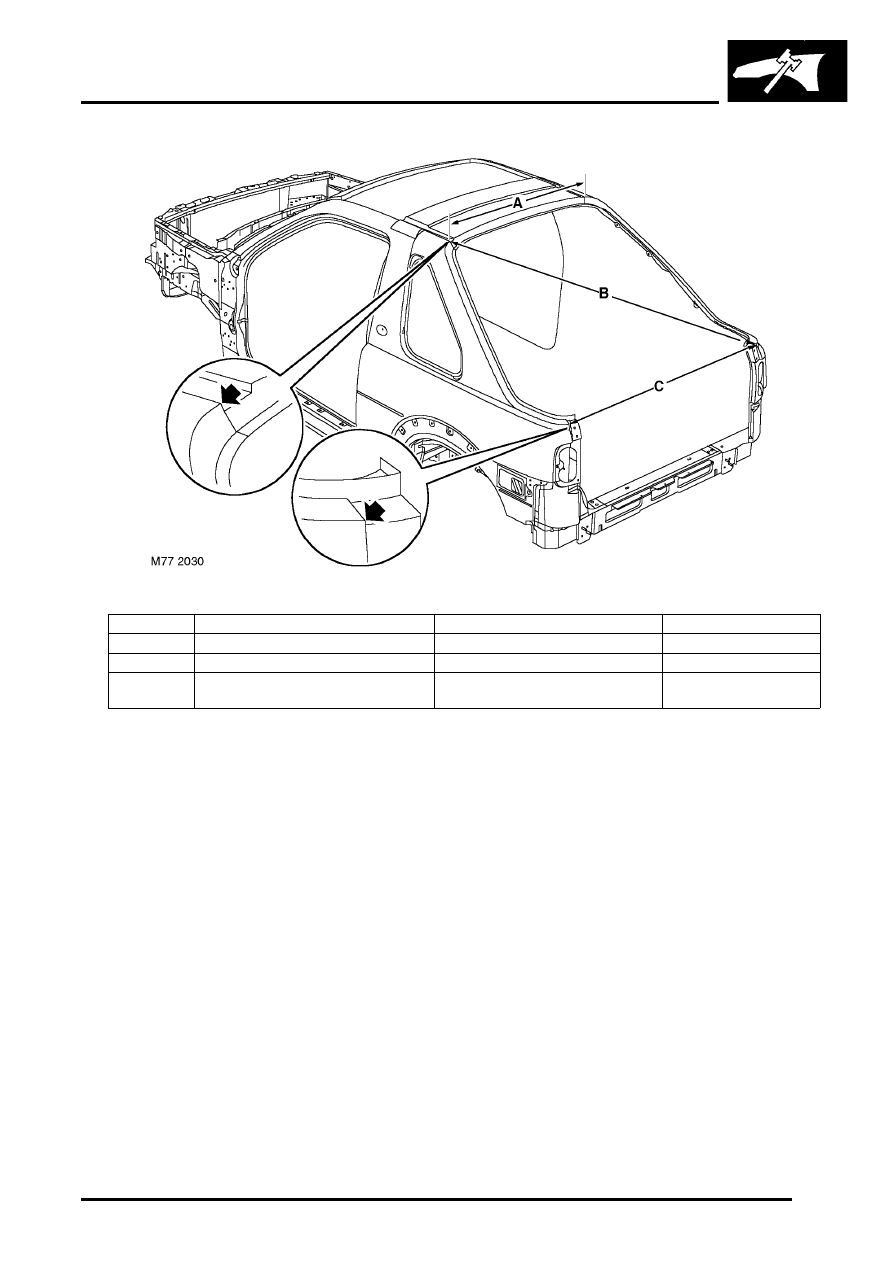

Rear end information

Item

From

To

Length

A

Top corner, on bodyside panel `LH`

Top corner, on bodyside panel `RH`

980 (38.582)

B

Top corner, on bodyside panel

Bottom corner, on bodyside panel

1684.5 (66.318)

C

Bottom corner, on bodyside panel `LH` Bottom corner, on bodyside panel

`RH`

1349 (53.110)

BODY DIMENSIONS

77-1-14 BODY DIMENSIONS

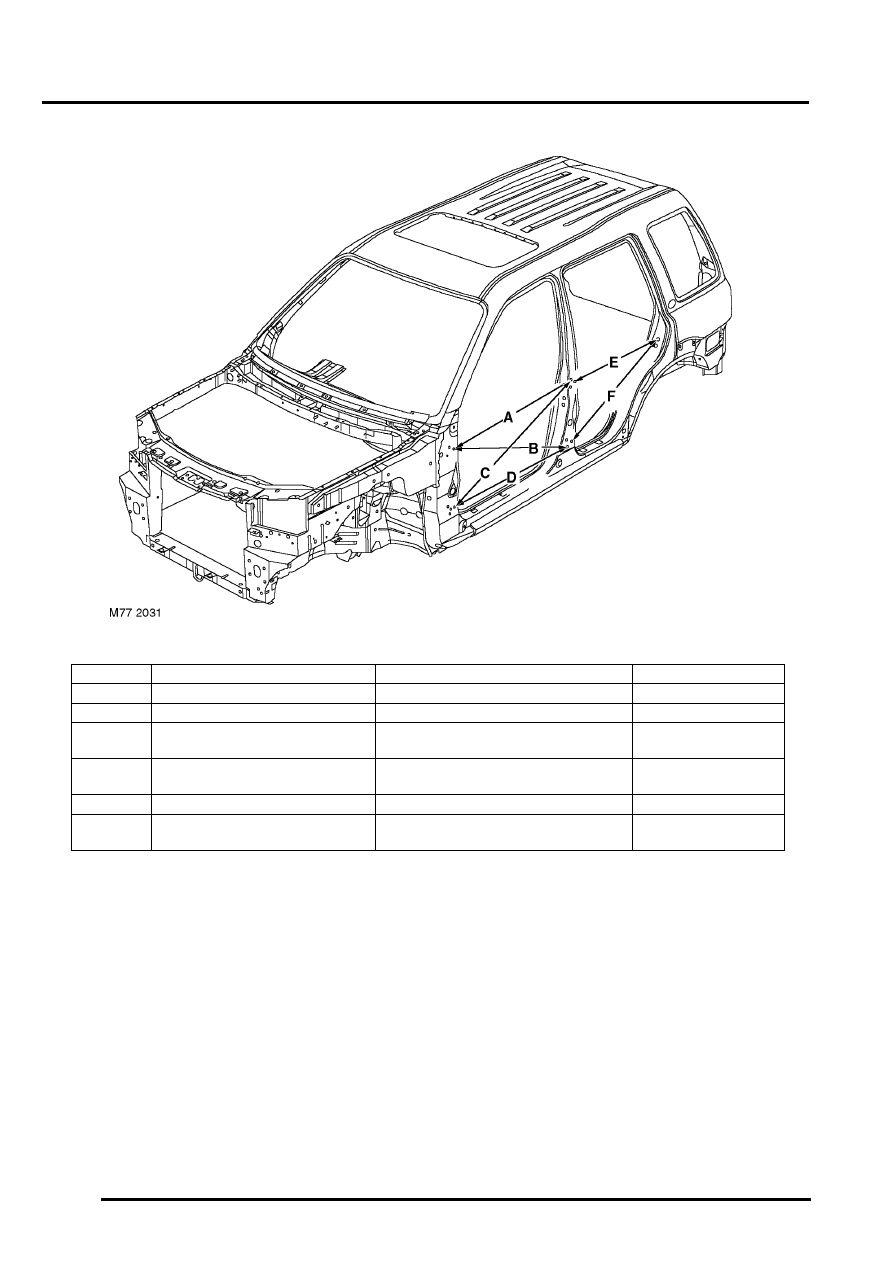

Side information

Item

From

To

Length

A

'A' post, top hinge, rear fixing hole

'B/C' post, top hinge, top fixing hole

1007.7 (39.673)

B

'A' post, top hinge, rear fixing hole

'B/C' post, bottom hinge, front fixing hole

1026.4 (40.409)

C

'A' post, bottom hinge, rear fixing
hole

'B/C' post, top hinge, top fixing hole

1088.4 (42.850)

D

'A' post, bottom hinge, rear fixing
hole

'B/C' post, bottom hinge, front fixing hole

980.4 (38.598)

E

'B/C' post, top hinge, rear fixing hole 'D' post, door striker, top fixing hole

828.7 (32.625)

F

'B/C' post, bottom hinge, rear fixing
hole

'D' post, door striker, top fixing hole

916.5 (36.082)
