Defender Electric Diagrams. Manual - part 153

C0537

CONNECTOR

DEFENDER 1999 MY

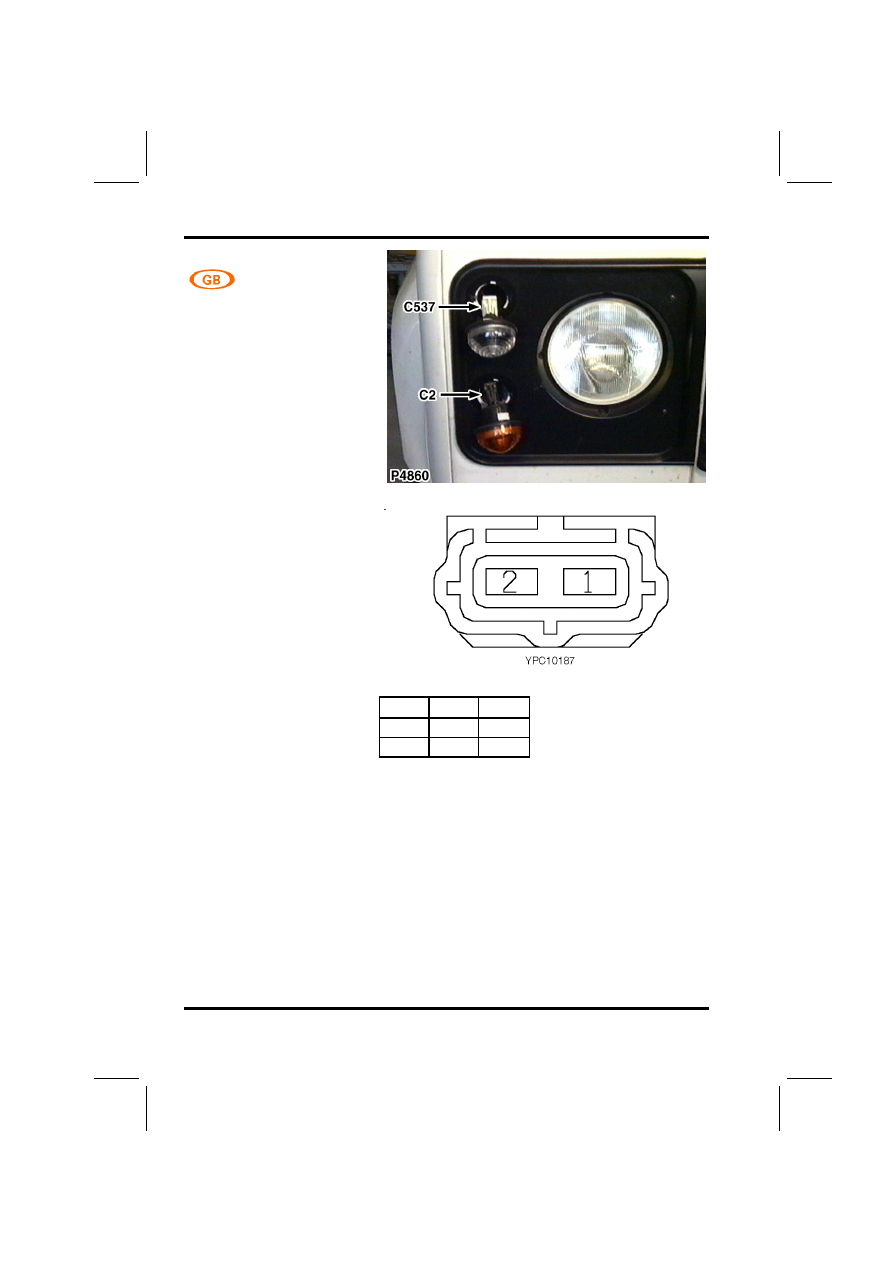

Lamp - Side - Front - RH

Female
WHITE

Behind RH front side lamp

Cav

Col

CCT

1

B

ALL

2

RO

ALL

CONNECTOR

C0538

DEFENDER 1999 MY

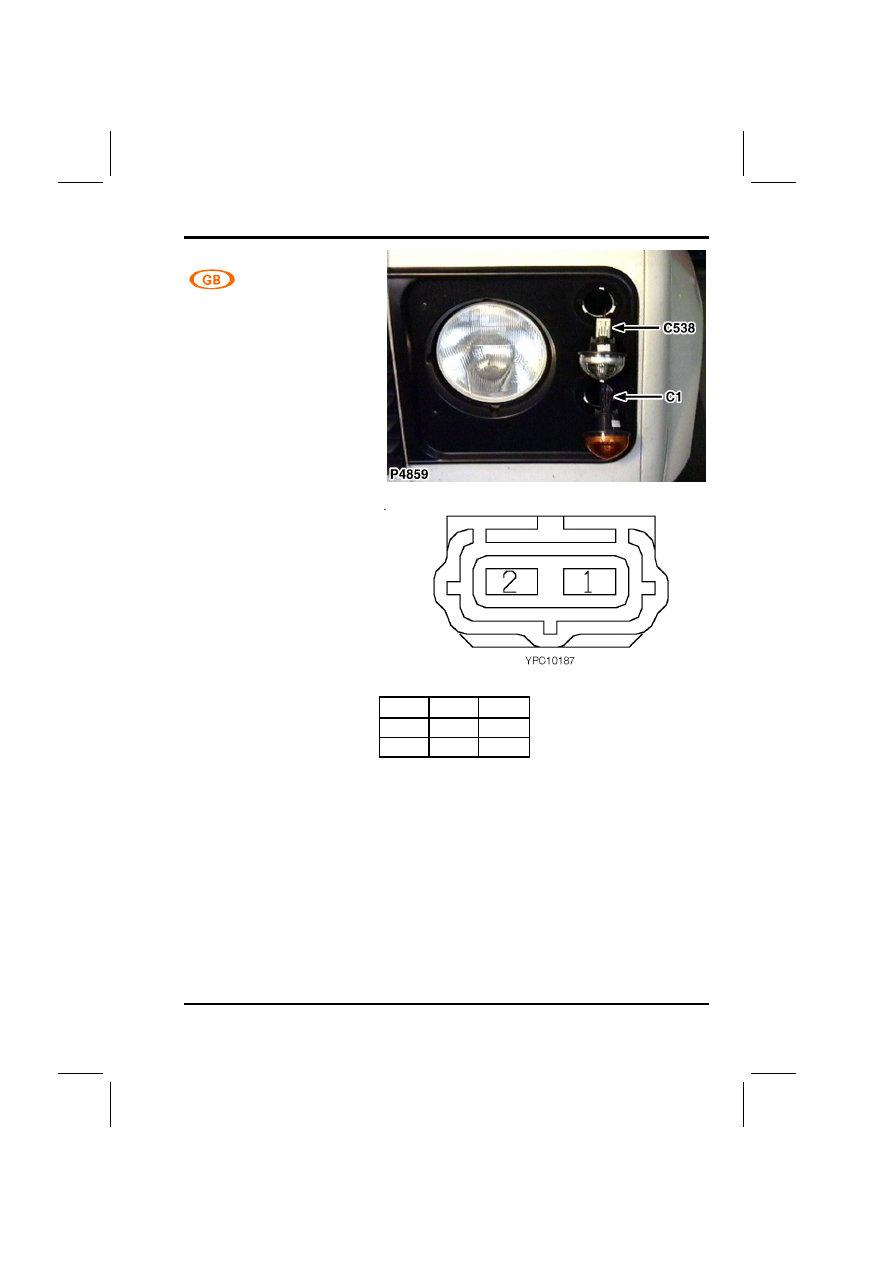

Lamp - Side - Front - LH

Female
WHITE

Behind LH front side lamp

Cav

Col

CCT

1

B

ALL

2

RB

ALL

C0543

CONNECTOR

DEFENDER 1999 MY

ECU - Lamp - Fog guard -
Rear

Female
NATURAL

Behind instrument pack

P5500

C0543

Cav

Col

CCT

1

B

ALL

2

UP

ALL

3

RY

ALL

4

BS

ALL

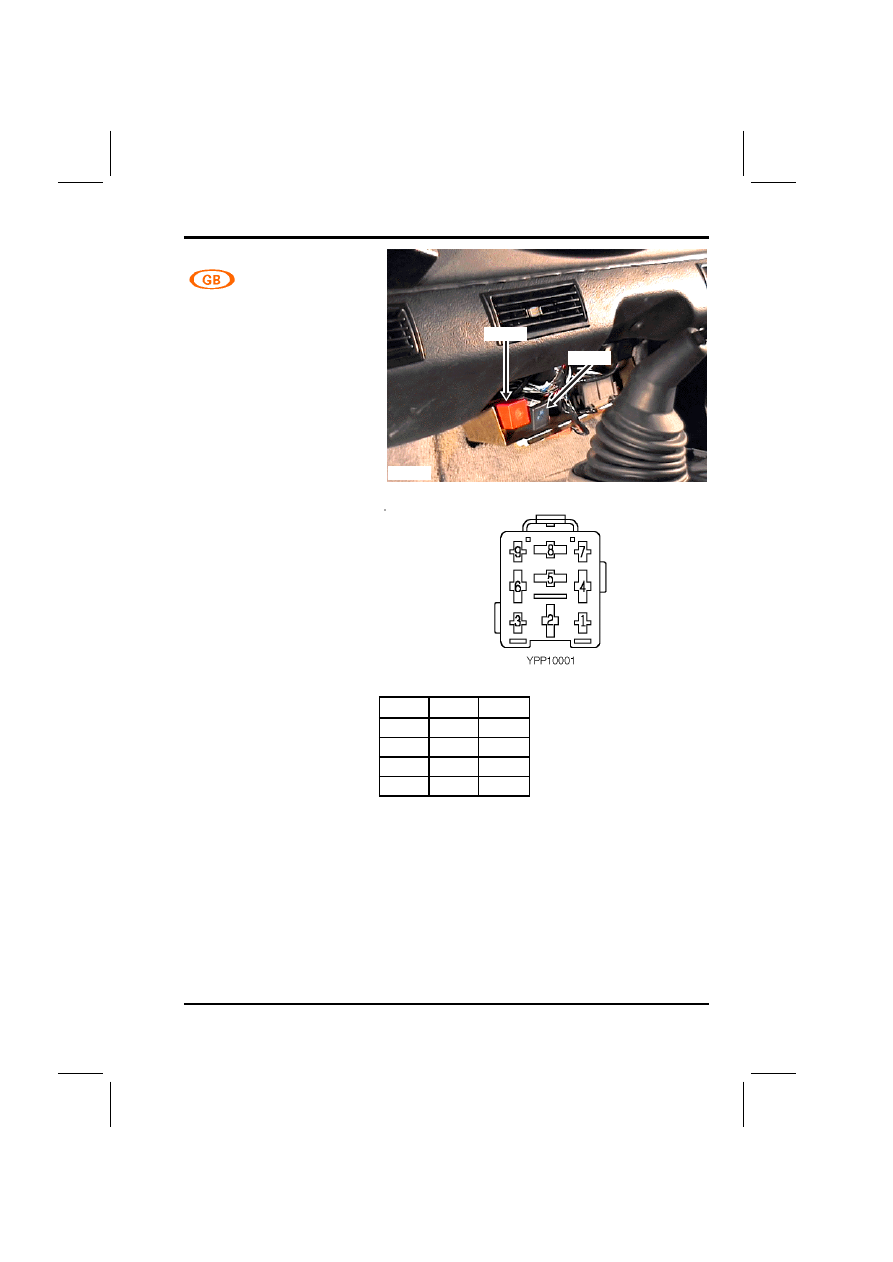

CONNECTOR

C0547

DEFENDER 1999 MY

Relay - Hazard warning

Female
BLACK

Behind centre of fascia

P5644

C0303

C0547

Cav

Col

CCT

2

LGP

ALL

4

B

ALL

6

LG

ALL

8

LGN

ALL
