Defender Electric Diagrams. Manual - part 152

C0523

CONNECTOR

DEFENDER 1999 MY

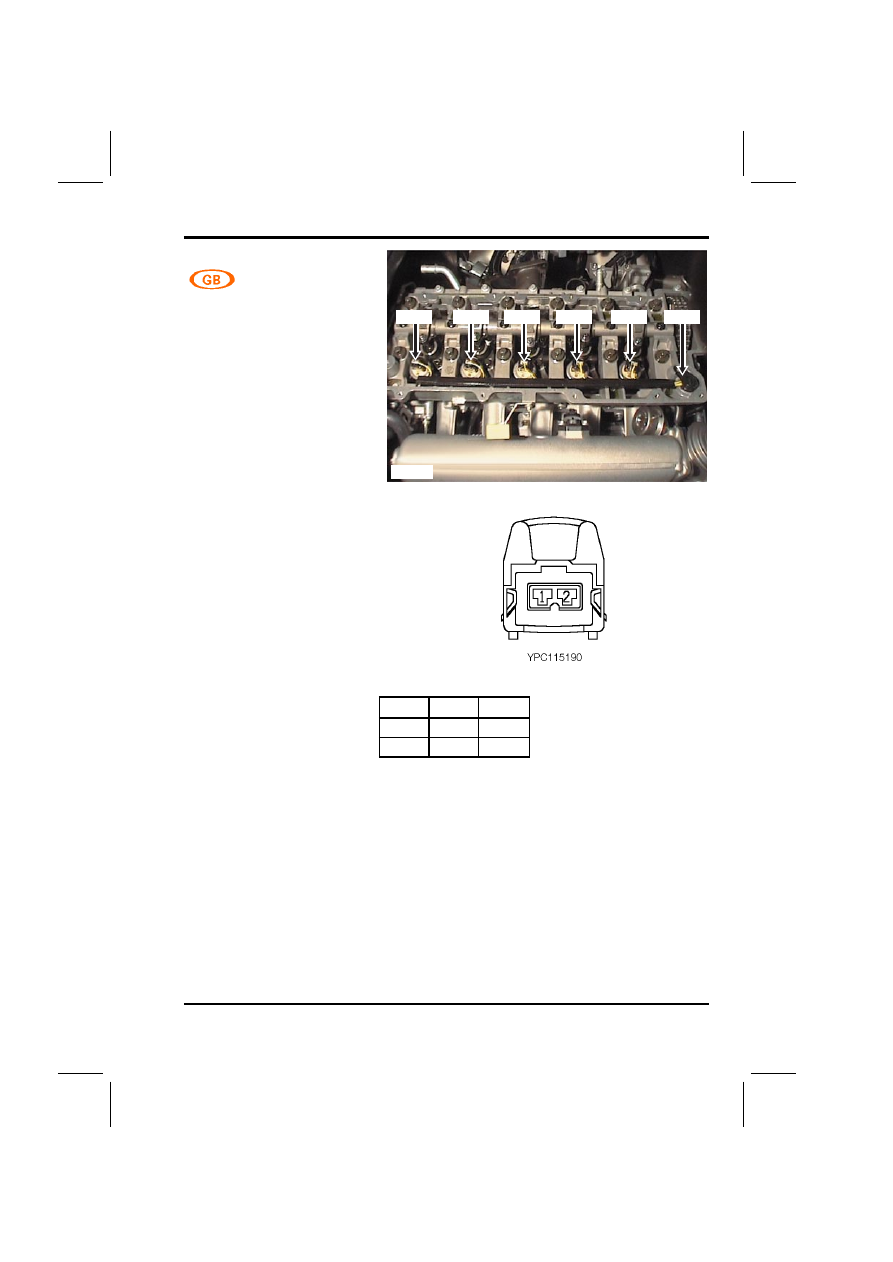

Fuel injector - No. 2 - Td5

Female
BLACK

Top of engine

C526

C525

C524

C523

C522

P5401

C521

Cav

Col

CCT

1

YN

ALL

2

NO

ALL

CONNECTOR

C0524

DEFENDER 1999 MY

Fuel injector - No. 3 - Td5

Female
BLACK

Top of engine

C526

C525

C524

C523

C522

P5401

C521

Cav

Col

CCT

1

YU

ALL

2

NB

ALL

C0525

CONNECTOR

DEFENDER 1999 MY

Fuel injector - No. 4 - Td5

Female
BLACK

Top of engine

C526

C525

C524

C523

C522

P5401

C521

Cav

Col

CCT

1

YR

ALL

2

NB

ALL

CONNECTOR

C0526

DEFENDER 1999 MY

Fuel injector - No. 5 - Td5

Female
BLACK

Top of engine

C526

C525

C524

C523

C522

P5401

C521

Cav

Col

CCT

1

YP

ALL

2

NO

ALL
