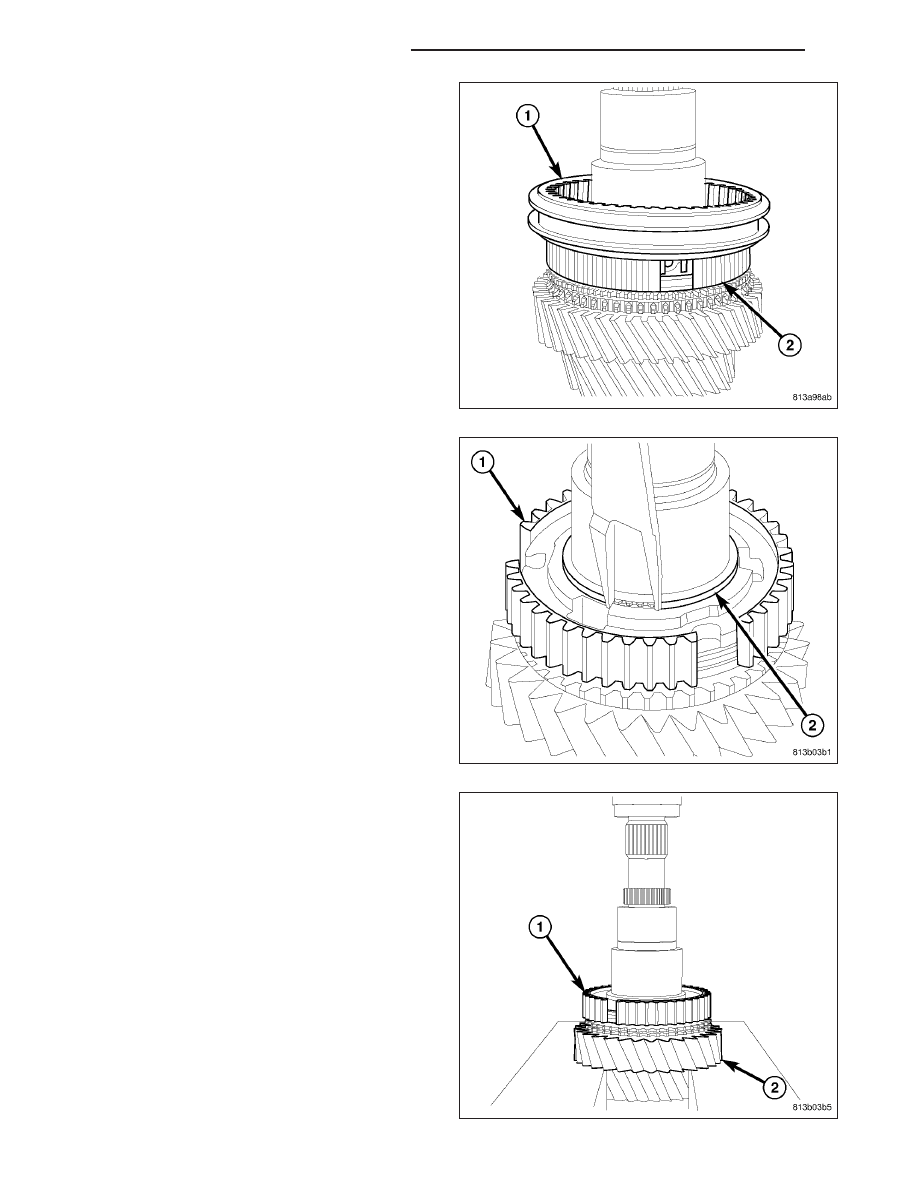

18. Remove 1-2 synchronizer sleeve (1) from syn- chronizer hub (2). 19. Remove 1-2 synchronizer hub (1) snap ring (2). NOTE: All snap rings are select fit from the fac- 20. Remove 1-2 synchronizer hub (1), synchronizer rings and second gear (2) off shaft with a press. 21 - 16 MANUAL TRANSMISSION - NSG370 KJ |
