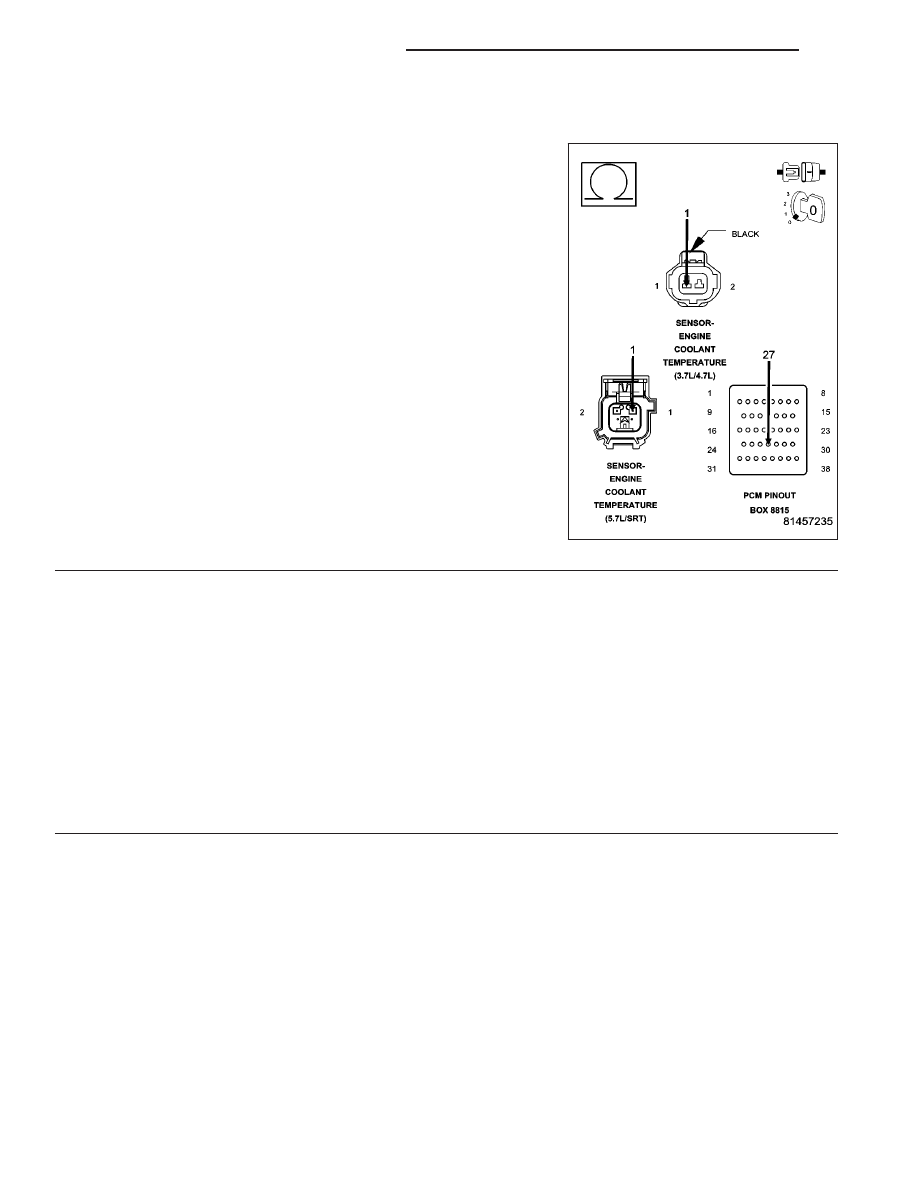

P0118-ENGINE COOLANT TEMPERATURE SENSOR CIRCUIT HIGH (CONTINUED) For the Engine System Schematic circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS). For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes (K2) ECT SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE (K2) ECT SIGNAL CIRCUIT OPEN (K900) SENSOR GROUND CIRCUIT OPEN ECT SENSOR PCM Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - Diagnostic Test 1. ECT SENSOR VOLTAGE ABOVE 4.98 VOLTS Ignition on, engine not running. With a scan tool, read the ECT voltage. Is the voltage above 4.98 volts? Yes >> Go To 2 No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) 2. ECT SENSOR Turn the ignition off. Disconnect the ECT harness connector. Connect a jumper wire between the (K2) ECT Signal circuit and the Ignition on, engine not running. With a scan tool, read ECT voltage. Is the voltage below 1.0 volt with the jumper wire installed? Yes >> Replace the ECT Sensor. Perform the POWERTRAIN VERIFICATION TEST. (Refer No >> Go To 3 NOTE: Remove the jumper wire before continuing. 9 - 104 ENGINE ELECTRICAL DIAGNOSTICS WK |
