P0121-THROTTLE POSITION SENSOR 1 PERFORMANCE (CONTINUED)

For the Engine System Schematic circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Ignition on and No MAP Sensor DTCs set.

Set Condition:
TP Sensor signals do not correlate to the MAP Sensor signal. One Trip Fault. ETC light will illuminate. P2135
should set with this code also.

Possible Causes

(K22) TP SENSOR NO.1 SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

RESISTANCE IN THE (K22) TP SENSOR NO.1 OR (K122) TP SENSOR NO.2 SIGNAL CIRCUIT

(K22) TP SENSOR NO.1 SIGNAL CIRCUIT SHORTED TO GROUND

RESISTANCE IN THE (F855) 5-VOLT SUPPLY CIRCUIT

(F855) 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND

RESISTANCE IN THE (K922) SENSOR RETURN CIRCUIT

(K22) TP SENSOR NO.1 SIGNAL CIRCUIT SHORTED TO (K122) TP SENSOR NO.2 SIGNAL CIRCUIT

THROTTLE POSITION SENSOR/THROTTLE BODY

PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

ACTIVE DTC

NOTE: When this DTC is Active the engine speed, torque, and vehicle speed are limited to a Limp in mode.

NOTE: Diagnose any other TP Sensor DTC(s) before continuing.

NOTE: The throttle plate should be free from binding and carbon build up.

NOTE: Make sure the throttle plate is at the idle position.
Ignition on, engine not running.

NOTE: Inspect the engine for vacuum leaks.
With a scan tool, read DTCs.

Is the DTC active at this time?

Yes

>> Go To 2

No

>> Go To 11

9 - 108

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0121-THROTTLE POSITION SENSOR 1 PERFORMANCE (CONTINUED)

2.

(K22) TP SENSOR NO.1 SIGNAL CIRCUIT OR (K122) TP SENSOR NO.2 SIGNAL CIRCUIT SHORTED TO
BATTERY VOLTAGE

Turn the ignition off.

Disconnect the C2 PCM harness connector.

Disconnect the Throttle Body harness connector.

Ignition on, engine not running.

Measure the voltage on the (K22) TP No.1 Signal and the (K122) TP
No.2 Signal circuits in the Throttle Body harness connector.

Is the voltage above 0 volts?

Yes

>> Repair the short to battery voltage in the (K22) TP Sensor

No.1 or (K122) TP Sensor No.2 Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 3

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 109

P0121-THROTTLE POSITION SENSOR 1 PERFORMANCE (CONTINUED)

3.

THROTTLE POSITION SENSOR

Turn the ignition off.

Connect the C2 PCM harness connector.

Ignition on, engine not running.

With a scan tool, monitor the TP Sensor No.1 and No.2 voltage.

Connect a jumper wire between the (K922) Sensor Return circuit and
the (K22) TP Sensor No.1 Signal circuit.

NOTE: TP Sensor No.1 voltage should change from approxi-
mately 4.5 volts to less than 0.5 of a volt.
For TP Sensor No.2, connect a jumper wire between (F855) 5-volt
supply circuit and the (K122) TP Sensor No.2 signal circuit.

NOTE: TP Sensor No.2 voltage should change from approxi-
mately 0 volts to 5.0 volts?

Is the voltage reading within the listed specification when the
jumper wire is installed?

Yes

>> Replace the Throttle Body Assembly. Disconnect the Bat-

tery when replacing the Throttle Body Assembly. After
installation is complete, use a scan tool and select the
ETC RELEARN function.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 4

NOTE: Remove the jumper wire before continuing.

9 - 110

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0121-THROTTLE POSITION SENSOR 1 PERFORMANCE (CONTINUED)

4.

EXCESSIVE RESISTANCE IN THE (K22) TP SENSOR NO.1 SIGNAL CIRCUIT AND (K122) TP SENSOR
NO.2 SIGNAL CIRCUIT

Turn the ignition off.

Disconnect the C2 PCM harness connector.

CAUTION: Do not probe the PCM harness connectors. Probing
the PCM harness connectors will damage the PCM terminals
resulting in poor terminal to pin connection. Install Miller Special
Tool #8815 to perform diagnosis.

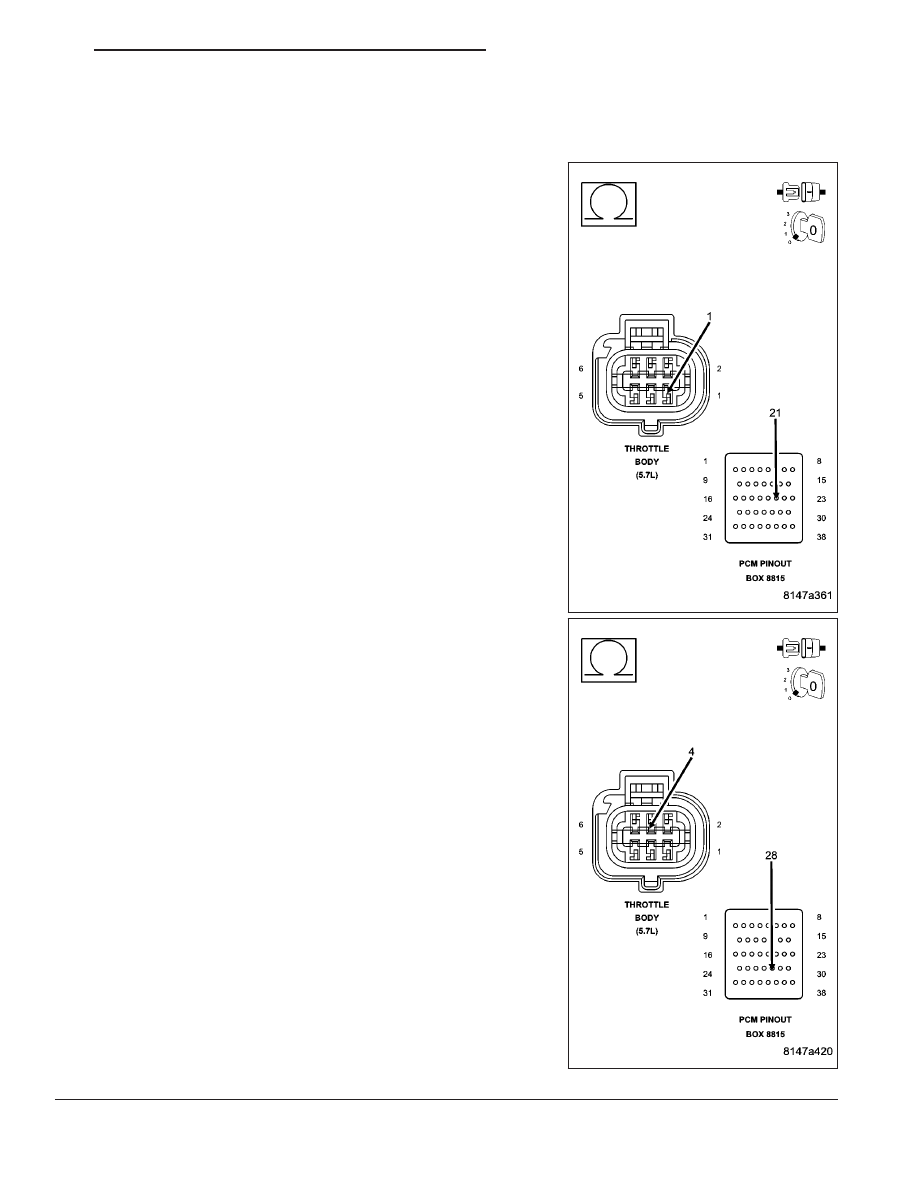

Measure the resistance of the (K22) TP Sensor No.1 Signal circuit
from the Throttle Body harness connector to the appropriate terminal
of special tool #8815.

Measure the resistance of the (K122) TP Sensor No.2 Signal circuit
from the Throttle Body harness connector to the appropriate terminal
of special tool #8815.

Is the resistance below 5.0 ohms for each circuit?

Yes

>> Go To 5

No

>> Repair the excessive resistance in the (K22) TP Sensor

No.1 Signal circuit or the (K122) TP Sensor No.2 Signal
circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)
