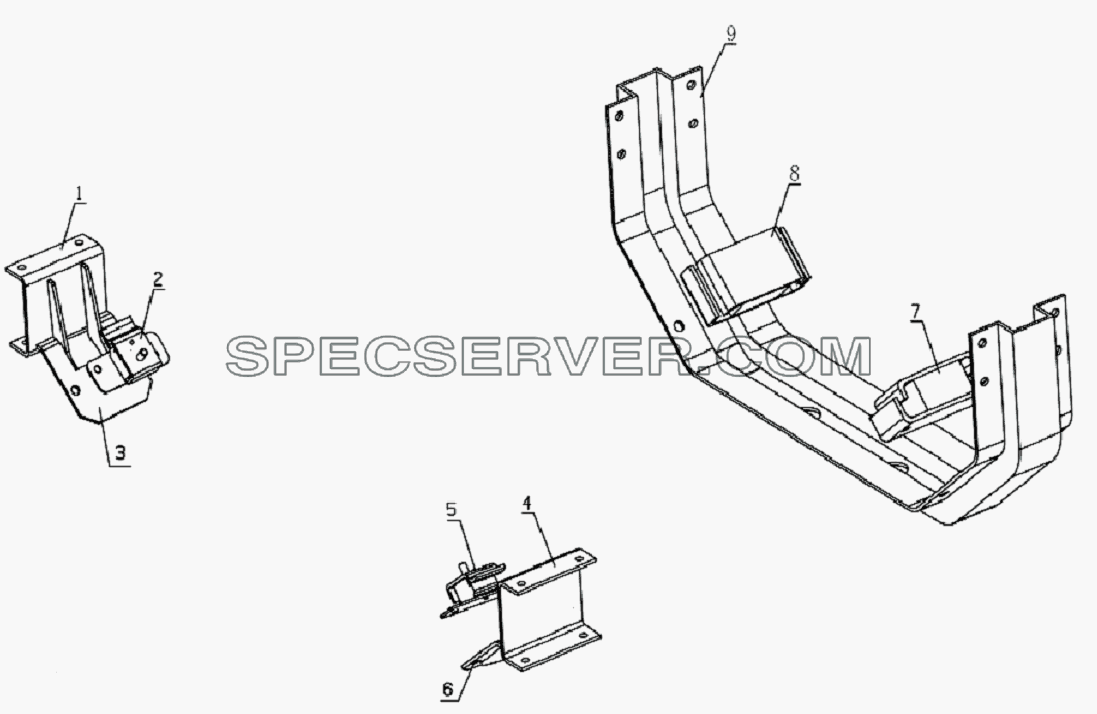

№	Номер детали	Наименование запчасти
1	1001051D120	left connecting link
2	1001020J1	front supporting plate right cushion block unit
3	1001053D120	front-left bracket
4	1001052D120	right connecting link
5	1001020J1	front supporting plate right cushion block unit
6	1001054D120	front-right bracket
7	1001010Z8	engine rear support right cushion block unit
8	1001020Z8	engine rear support left cushion block unit
9	1001051Z8	engine rear bracket

Запчасти: QC490Q(DI)-11000 Cylinder head cover assembly для HFC 1020K-D134

QC490Q(DI)-11000 Cylinder head cover assembly для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	N85-01002A	Cover of oil-added hole
2	QC495Q(DI)-11002	Cylinder head cover
3	QC495Q(DI)-11001	Sealed ring cylinder head cover

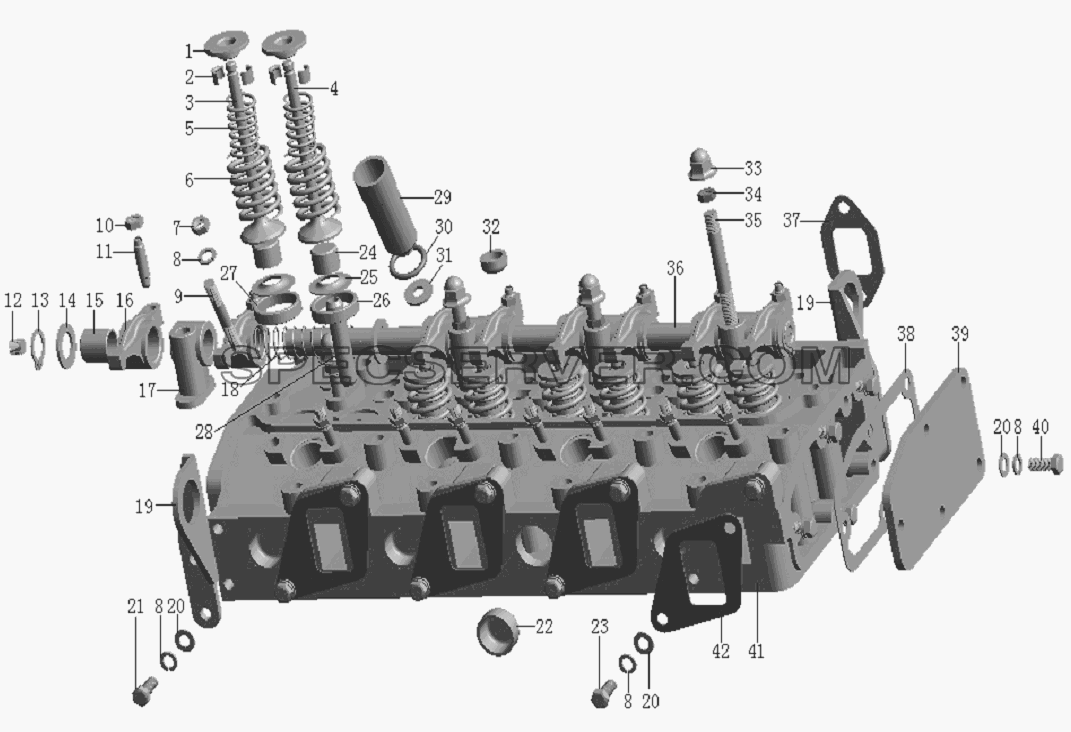

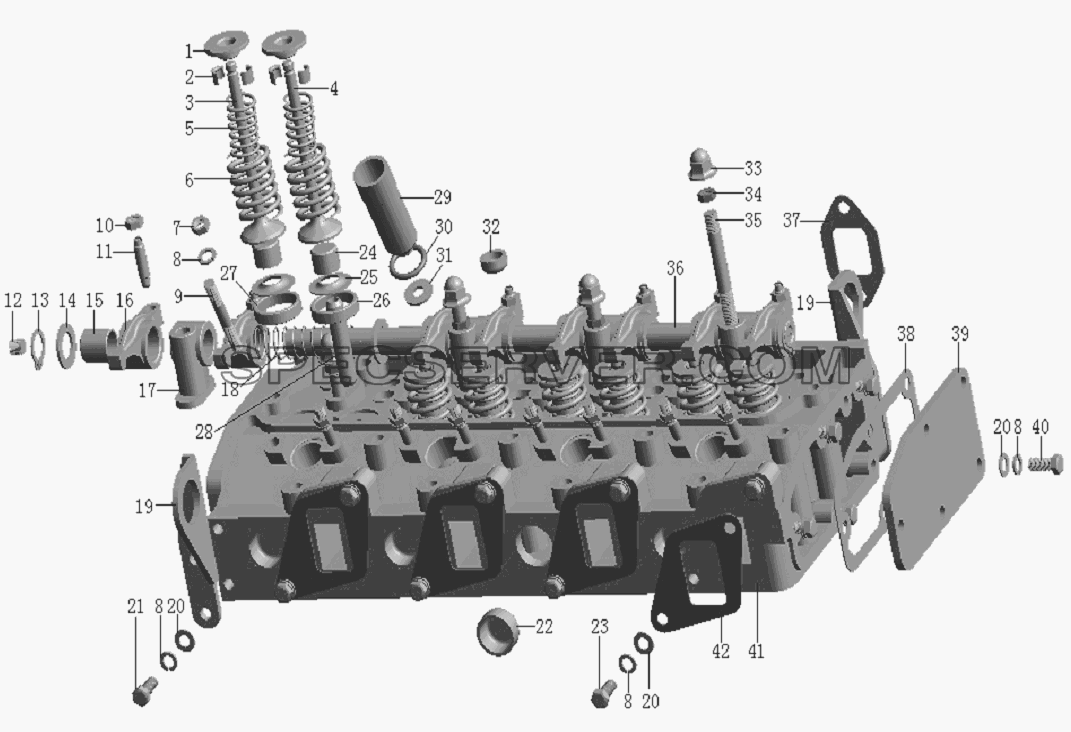

Запчасти: QC490Q(DI)-03000 Cylinder head assembly для HFC 1020K-D134

QC490Q(DI)-03000 Cylinder head assembly для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	QC490Q(DI)-03007	Upper valve spring seat
2	QC490Q(DI)-03006	Valve collect
3	QC490Q(DI)-03015B	Exhaust valve
4	QC490Q(DI)-03014	Intake valve
5	QC490Q(DI)-03005	Inner valve spring
6	QC490Q(DI)-03004	Outer valve spring
7	GB/T6170-1988	Nut
8	GB/T93-1987	Washer
9	N85Q (DI) -02016	Fuel injection blot
10	N85-02203	Adjusting nut for valve clearance
11	QC490Q(DI)-03203	Adjusting screw for valve clearance
12	GB/T73-1985	Bolt M10x1x10
13	GB/T894.1-1986	Snap ring 20
14	QC490Q(DI)-03201	Gasket
15	QC490Q(DI)-03212	Valve rocker arm bushing
16	QC490Q(DI)-03211	Valve rocker arm
17	QC490Q(DI)-03202	Preceding rocker arm seat
18	QC490Q(DI)-03205	Rocker arm spring
19	QC490Q(DI)-03009-1	Stationary ring
19	QC490Q(DI)-03009-1	Stationary ring
20	GB/T93-1987	Washer
21	GB/T5783-2000	Bolt
22	N85-03102	Plug Ф30
23	GB/T5783-2000	Bolt
24	N485Q-02014	Oil seal of valve
25	QC490Q(DI)-03011	Down valve spring seat
26	QC490Q(DI)-03108	Exhaust valve seat
27	QC490Q(DI)-03107	Intake valve seat
28	QC490Q(DI)-03102	Valve guide
29	QC490Q(DI)-03103	Injector tube
30	GB/T3452.1-1992	Ring
31	N485Q-17009	Gasket
32	N485Q-02102	Plug Ф20
33	QC490Q(DI)-03017	Nut
34	QC490Q(DI)-03016	Nut
35	QC490Q(DI)-03001	Bolt of rocker arm seat
36	QC490Q(DI)-03206	Rocker arm shaft
37	QC490Q(DI)-03003	Gasket
38	QC490Q(DI)-03012-1	Rear cover
39	QC490Q(DI)-03013	Washer of rear cover
40	GB/T5783-2000	Bolt
41	QC490Q(DI)-03101	Cylinder head
42	QC490Q(DI)-03002	Gasket

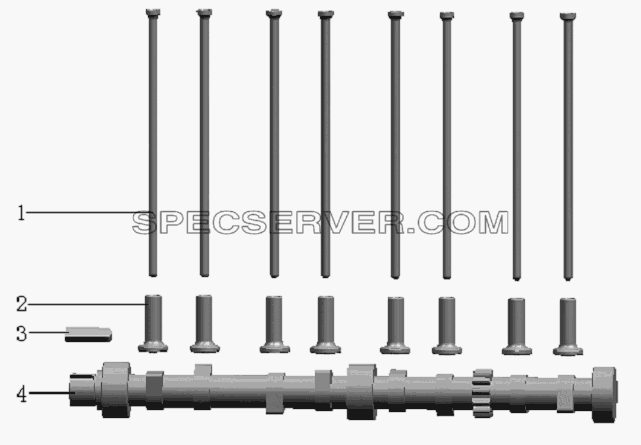

Запчасти: QC490Q(DI)-06000 Camshaft assembly для HFC 1020K-D134

Таблица запасных частей

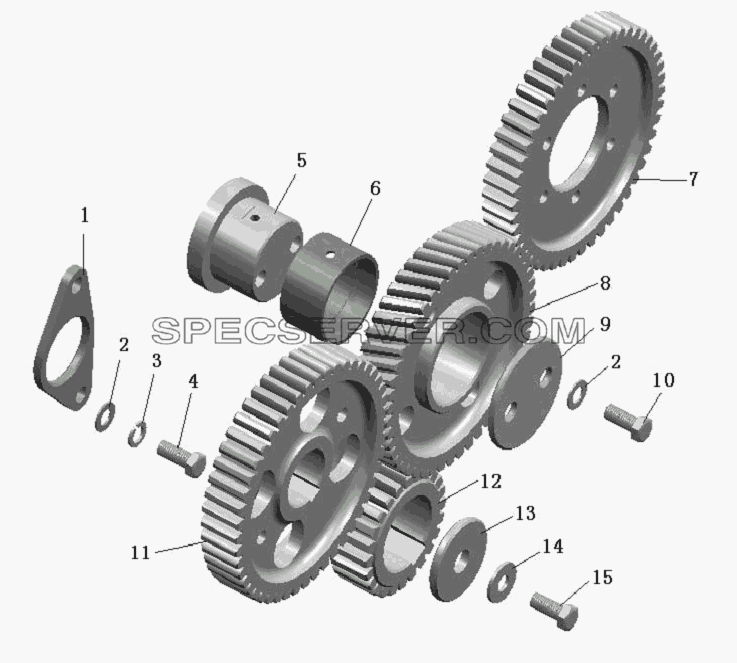

Запчасти: QC490Q(DI)-02000 Timing gear assembly для HFC 1020K-D134

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	QC490Q(DI)-02008	Thrust plate of camshaft
2	GB/T97.1-2002	Washer
3	GB/T93-1987	Washer
4	GB/T5783-2000	Bolt
5	QC490Q(DI)-02004	Timing idle gear of shaft
6	QC490Q(DI)-02005	Bushing of timing idle gear
7	QC490Q(DI)-02003	Timing gear of fuel pump
8	QC490Q(DI)-02006	Timing idle gear
9	QC490Q(DI)-02012	Thrust plate of timing idle
10	GB/T5782-2000	Bolt
11	QC490Q(DI)-02009	Timing gear of camshaft
12	QC490Q(DI)-02007	Timing gear of crankshaft
13	N85-04009	Thrust plate of timing gear of camshaft
14	GB/T93-1987	Washer
15	GB/T5782-2000	Bolt

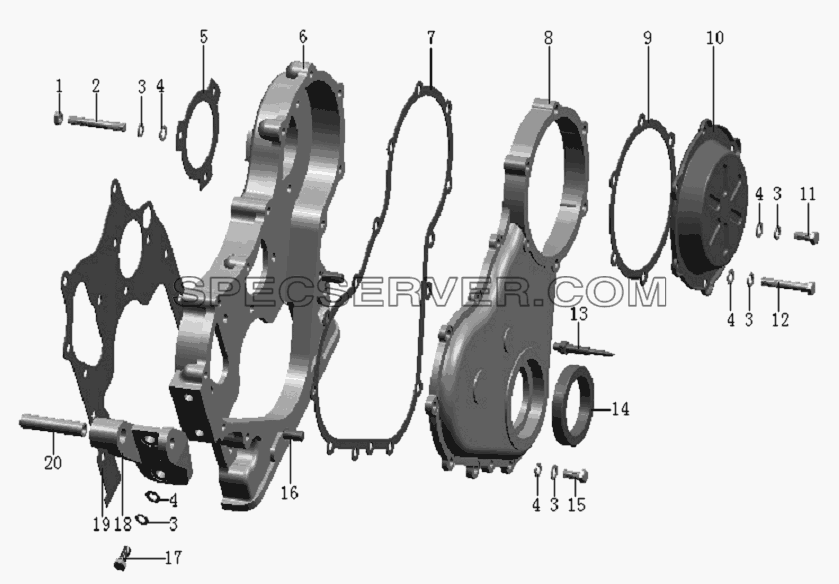

QC490Q(DI)-12000 Timing gear case assembly для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	GB/T6170-1988	Nut
2	GB/T898-1998	Stud
3	GB/T93-1987	Washer
4	GB/T97.1-2002	Washer
5	N85-18004	Jointing part gasket of fuel pump
6	QC490Q(DI)-12003-2	Room of gear
7	QC490Q(DI)-12002	Gasket of gear room cover
8	QC490Q(DI)-12001	Gear room cover
9	QC490Q(DI)-12005	Gasket of advanced device cove
10	QC490Q(DI)-12006	Advanced device cover
11	GB/T5782-2000	Bolt
12	GB/T5782-2000	Bolt
13	QC490Q(DI)-12009	Timing pointer
14	GB/T9877.1-1988	Oil seal
15	GB/T5783-2000	Bolt
16	GB/T119.2-2000	Pin
17	GB/T5783-2000	Bolt
18	QC490Q(DI)-12007	Generator bracket
19	QC490Q(DI)-12004	Room of gear cover
20	QC490Q(DI)-12008	Vacuum pump generator tube
