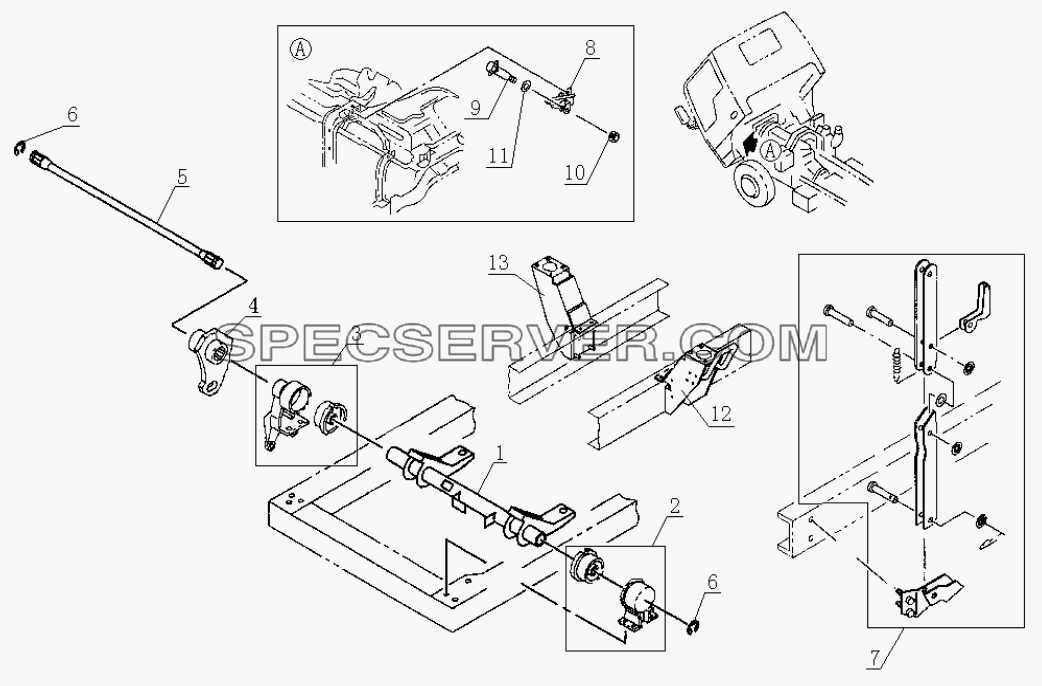

Запчасти: 5002D120 Cabin reversal mechanism для HFC 1020K-D134

5002D120 Cabin reversal mechanism для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	5002010D120	Cabin front support shaft pipe assy
2	5002020DF4JC	Cabin front support left bracket assy
3	5002030D0	Cabin front support right bracket assy
4	5002040D0	Torsion bar arm assy
5	5002041D0	Torsion bar
6	5002044E0	Gripping ring
7	5002050DF4JC	Bracket assy, cabin rear support
8	5002090DF4JC	Cabin support assy
9	5002094E0	Top support rod and cabin axle pin
10	Q340B08	Nut
11	Q41808	Washer
12	5002270DF4JC	Caabin rear-left support assy
13	2801280DF4JC	Caabin middle support assy

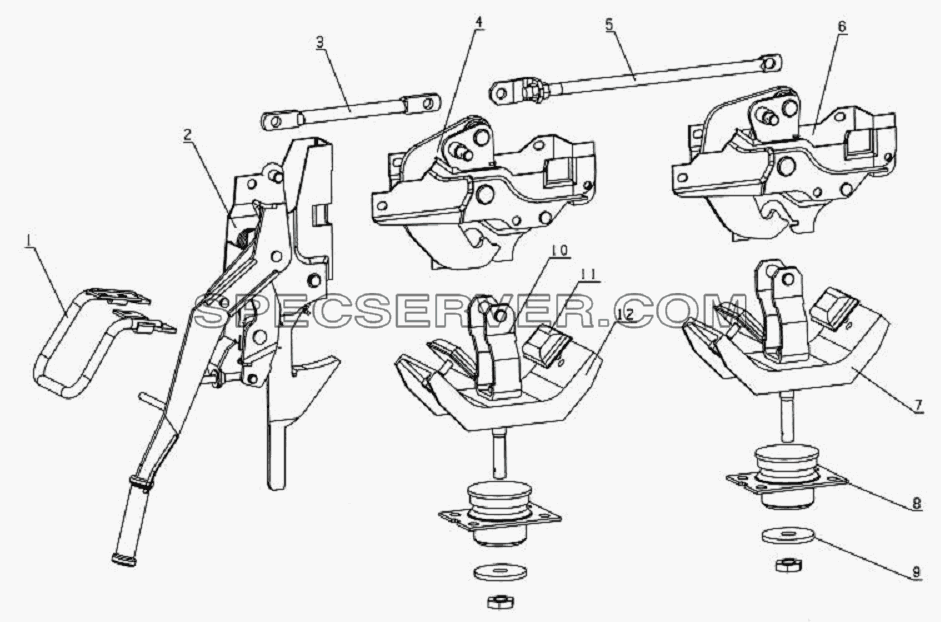

Запчасти: 5004D2 Cabin lock mechanism для HFC 1020K-D134

5004D2 Cabin lock mechanism для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	5004400E0	handle assembly
2	5004300E0	tilting lock mechanism
3	5004071E0	short pull rod
4	5004000E0	lock mechanism bracket assembly
5	5004050D2	long pull rod
6	5004100E0	lock mechanism bracket assembly
7	5004210E0	reaar support bracket assembly ,cabin
8	5004250E0	rubber gasket assembly,cabin rear bracket
9	5004271E0	washer
10	5004240E0	bracket assembly
11	5004220E0	rubber pedding block assembly
12	5004211E0	reaar support bracket, cabin

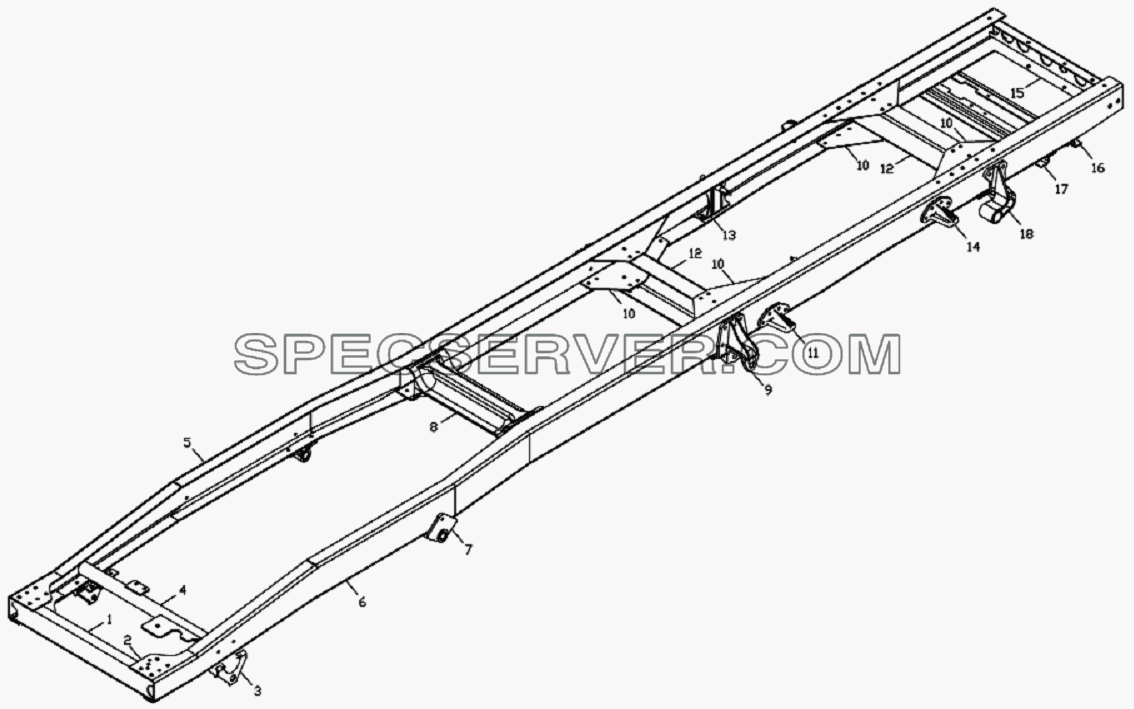

Запчасти: 2800D134 Frame unit для HFC 1020K-D134

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	2801110DF4JC	first crossbeam
2	2801113D102	cab front support plate
3	2901160D4	front spring support assembly
4	2801120D120	second crossbeam assembly
5	2801014D134	right carling
6	2801013D134	left carling
7	2901170D4-sg0	front spring suspend support assembly
8	2801130D4-sg0	third crossbeam assembly
9	2911371D4	rear spring fix rack
10	2801152D4-sg0	fifth crossbeam strong plate
11	2911911B1CHA0	deputy spring front rack
12	2801151D4-sg0	fifth crossbeam
13	2915110D4-sg0	rear absorber left upper bracket unit
13	2915120D4-sg0	rear absorber right upper bracket unit
14	2911921B1CHA0	deputy spring rear rack
15	2801171D4-sg0	seventh crossbeam
16	2801191D4-sg0	front spare tire crossbeam
17	2801192D4-sg0	rear spare tire crossbeam
18	2911381D4	rear spring left suspend rack
18	2911382D4	rear spring right suspend rack

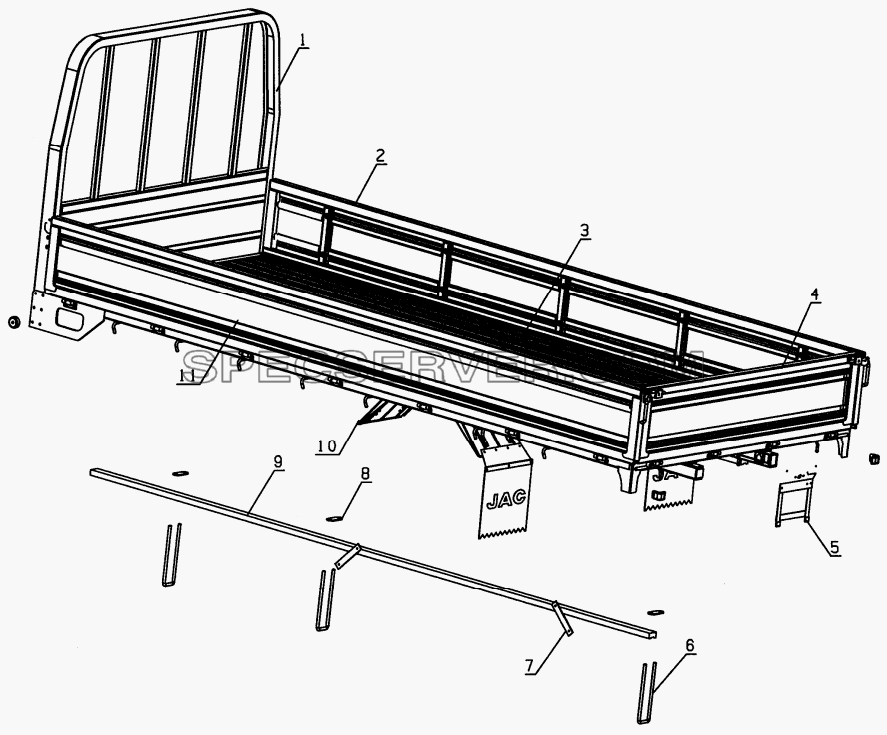

Запчасти: 8500D4-sg0 Cargo box equipment для HFC 1020K-D134

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	8504010D4-sg0	cargo front plate assembly
2	8502010D4-sg0	cargo left boarding assembly
3	8501010D4-sg0	cargo floor assembly
4	8503010D4	cargo rear boarding assembly
5	8500020Q13AA	cargo number plate lamp bracket assembly
6	8500013D4-sg0	cargo rear U bolt
7	8500011D4JC	cargo pull lever
8	8500012D4-sg0	U bolt pressure plate
9	8500015D4	cargo templet
10	8511010D4	left fender assembly
10	8511020D4	right fender assembly
11	8502020D4-sg0	cargo right boarding assembly

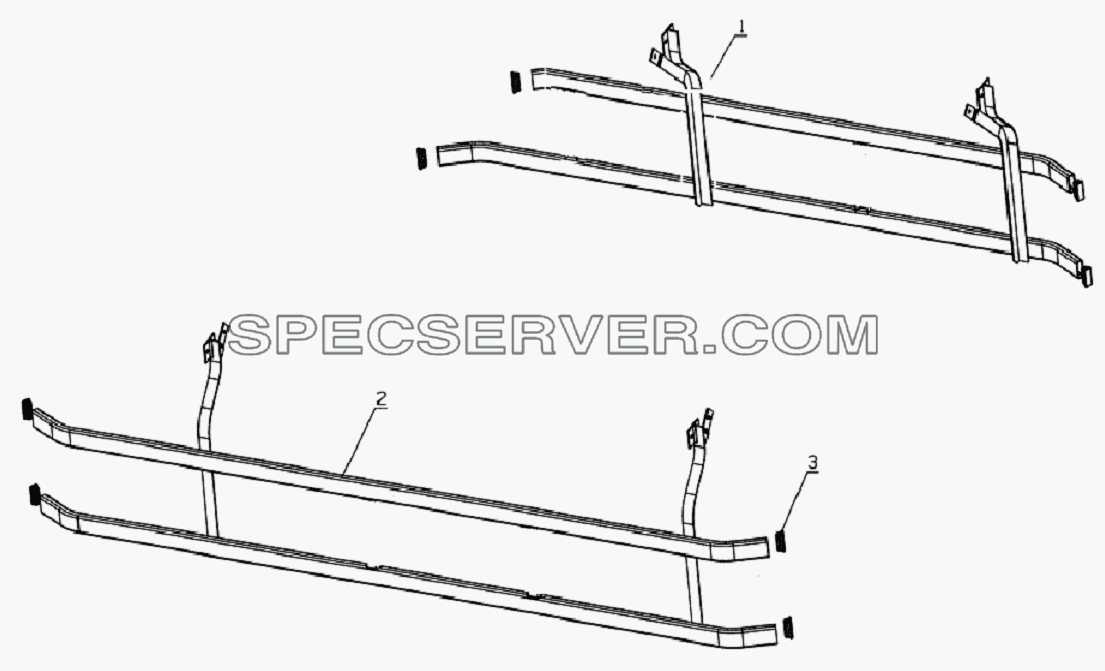

Запчасти: 8701D134 Side guard bar equipment для HFC 1020K-D134

Таблица запасных частей
