MAINTENANCE PLANNING
Recovery

To ensure optimised working conditions, in the following pages we are providing instructions for the overhaul control interventions,
checks and setting operations that must be performed on the engine at due planned dates.

The frequency of the maintenance operations is just an indication since the use of the engine is the main characteristic to determine
and evaluate replacements and checks.

It is not only allowed but recommended that the staff in charge of the maintenance should also carry out the necessary maintenance
and controlling operations even if not being included in the ones listed here below but that may be suggested by common sense
and by the specific conditions in which the engine is run.

Inspection and/or maintenance interventions

The maintenance operations are valid only if the setter fully complies with all the installation prescriptions provided by
Iveco Motors.

NOTE

SECTION 3 - INDUSTRIAL APPLICATION

Intervention type

Frequency (hours)

Engine

Engine visual inspection

Daily

Check presence of water in fuel prefilter

Daily

Engine oil change

Engine oil filter change

Fuel prefilter change (when it is required by the application)

Fuel filter change

Check Blow-by filter condition by clogging indicator

Check condition of water pump/alternator control belt

Check-up of EDC system by diagnostics tool

Check valve lash and adjust, if required

Dry air filter change and container cleaning

It is a good habit to execute, before engine start, a series of simple checks that might represent a valid warranty to avoid
inconveniences, even serious, during engine running. Such checks are usually up to the operators and to the vehicle’s drivers.

- Level controls and checks of any eventual leakage from the fuel, cooling and lubricating circuits.

- Notify the maintenance if any inconvenience is detected of if any filling is necessary.

After engine start and while engine is running, proceed with the following checks and controls:

- check presence of any eventual leakage from the fuel, cooling and lubricating circuits.

- Verify absence of noise or unusual rattle during engine working.

- Verify, using the vehicle devices, the prescribed pressure temperature and other parameters.

- Visual check of fumes (colour of exhaust emissions)

- Checking the coolant level.

Checks not included in maintenance planning-daily checks

MAINTENANCE PROCEDURES
Checks and controls

Engine oil level check.

The check must be executed when the engine is disconnected
and possibly cool.
The check can be made using the specially provided flexible
rod (1).

Draw off the rod from its slot and check that the level is within
the etched tags of minimum and maximum level.

Whether it should be difficult to make the evaluation, proceed
cleaning the rod using a clean cloth with no rag grinding and
put it back in its slot. Draw it off again and check the level.

In case the level results being close to the tag showing
minimum level, provide filling lubrication of the engine’s
components.

To provide filling, operate through the upper top (1) or
through the lateral top (2). During filling operation, the tops
must be removed as well as the rod in order to make the oil
flow easier”.

Refill through upper tappet cover plug. During refill, remove
dipstick for easier oil drain.

The engine oil is highly polluting and harmful.
In case of contact with the skin, rinse well with water
and detergent.

Adequately protect the skin and the eyes, operate
in full compliance with safety regulations.

Disposal must be carried out properly, and in full
compliance with the law and regulations in force.

Check of fuel system
The check must be executed both when the engine
disconnected and when it is running.
The check is made by observing the fuel pipes from the tank
to the fuel pump and to the injectors.

Cooling system check
The check must be executed both when the engine
disconnected and when it is running.
Check the pipes from the engine to the radiator and vice versa;
note any seepage and the state of the pipes especially near the
coupling clamps.
Verify that the radiator is clean, the correct working of the fan
flywheels, the presence of any leakage from the connectors,
from the manifold and from the radiating unit.

Due to the high temperatures achieved by the
system, do not operate immediately after the engine’s
disconnection, but wait for the time deemed
necessary for the cooling.
Protect the eyes and the skin from any eventual high
pressure jet of cooling liquid.

The density of the cooling liquid must be checked any how
every year before winter season and be replaced in any case
every two year.

In case of new filling, proceed bleeding system,
through the bleeds on the engine.

If bleeding of the system is not carried out, serious
inconvenience might be caused to the engine due
to the presence of air pockets in the engine’s head.

NOTE

Lubricating system check
The check must be executed both when the engine
disconnected and when it is running.
Verify the presence of any oil leakage or blow-by from the
head, from the engine pan of from the heat exchanger.

The engine oil is highly polluting and harmful.
In case of contact with the skin, rinse well with water
and detergent.
Adequately protect the skin and the eyes, operate in
full compliance with safety regulations.
Disposal must be carried out properly, and in full
compliance with the law and regulations in force.

SECTION 3 - INDUSTRIAL APPLICATION

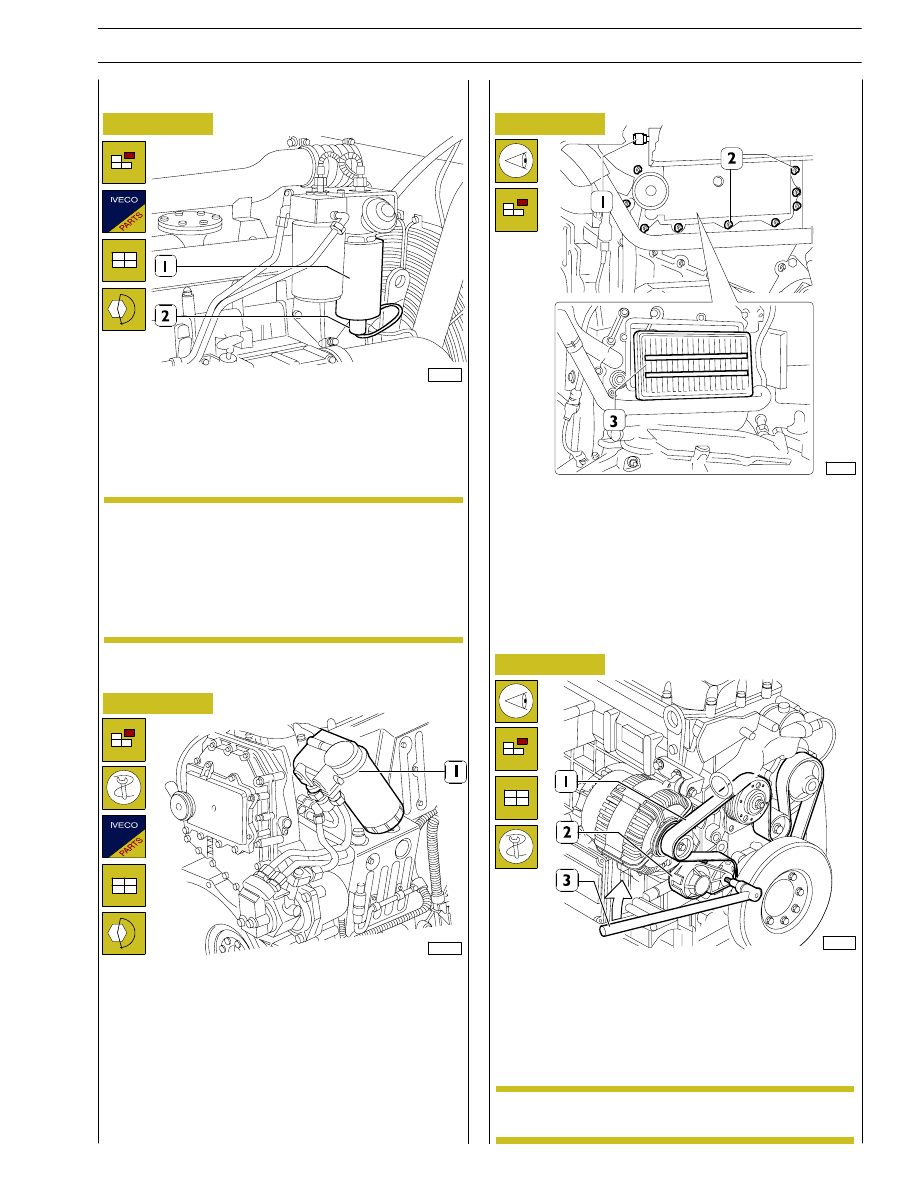

Figure 107

108395

Replace fuel sedimentation tank prefilter (when it is
required by the application)

Disconnect electric connector. Unlock prefilter (1) and
change it. Before refitting a new cartridge, wet seal with fuel
oil or engine oil. Lock cartridge by hand till in contact with
support, then lock it by

¾ of a rev. at predefined tightening

torque.

At change, filter cartridge must not be prefilled to
prevent

circulating

dirt

that

could

damage

injector/pump system components. Bleed air from
fuel filter as described in previous pages.

Figure 108

112859

Fuel filter change

Use tool 99360314 to remove fuel filter (1).
Before fitting the new cartridge, wet seal with fuel oil or engine
oil. Lock the new one by hand and carefully check that rubber
seal and contact surface are clean and in perfect conditions.
Lock cartridge by hand till contact with support and then lock
it for

¾ of a rev. at prescribed tightening torque. Bleed air from

supply system as described in paragraph below:

Check Blow-by filter conditions by means of a clogging
indicator

Figure 109

72563

- Check filter (3) conditions by means of a clogging

indicator (1). In case the red area appears, change it.

- For screw (2) change, remove carter, pull out filter (3) and

replace it with a new one. Filter has a one-way operation,
therefore it must be installed with the two reinforcement
bars visible, as shown in the picture.

Check of water pump/alternator control belt condition

Figure 110

107903

Visually check that belt (1) is not worn out or broken; change
it as described below, if required.

Water pump/alternator control belt change
In order to remove and refit belt (1), operate using a specific
tool (3) on belt tensioner (2) in direction shown by arrow.

Belt tensioner is

automatic and requires no

adjustment.

NOTE
