METER AND GAUGE

8E–3

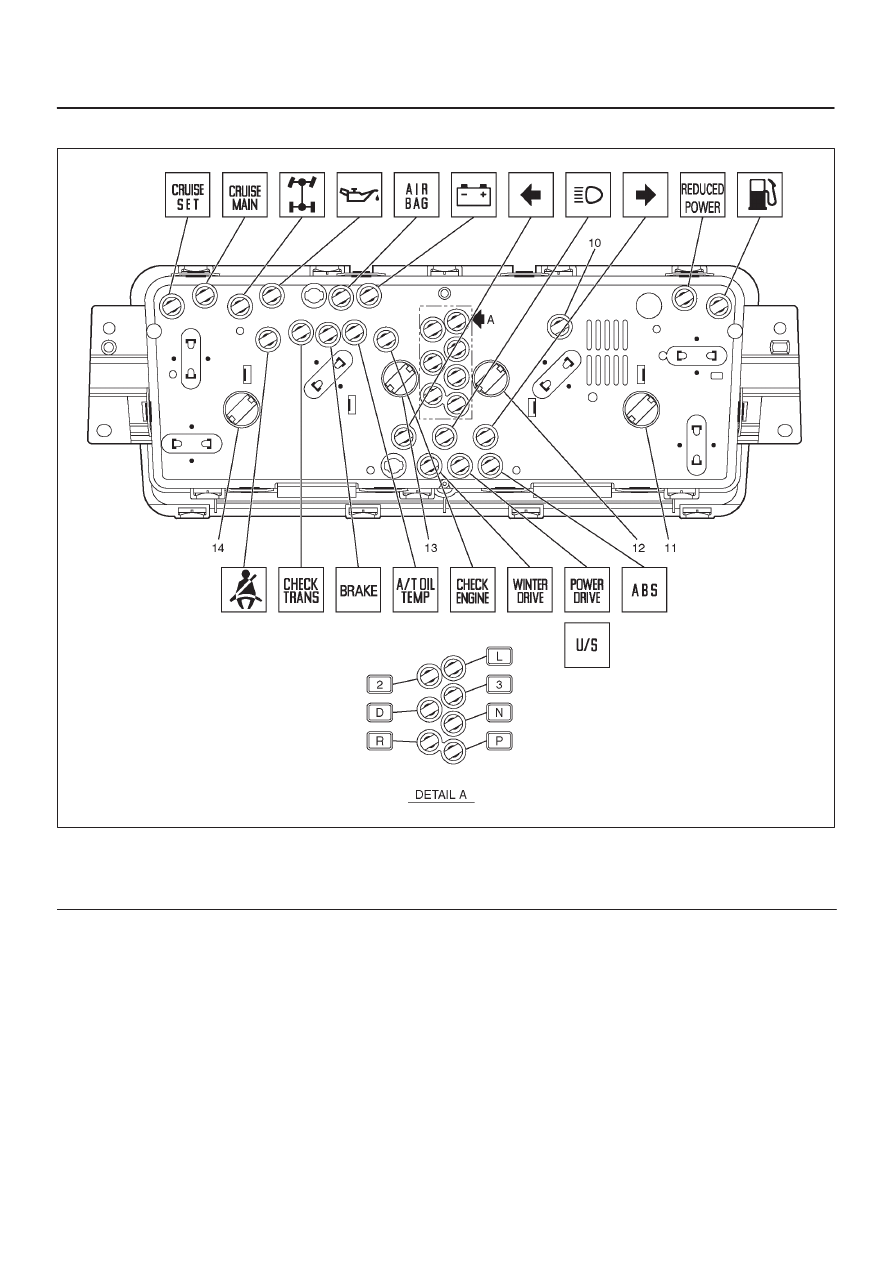

Meter Assembly W/O TOD (Rear View)

821R200038

Legend

(10) LCD Light

(11) Illumination Light

(12) Illumination Light
(13) Illumination Light
(14) Illumination Light

8E–4

METER AND GAUGE

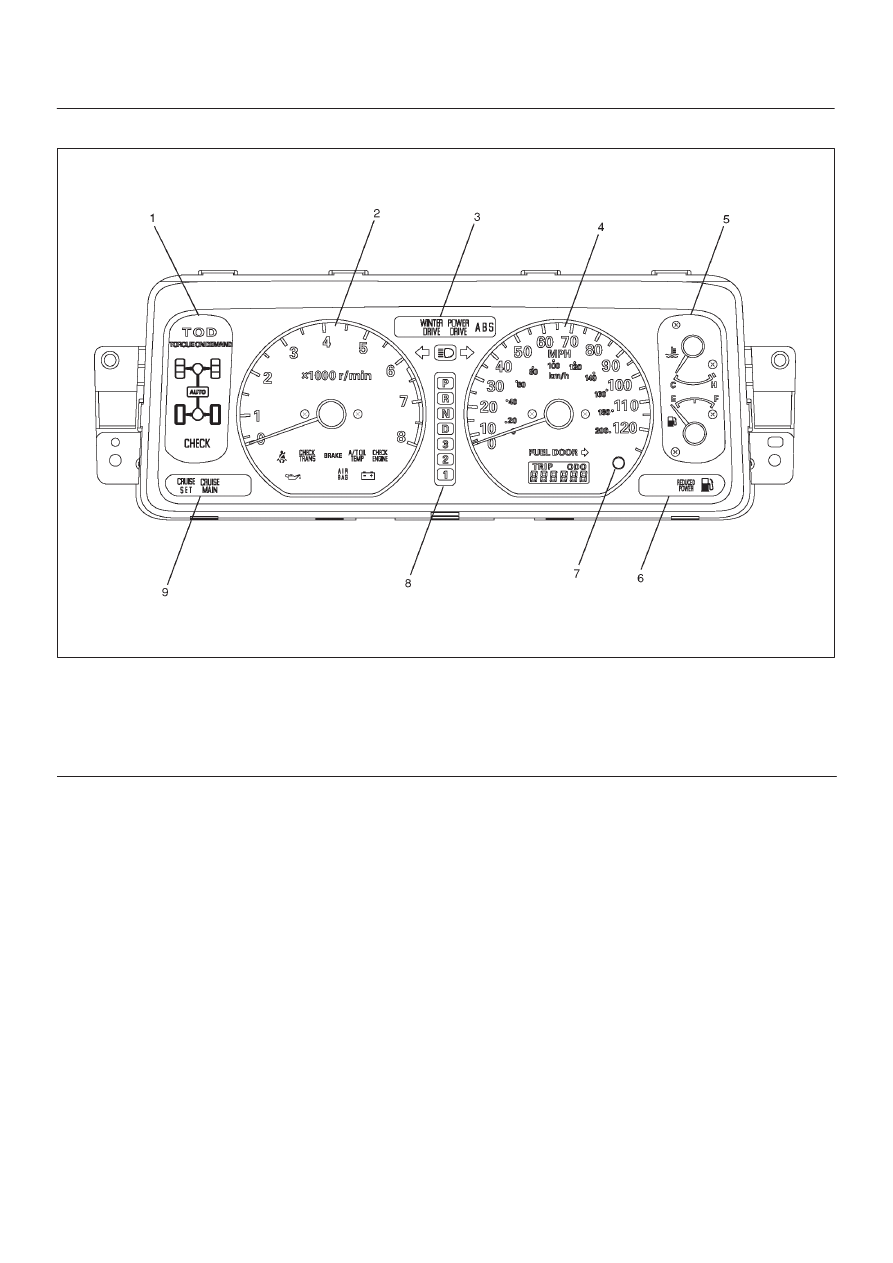

Meter Assembly W/TOD (Front View)

821R200037

Legend

(1) TOD Indicator
(2) Tachometer
(3) Warning Light Lens
(4) Speedometer

(5) Coolant Temperature Gauge & Fuel Gauge
(6) Warning Light Lens
(7) Reset Knob
(8) A/T Shift Indicator
(9) Warning Light Lens

METER AND GAUGE

8E–5

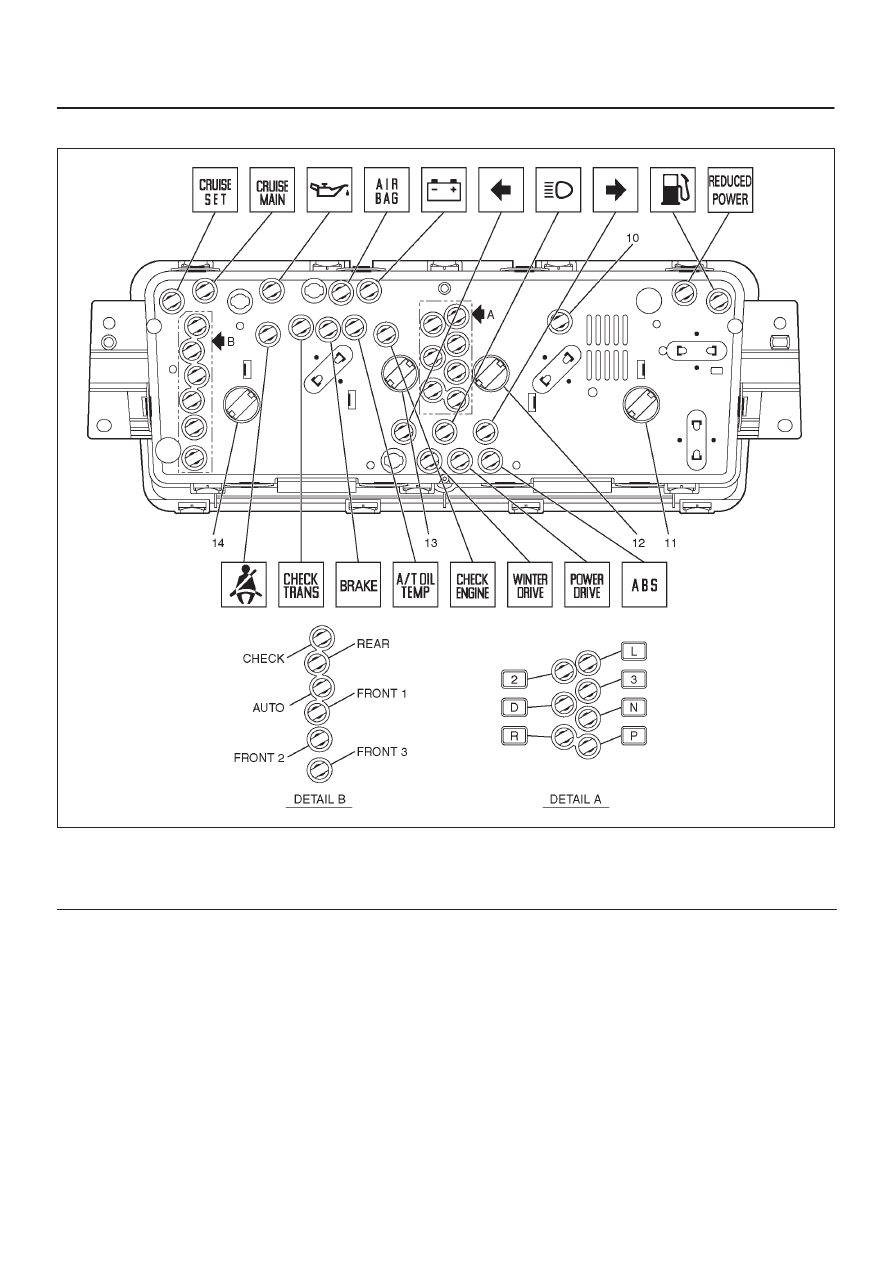

Meter Assembly W/TOD (Rear View)

821R200039

Legend

(10) LCD Light

(11) Illumination Light

(12) Illumination Light
(13) Illumination Light
(14) Illumination Light

8E–6

METER AND GAUGE

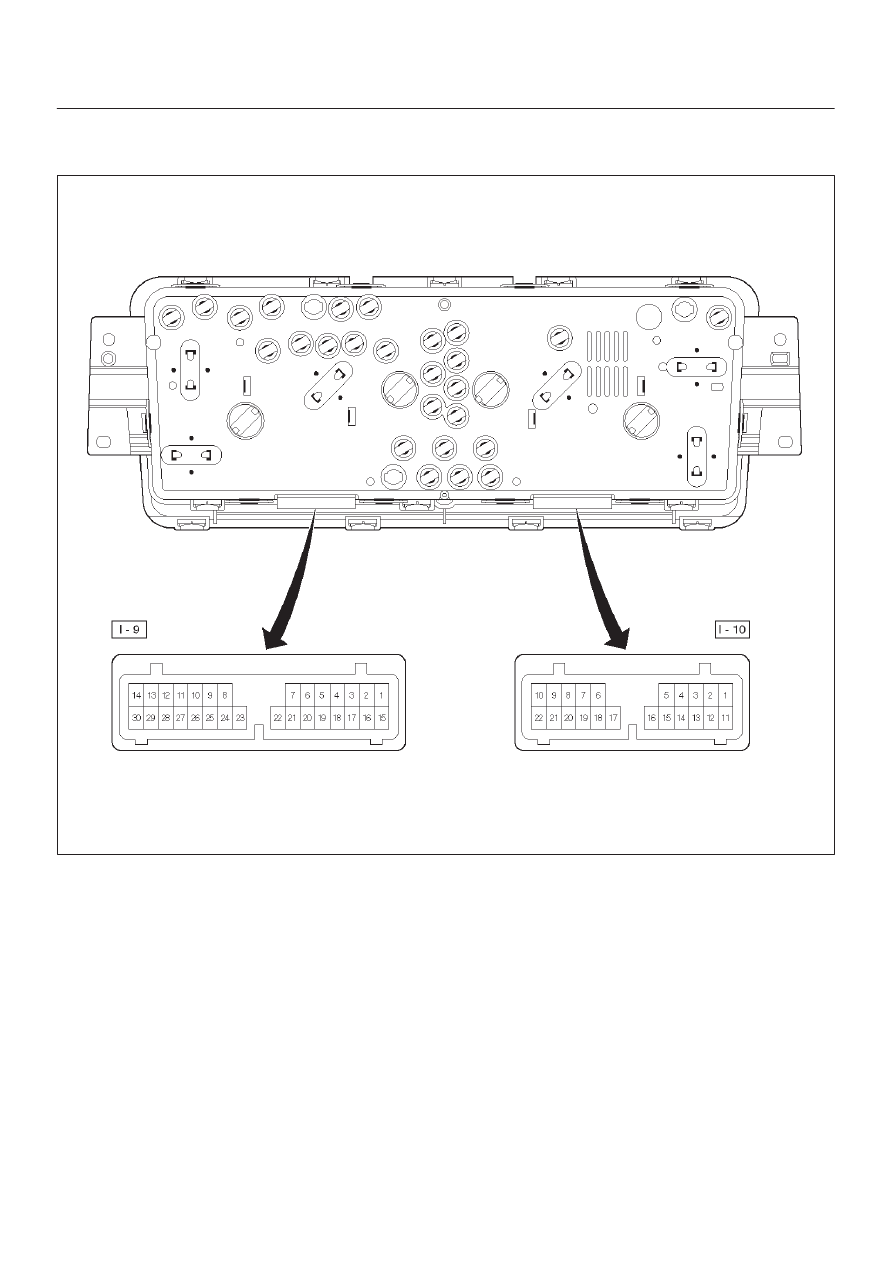

Table for Meter/Gauge Connector Terminal Connections

Meter Assembly W/O TOD–1

825RW037
