8D–4
WIRING SYSTEM

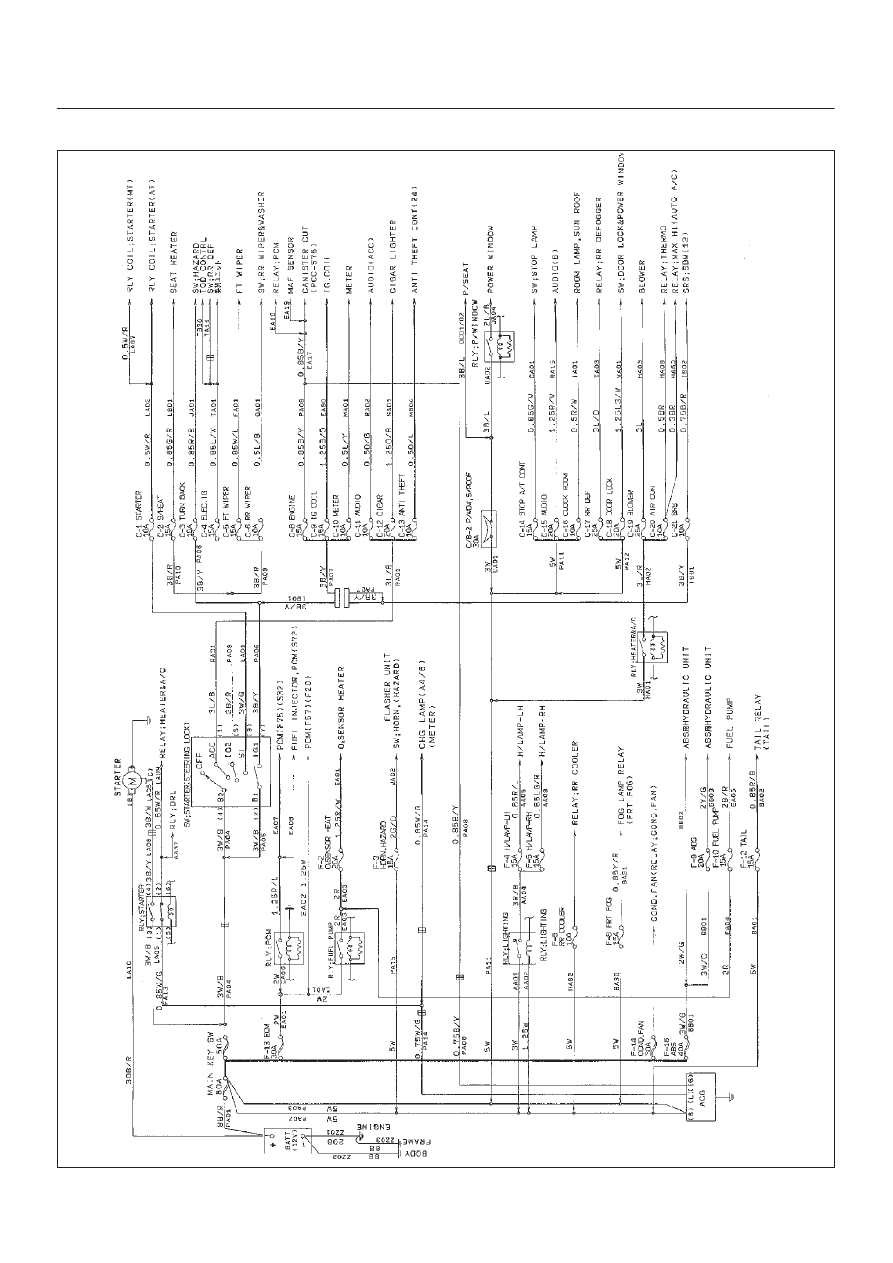

Fuse Box
810RY00005
Legend
(1) Fuse Box
(2) Fuse C–21 (10A)
(3) Flasher Unit
(4) H–49
(5) Rear Defogger Relay
(6) Power Window Relay
(7) Heater & A/C Relay
(8) Diode (Not Used)
(9) Diode (Not Used)
(10) Circuit Breaker C/B–2
(11) Circuit Breaker C/B–1 (Not Used)
(12) Diode (Not Used)
(13) Fuse C–1 (10A)
(14) Fuse C–2 (15A)
(15) Fuse C–3 (15A)
(16) Fuse C–4 (15A)
(17) Fuse C–5 (15A)
(18) Fuse C–6 (10A)
(19) Fuse C–7 (Not Used)
(20) Fuse C–8 (15A)
(21) Fuse C–9 (15A)
(22) Fuse C–10 (10A)
(23) Fuse C–11 (10A)
(24) Fuse C–12 (20A)
(25) Fuse C–13 (10A)
(26) Fuse C–14 (15A)
(27) Fuse C–15 (20A)
(28) Fuse C–16 (10A)
(29) Fuse C–17 (25A)
(30) Fuse C–18 (20A)
(31) Fuse C–19 (25A)
(32) Fuse C–20 (10A)
(33) Diode (Not Used)
(34) Diode (Not Used)
(35) Diode (Not Used)
(36) Diode (Lighting)
