ENTERTAINMENT

Diversity Glass Antenna

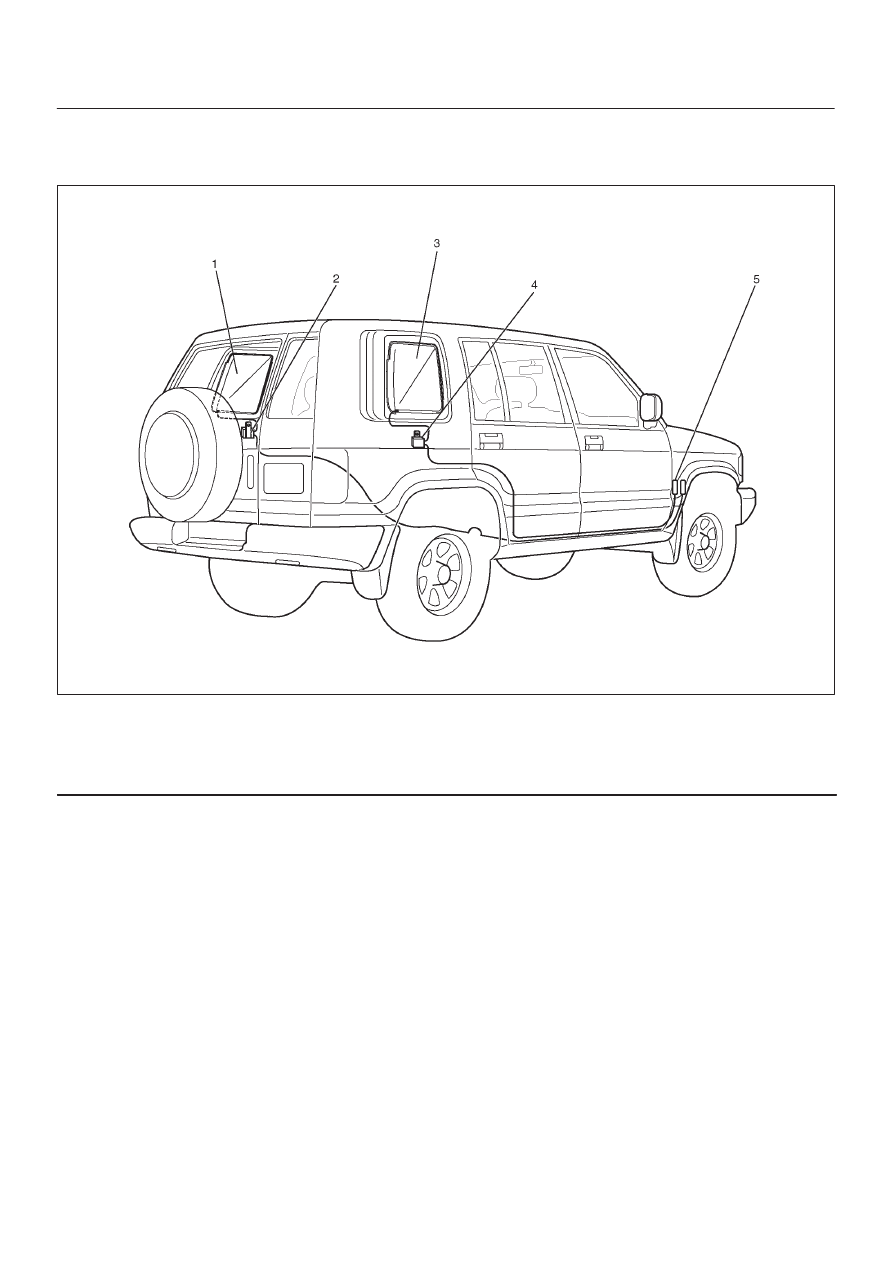

Glass Antenna System Parts Location

890R200050

Legend

(1) Glass Antenna (LH)
(2) Glass Antenna Amplifier
(3) Glass Antenna (RH)

(4) Glass Antenna Amplifier
(5) Connection with the audio side feeder cables at

the dash side (RH)

ENTERTAINMENT

8C–7

Glass Antenna Pattern

890RW016

Glass Antenna Amplifier Removal

1. Disconnect the battery ground cable.
2. Remove the luggage side trim cover.

Refer to the Interior Trim Panels removal steps in
Exterior/Interior Trim section.

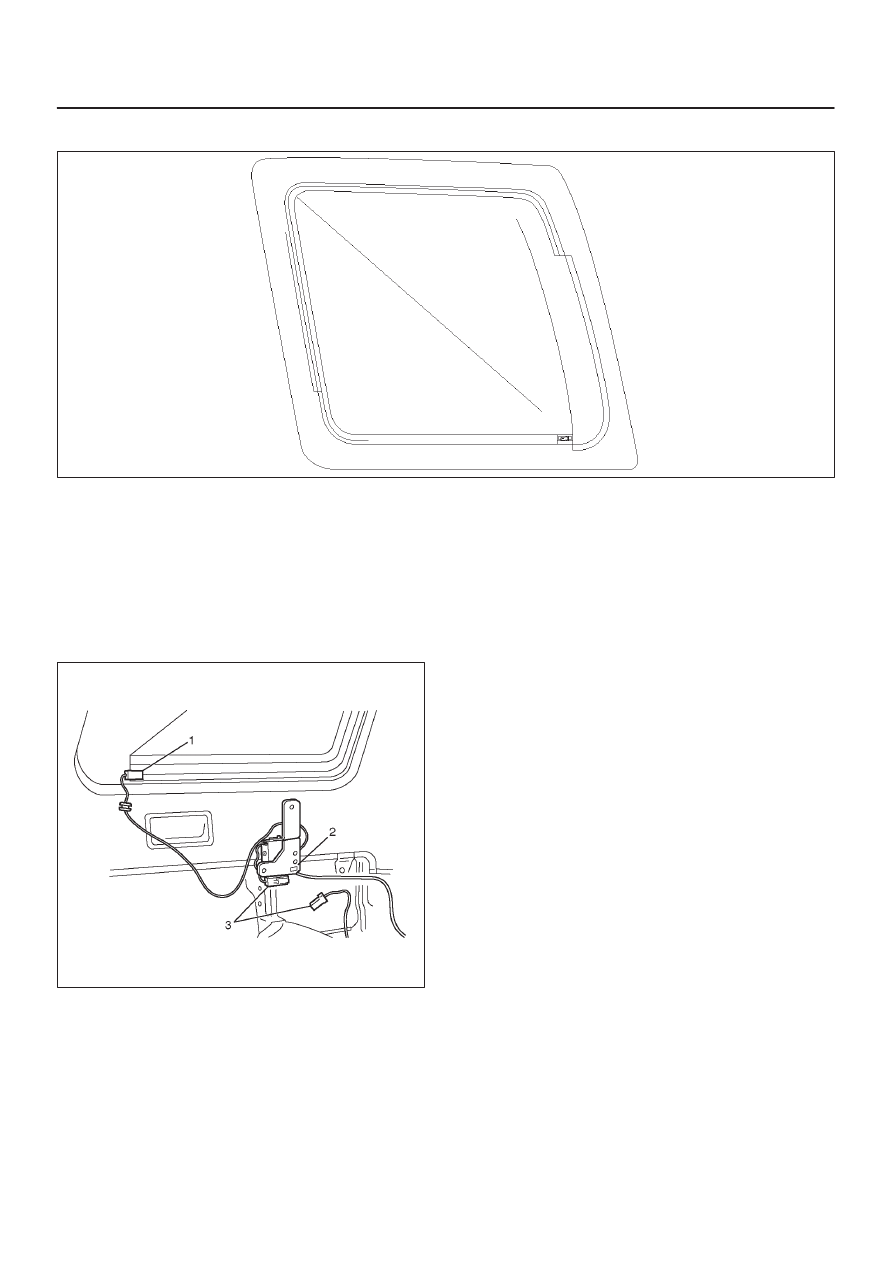

3. Disconnect the connector(1)&(4), feeder cable(3)

and remove two screws to remove the glass antenna
amplifier(2).

890R200049

Glass Antenna Amplifier Installation

To install, follow the removal steps in the reverse order.

8C–8

ENTERTAINMENT

Radio

Removal

1. Disconnect the battery ground cable.

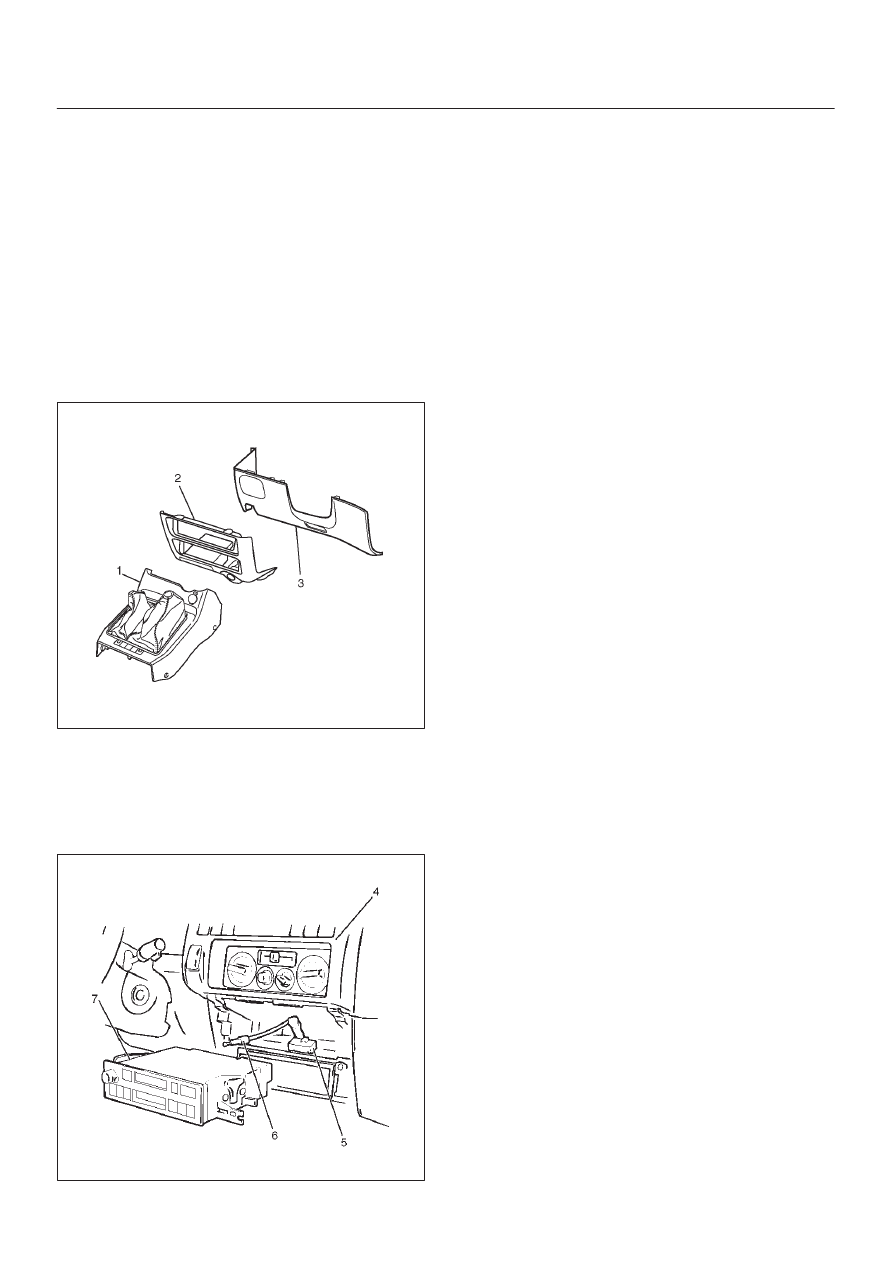

2. Remove the front console assembly (1).

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the lower cluster assembly (2).

Refer to the Instrument Panel Assembly in  Body
Structure section.

4. Remove the instrument panel driver lower cover

assembly (3).
Refer to the Instrument Panel Assembly in Body
Structure section.

740R200050

5. Remove the instrument panel cluster assembly(4).

Refer to the Instrument Panel Assembly in Body
Structure section.

6. Remove two screws and disconnect the radio

connector(5) and antenna feeder plug(6) to remove
the radio(7).

825RW039

Installation

To install, follow the removal steps in the revers order.

ENTERTAINMENT

8C–9

Front Speaker

Removal

1. Disconnect the battery ground cable.

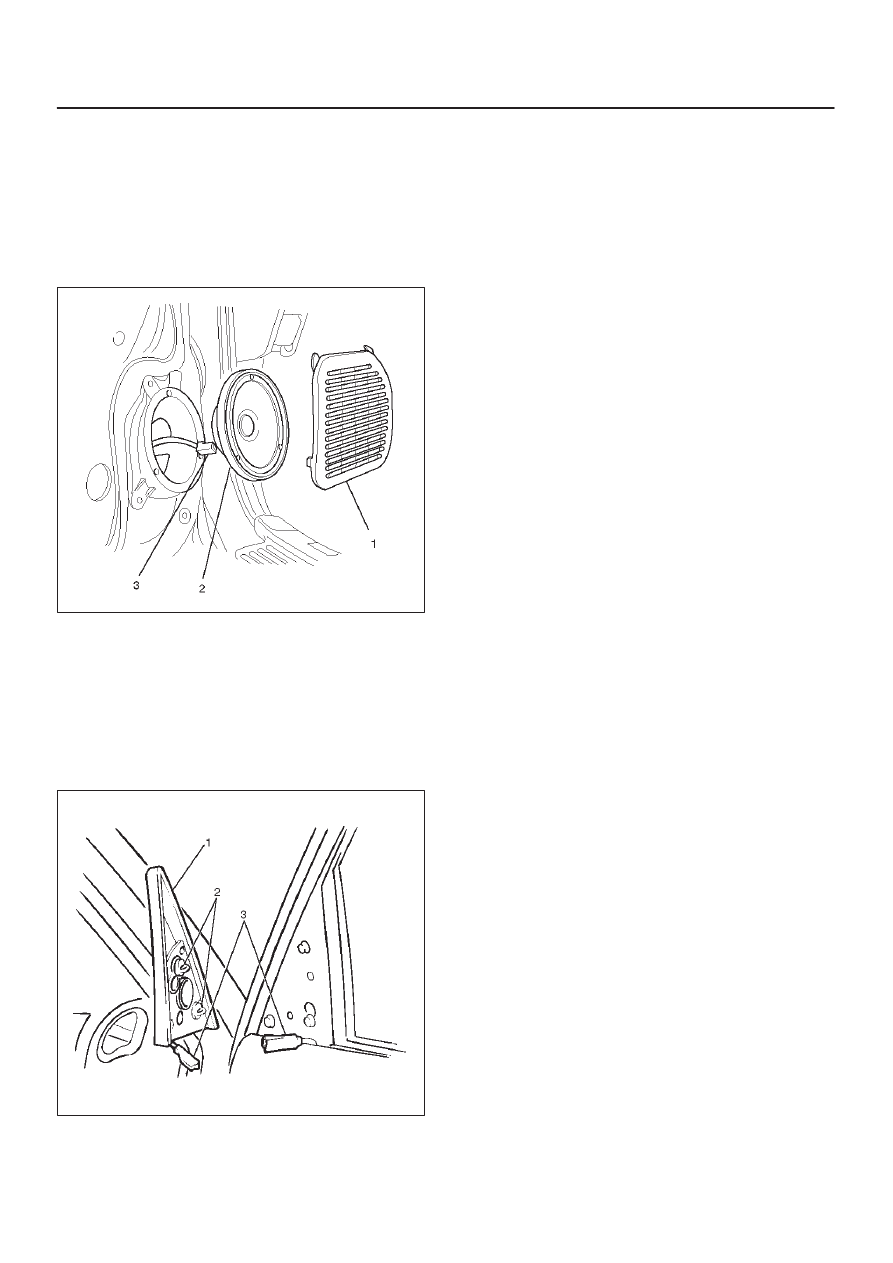

2. Pull the grille(1) to release the locks and then remove

it.

3. Remove four screws and disconnect the

connector(3) to remove the speaker(2).

890RW013

Installation

To install, follow the removal steps in the reverse order.

Tweeter Assembly

Removal

1. Disconnect the battery ground cable.
2. Pull the tweeter, assembly(1) to release the clips(2)

and disconnect the connector(3) to remove the
tweeter assembly.

890RW017

Installation

To install, follow the removal steps in the reverse order.
