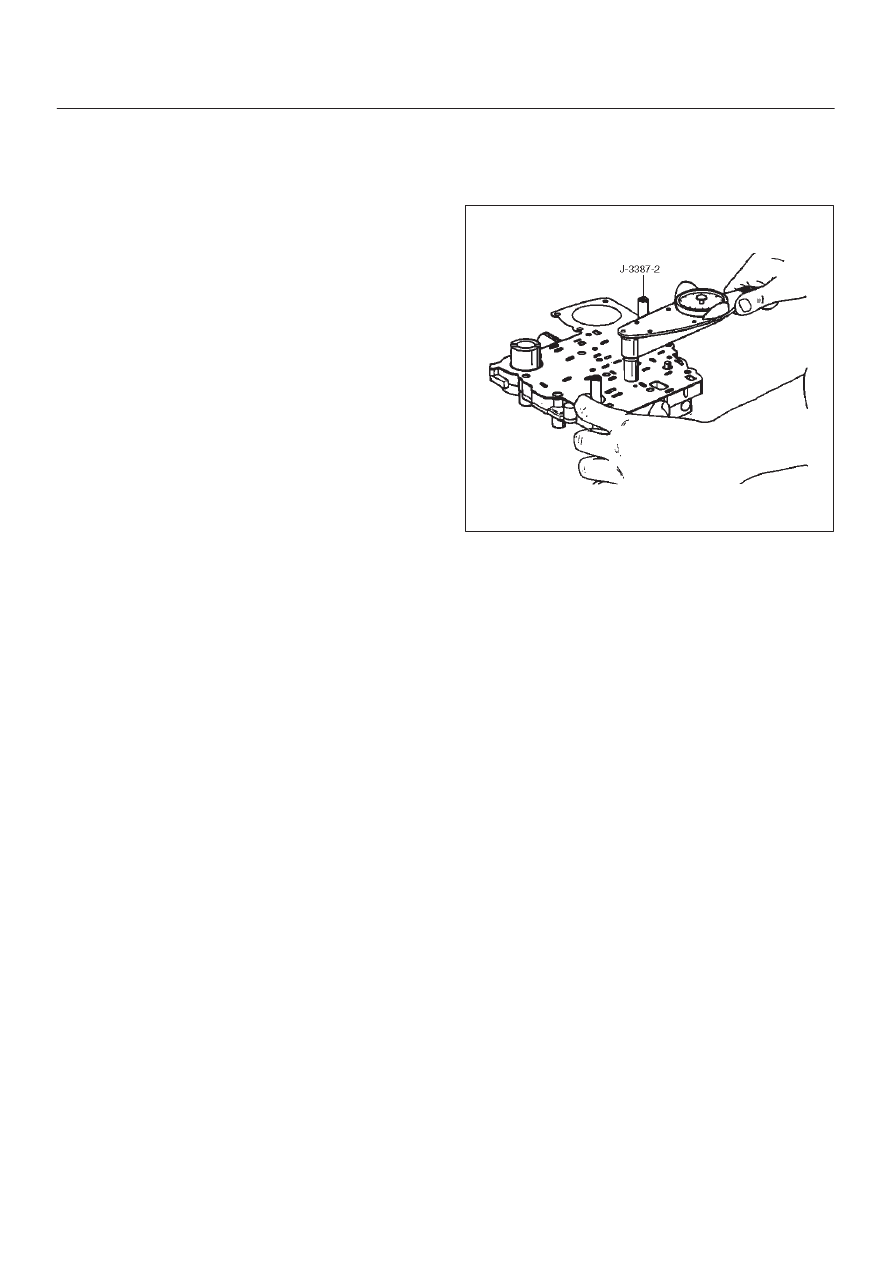

7A–62 AUTOMATIC TRANSMISSION (4L30–E) 10. Remove retainer (13), 2–3 shift valve (14), and spring (15). 11. Remove spring pin (16), plug (17), spring (18), and low pressure control valve (19). 12. Remove spring pin (20), plug (21), and band control screen assembly (22). 13. Remove spring pin (23), plug (24), 1–2 accumulator valve (25), and 1–2 accumulator control valve (26). 14. Remove check ball (27) from valve body (28). Inspection And Repair Inspect for the following, and replace any damaged or 1. Damage or wear to each valve. Reassembly 1. Install 1–2 accumulator control valve (26), 1–2 accumulator valve (25), plug (24), and spring pin (23). 2. Install band control screen assembly (22), plug (21), and spring pin (20). 3. Install low pressure control valve (19), spring (18), plug (17), and spring pin (16). 4. Install spring (15), 2–3 shift valve (14), retainer (13), solenoid B (12), and spring pin (11). 5. Install spring (10), 1–2/3–4 shift valve (9), retainer (8), solenoid A (7), and spring pin (6). 6. Install waved washer (5), band control solenoid (3), and pin (4). 7. Install manual valve (2). 9. Install gasket (valve body/transfer plate) and transfer plate using two J–3387–2 guide pins. D Install two 11mm bolts. Torque: 13 N • m (113 lb in) 244RS004 D Install gasket (transfer plate/main case). |
