TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

PCM Pinout Table, 80-Way Red Connector – Row “S61

∼

 80”

060RY00051

PIN

PIN Function

Wire Color

IGN ON

ENG RUN

Refer To

S61

Intake Air Temperature
(IAT)Sensor Ground

GRN

0.0V

0.0V

General Description and
Operation, IAT

S62

ION Sensing Module

RED

1.555V

1.555V

General Description and
Operation, ION Sensing
Module

S63

Bank 1 HO2S 2 High

WHT

0.3V

0.1–0.9V

General Description and
Operation, Catalyst Monitor
HO2S

S64

Bank 2 HO2S 1 High

PNK

0.3V

0.1–0.9V

General Description and
Operation, Catalyst Monitor
HO2S

S65

Bank 2 HO2S 2 High

GRN

0.3V

0.1–0.9V

General Description and
Operation, Catalyst Monitor
HO2S

S66

Transmission Fluid
Temperature Sensor

RED/BLK

0.5–4.9V

(depends on

temperature)

0.5–4.9V

(depends on

temperature)

4L30E  T/Mission

S67

Exhaust Gas Recirculation
(EGR)

YEL/RED

0.6V

0.6V

General Description and
Operation,EGR Control

S68

Accelerator Position(AP)
Sensor 1

WHT

0.41–0.45V

0.41–0.45V

General Description and
Operation,AP Sensor

S69

Throttle Valve DC
Motor(+)

RED

Duty Cycle

Duty Cycle

General Description and
Operation,ETC

S70

Not Used

—

—

—

—

S71

Not Used

—

—

—

—

S72

Ignition Feed for ETC

RED/BLU

B+

B+

Chassis Electrical

S73

Auto Cruise Main Lamp

GRY/BLU

B+

B+

Chassis Electrical

S74

Variable Intake Manifold

WHT/BLU

0.0V

B+(rpm 3600

over)

General Description

S75

Canister Vent Valve

BLU/PNK

6.0V Tank

empty

5.7V Tank

empty

General Description and
Operation, EVAP

S76

Throttle Position(TP) 1
Sensor Signal

BLU/PNK

0.5–0.8V

0.5–0.8V (at

idle)

General Description and
Operation,TPS

6E–29

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

PIN

Refer To

ENG RUN

IGN ON

Wire Color

PIN Function

S77

5Volt Referrence (AP
Sensor 3)

ORN

5.0V

5.0V

Appropriate Sensor

S78

Accelerate Position(AP)
Sensor 2

YEL

0.41–0.45V

0.41–0.45V

General Description and
Operation,AP Sensor

S79

Accelerate Position(AP)
Sensor 3

BLU/GRN

4.55–4.99V

0.41–0.45V

General Description and
Operation,AP Sensor

S80

Manifold Absolute
Pressure(MAP)

GRN

0V

0V

General Description and
Operation, Manifold Absolute
Pressure

6E–30

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

Component Locators

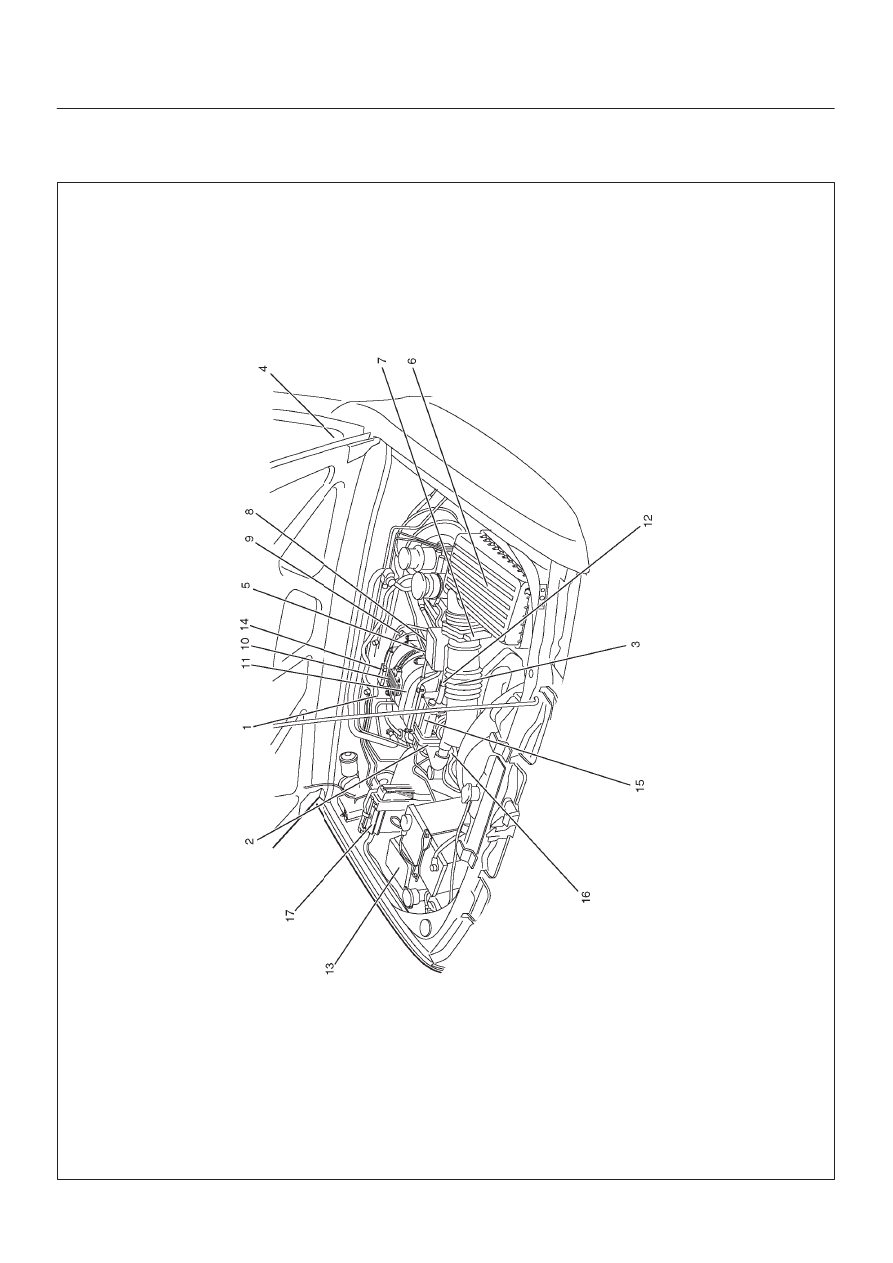

Engine Component Locator

060R200243

6E–31

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

Engine Component Locator Table

Number

Name

Location

1

Linear Exhaust Gas Recirculation (EGR) Valve

Rear right side of the engine

2

Throttle Position (TP) Sensor

On the throttle body

3

Intake Air Temperature (IAT) Sensor

On the intake air duct near the throttle body

4

Check Engine (MIL) Light

On the instrument panel beneath the
tachometer

5

Positive Crankcase Ventilation (PCV) Valve

On the left of the cylinder head cover

6

Air Cleaner

Left front of the engine bay

7

Mass Air Flow (MAF) Sensor

Attached to the air filter box

8

Fuel Rail

On the Common Chamber

9

Fuel Pressure Regulator

Rear side of the engine

10

ION Sensing module

Bolted to the top of the Common Chamber

11

Common Chamber

Top of the engine

12

EVAP Duty Solenoid Valve

Bolted to the front of the coolant pipe

13

Fuse/Relay Box

Along the inside of the right fender

14

Manifold Absolute Pressure (MAP) Sensor

Bolted to the top of the Common Chamber

15

Throttle Body

Between the intake air duct and the Common
Chamber

16

Engine Coolant Temperature Sensor

On the coolant crossover pipe at the front of
the engine, near the throttle body

17

Power Train Control Module (PCM)

Along the inside of the left fender
