6E–12

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

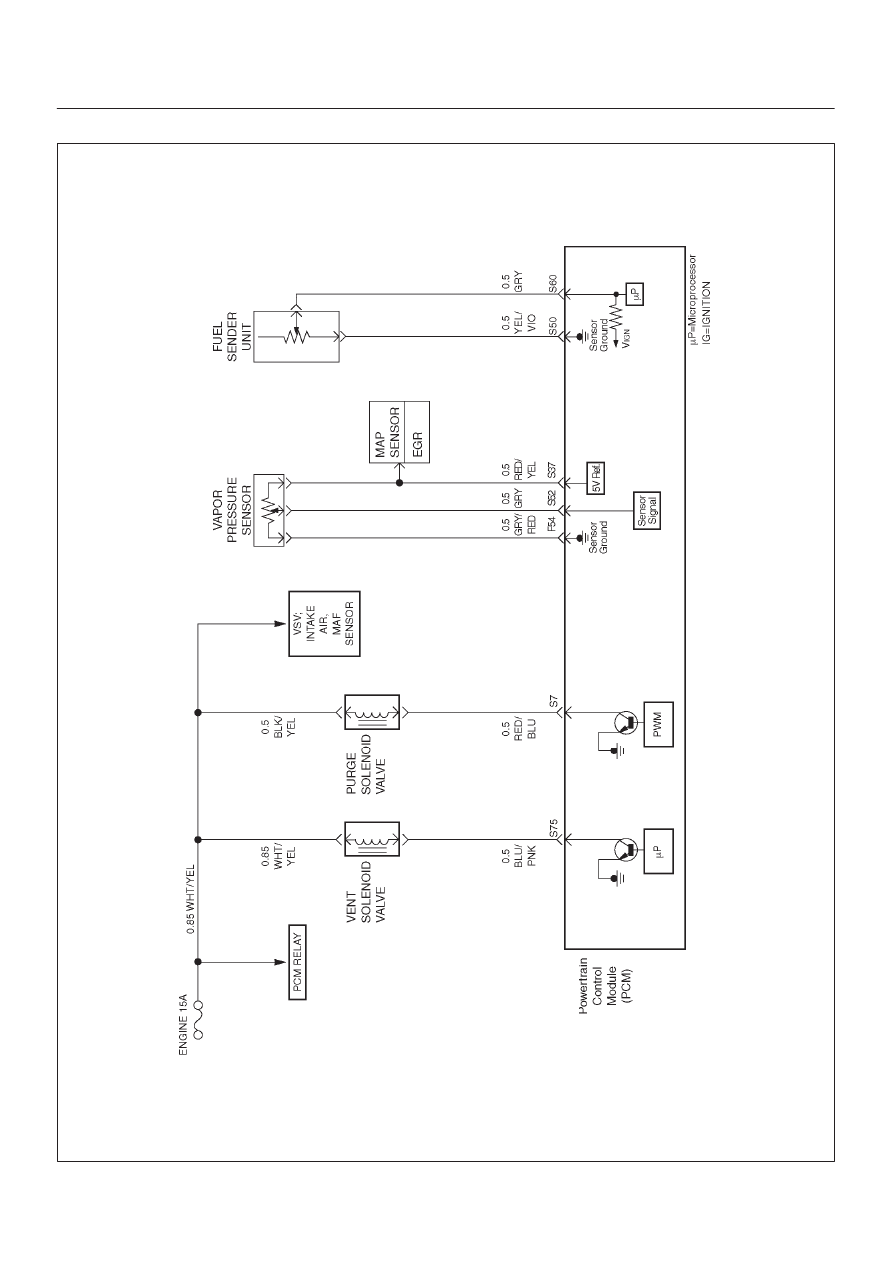

PCM Wiring Diagram (6 of 8)

D06R200035

6E–13

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

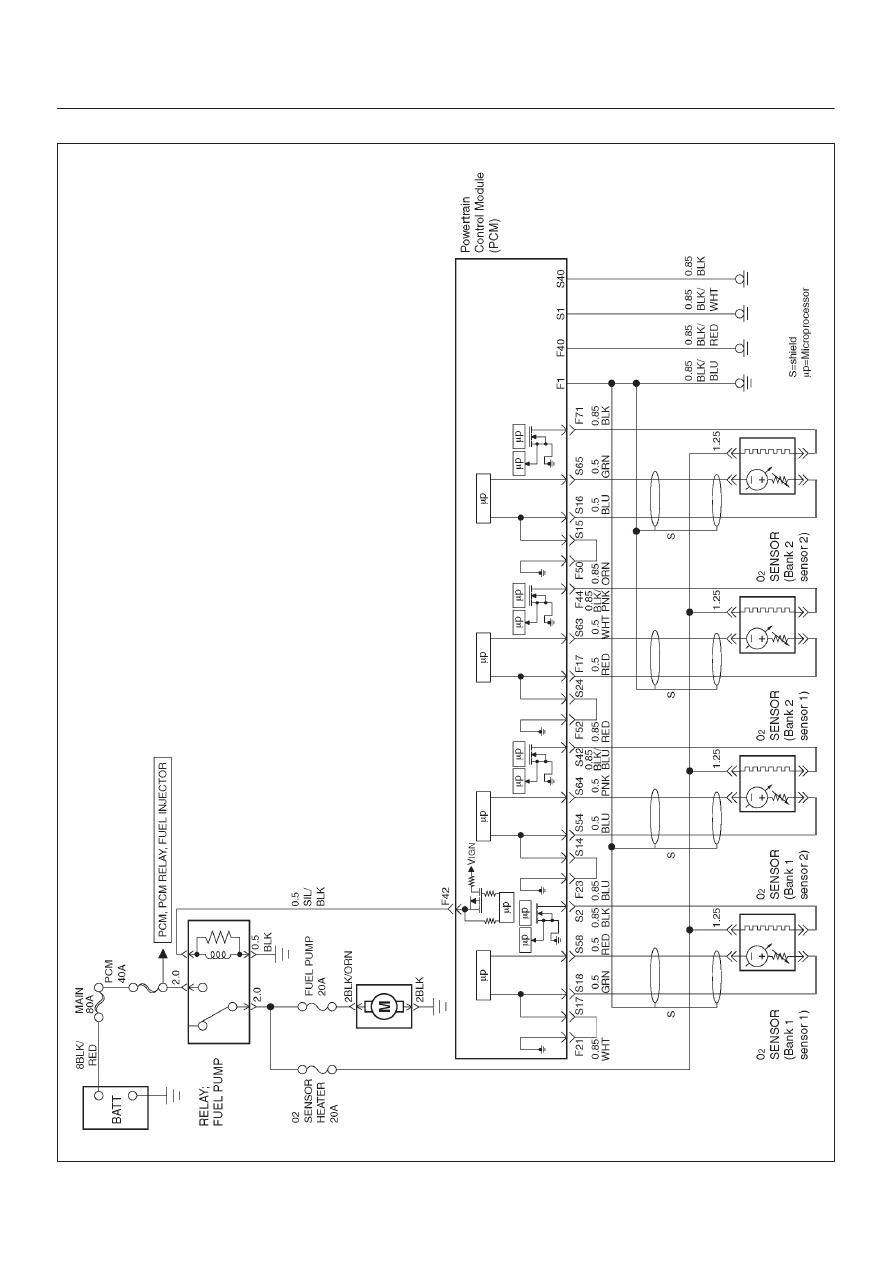

PCM Wiring Diagram (7 of 8)

D06R200036

6E–14

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

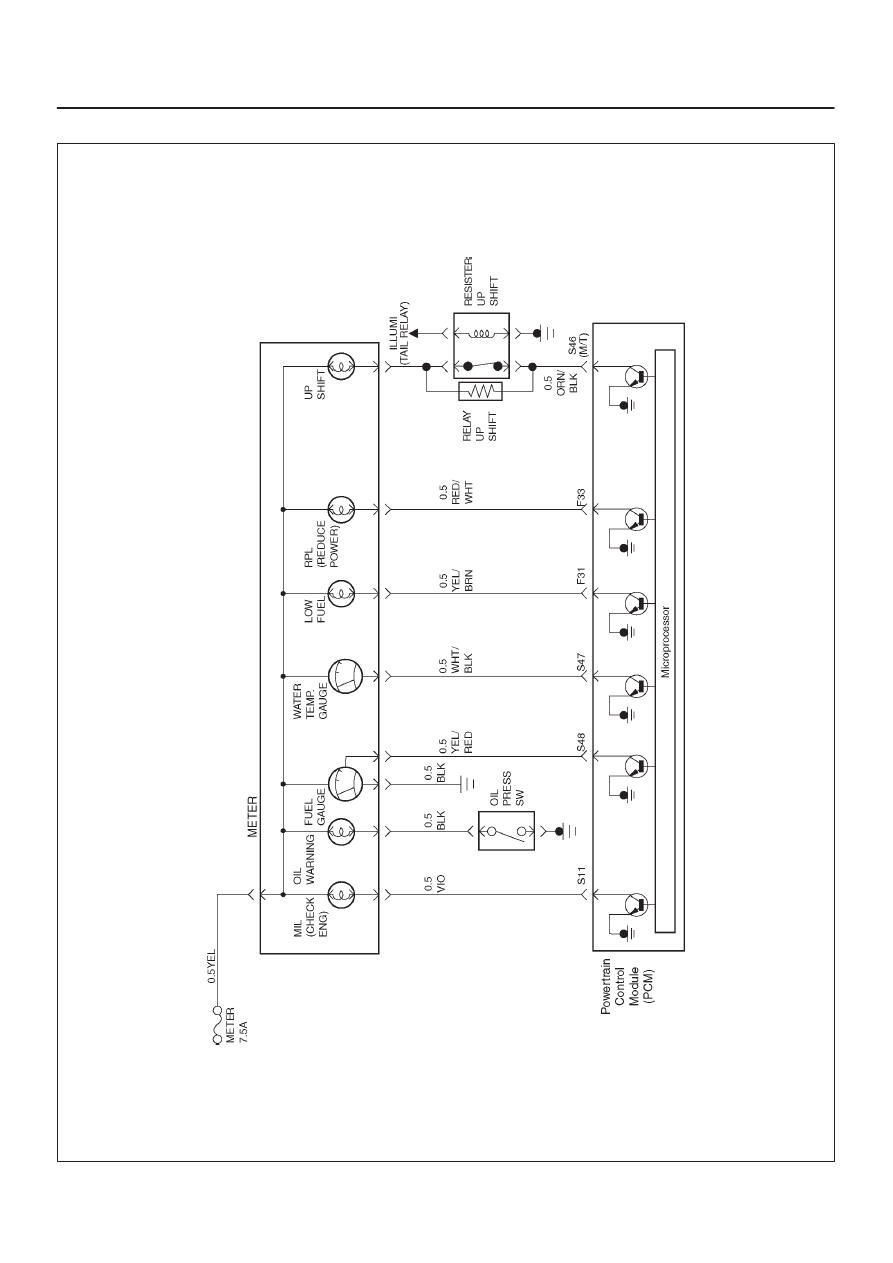

PCM Wiring Diagram (8 of 8)

D06R200037

6E–15

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

PCM Pinouts

PCM Pinout Table, 80-Way Blue Connector – Row “F1

∼

 20”

060RY00045

PIN

PIN Function

Wire Color

IGN ON

ENG RUN

Refer To

F1

PCM Ground

BLK/BLU

0.0V

0.0V

Chassis Electrical

F2

5Volt Referrence“2” (AP
Sensor 2)

GRN

5.0V

5.0V

AP Sensor

F3

5Volt Referrence“2” (TP
Sensor 2)

RED/WHT

5.0V

5.0V

AP Sensor

F4

A/C Clutch

GRN/BLK

B+(A/C off)

B+(A/C off)

General Description and
Operation,A/C Cluch Circuit
Opreation

F5

Mission Main Case

GRN/RED

0.0V

0.0V

4L30E  T/Mission

F6

Not Used

—

—

—

—

F7

Tachometer

BLK/RED

8.8V

10.0V(at idle)

Chassis Electrical

F8

Not Used

—

—

—

—

F9

Not Used

—

—

—

—

F10

Not Used

—

—

—

—

F11

T.O.D

RED/WHT

—

—

—

F12

Not Used

—

—

—

—

F13

Not Used

—

—

—

—

F14

Mass Air Flow(MAF)

YEL

4.9V

4.2V

General Description, Mass
Air Flow Sensor

F15

Not Used

—

—

—

—

F16

Not Used

—

—

—

—

F17

Bank 1 HO2S Low

RED

0.0V

0.1V

General Description and
Operation, Catalyst Monitor
HO2S 2

F18

Not Used

—

—

—

—

F19

Ignition Feed

RED/BLU

B+

B+

6D Section

F20

Ignition Feed

WHT

B+

B+

6D Section
