6E–8

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

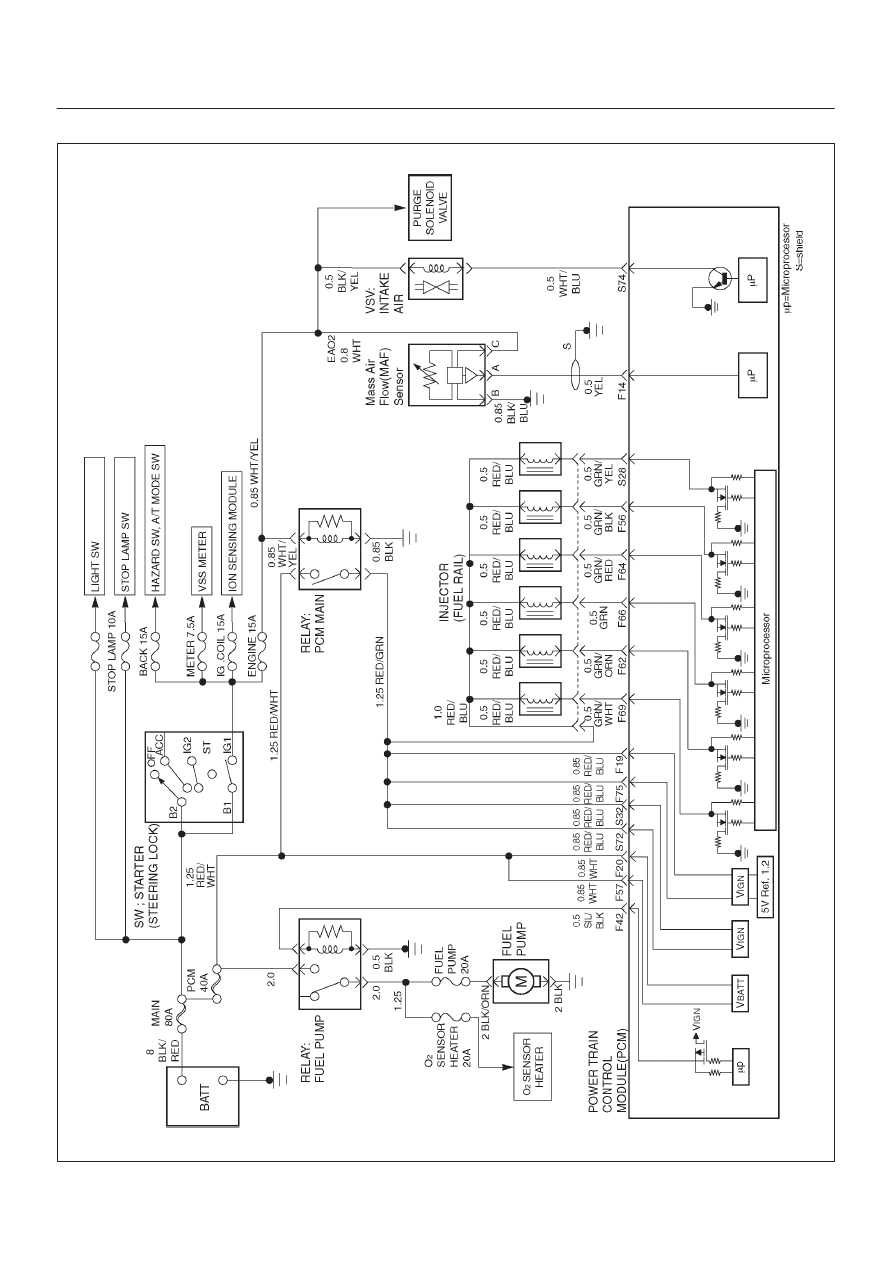

PCM Wiring Diagram (2 of 8)

D06R200031

6E–9

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

PCM Wiring Diagram (3 of 8)

D06R200032

6E–10

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

PCM Wiring Diagram (4 of 8)

D06R200033

6E–11

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

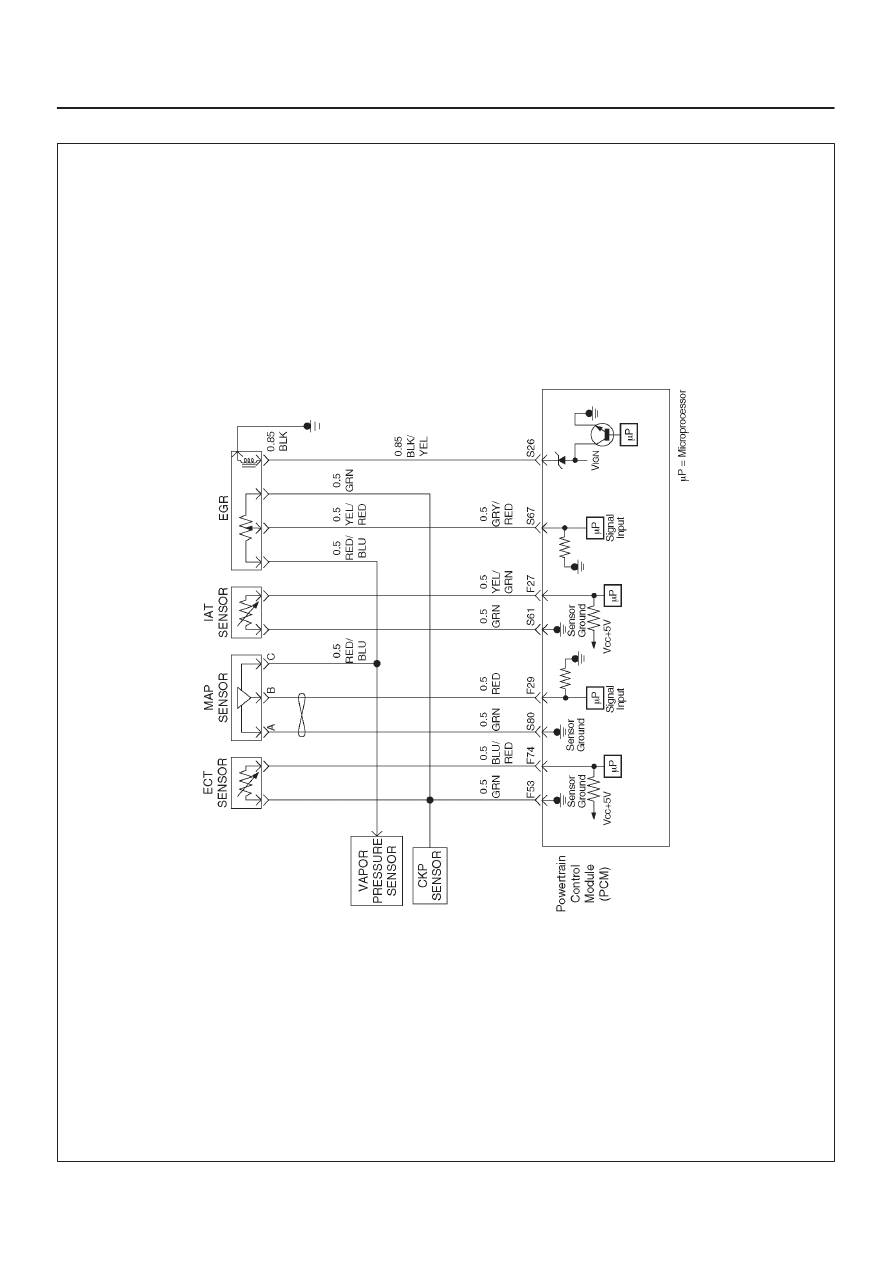

PCM Wiring Diagram (5 of 8)

D06R200086
