5C–16 POWER ASSISTED BRAKE SYSTEM

Brake Pedal

Checking Pedal Height

The push rod serves as the brake pedal stopper when the
pedal is fully released. Brake pedal height adjustment
should be performed as follows:

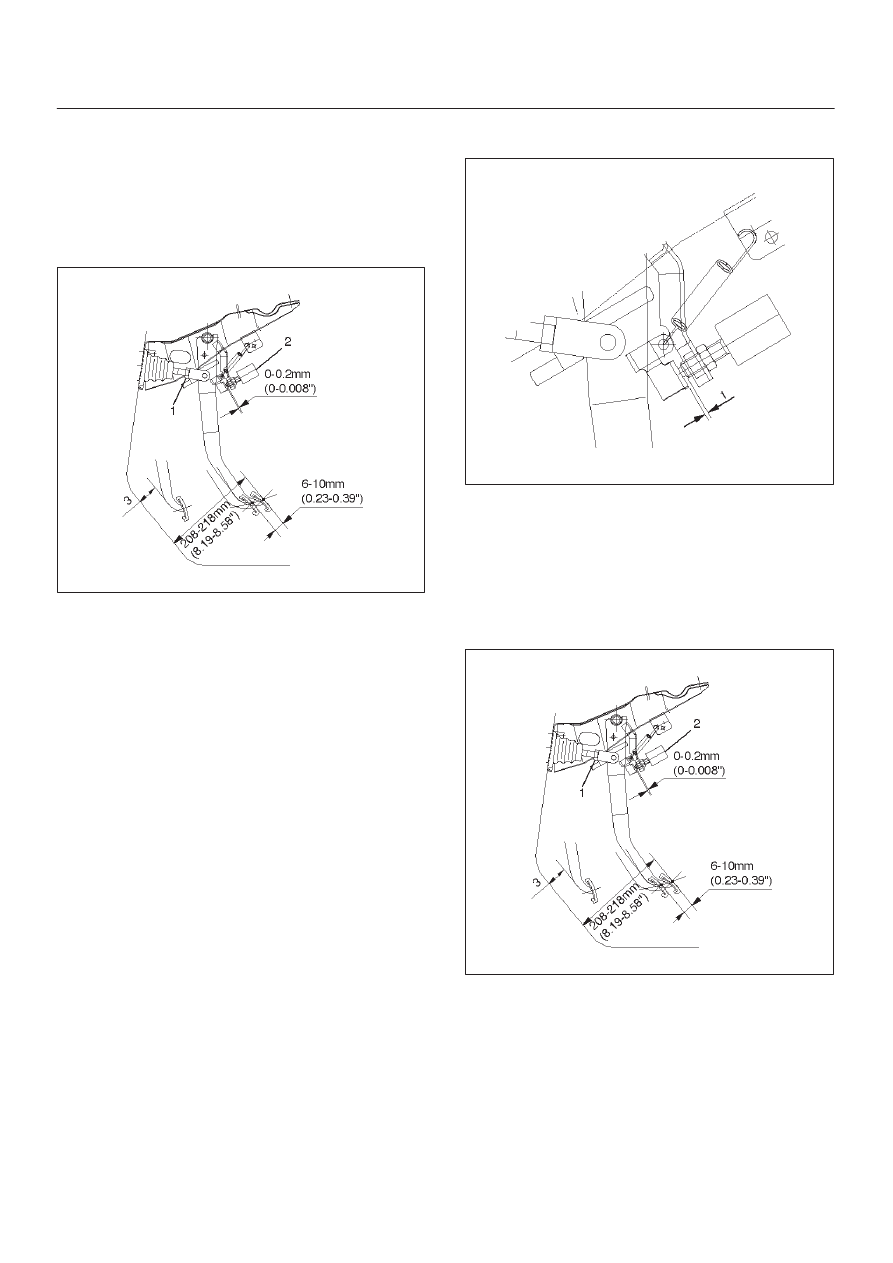

Adjust Brake Pedal

310RW001

1. Measure the brake pedal height after making sure the

pedal is fully returned by the pedal return spring.
Pedal height must be measured after starting the
engine and receiving it several times.

Pedal Free Play : 6-10 mm (0.23-0.39 in)

Pedal Free Play : 208-218 mm (8.19-8.58 in)

NOTE: Pedal free play must be measured after turning
off the engine and stepping on the brake pedal firmly five
times or more.

2. If the measured value is not within the above range,

adjust the brake pedal as follows:
a. Disconnect the stoplight switch connector.
b. Loosen the stoplight switch lock nut (1).
c. Rotate the stoplight switch so that is moves away

from the brake pedal.

d. Loosen the lock nut on the push rod.
e. Adjust the brake pedal to the specified height by

rotating the push rod in the appropriate direction.

f. Tighten the lock nut to the specified torque.

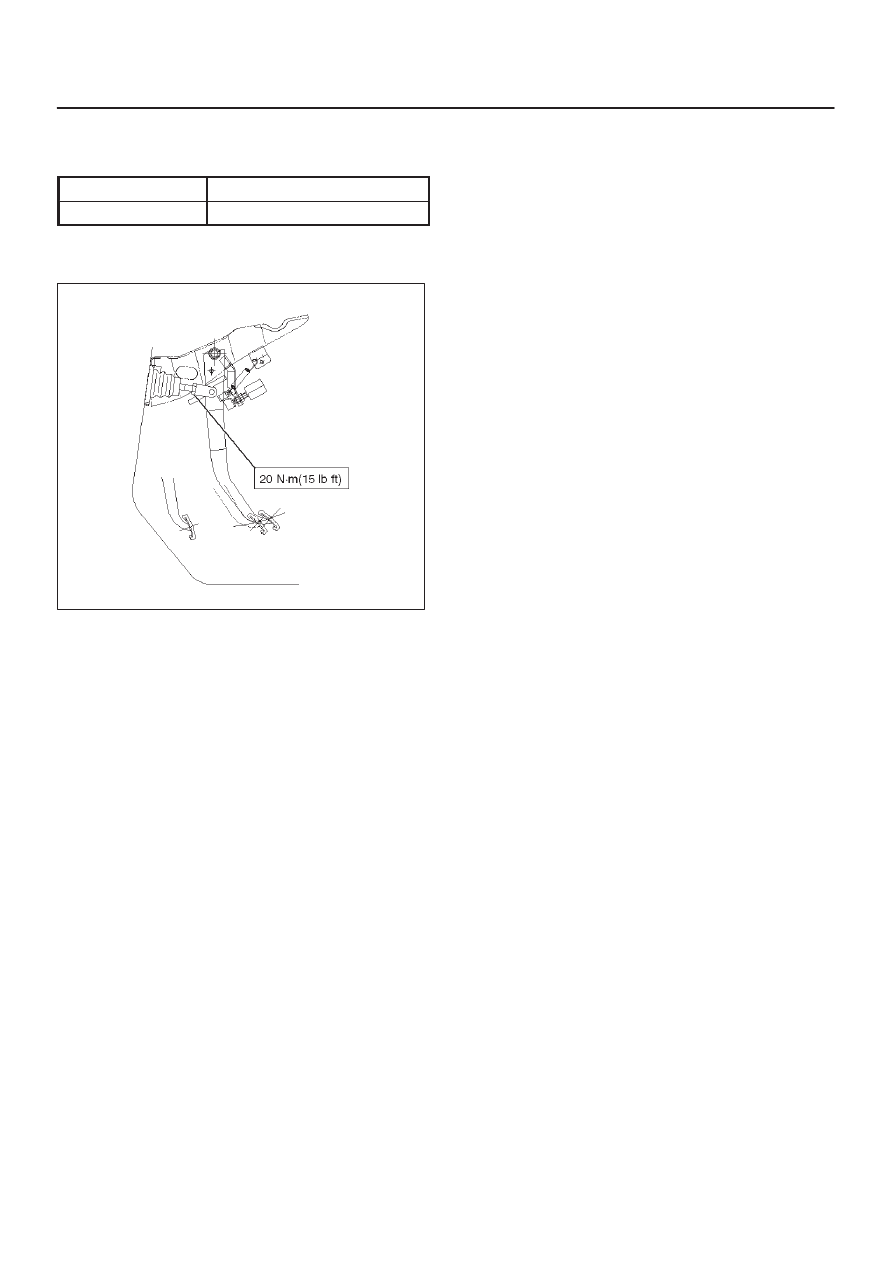

Torque: 20 N·m (15 lb ft)

g. Adjust the stoplight switch to the specified

clearance (between the switch housing and the
brake pedal) by rotating the switch housing.

Clearance : 0–0.2 mm (0–0.008 in)

310RW002

NOTE: While adjusting the stoplight switch, make sure
that the threaded part of the stoplight switch does not
push the brake pedal.

h. Tighten the stoplight switch lock nut.
i. Connect the stoplight switch connector.

Checking Pedal Travel

310RW001

1. Pedal height (3) must be measured after starting the

engine and revving it several times to apply vacuum
to the vacuum booster fully.

NOTE: Pedal height (3) must be 100 mm (3.9 in) or more
when about 50 kg (110.25 lb) of stepping force is applied.

2. If the measured value is lower than the above range,

air existing in the hydraulic system is suspected.
Perform the bleeding procedure.

5C–17

POWER ASSISTED BRAKE SYSTEM

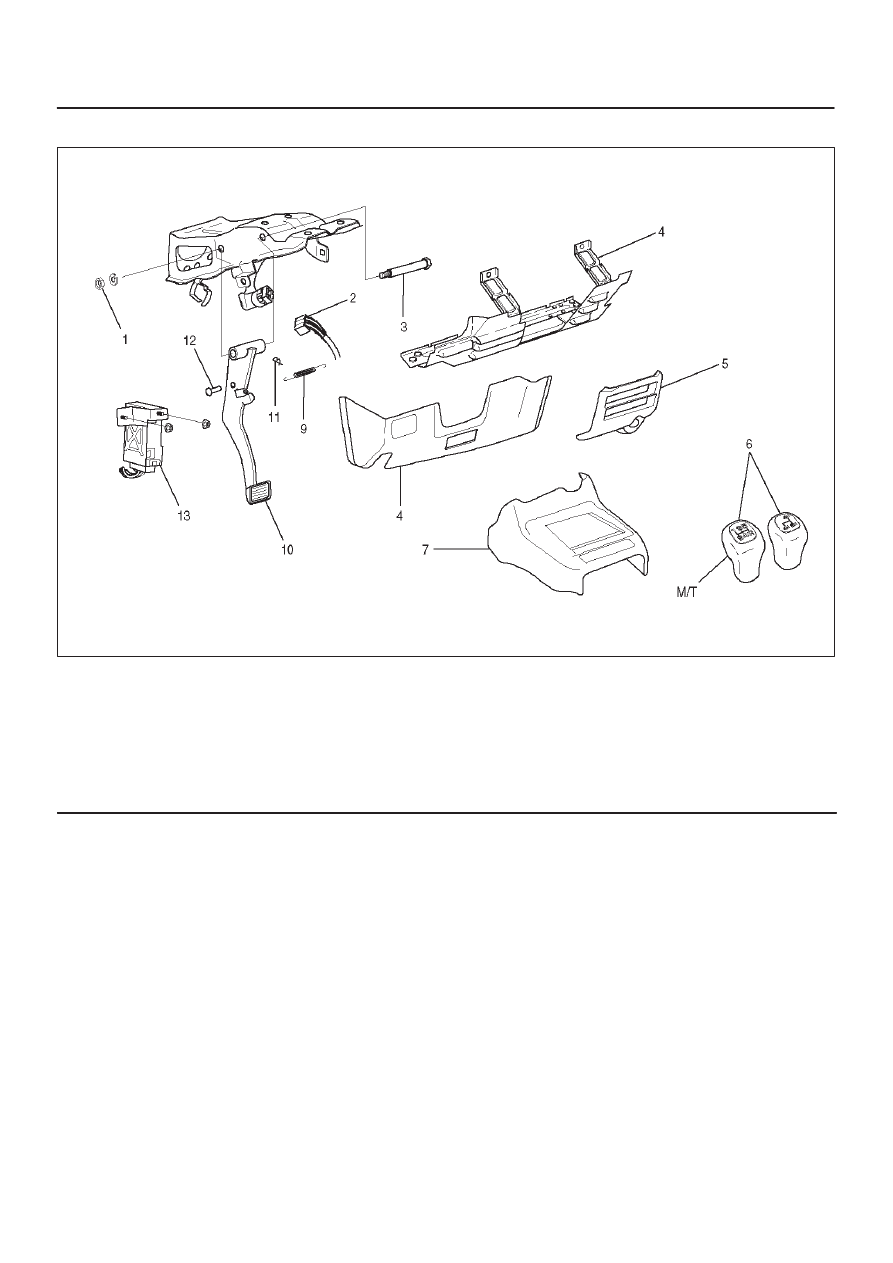

Brake Pedal and Associated Parts

310RW003

Legend

(1) Nut
(2) Stoplight Switch Connector
(3) Fulcrum Pin
(4) Driver Knee Bolster Assembly
(5) Lower Cluster Assembly
(6) Shift Knob

(7) Front Console Assembly
(8) Instrument Panel Driver Lower Cover
(9) Return Spring

(10) Brake Pedal

(11) Snap Pin

(12) Pin
(13) Anti–theft Controller

Removal

1. Remove shift knob.
2. Remove front console assembly.
3. Remove lower cluster assembly.
4. Remove instrument panel driver lower cover.
5. Remove driver knee bolster assembly.
6. Remove anti–theft controller.
7. Remove stoplight switch connector.
8. Remove return spring.
9. Remove snap pin.

10. Remove pin.

11. Remove nut.

12. Remove fulcrum pin.
13. Remove brake pedal.

Installation

1. Install brake pedal.
2. Install fulcrum pin and apply grease to the entire

circumference of the fulcrum pin.

Torque: 33 N·m (24 lb ft)

3. Install nut and tighten the nut to the specified torque.

Torque: 33 N·m (24 lb ft)

4. Install pin and apply grease to the entire

circumference of the push rod pin.

5. Install snap pin and adjust the pedal free travel

Refer to “Brake Pedal Adjustment” previously in this
section.

6. Install return spring.
7. Connect stoplight switch connector.
8. Connect anti–theft connector.
9. Install driver knee bolster assembly.

10. Install instrument panel driver lower cover.

5C–18 POWER ASSISTED BRAKE SYSTEM

11. Install lower cluster assembly.

12. Install front console assembly.

13. Install shift knob.

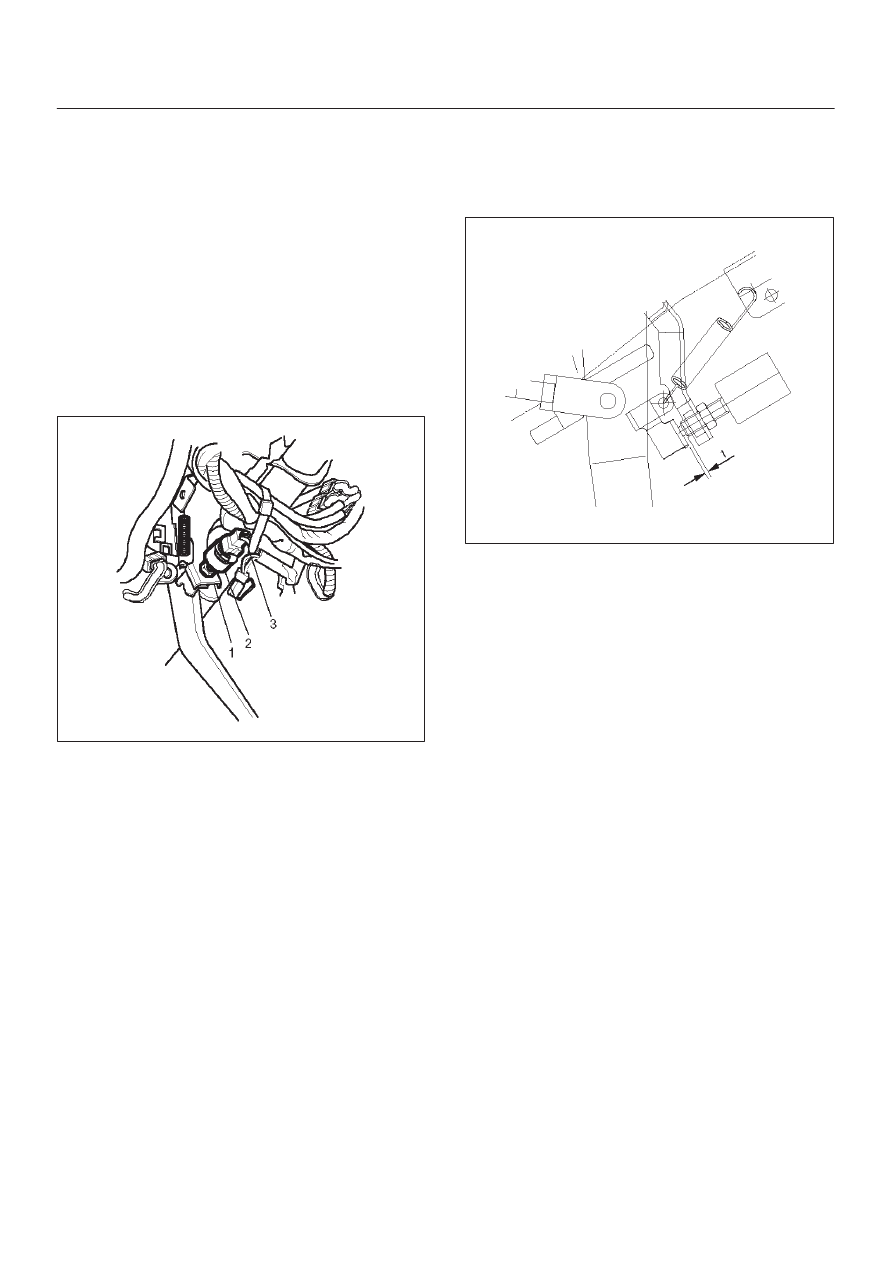

Stoplight Switch

Removal

1. Remove shift knob.
2. Remove front console assembly.
3. Remove lower cluster assembly.
4. Remove instrument panel driver lower cover.
5. Remove driver knee bolster assembly.
6. Remove stoplight switch connector (3).
7. Remove lock nut (1).
8. Remove switch (2).

310RW004

Installation

1. Install switch and adjust the stoplight switch to the

specified clearance (between the switch housing and
the brake pedal) by rotating the switch housing.

Clearance (1): 0-0.2 mm (0-0.009 in)

NOTE: While adjusting the installation of the stoplight
switch, make sure that the threaded part of the stoplight
switch does not push the brake pedal.

310RW002

2. Install lock nut.
3. Connect stoplight switch connector.
4. Install driver knee bolster assembly.
5. Install instrument panel driver lower cover.
6. Install lower cluster assembly.
7. Install front console assembly.
8. Install shift knob.

5C–19

POWER ASSISTED BRAKE SYSTEM

Main Data and Specifications

General Specifications

Pedal free play

6–10 mm (0.23 –0.39 in)

Pedal Height

208–218 mm (819–8.58 in)

Torque Specifications

E05RW002
