DRIVE LINE CONTROL SYSTEM (TOD)

4B2–20

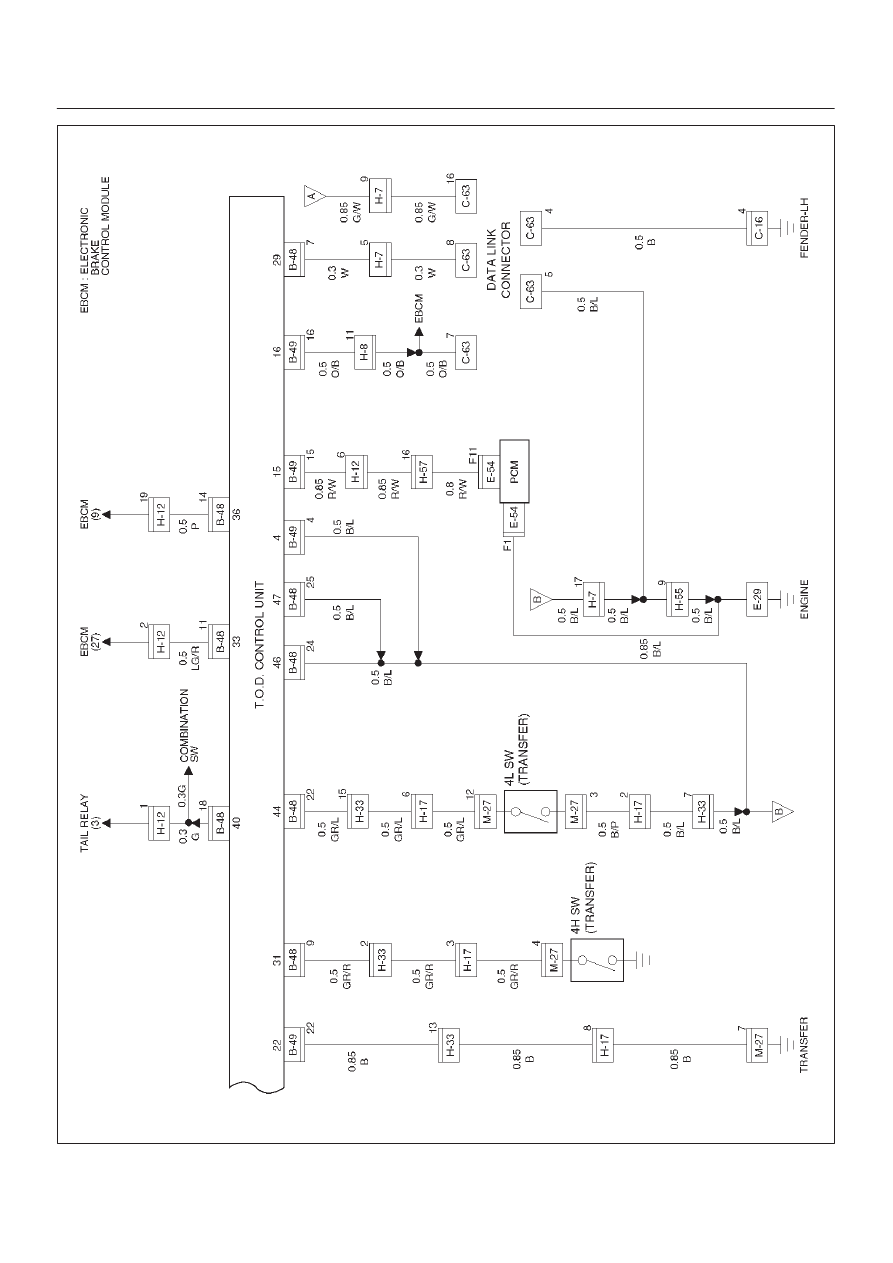

D04RY00010

4B2–21

DRIVE LINE CONTROL SYSTEM (TOD)

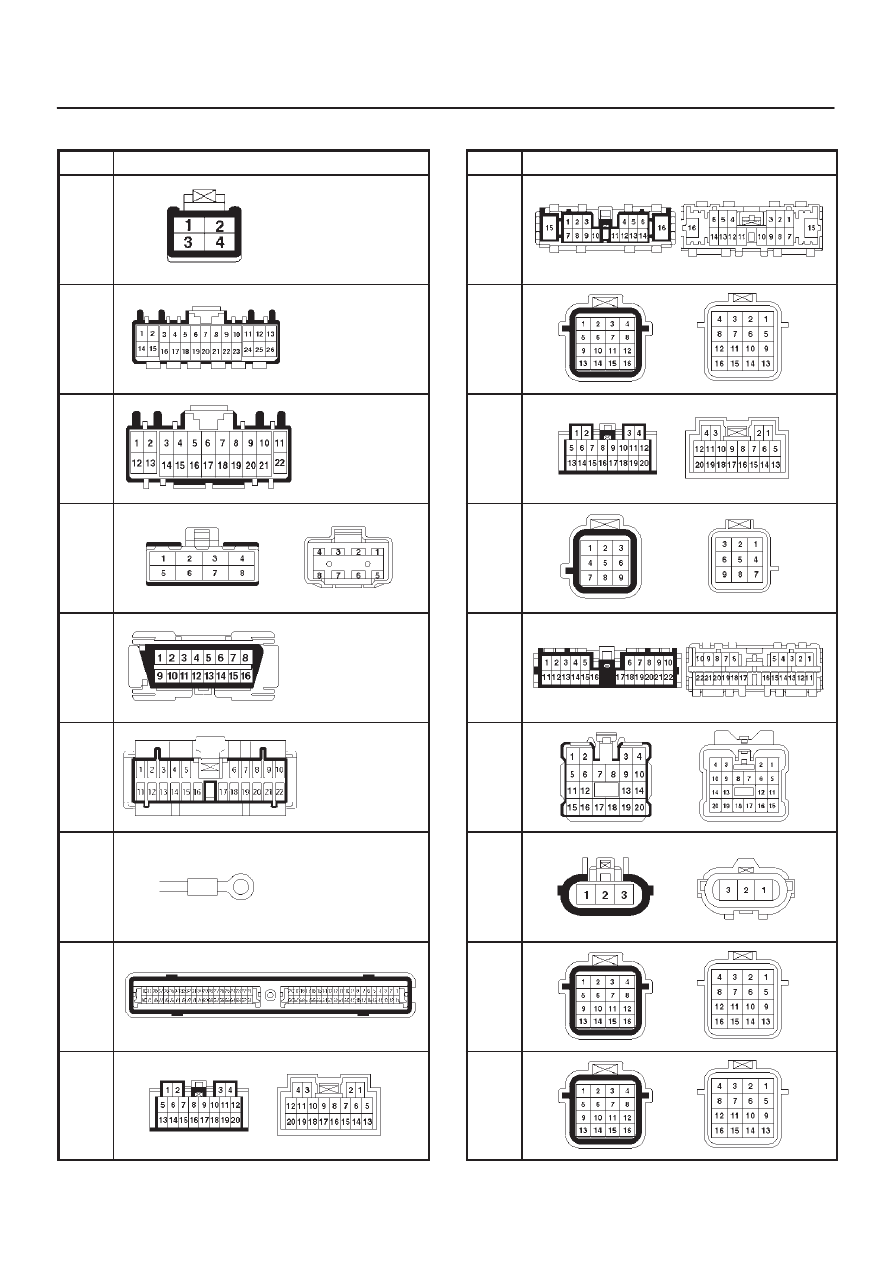

Connector List

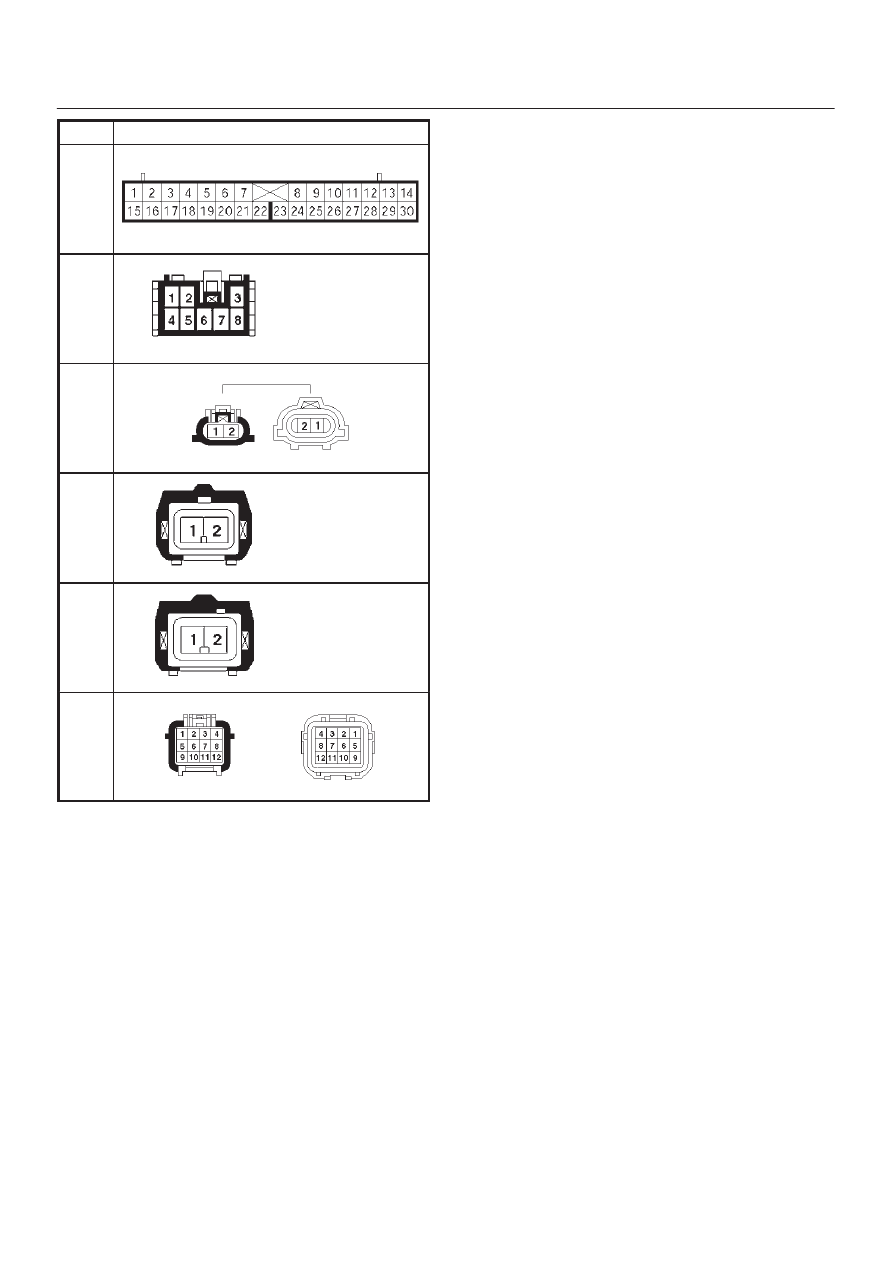

No.

Connector face

B-13

B-48

B-49

C-16

C-63

C-94

E-29

E-54

H-7

No.

Connector face

H-8

H-10

H-12

H-17

H-25

H-33

H-36

H-55

H-57

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–22

No.

Connector face

I-9

I-12

M-22

M-23

M-24

M-27

4B2–23

DRIVE LINE CONTROL SYSTEM (TOD)

Checking Failed Pin

Connector Pin Assignment

D

ECU pin assignment

D04RY00011

No.

NAME

CONTENTS

1

N.C

Not used

2

N.C

Not used

3

N.C

Not used

4

D–G MAP

Gas/Diesel

5

N.C

Not used

6

IND. b

Display Front–B

7

N.C

Not used

8

IND. Rr

Display Rear–E

9

N.C

Not used

10

N.C

Not used

11

SOL (+)

EMC

12

Ref

Speed Reference

13

COM (–)

Speed Return

14

VIG

Ignition

15

TPS

TPS (PWM)

16

TECH 2

TECH–2

17

IND. a

Display Front–A

18

IND. c

Display Front–C

19

IND. AUTO

Display Auto–D

20

CHECK

Check T/F

21

N.C

Not used

22

P–GND

Power Ground

23

ADC (+)

Axle Disconnect Output

24

N.C

Not used

25

N.C

Not used
