DRIVE LINE CONTROL SYSTEM (TOD)

4B2–16

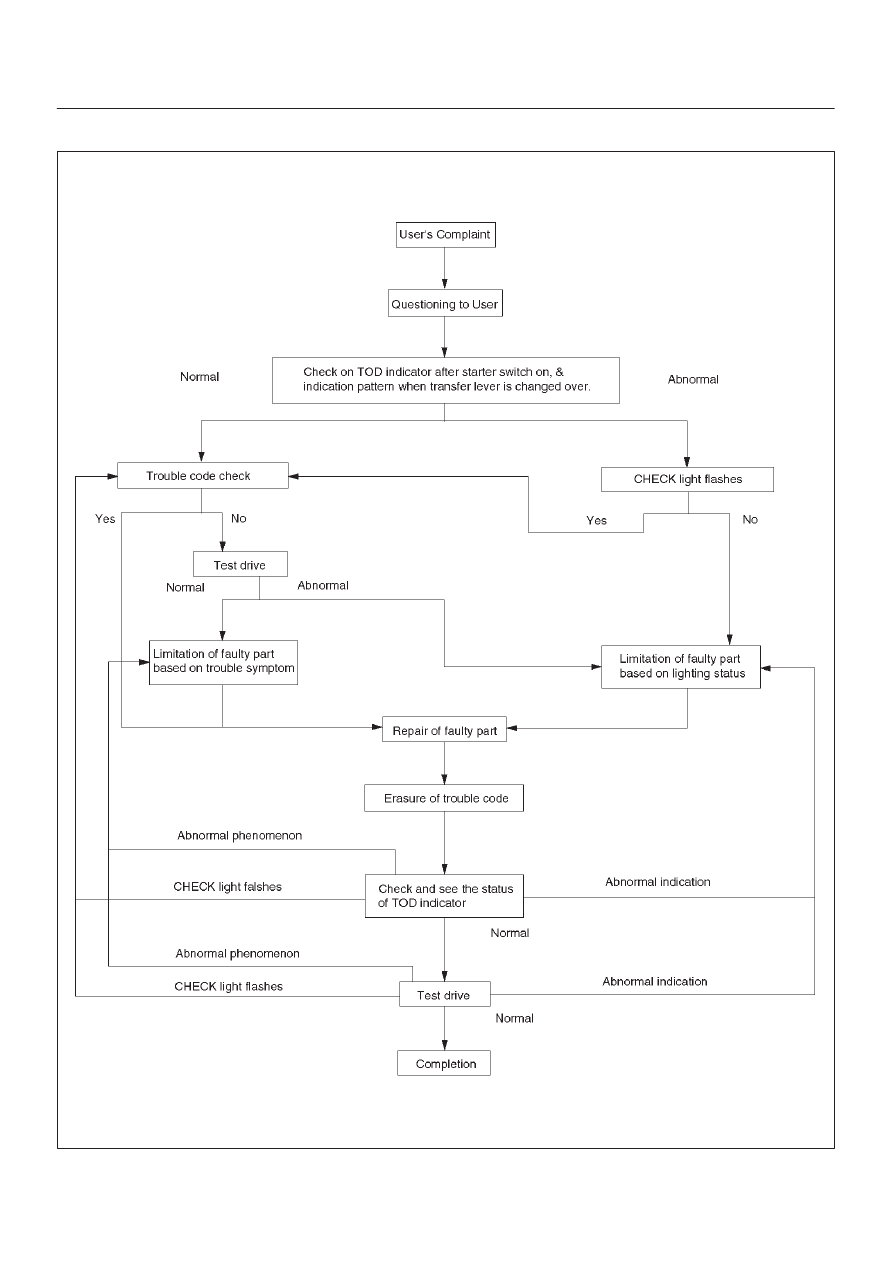

Basic Diagnostic Flow Chart

C07RW023–1

4B2–17

DRIVE LINE CONTROL SYSTEM (TOD)

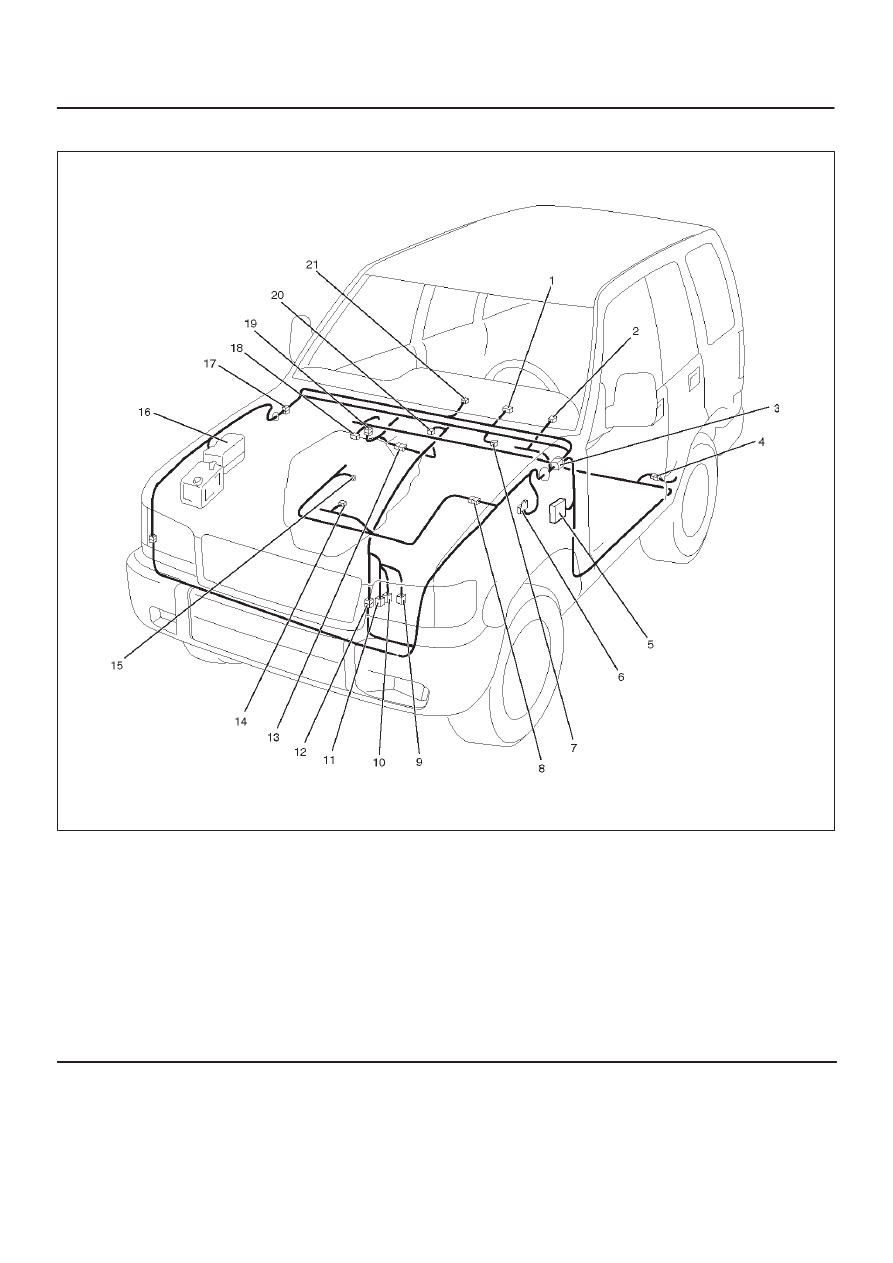

Parts Location

D08RW367

Legend

(1) I–9
(2) C–63
(3) H–7, H–8, H–25
(4) H–33
(5) Fuse Box
(6) C–16
(7) B–13
(8) H–55, H–57
(9) M–22

(10) M–23

(11) M–24

(12) H–10
(13) H–17
(14) E–54
(15) E–29
(16) Relay & Fuse Box
(17) H–12
(18) B–48, B–49
(19) H–33, H–36
(20) M–27
(21) I–12

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–18

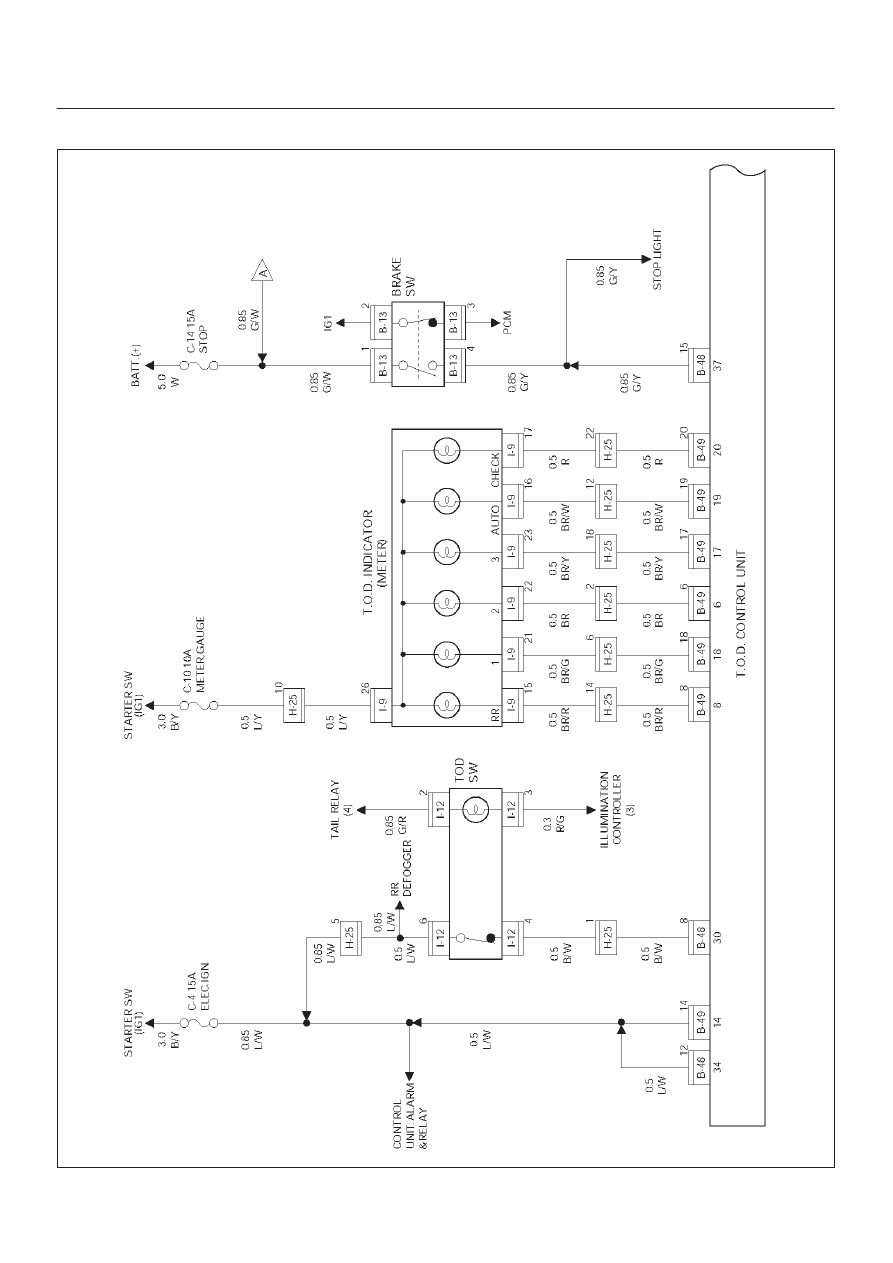

Circuit Diagram

D04RY00003

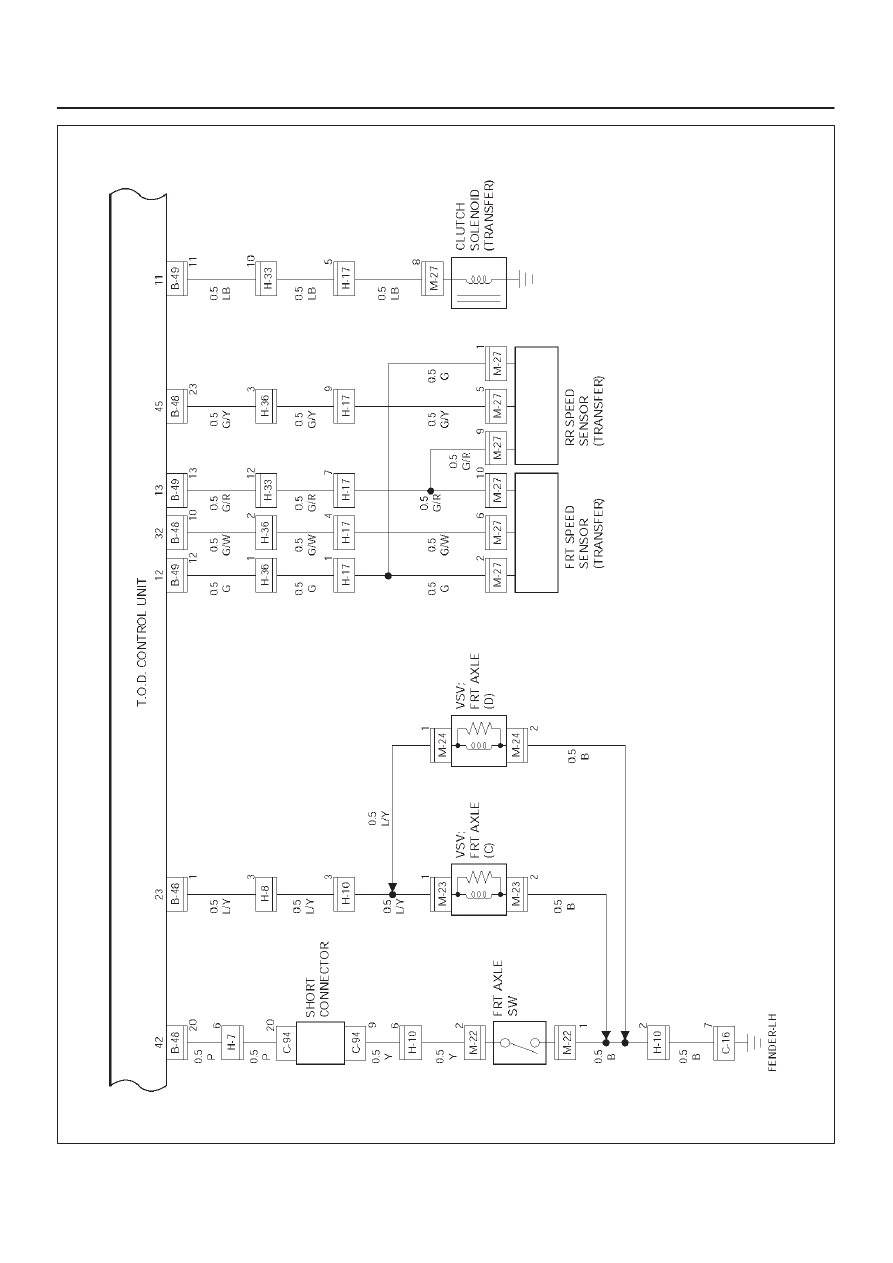

4B2–19

DRIVE LINE CONTROL SYSTEM (TOD)

D04RY00002
