3D–6

REAR SUSPENSION

Trailing Link

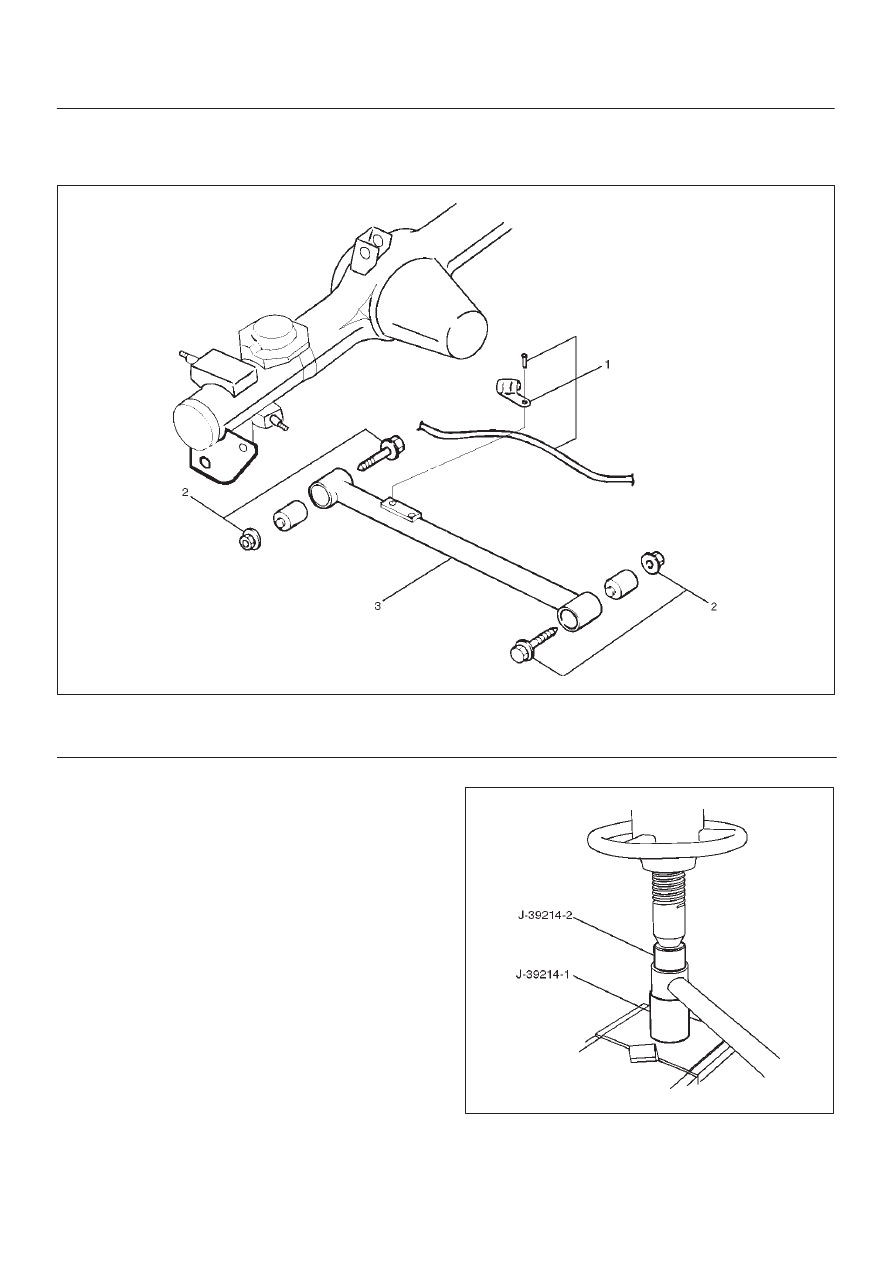

Trailing Link and Associated Parts

460RW017

Legend

(1) Parking Brake Cable

(2) Bolt and Nut
(3) Trailing Link

Removal

1. Remove the parking brake cable from the trailing link.
2. Remove the trailing link fixing bolt and nut.
3. Remove trailing link.

Inspection and Repair

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal conditions are
found through inspection.

1. Trailing link
2. Rubber bushing

D

Remove the rubber bushing by using remover
J–39214.

901RW058

3D–7

REAR SUSPENSION

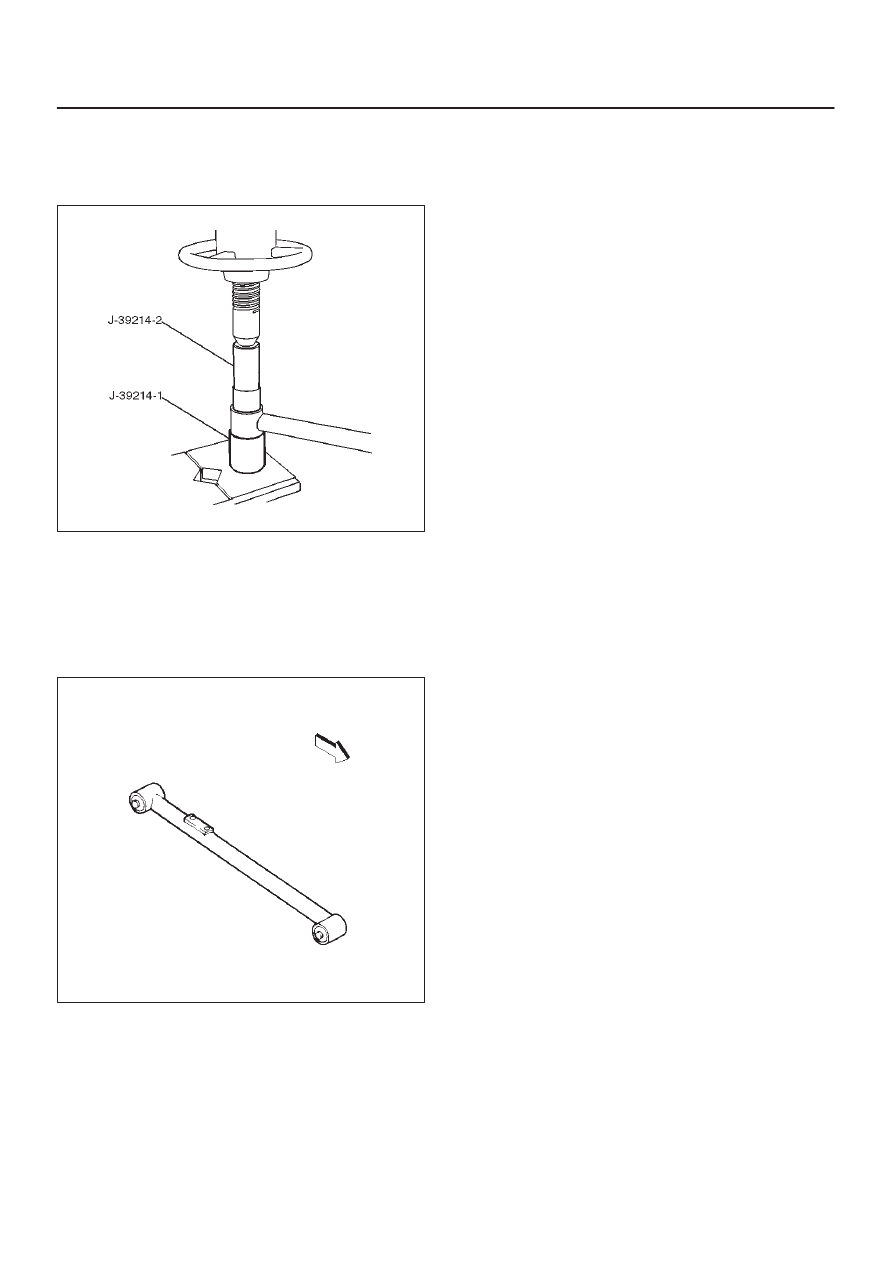

D

Install the rubber bushing by using installer
J–39214.

NOTE: When mounting rubber bushings, be sure not to
use grease on bushings or any other nearby part.

901RW059

Installation

1. Install trailing link. Make sure that the trailing link is in

its correct position.

NOTE: When mounting trailing link, be sure not to use
grease on bushings or any other nearby part.

460RS008

2. Install bolt and nut. Tighten the bolts and nuts lightly,

then retighten them to the specified torque after the
vehicle is at curb height.

Torque: 137 N·m (101 lb ft)

3. Install parking brake cable.

CAUTION: The parking brake cable should not be
overstrained or slackened.

3D–8

REAR SUSPENSION

Center Link

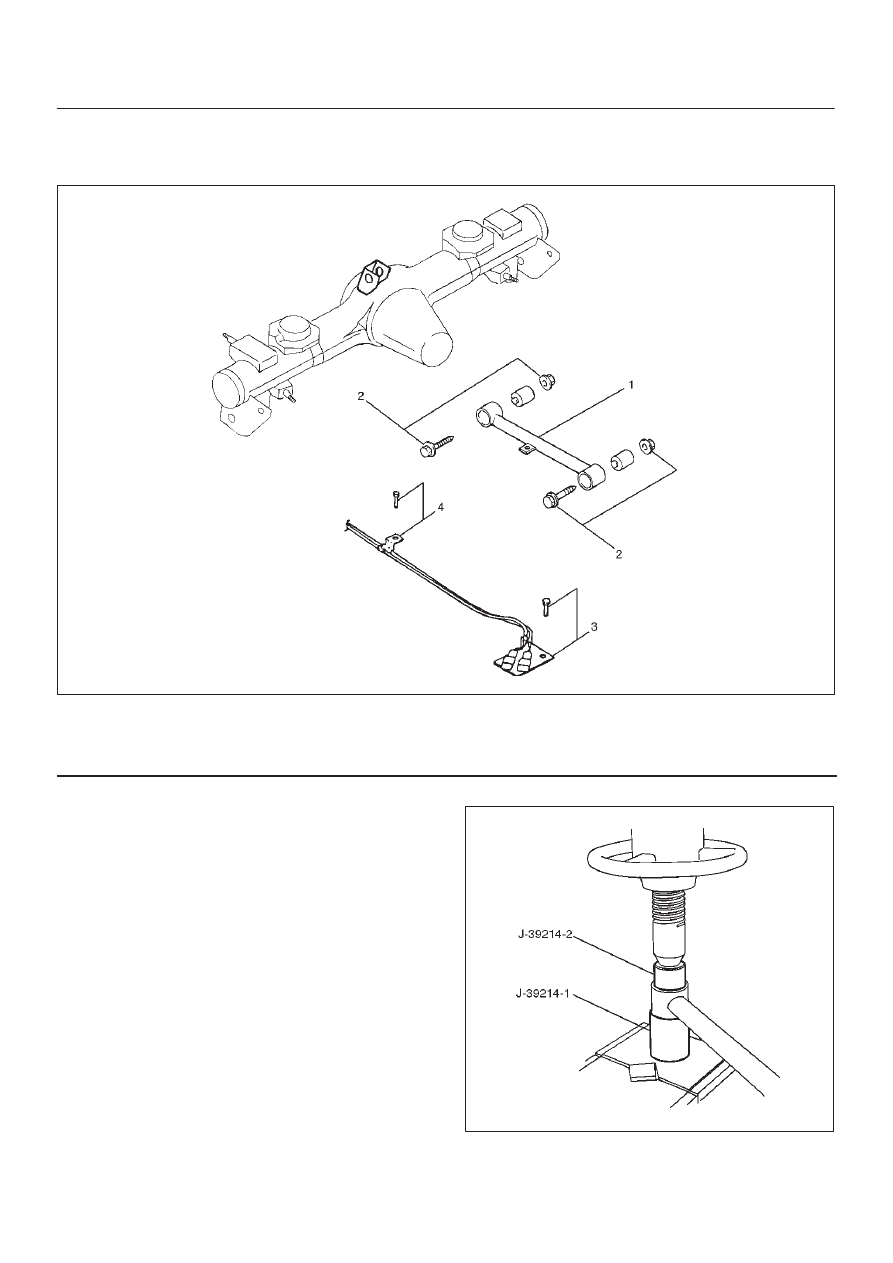

Center Link and Associated Parts

460RX001

Legend

(1) Center Link
(2) Bolt and Nut

(3) Speed Sensor Cable Bracket
(4) Speed Sensor Cable

Removal

1. Remove the speed sensor cable from the center link.
2. Remove the speed sensor cable bracket from the

frame.

3. Remove bolt and nut.
4. Remove center link.

Inspection and Repair

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal conditions are
found through inspection.

1. Center link
2. Rubber bushing

D

Remove the rubber bushing by using remover
J–39214.

901RW058

3D–9

REAR SUSPENSION

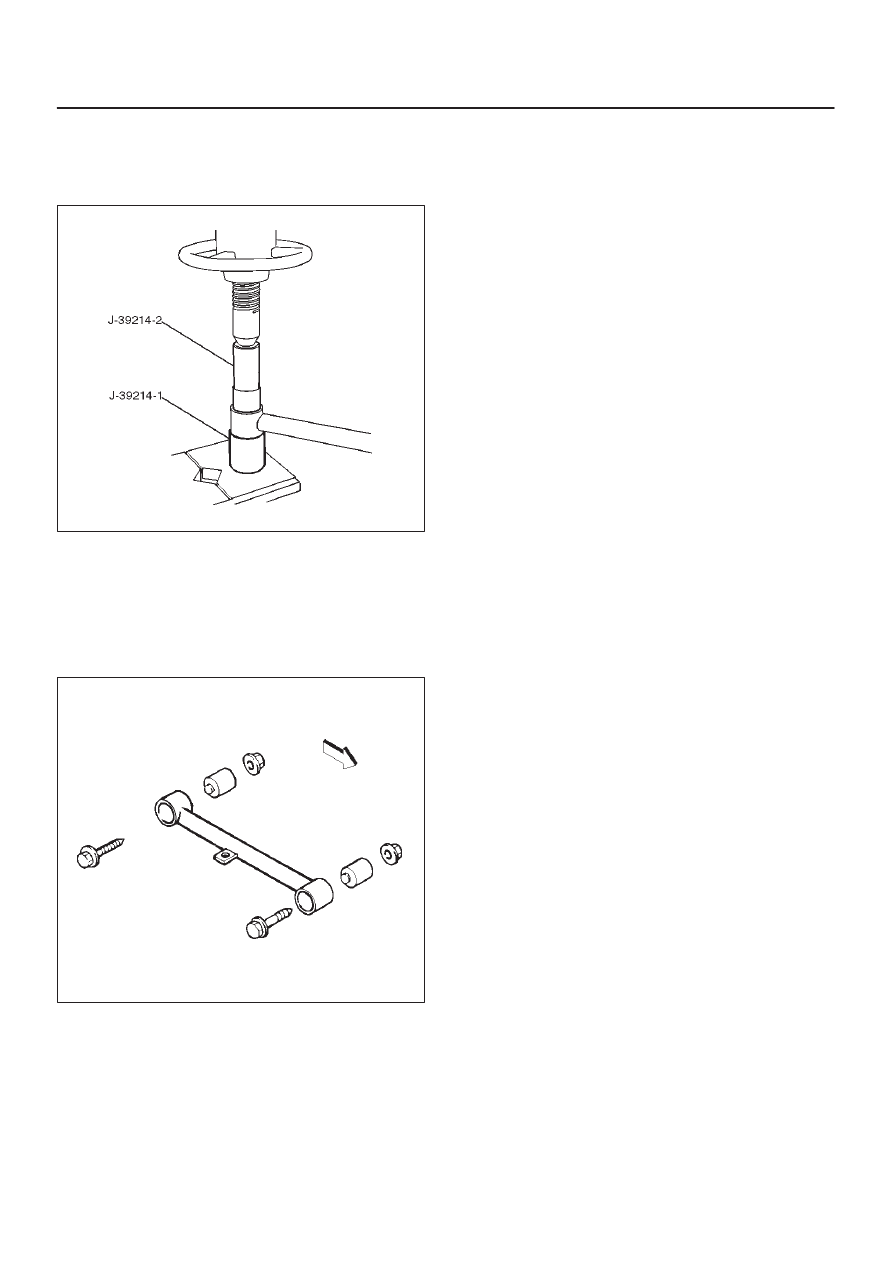

D

Install the rubber bushing by using to installer
J–39214.

NOTE: When mounting rubber bushings, be sure not to
use grease on bushings or any other nearby part.

901RW059

Installation

1. Install center link.  Make sure that the center link is in

its correct position.

NOTE: When mounting center link, be sure not to use
grease bushings or any other nearby part.

460RS010

2. Install bolt and nut.  Tighten the bolts and nuts lightly,

then retighten them to the specified torque after the
vehicle is at curb height.

Torque: 137 N·m (101 lb ft)

3. Install speed sensor cable bracket.
4. Install speed sensor cable.
