8F–5

BODY STRUCTURE

Removal

1. Disconnect the battery ground cable.

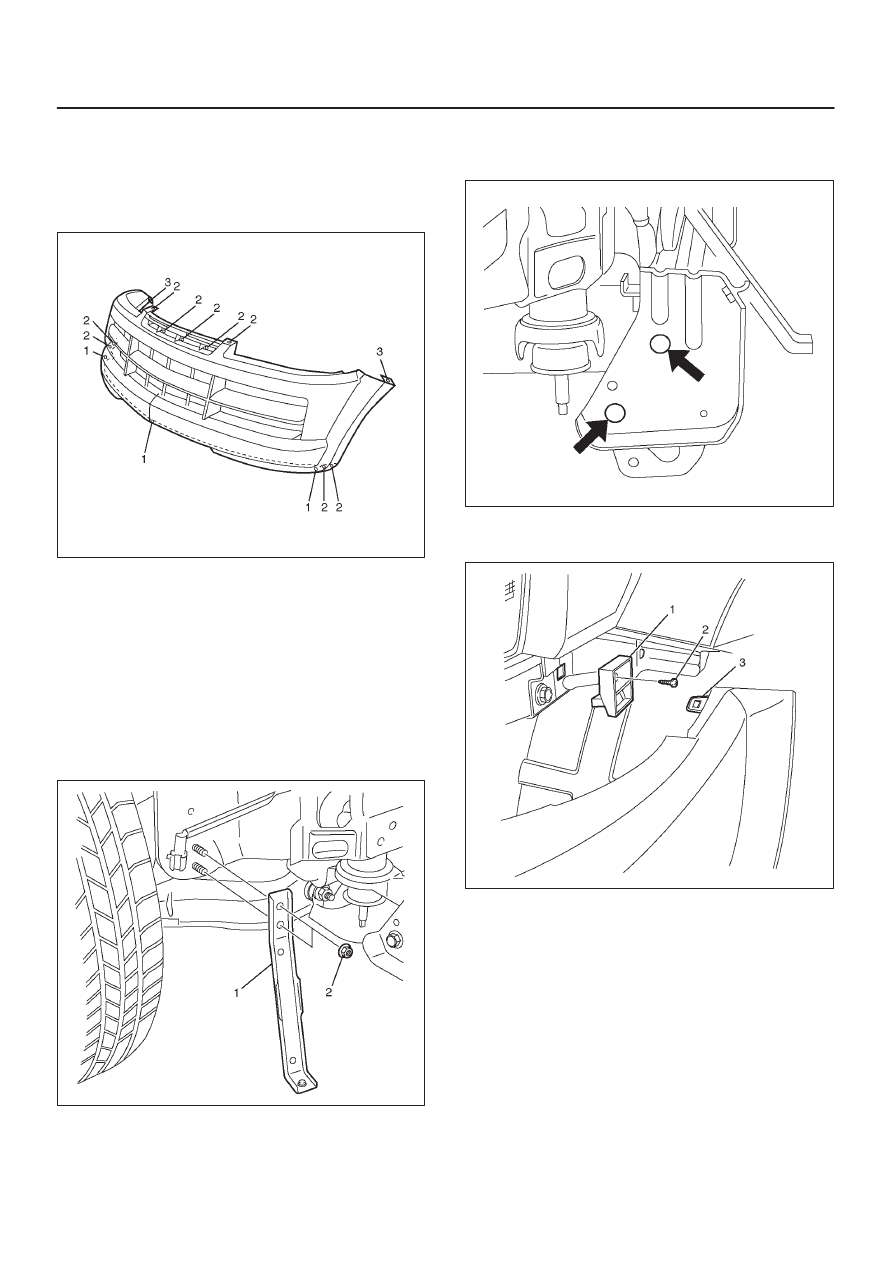

2. Remove the front bumper fascia.

D

Remove the nine clips (2), the three bolts (1) and
two screws (3).

601R200012

3. Remove the front bumper center retainer.

D

Remove the two nuts and the bolt.

4. Remove the front bumper sides’s retainers.

D

Remove the four nuts and the bolt from both sides.

5. Remove the front bumper reinforcement assembly.

D

Remove the four bolts.

6. Remove the front bumper center bracket.

D

Remove the two bolts.

7. Remove the front bumper sides’s brackets (1).

D

Remove the two nuts (2) from both sides.

601R200005

8. Remove the front bumper back bar assembly.

D

Remove the two bolts from both sides of the front
bumper.

601R200004

9. Remove the front bumper mounting (1).

D

Remove the screw (2) from both sides.

601R200006

8F–6

BODY STRUCTURE

Installation

To install, follow the removal steps in reverse order noting
the following points:

1. Tight the front bumper back bar assembly fixing bolts

to the specified torque.

Torque : 147 N·m (108 lb ft)

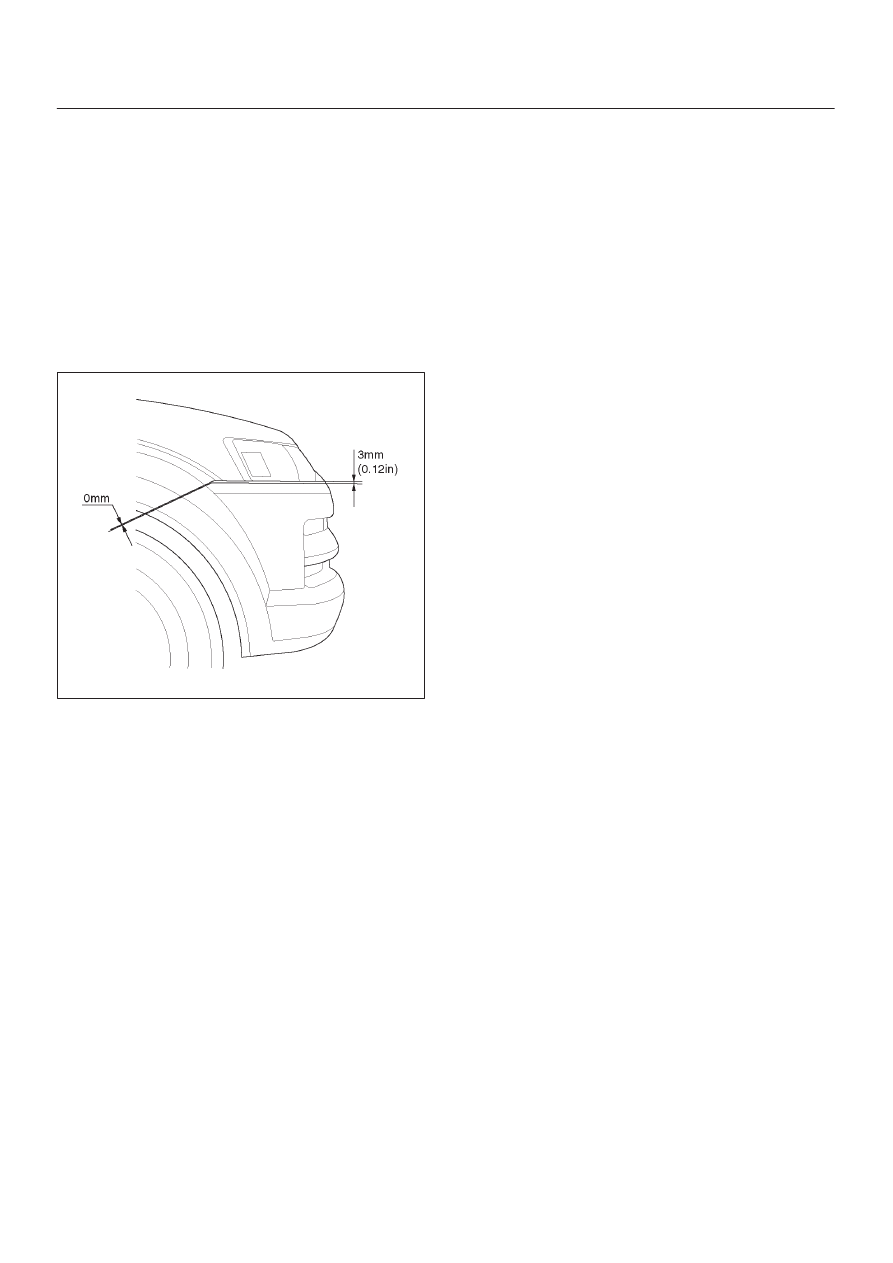

2. Front bumper adjustment.

D

When the bolts fixing front bumper assembly are
tightened, adjustment should be made between the
back bar and front side bumper so that there is a
clearance of 3 mm (0.12 in) between the top of the
bumper and the fender. The angled portion of the
bumper must be flush with the fender.

601R200001

8F–7

BODY STRUCTURE

Rear Bumper

Parts Location

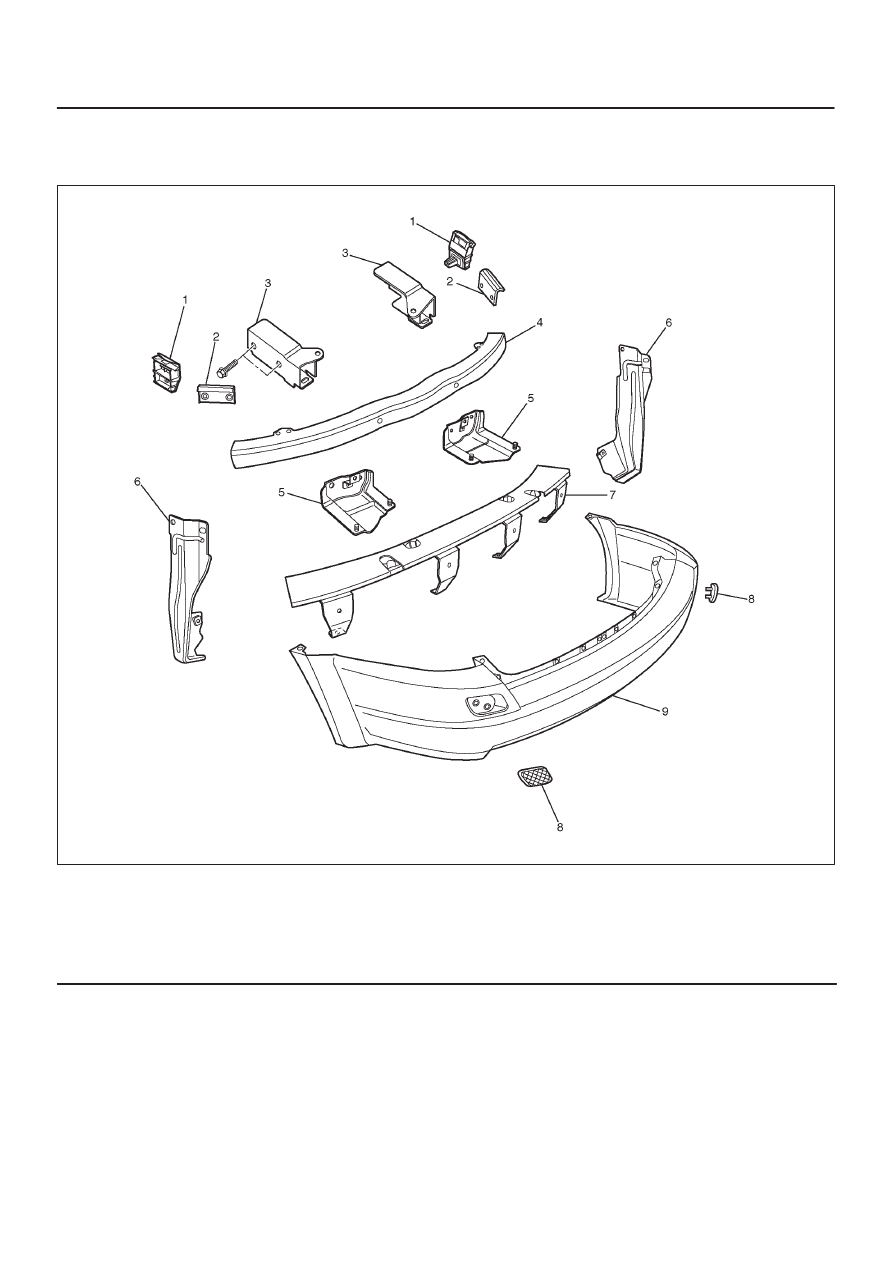

601R200002

Legend

(1) Rear Bumper Mounting
(2) Rear Bumper Side Bracket
(3) Rear Bumper Back Bar Assembly
(4) Rear Bumper Reinforcement Assembly

(5) Rear Bumper Retainer Bracket Assembly
(6) Rear Bumper Support Assembly
(7) Rear Bumper Retainer Assembly
(8) Rear Reflector Assembly
(9) Rear Bumper Fascia

8F–8

BODY STRUCTURE

Removal

1. Disconnect the battery ground cable.
2. Remove the rear bumper fascia.

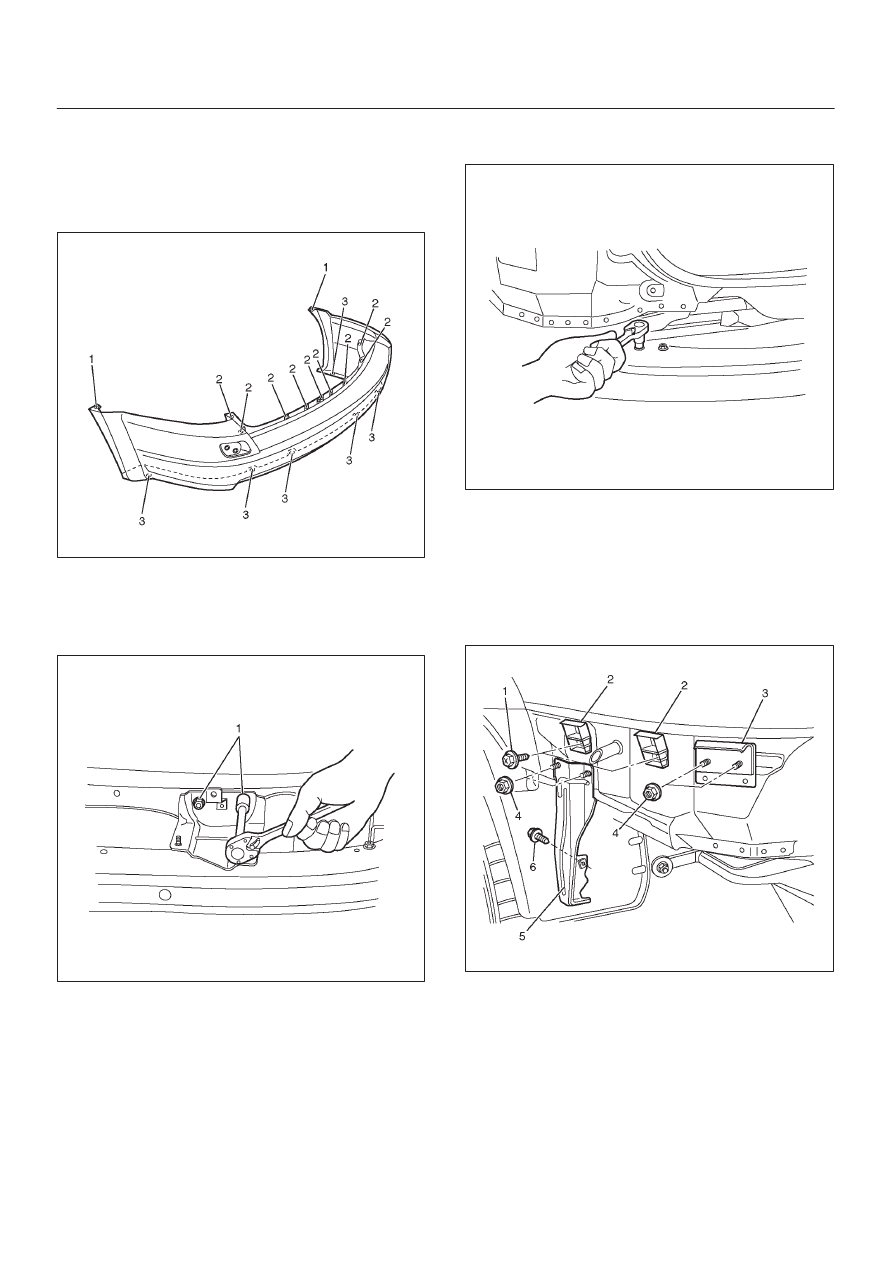

D

Remove the two screws (1), six bolts (3) and nine
clips (2).

601R200010

3. Remove the rear bumper retainer assembly.

D

Remove the four nuts.

4. Remove the rear bumper retainer bracket assembly.

D

Remove the two nuts (1) from both sides.

690R200004

5. Remove the rear bumper reinforcement assembly.

D

Remove the six bolts.

690R200005

6. Remove the rear bumper support assembly (5).

D

Remove the two nuts (4) and the screw (6) from
both sides.

7. Remove the rear bumper side bracket (3).

D

Remove the two nuts (4) from both sides.

8. Remove the rear bumper mounting (2).

D

Remove the screw (1) from each sides.

690R200009
