ENTERTAINMENT

8C–1

AXIOM

BODY AND ACCESSORIES

ENTERTAINMENT

CONTENTS

Service Precaution

8C–1

. . . . . . . . . . . . . . . . . . . . . .

Cigarette Lighter

8C–2

. . . . . . . . . . . . . . . . . . . . . . . .

General Description

8C–2

. . . . . . . . . . . . . . . . . . . . .

Removal

8C–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rod Type Antenna

8C–3

. . . . . . . . . . . . . . . . . . . . . .

Removal

8C–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Accessory Socket

8C–4

. . . . . . . . . . . . . . . . . . . . . . .

Front Accessory Socket

8C–4

. . . . . . . . . . . . . . . .

Removal

8C–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Accessory Socket

8C–4

. . . . . . . . . . . . . . . .

Removal

8C–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Audio

8C–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Speaker

8C–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Speaker

8C–6

. . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Tweeter Assembly

8C–6

. . . . . . . . . . . . . . . .

Removal

8C–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Door Speaker

8C–6

. . . . . . . . . . . . . . . . . . . .

Removal

8C–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Tweeter Assembly

8C–7

. . . . . . . . . . . . . . . .

Removal

8C–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Horn

8C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Display (MID)

8C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

MID Control Unit

8C–9

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

GPS Control Unit

8C–10

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Self-Diagnosis

8C–11

. . . . . . . . . . . . . . . . . . . . . . . . . .

Self-Diagnosis Flow Chart–1

8C–11

. . . . . . . . . . . .

Self-Diagnosis Flow Chart–2 (Audio)

8C–12

. . . . .

Self-Diagnosis Flow Chart–3 (Display)

8C–13

. . .

Self-Diagnosis Flow Chart–4 (MID)

8C–14

. . . . . .

Audio Self-Diagnosis

8C–15

. . . . . . . . . . . . . . . . . . .

Display Self-Diagnosis

8C–16

. . . . . . . . . . . . . . . . .

MID Self-Diagnosis

8C–17

. . . . . . . . . . . . . . . . . . . .

Symptom Diagnosis

8C–18

. . . . . . . . . . . . . . . . . . . . .

MID Not Appears

8C–18

. . . . . . . . . . . . . . . . . . . . . .

No COMPASS, CLOCK, FUEL
 CONSUMPTION, or SERVICE Display

8C–19

. .

No COMPASS Display

8C–20

. . . . . . . . . . . . . . . . .

No SERVICE Display

8C–20

. . . . . . . . . . . . . . . . . .

Other Trouble Symptom

8C–21

. . . . . . . . . . . . . . . .

MID Circuit

8C–22

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Harness Connector Faces

8C–23

. . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.

ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

SECTION

8C–2

ENTERTAINMENT

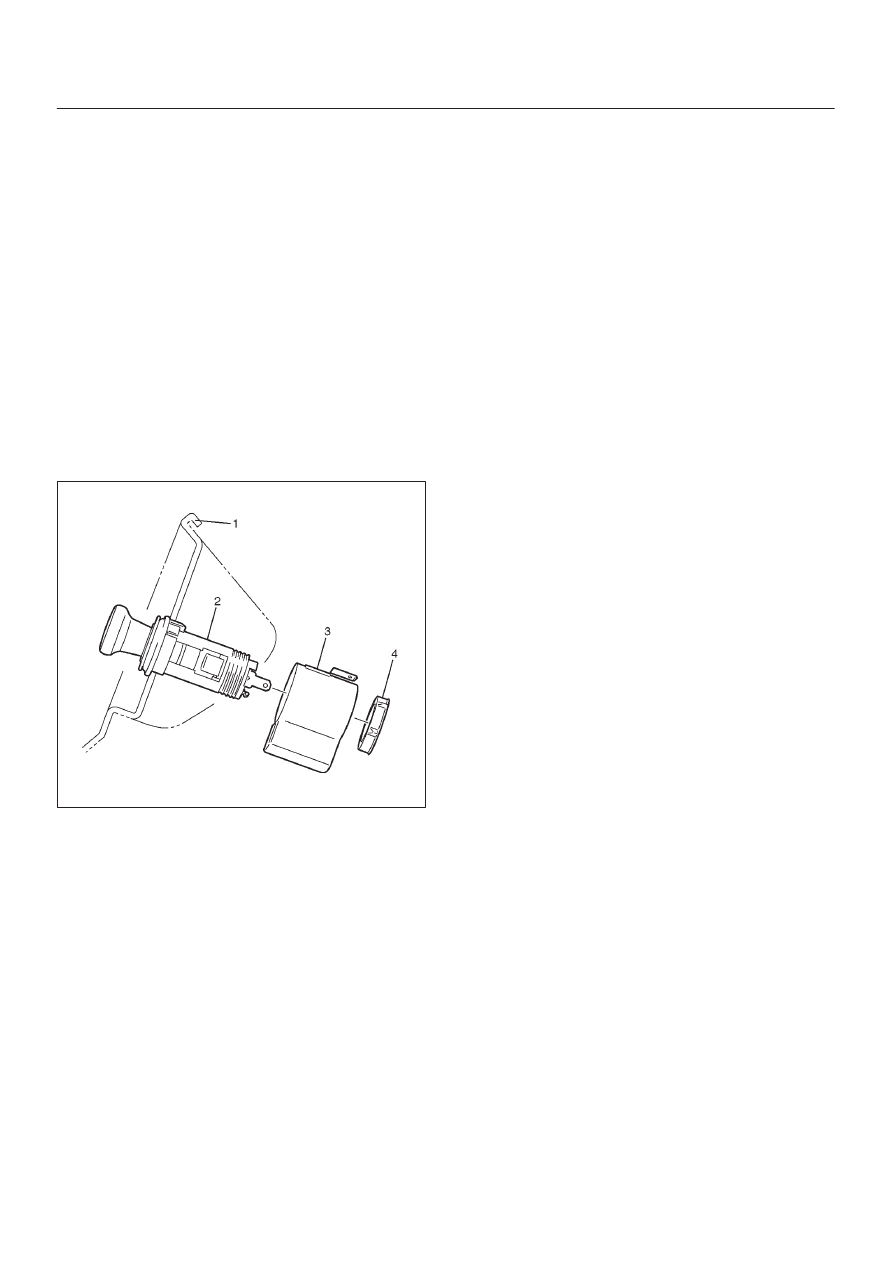

Cigarette Lighter

General Description

When the cigarette lighter is pushed in with the starter
switch at either “ACC” or “ON” position, a circuit is formed
in the cigarette lighter case to heat the lighter coil.
The cigarette lighter springs back to its original position
after the lighter coil is heated.

Removal

1. Disconnect the battery ground cable.
2. Remove the center cluster assembly (1).

D

Refer to

Instrument Panel Assembly in Body

Structure section.

3. Remove the cigarette lighter assembly (2).

D

Disconnect the connectors.

D

Remove the socket (3) and nut (4).

826R200012

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. When installing the bezel, align the projected portion

of the socket with the notch of the bezel.

ENTERTAINMENT

8C–3

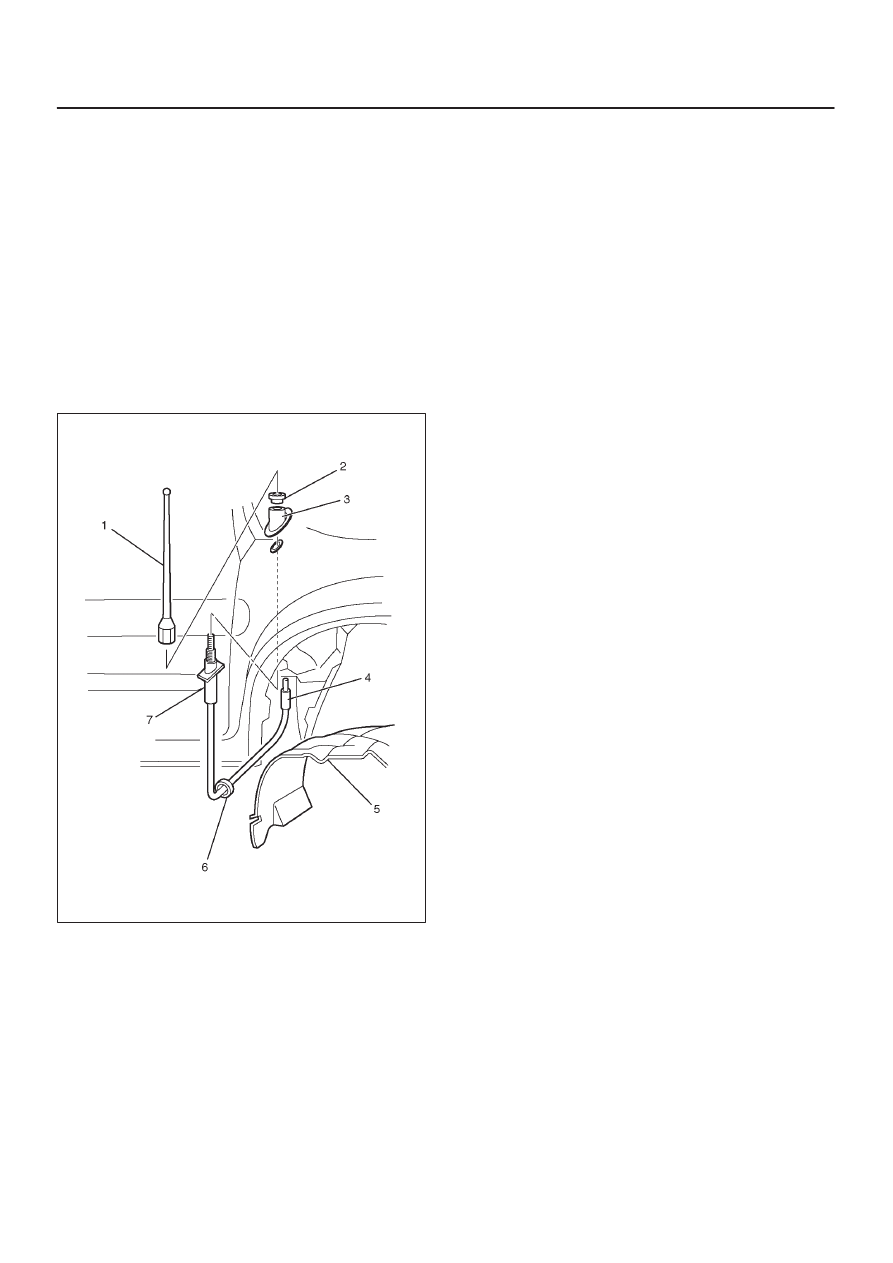

Rod Type Antenna

Removal

1. Disconnect the battery ground cable.
2. Turn the antenna rod (1) counterclockwise to remove

it.

3. Remove three screws and nine clips to remove the

fender inner liner (5).

4. Disconnect the feeder cable connector (4) at the

inside of the vehicle.

5. Turning the lock nut (2) counterclockwise removes it

together with the base mold (3).

6. Pull down and remove the housing (7) from the panel.
7. Pull and remove the cable with the grommet (6).

890R200040

Installation

To install, follow the removal steps in the reverse order.

8C–4

ENTERTAINMENT

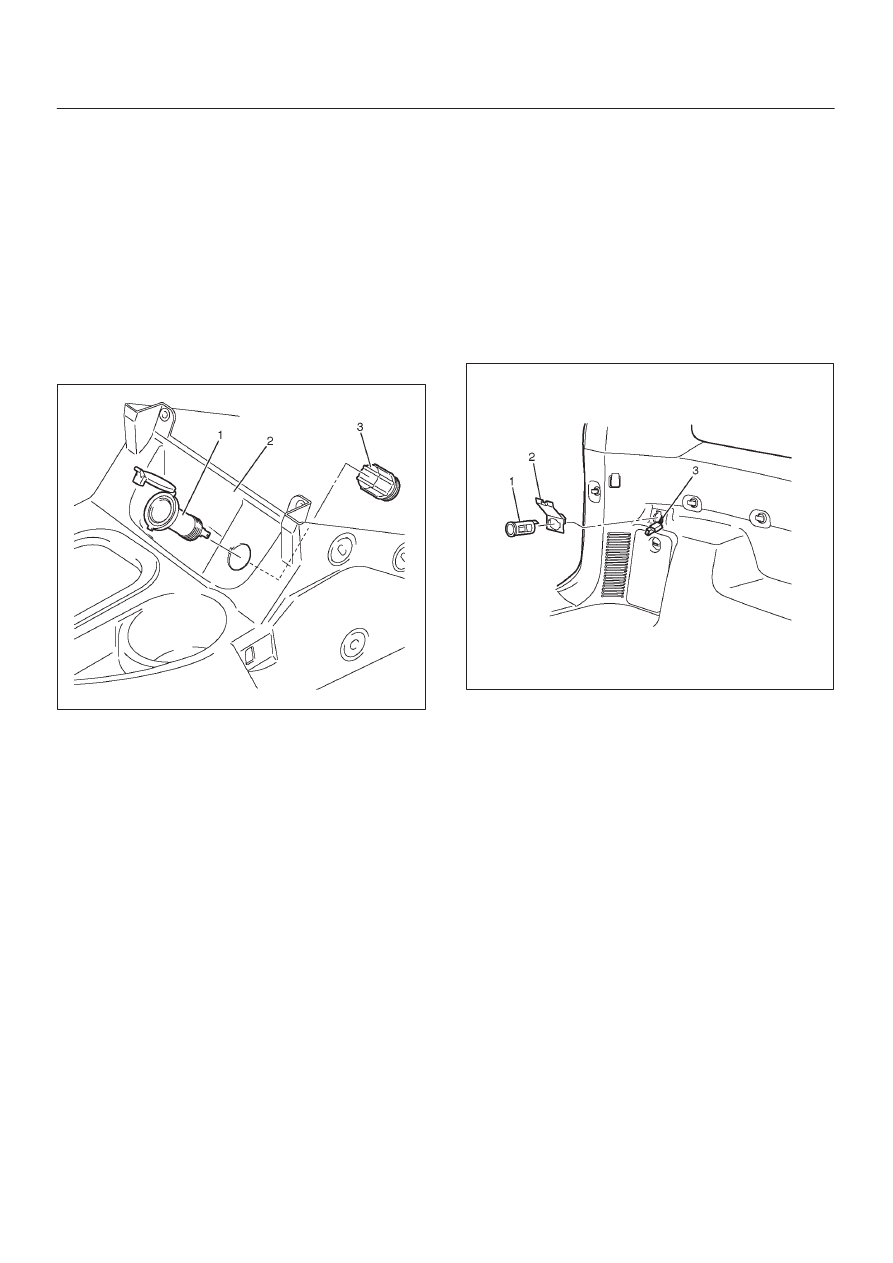

Accessory Socket

Front Accessory Socket

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly (2).

D

Refer to

Instrument Panel Assembly in Body

Structure section.

3. Remove the front accessory socket (1).

D

Disconnect the connectors.

D

Remove the holdernut (3).

826R200013

Installation

To install, follow the removal steps in the reverse order.

Rear Accessory Socket

Removal

1. Disconnect the battery ground cable.
2. Remove the quarter trim lower cover.
3. Remove the rear accessory socket (1).

D

Disconnect the connectors (3).

D

Pull out the rear accessory socket from the socket
cover (2).

826R200014

Installation

To install, follow the removal steps in the reverse order.
