WIPER/WASHER SYSTEM

8B–11

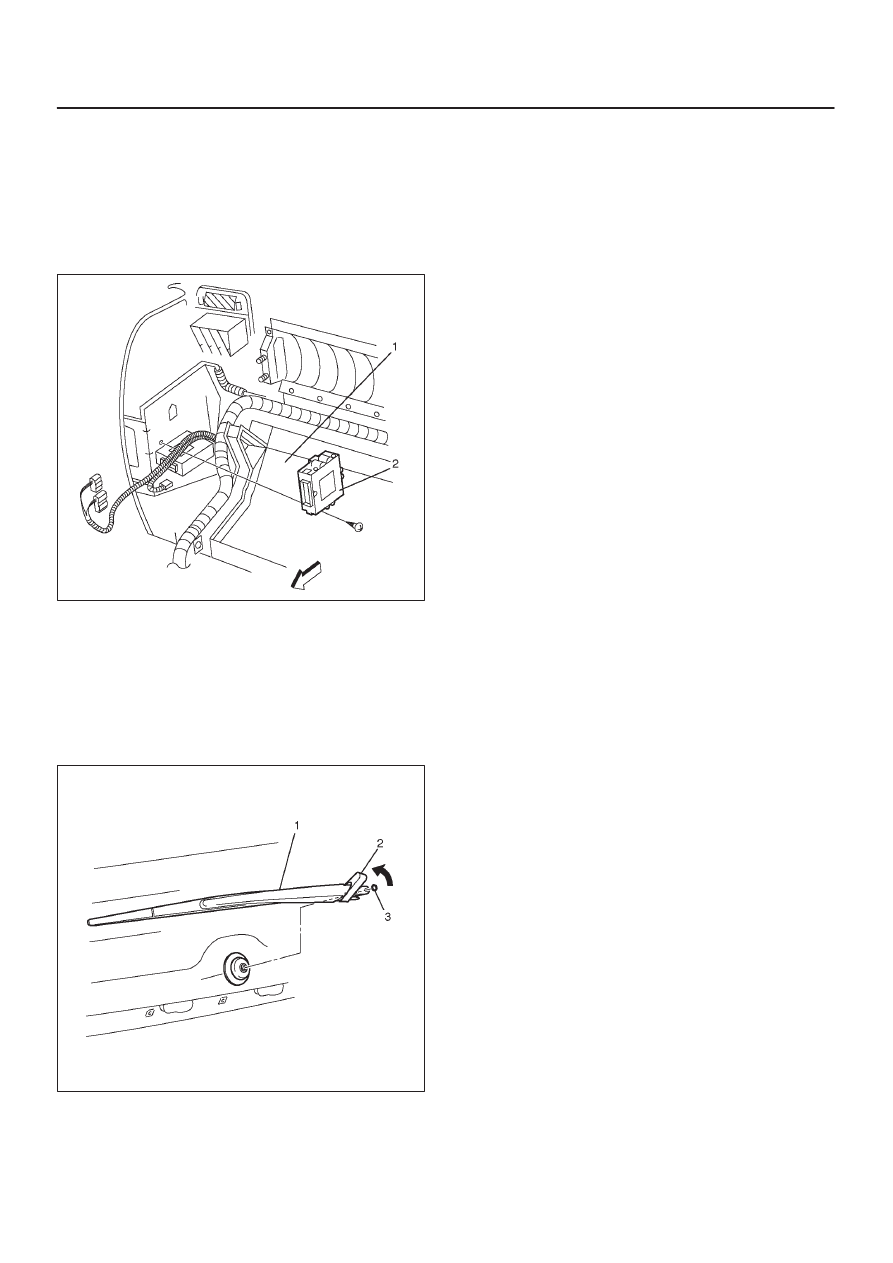

Alarm and Relay Control Unit

Removal

1. Disconnect the battery ground cable.
2. Remove the grove box (1).
3. Remove the alarm and relay control unit (2).

Disconnect the connector.

826R200020

Installation

To install, follow the removal steps in the reverse order.

Rear Wiper Arm/Blade

Removal

1. Open the cap (2).
2. Remove the arm nut (3).
3. Remove the wiper arm/blade (1).

885R200011

Installation

Refer to

Rear Wiper Motor in this section.

8B–12 WIPER/WASHER SYSTEM

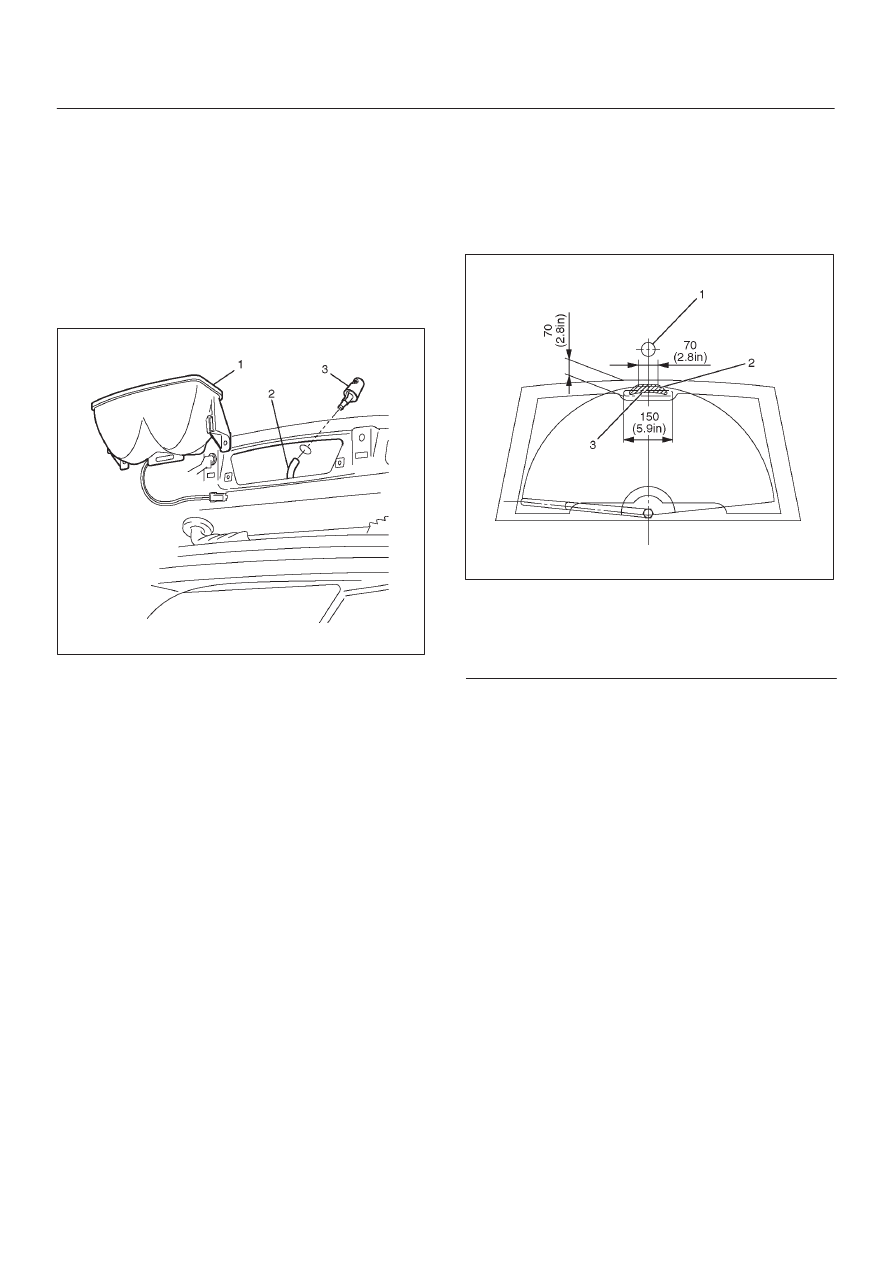

Rear Washer Nozzle

Removal

1. Disconnect the battery ground cable.
2. Remove the high mounted stoplight (1).

D

Refer to

High Mounted Stoplight in Lighting System

section.

3. Remove the washer nozzle(3).

D

Pull out the washer nozzle from the washer hose
(2).

885R200003

Installation

To install, follow the removal steps in the reverse order.

Rear Washer Spray Pattern

885R200006

Legend

(1) Washer Nozzle
(2) Spray Target
(3) High Mounted Stoplight

WIPER/WASHER SYSTEM

8B–13

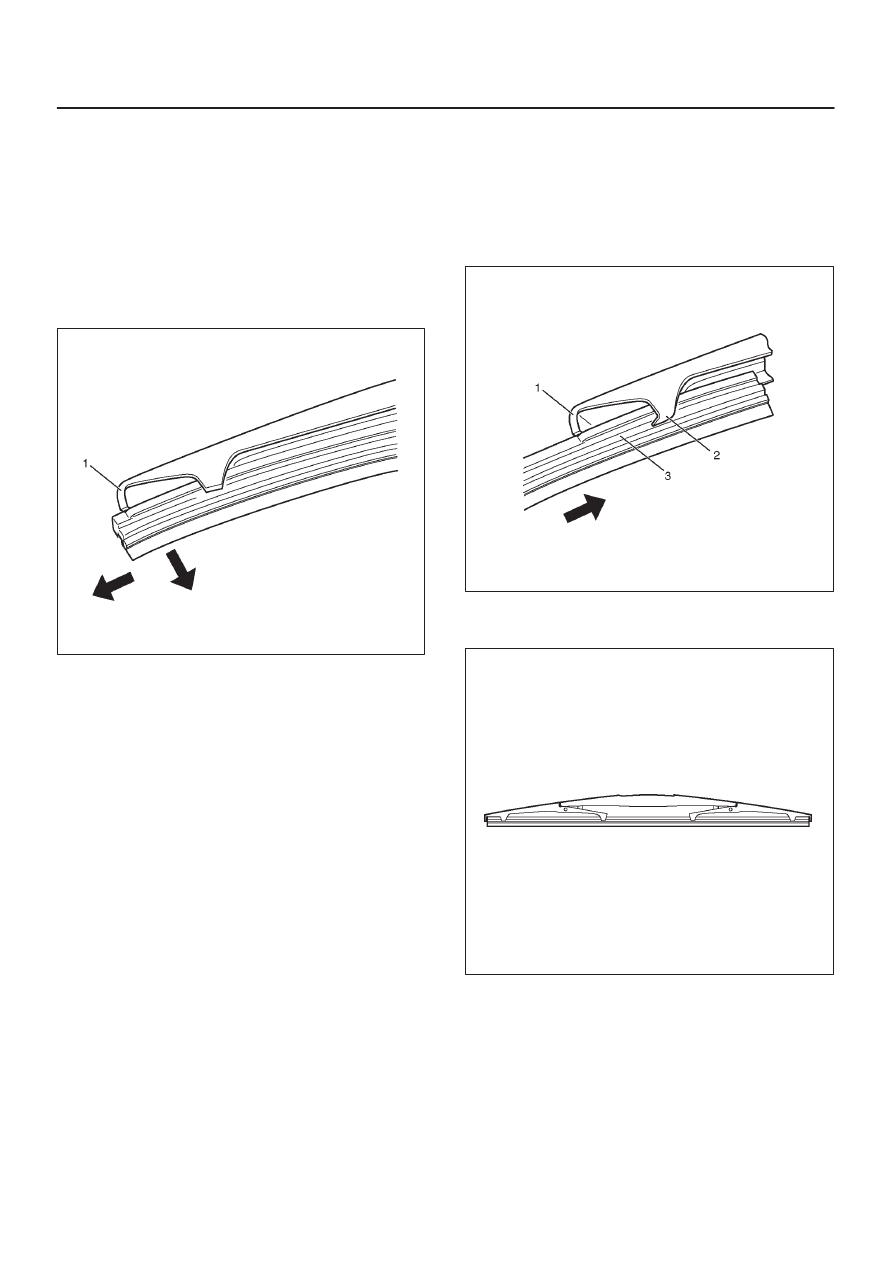

Rear Wiper Blade Rubber

Removal

1. Remove the wiper blade from the wiper arm.
2. Press and hold the wiper rubber under the wiper blade

hook (1).

3. Pull the wiper rubber out from wiper blade.

CAUTION: When the wiper blade has been
removed, wrap the tip of the wiper arm with cloth, to
avoid damaging the glass.

885R200004

Installation

1. Install the wiper blade rubber.

D

Matching the grove of the wiper rubber (3) and the
guide (2) of the wiper blade (1), insert the wiper
rubber to the wiper blade.

885R200009

D

Check that the wiper rubber is set between the right
hook and left hook of the wiper blade.

885R200008

8B–14 WIPER/WASHER SYSTEM

Main Data and Specifications

Torque Specifications

Application

N·m

Lb Ft

Lb In

Windshield Wiper Motor Shaft Nut

14

—

122

Windshield Wiper Arm Nuts

23

17

—

Rear Wiper Motor Shaft Nut

10

—

87

Rear Wiper Arm Nut

9

—

78
