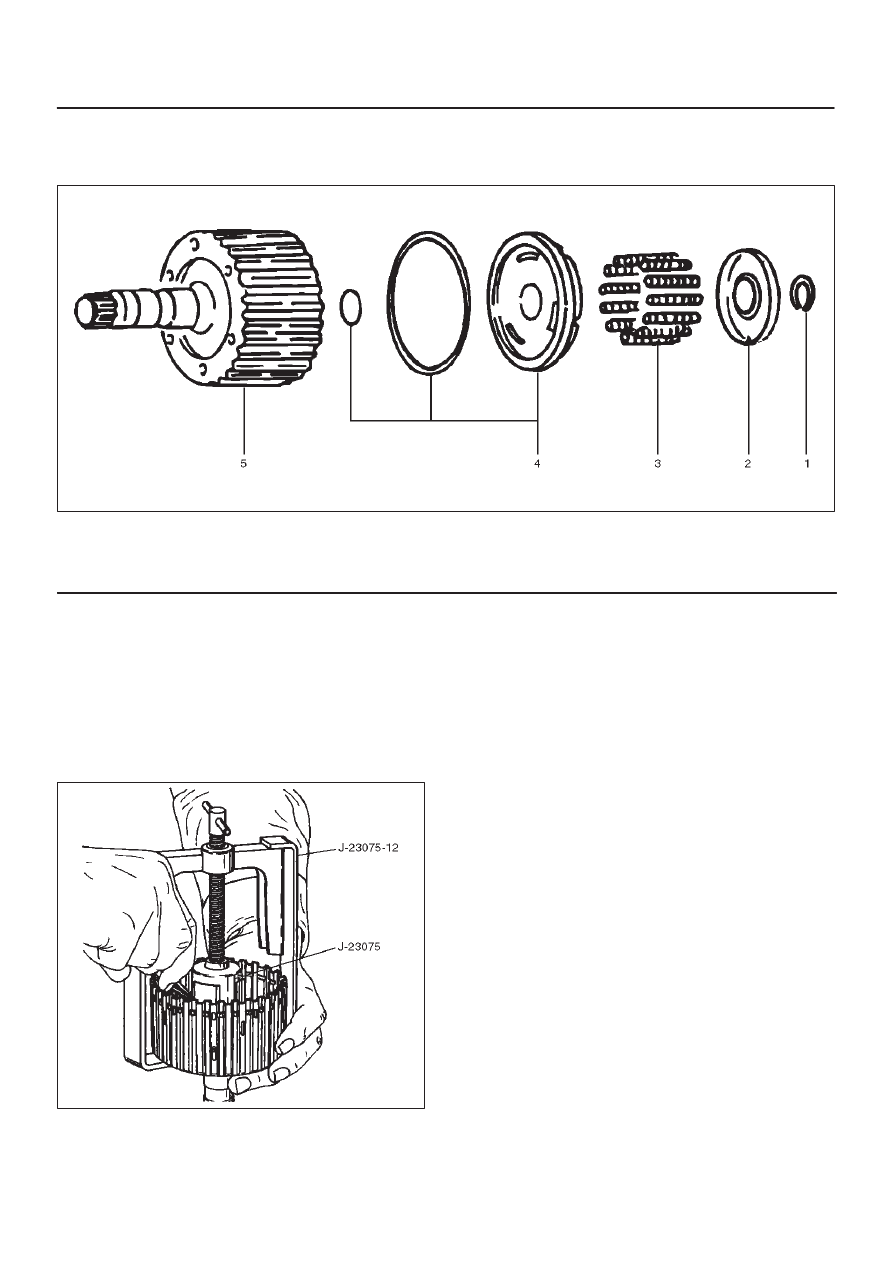

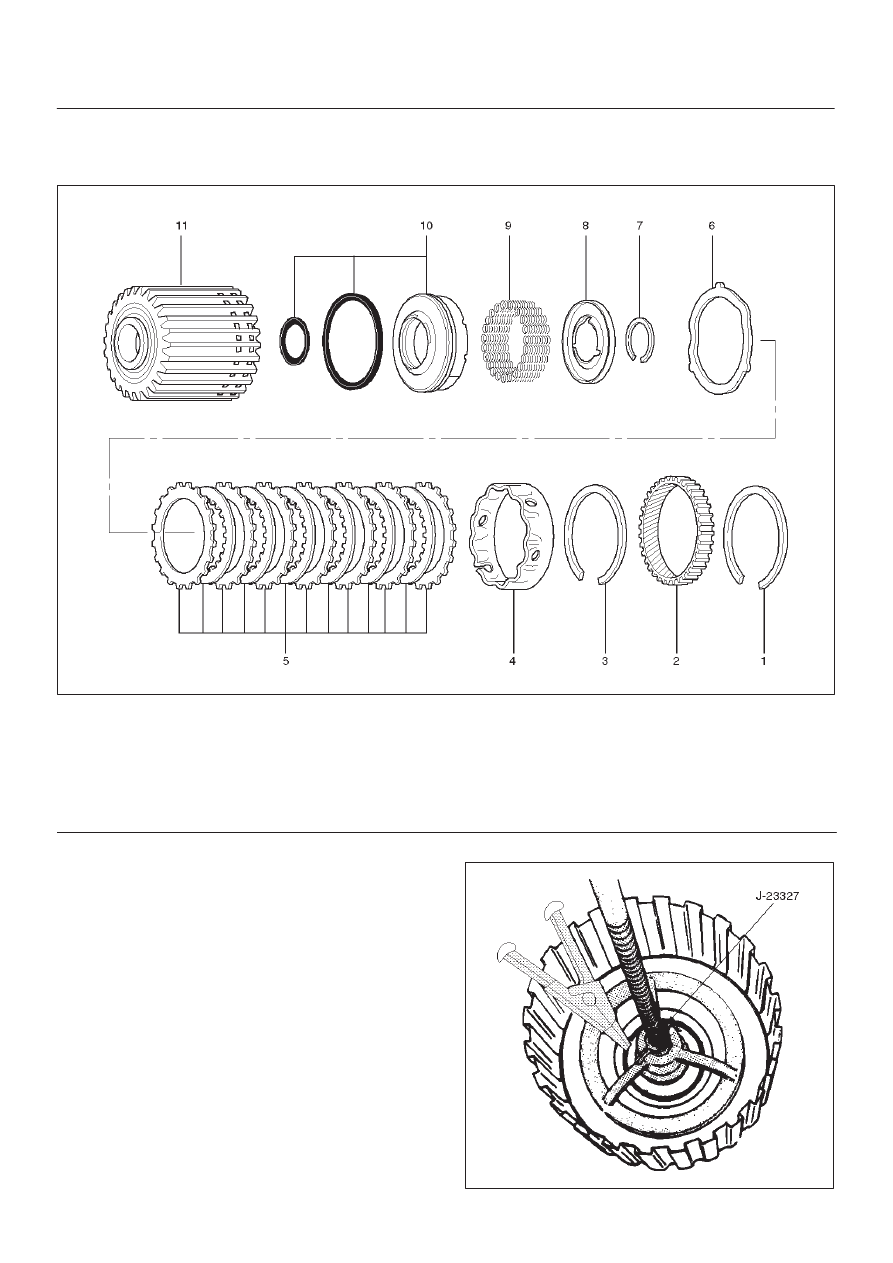

7A–77 AUTOMATIC TRANSMISSION (4L30–E) Third Clutch Disassembled View 248RS006 Legend (1) Retaining Ring (3) Springs Disassemble 1. Compress spring seat using the J–23075 spring compressor and J–23075–12 adapter tool. NOTE: Do not over–stress the springs and seat. This will D Remove the tool. D Remove retaining ring (1). 248RS007 2. Release the spring seat (2). NOTE: Do not let the spring seat catch in the ring groove. D Remove spring seat (2) and springs (3). 3. Remove piston assembly (4) from third clutch drum (5). Inspection And Repair Visual check: If any damage, deformation or wear is found, replace the Operation check: Shake the piston and listen for check ball movement Reassembly 1. The lip of the piston seal must point toward the front of the transmission. Lubricate the seal lip with D Install piston assembly (4) into the third clutch drum D Remove the seal installer. |
