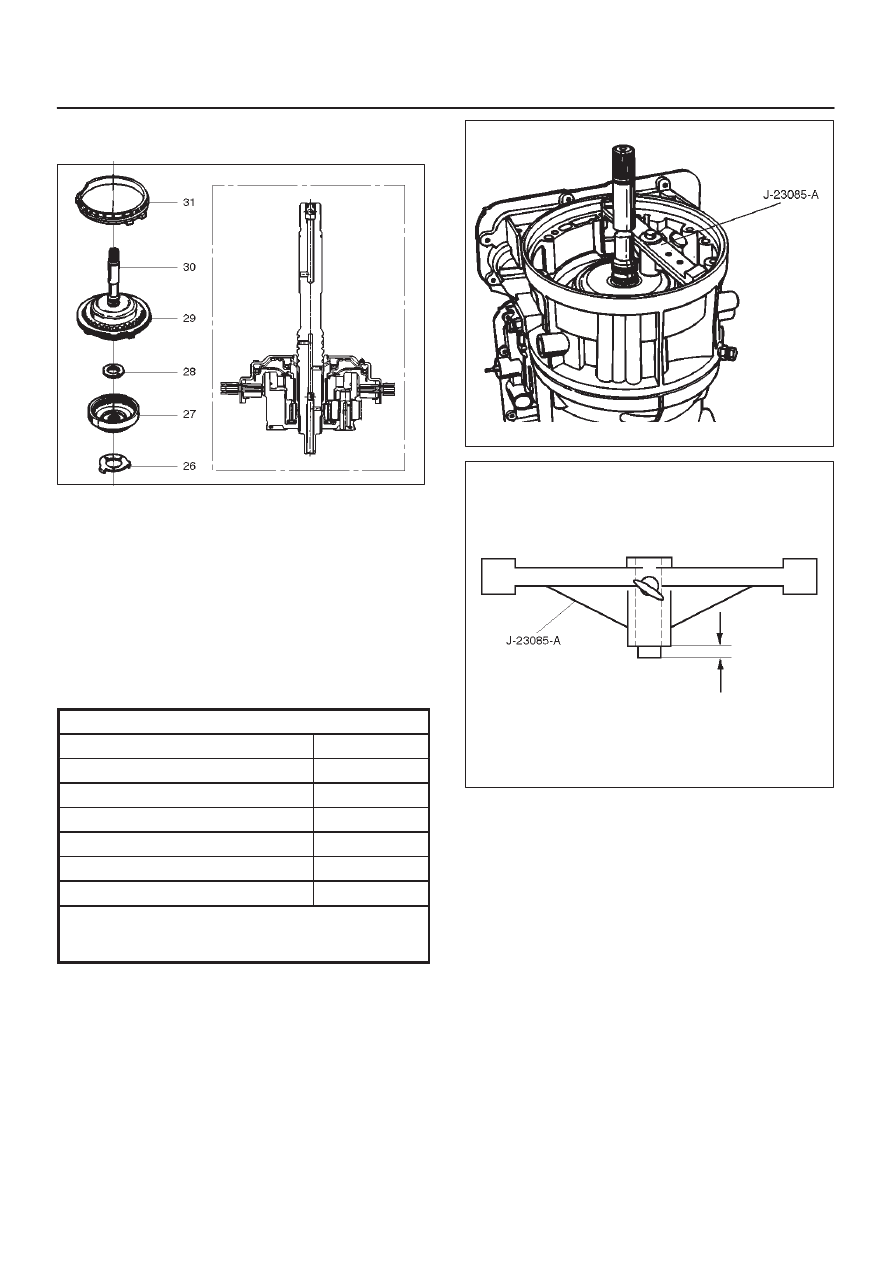

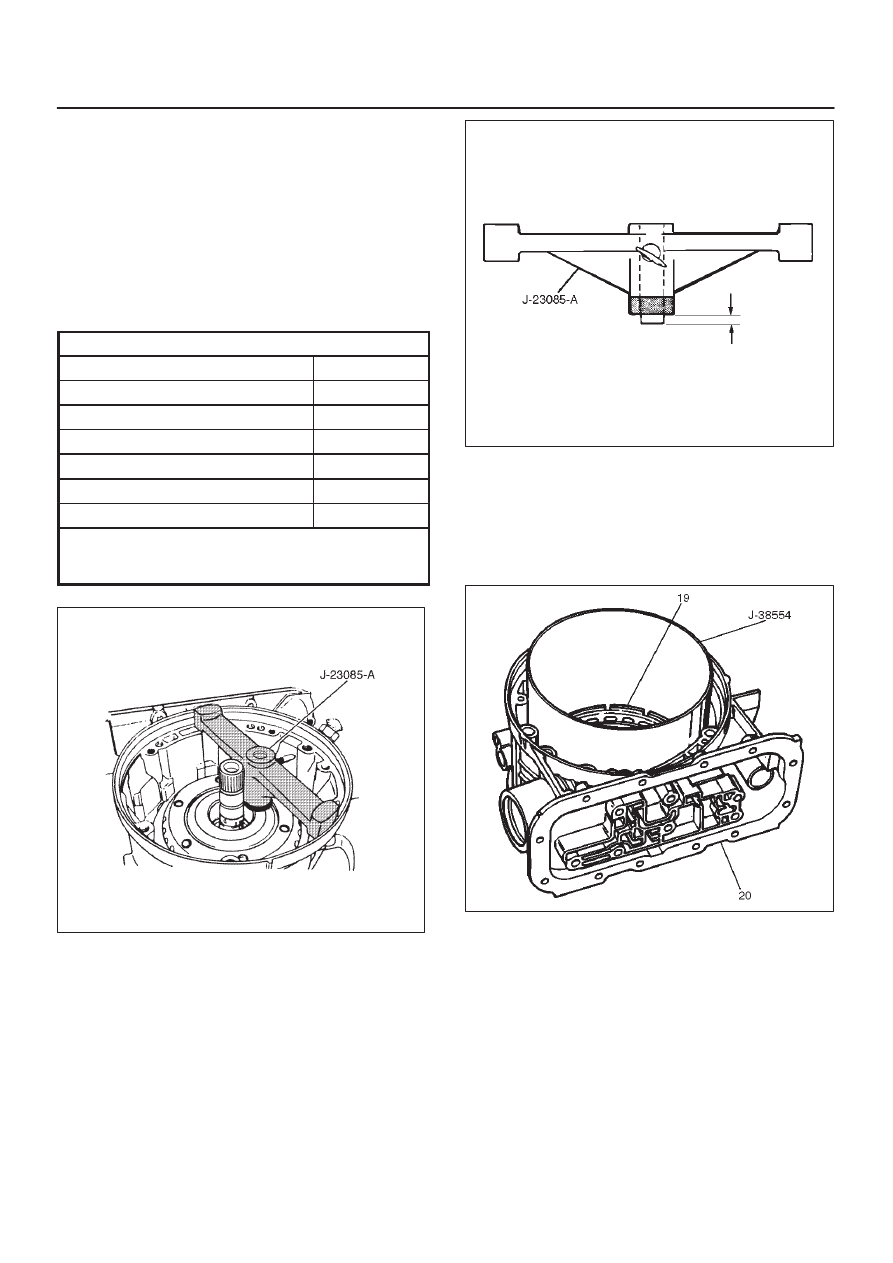

7A–61 AUTOMATIC TRANSMISSION (4L30–E) 22. Second clutch end play measurement 1. Install the J–23085–A Selective washer gauging tool (with spacer ring) on the case flange and 2. Position the inner shaft of the gauging tool against the thrust surface of the second clutch hub. 3. Tighten thumb screw. Remove the tool. 4. Fit the spacer ring on the inner shaft of the tool. 5. Measure the gap, and select the appropriate washer as shown in the chart. Selective Thrust Washer Gap: mm(in) Color 1.53 – 1.63 (0.060 – 0.064) Yellow 1.72 – 1.82 (0.068 – 0.072) Red 1.91 – 2.01 (0.075 – 0.079) Black 2.10 – 2.20 (0.083 – 0.087) Natural 2.29 – 2.39 (0.090 – 0.094) Green 2.48 – 2.58 (0.098 – 0.102) Blue FOLLOWING THE PROCEDURE SHOULD 247R100001 247RS004 23. Inspect fourth clutch piston seals and replace if necessary. D Lubricate J–38554 fourth clutch piston fitter and D Install fourth clutch piston (19) in adapter case (20). D Remove fitter. 252RS003 |
