Index Isuzu Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross - service repair manual 1999-2002 year
|
|

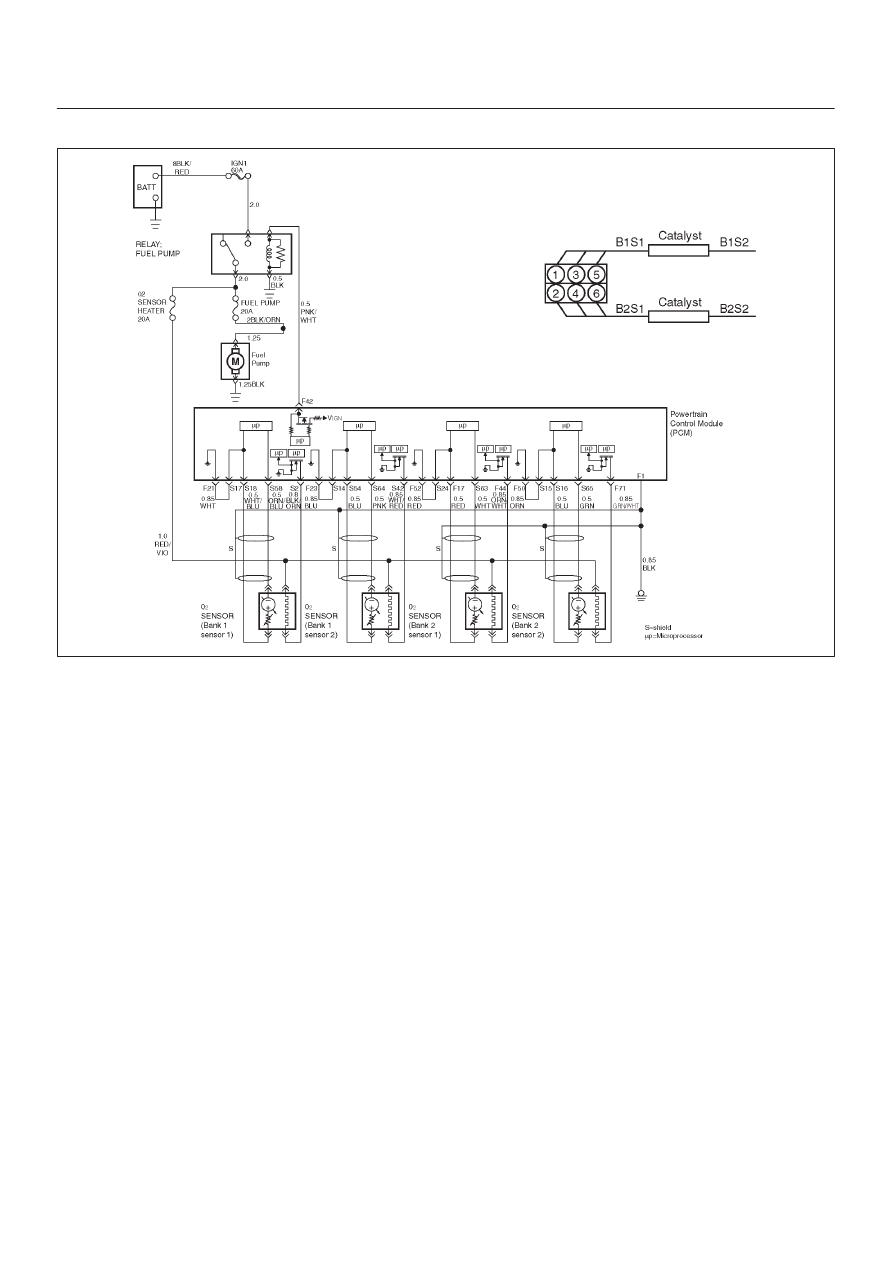

6E–234 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P0175 Fuel Trim System Rich Bank 2 060R200054 Circuit Description To provide the best possible combination of driveability, Conditions for Setting the DTC D None of the following DTCs are set: idle system, EGR, activity), MAF, TPS, MAP, IAT, canister purge, EVAP, D Engine coolant temperature is between 6 ° C (42.8 ° F) and 105 ° C (221 ° F). D Intake air temperature is between –40 ° C (–40 ° F) and 120 ° C (248 ° F). D Manifold absolute pressure is between 24 kPa and 99 D Throttle angle is steady between 3 and 95%. D Vehicle speed is below 136 km/h (85 mph). D Engine speed is between 400 and 6,000 RPM. D Barometric pressure is greater than 72.5 kPa. D Mass air flow is between 2 g/second and 200 g/second. D Ignition voltage is above 9.5 volts. D Fuel system is in “closed loop”. Action Taken When the DTC Sets D The PCM will illuminate the malfunction indicator lamp D The PCM will store conditions which were present Conditions for Clearing the MIL/DTC D The PCM will turn the MIL “OFF” on the third |
